ADDERView RD1716QIP-US RDX 5000IP KVM Rack Tray - 17 inch LCD Screen & AVX5016IP KVM Switch

RD1716QIP-US - Overview

• Features:

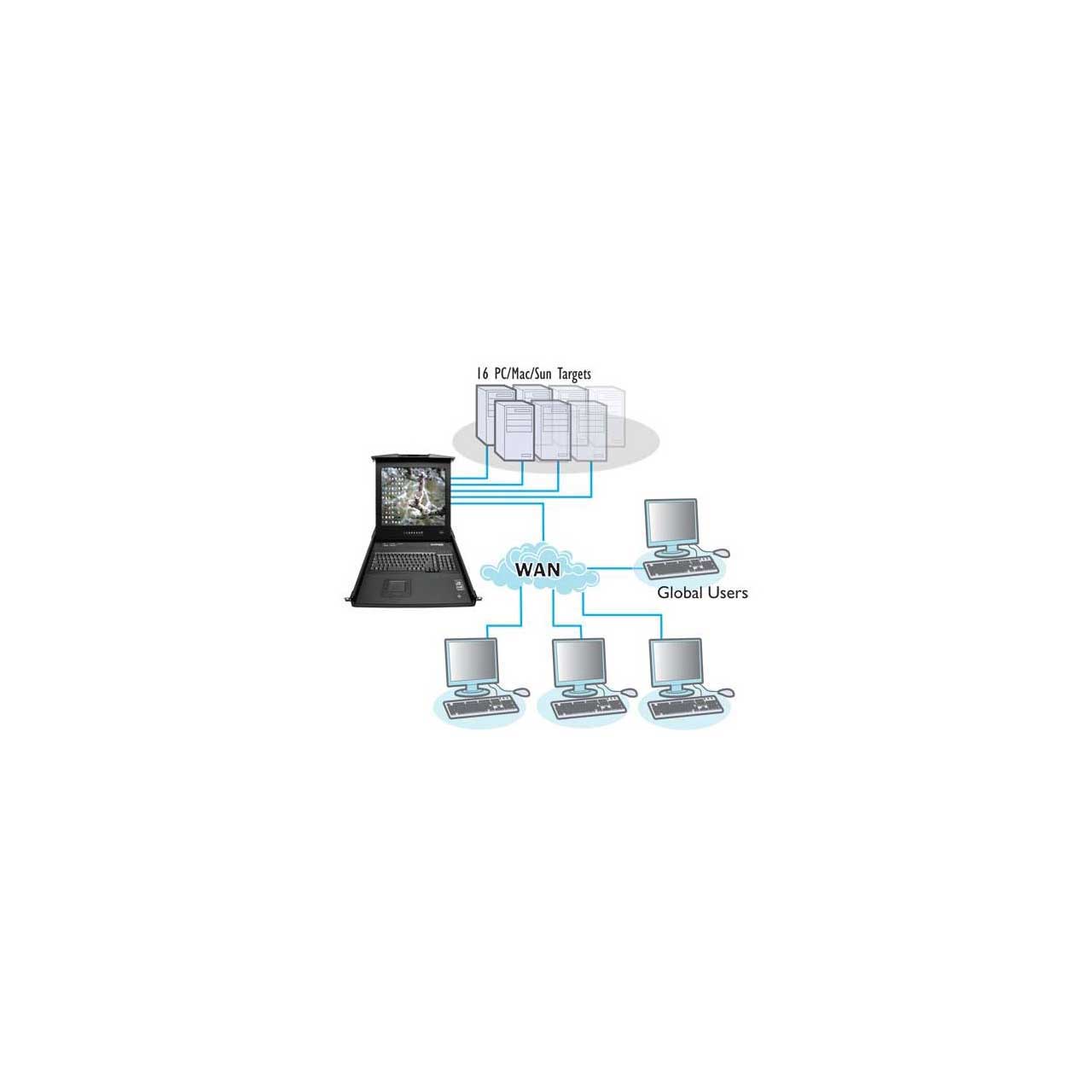

  • 4 simultaneous IP users: Enables 4 simultaneous global users to connect via IP to any of the 16 connected computers.
  • Multi-platform capability and connectivity: USB/PS2/SUN and serial connectivity on any type of server platform.
  • Serial console server (SCS): ADDER View RDX can also be used as a serial console simply by attaching the CATX-CONSOLE computer access module. This gives you out of band access to command line interface (CLI) devices as well as console access to network switches.
  • LDAP integration plus ADDER.Net management software: Automating the task of managing your network hardware and authenticating users against your existing LDAP infrastructure.
  • RS232 port: Integrated RS232 gives you the ability to control other external devices such as power management devices.
  • Configuration and extension: The ADDER View RDX 5000 enables you to configure 16 separate users internally with unique access privileges all of which are stored within the switch. A CATx5000 can be cascaded from the unit to enable control of 256 computers from 64 IP users.
  • Ecopulse circuitry: Ecopulse powers down unnecessary circuits when not required reducing power requirements. Over the life of the product this will save significant power.
  • Encryption and authentication: The enterprise grade integrated KVM over IP switch employs AES128 bit encryption and RSA2048 authentication ensuring your control system remains secure at all times.
  • Intelligent video thresholding: ADDER's innovative active de-artifacting technology automatically calculates the ideal threshold for any computer or KVM switch so that video displays are refreshed with optimum immediacy - while "screen junk" is kept to an absolute minimum.
  • Flexible screen scaling: ADDER solutions provide point-and-click screen scaling, so that users can quickly accommodate target devices running any size display with any aspect ratio. ADDER solutions also allow users to easily override scaling if and when they require unscaled pixel-to-pixel mapping.


• Specifications:

  • Video Modes:
  • Support for standard PC, Sun and Mac video modes.


  • Operating Systems and Software Compatibility Software:
  • All commonly known software and operating systems including Windowsr, Linuxr, macOSr, and Sun OS


  • Extendable platform:
  • Cascade a CATxIP 5000 to extend the system to 256 computers and 64 global IP users.


  • Connections:
  • CATx computer connections: all RJ45 style. 10/100 auto-sensing Ethernet network port: RJ45. Power connection: Locking 3 pin connector (12V DC, 5A). RS232 triggered power switching and syncing: DB9 plug.


  • Physical design:
  • Compact 1U high metal case construction for rack mounting
  • Width: 589mm/17.4",
  • Height:44mm/1.76",
  • Depth: 650mm/25.6".
  • Weight: RD1716QIPXX 15kg/33lbs,
  • RD1916QIPXX 17kg/37lbs.


  • Power supply:
  • Mains adapter with IEC style power lead (included).


  • Input:
  • 100-240VAC 0.5A 50-60Hz.


  • Output:
  • 12VDC 5A


  • Operating temperature:
  • 0 to 35°C


  • Approvals:
  • CE, FCC, UKCA


• Item Includes:

  • RD1716QIP-US RDX 5000IP KVM Rack Tray with 17 inch LCD Screen & AVX5016IP KVM Switch


• Warranty:

  • 2 Year Limited


• GTIN:

  0609385879470
