ADDERLink X-USBPRO-US VGA/Audio/Transparent USB2.0 300m/984ft over a Single CATx Cable

X-USBPRO-US - Overview

• Features:

  • Digital like video: VGA resolutions of 1920 x 1200 @60Hz are achievable at 300m/984ft. This is achievable by including a variable noise lter which overcomes issues introduced by increased gain as the length of the cable increases over 200m/656ft.
  • Video compensation: A multi-pole compensation technique is used enable superb video quality at maximum distance over a single cable. For the first time, adjustment can be made for cable type and cable length with further color skew compensation and gain adjustment to ensure crystal clear images, all from the receiver's keyboard.
  • Local feed through port: A local feed through port is provided for audio and video so a local console can be used.
  • USB powered transmitter: The transmitter is powered via the USB port to reduce the need for external power supplies. There is an option for an external power supply if the USB port has insufficient power.

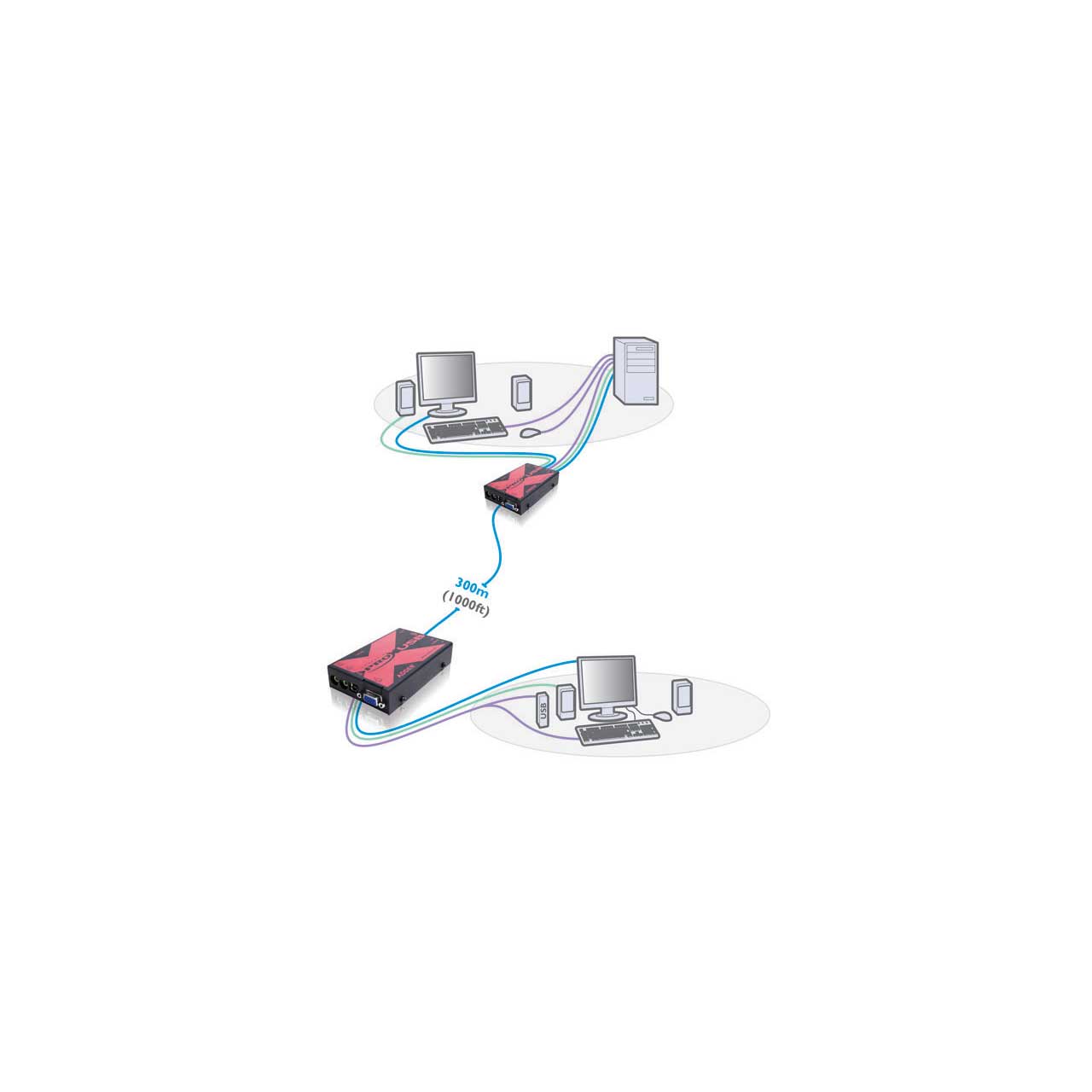

  • Dual user configuration: Two ADDERLinkTM X-USB PRO units can be linked to a single computer so two users can access the system. When using two sets of X-USB PRO modules to allow two users to access a single computer the arbitration between the users is handled by the USB sub- system of the computer. This means that both users can control the computer at exactly the same time and the resulting keyboard and mouse influences will be an amalgamation of the two inputs
  • Emulated two page DDC EDID: This extender supports full two page DDC EDID. Some high performance video cards require the two page data or they will not deliver optimal performance.
  • USB support: The X-USB PRO extends USB2.0 (low and full speed) allowing all USB compatible accessories (including isochronous devices) to be extended. The receiver unit has a built in 4 port USB hub to enable a complete desktop to be located remotely, including a keyboard, monitor, mouse, disk drive, ash memory stick, webcam, and any other device that would normally be plugged into your computer's USB port.
  • Audio: Audio transmission delivers CD quality stereo audio for speakers.
  • Rack options: Both transmitter and receiver units can be used stand-alone or up to 16 units can be mounted into a 2U chassis.


• Specifications:

  • Video resolutions:
  • All resolutions up to1920x1200 @60Hz, including 1600x1200, 1080p, 1680x1050

    Extension distance:
  • 200m/656ft using CAT5 Trunk cable
  • 250m/820ft using CAT5e Trunk cable
  • 300m/984ft using CAT6 Trunk cable
  • 300m/984ft using CAT7 Trunk cable
  • 200m/656ft using CAT7a Patch cable

    Skew compensation:
  • 62ns de-skew with 2ns resolution (1/4 pixel at 1600x1200)

    USB devices supported:
  • Supports all USB 1.1 devices (full speed and low speed modes) and USB 2.0 devices that will run in low speed or full speed USB 1.1 modes

    O/S compatibility:
  • All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc

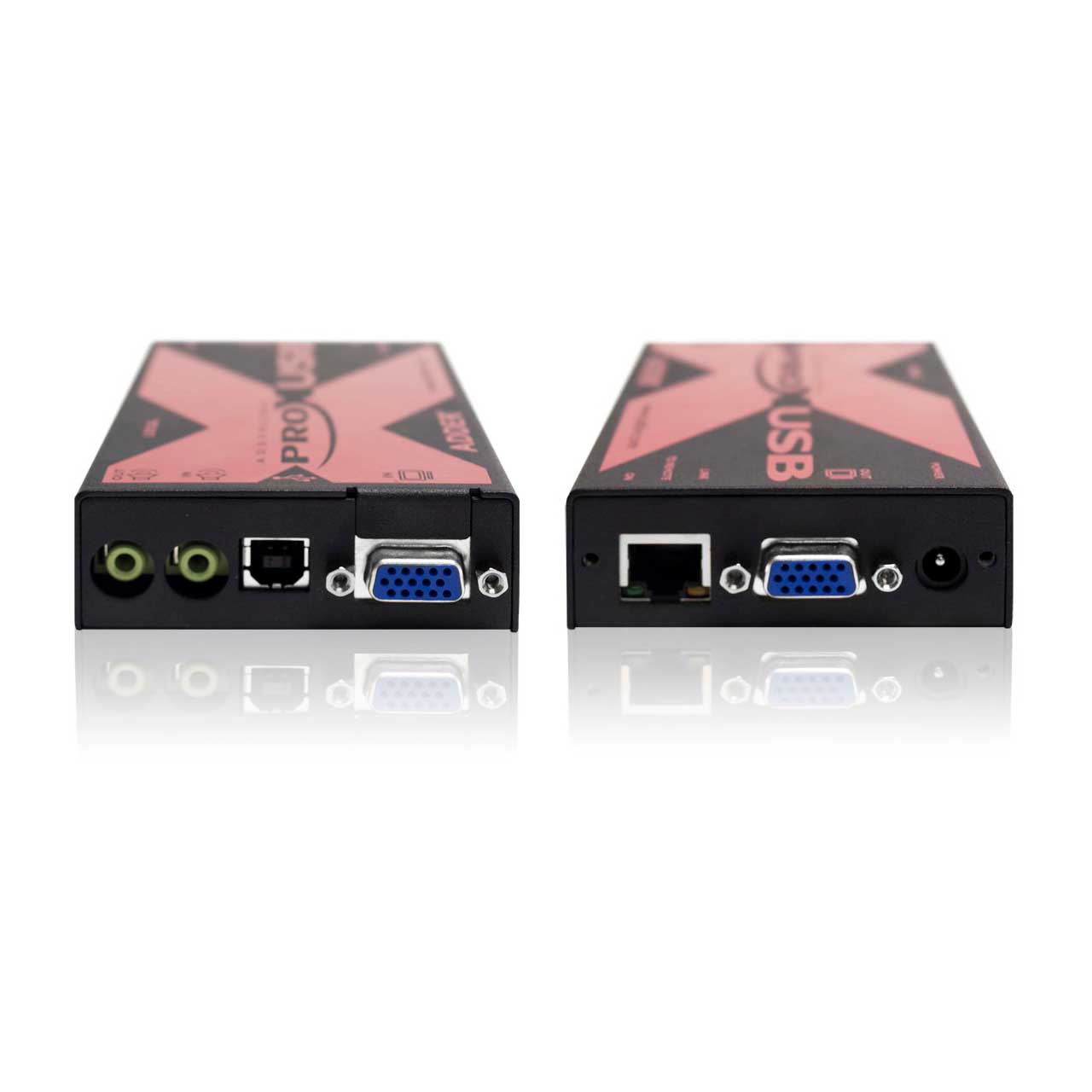

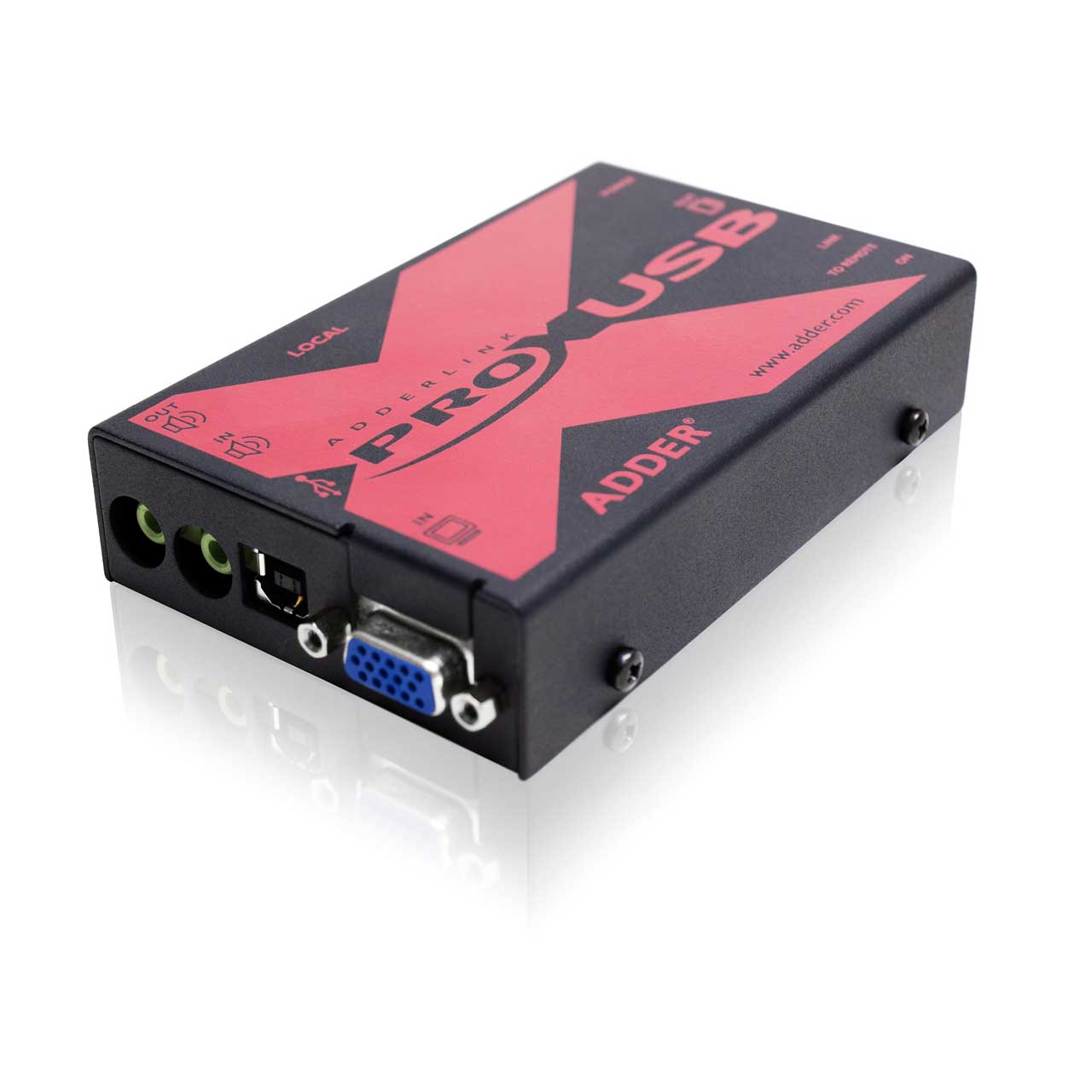

    Connectors (local computer-end unit):
  • 1 x USB type B connector
  • 2 x 15-pin high-density D-type female connector (blue)
  • 2 x 3.5mm audio jack (light green)
  • 1 x RJ45
  • 1 x 2.5mm DC jack for optional power adapter (only required for video only applications)

    Audio (end to end):
  • 2 channel 16 bit Audio @ 44.1 KHz
  • THD+N typically -80dB at 1kHz
  • SNR typically 85dB at 1kHz

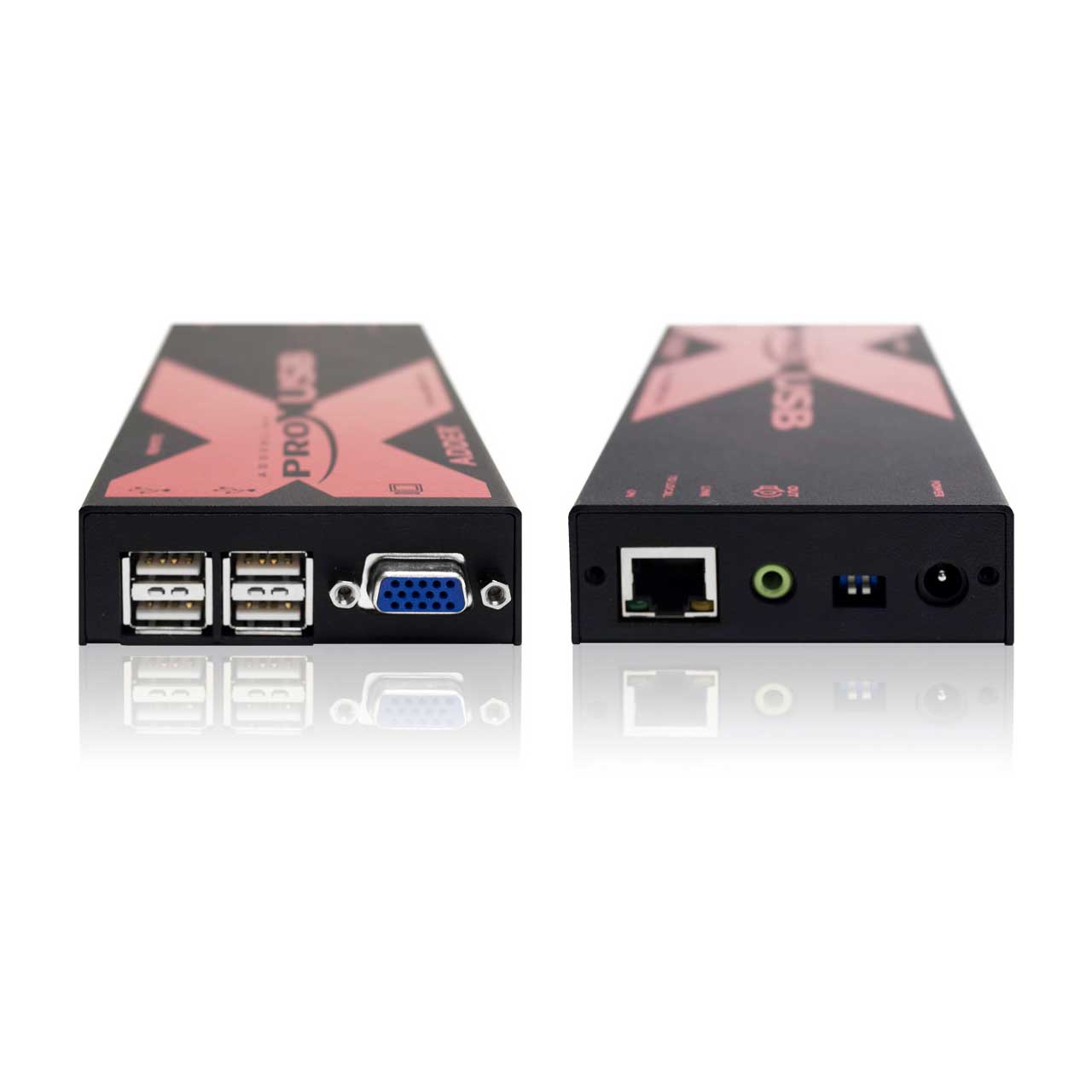

    Connectors (remote console-end unit):
  • 4 x USB type A connectors
  • 1 x 15-pin high-density D type female connector (blue)
  • 1 x 3.5mm audio jack (light green)
  • 1 x RJ45
  • 1 x 2.5mm DC jack for power adapter

    Physical (Local and Remote units):
  • Remote Dimensions: 6.38 x 1.02 x 2.95" (162 x 26 x 75mm)
  • Remote Weight: 0.95 lbs (430g)
  • Local Dimensions: 4.80 x 1.02 x 2.95" (122 x 26 x 75mm)
  • Local Weight: 0.77 lbs (350g)
  • Fits into one slot width in the X-Series rack mount chassis (16 units fit into 2U of rack space)

    Power supply:
  • 100 - 240VAC, 50/60Hz input - 5V, -12W output

    Operating temperature:
  • 0° to 40°C/ 32° to 104°F

    Approvals:
  • CE, FCC class A


• Item Includes:

  • 1x X-USBPRO local unit
  • 1x X-USBPRO remote unit
  • 1x USB (A to B) lead
  • 1x Video lead (15 way, male to male)
  • 1x Power adapter and power lead
  • 1x Audio lead (3.5mm jacks)


• Warranty:

  • 2 Year Limited


• GTIN:

  0609385490859
