ADDERLink XD150-US Single Link DVI & USB2.0 KVM Extender System - TX/RX - 492 feet/150 meters

XD150-US - Overview

Extension Distances ranging from 150m(492ft) for a single 1920 x 1080 screen to 100m(330ft) for a single 1920 x 1200 screen

• Features:

  • Extension Distances: flexible resolution versus extension distance options, ranging from 150m (492ft) extension distance for a single 1920 x 1080 screen to 100m (330ft) extension distance for a single 1920 x 1200 screen
  • Transparent USB 2.0 (Low, Full, High Speed): for a whole range of USB devices including keyboards, mice, tablets, touch screens and mass storage devices, connected via the built-in 4-port USB hub
  • Perfect digital video, real time control: uncompressed video extension with every pixel of every frame transferred with zero loss and in real-time
  • Single CATx extension cable: shared by video, USB 2.0, audio and RS232 signals, RS232 can be passed between the units to a maximum baud rate 115K2 via the options port. Adder's RC4 remote key switch is also supported
  • Plug and Play: straightforward installation with no need for extra drivers or software
  • Locking power connectors: locking 3 Pin DC jack with 2 power adaptors included
  • CD quality analog audio: stereo channel 16bit sampled at 44.1kHz is available to transfer stereo audio from local to remote for Line Out
  • Intelligent operation, compatibility and future-proofing: EDID (Extended Display Identification Data) allows the true characteristics of the monitor to be passed back to the computer; KVM switch mode for optimal KVM device compatibility; complete system is flash upgradeable from the computer end
  • Space-saving rackmount kit: easy-access 19" rack mounting kit with two units per 1U of rack space


• Specifications:

  • Hardware compatibility
  • All computers with DVI, USB and audio.


  • DVI Interface
  • The system supports resolutions to a maximum of 1920 x1200@60Hz.


  • USB 2.0
  • Supports USB 2.0 devices (low, full and hi-speed).
  • Isochronous devices are supported.


  • Software compatibility
  • All known operating systems.

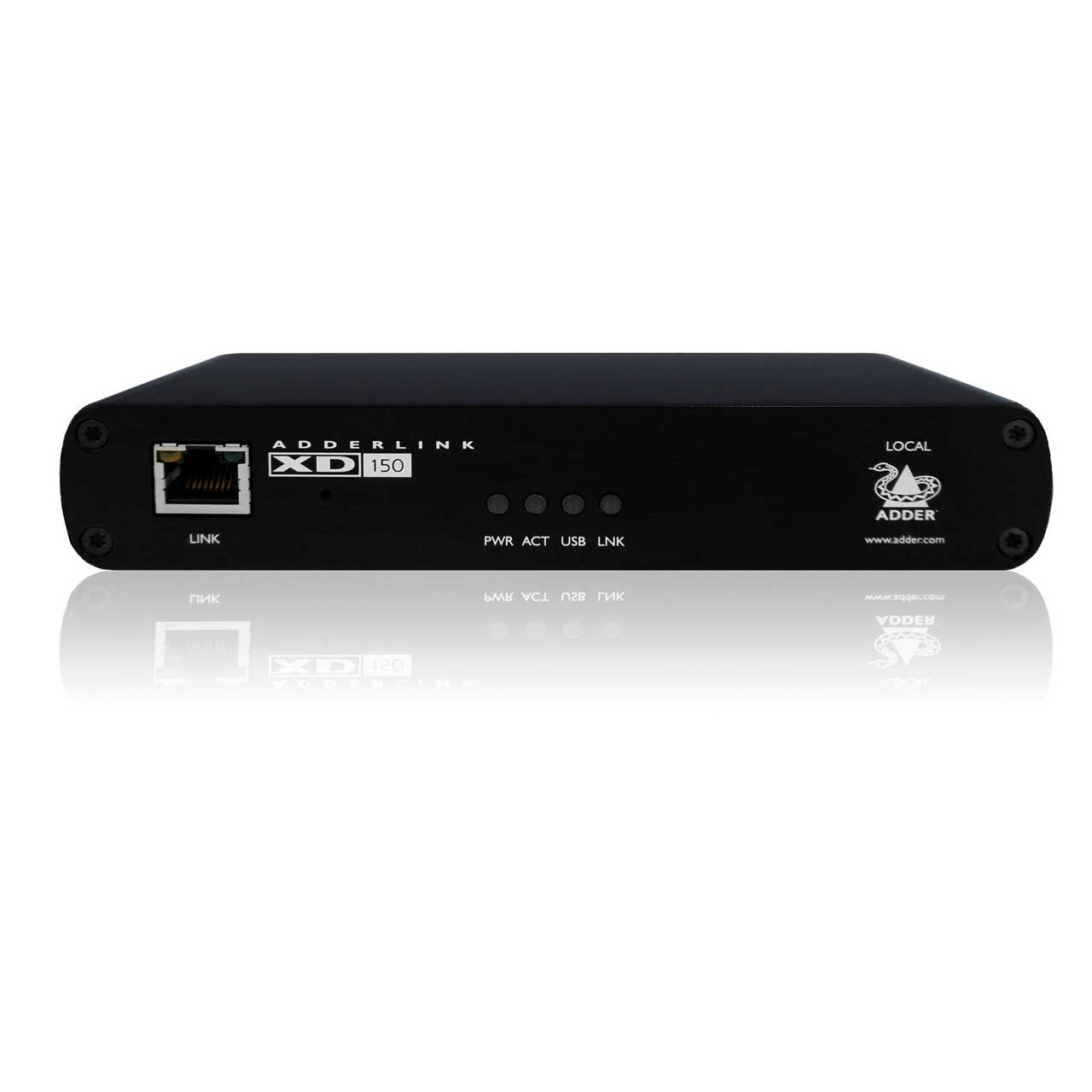

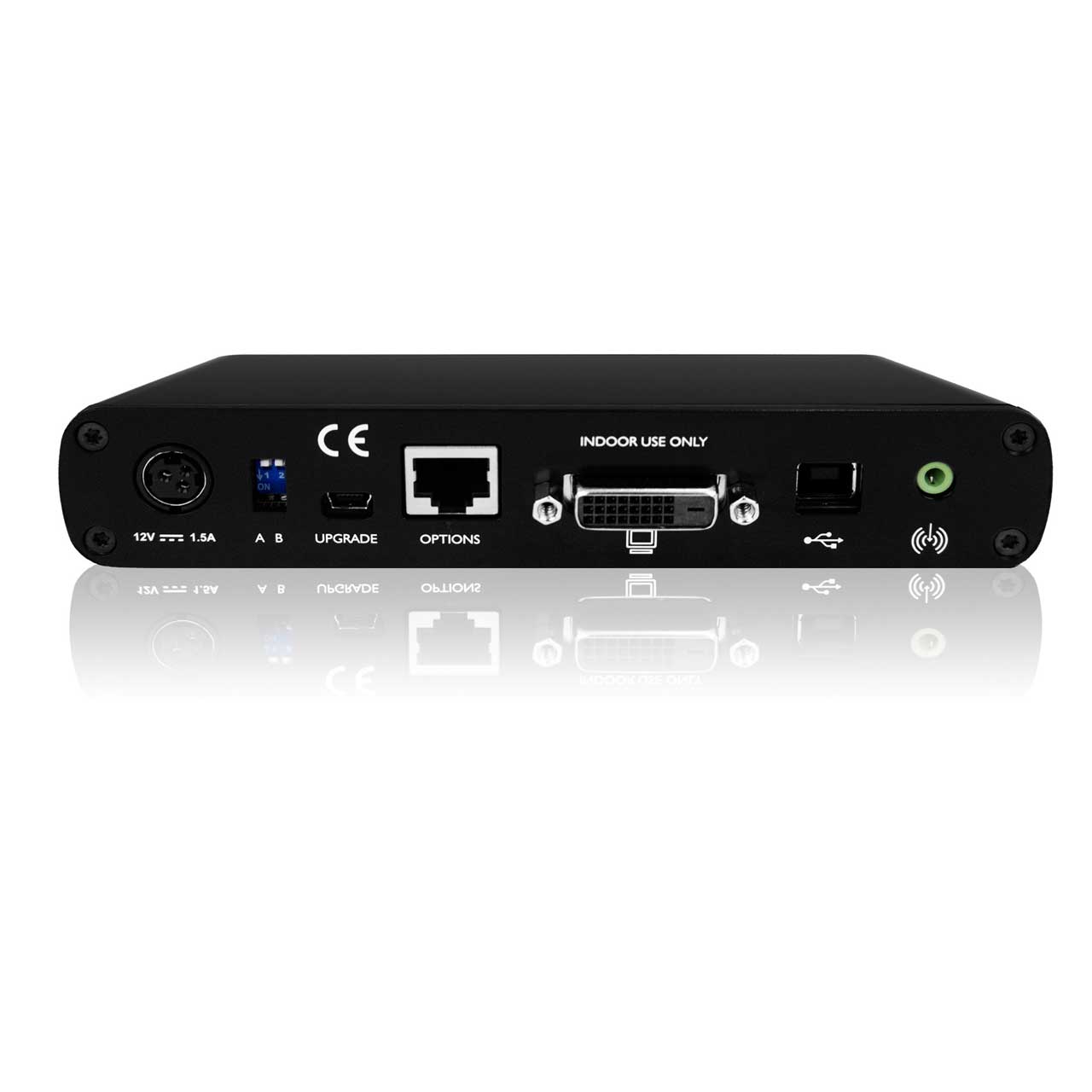

  • Computer connections LOCAL transmitter
  • DVI A
  • Audio 3.5mm in
  • USB type B
  • RS232 10p10c options port
  • Micro USB for firmware upgrade.

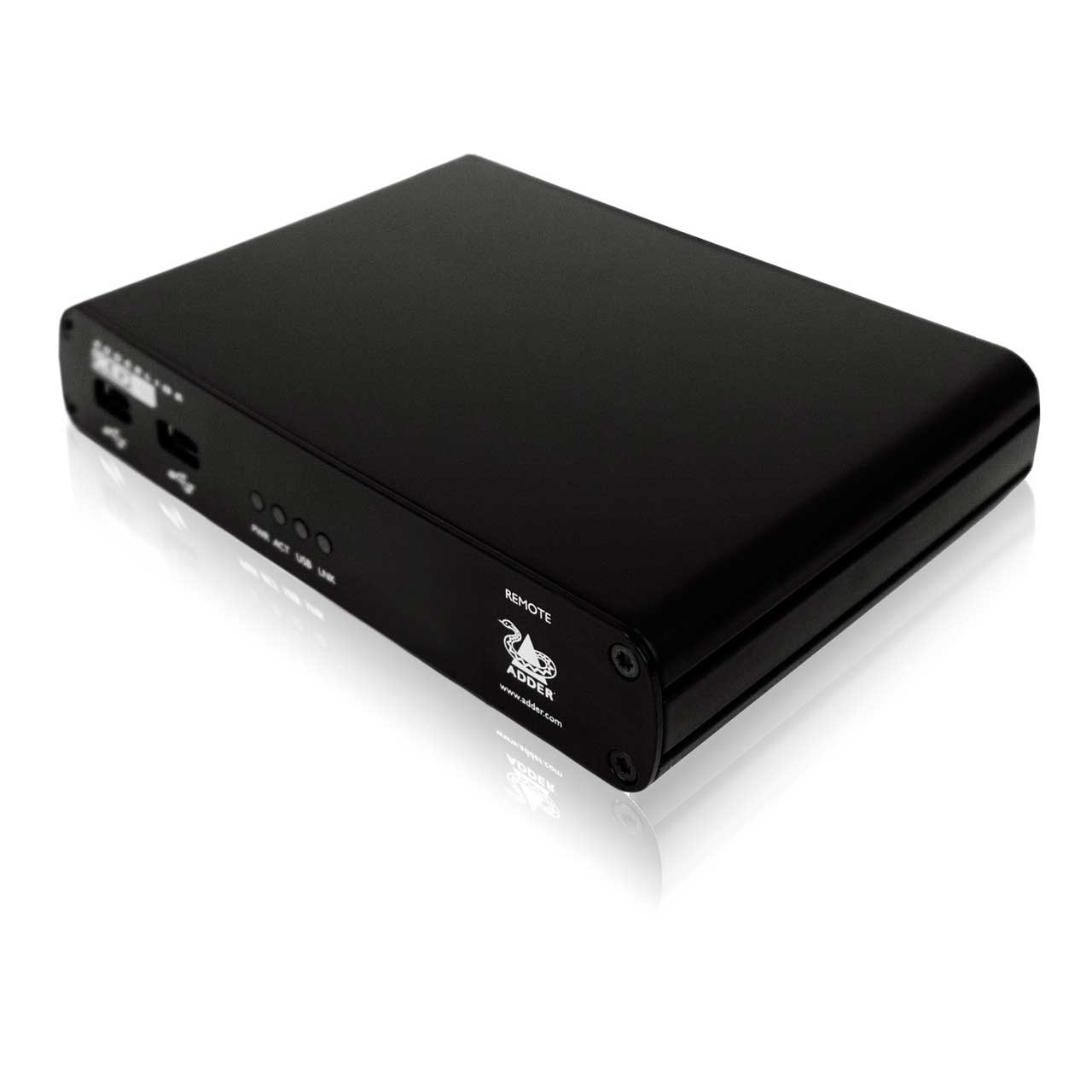

  • Peripheral connections REMOTE receiver
  • DVI
  • Audio 3.5mm out
  • USB type A x 4,
  • RS232 10p10c options port.


  • Physical design
  • Compact case, robust metal construction.
  • 169mm/6.65" (w), 31mm/1.22" (h),
  • 120mm/4.8" (d), 0.6kg/1.3lbs.


  • Power
  • 3 Pin Locking DC jack (2 x power adapter included),100-240VAC 50/60Hz, 0.7A, input to power adapter
  • 12VDC 18W output from power adapter.


  • Operating temperature
  • 0 to 40°C / 32 to 104°F.


  • Approvals
  • CE, FCC.


• Item Includes:

  • XD150 local TX and remote RX modules
  • 2x Locking power supplies
  • 1x Video cable DVI-D to DVI-D
  • 1x USB cable 2m (A to B)


• Warranty:

  • 2 Year Limited


• GTIN:

  0609385906121
