AIDA Imaging GEN3G-200 3G-SDI/HDMI Full HD Genlock Camera

ITEM #: AIDA-GEN3G-200 MFG #: GEN3G-200

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AIDA-GEN3G-200

GEN3G-200 - Overview

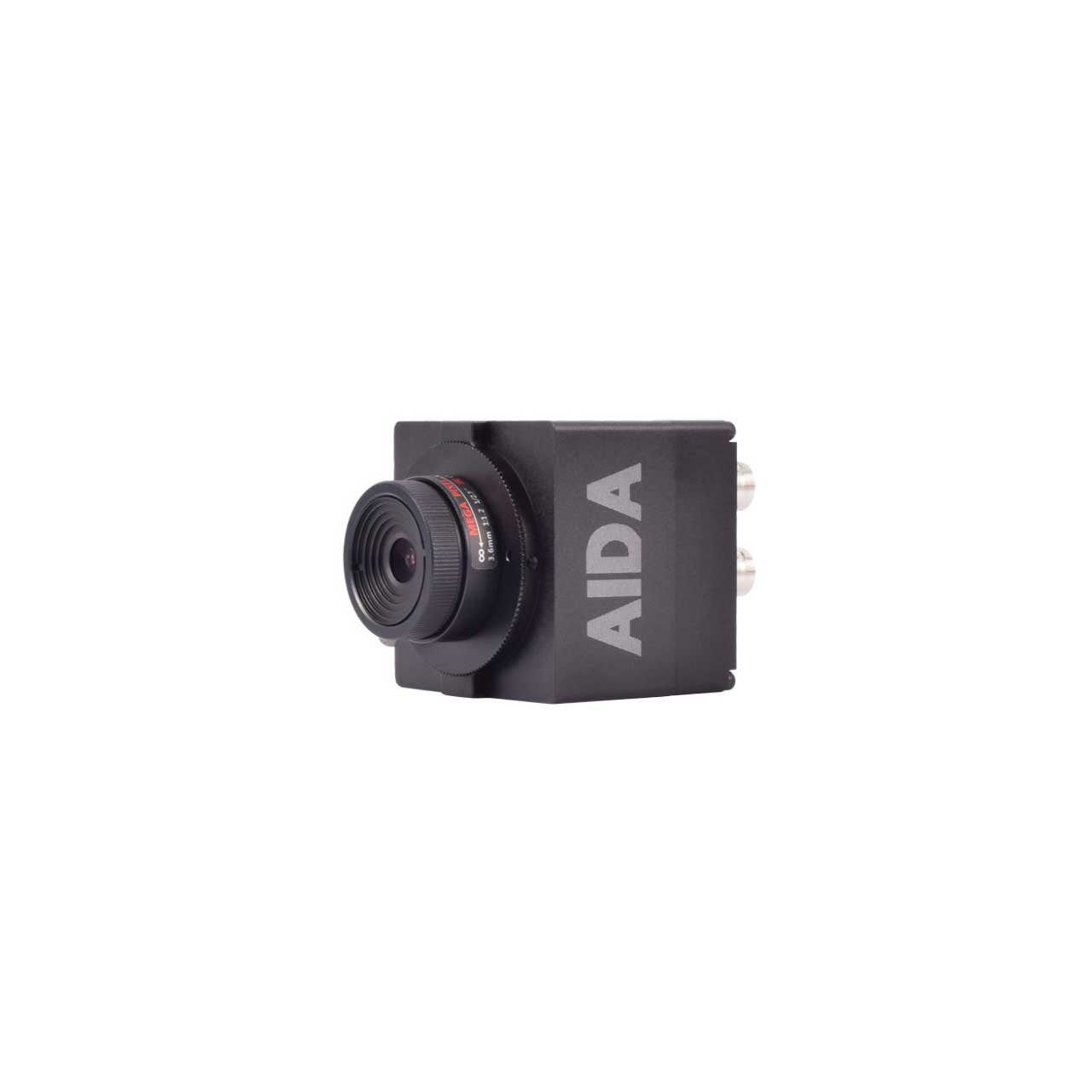

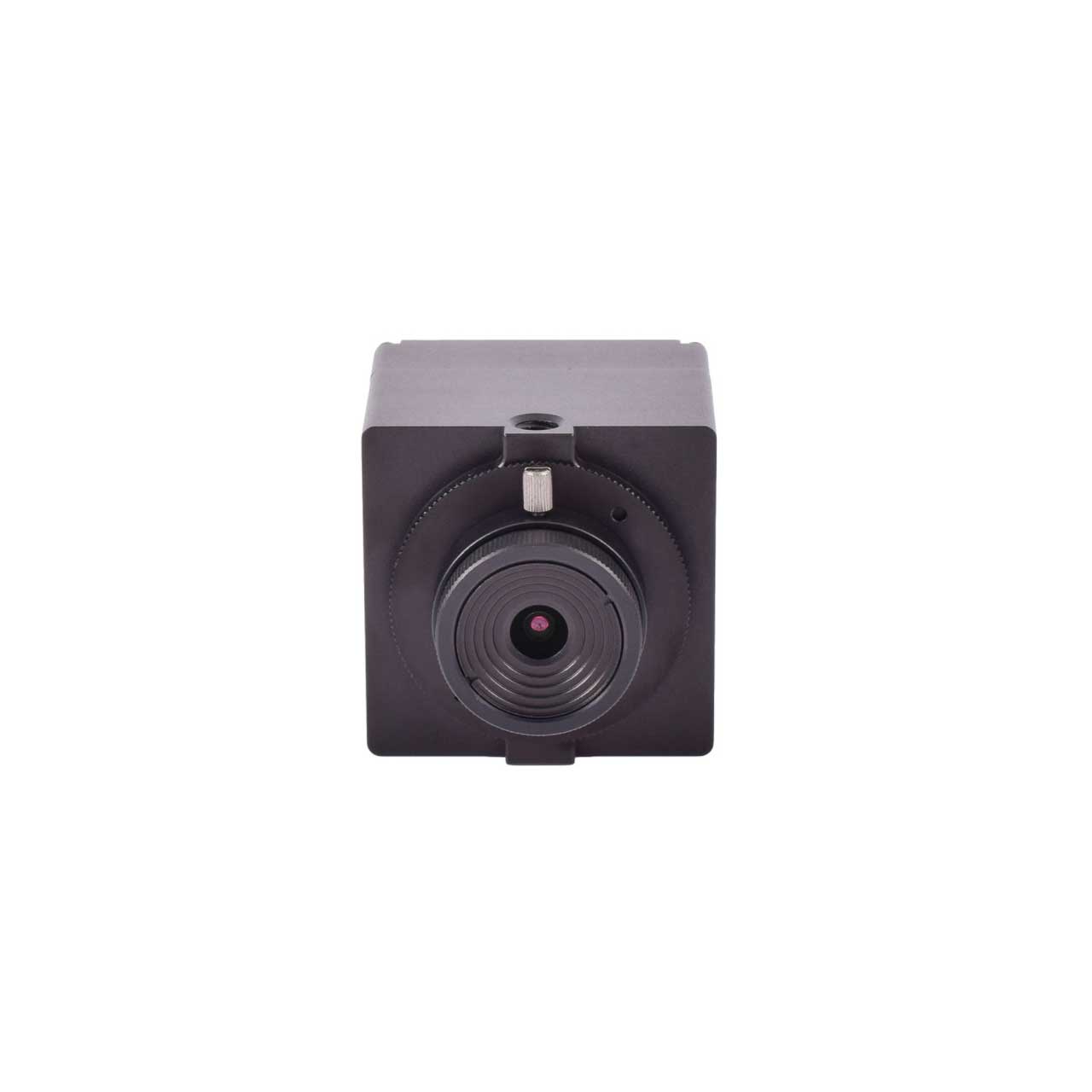

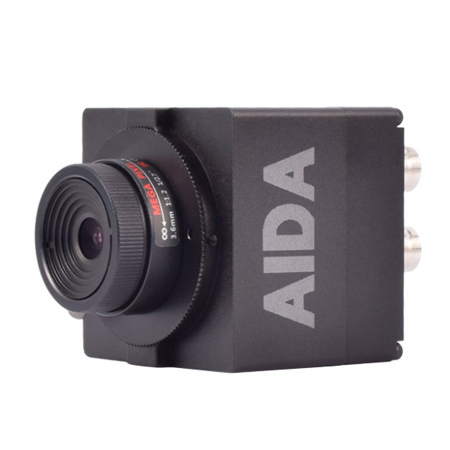

GEN3G-200 is a compact HD 3G-SDI Broadcast Camera that produces clear and crisp HD video suitable for use in a broad range of HD video applications. AIDA GEN3G-200 provides HD video in a compact and rugged form factor. The camera features Self-Adaptive Genlock Tri-level Sync, built-in OSD for customizable image settings, inter- changeable lens design making it compatible with auto-iris CS and C mount lenses and audio input that can relay embedded audio via SDI & HDMI. AIDA GEN3G-200 is a go-to camera for a multitude of video production workflows.

  • Features:

    • Full HD Progressive Scan sensor captures sharp and vivid color under different light conditions.
    • Advanced digital imaging processor provides vivid and detailed images by utilizing WDR, White Balance, and Noise Reduction.
    • Motion-Compensated temporal noise reduction filter leads to effective noise reduction for motion video without blur.

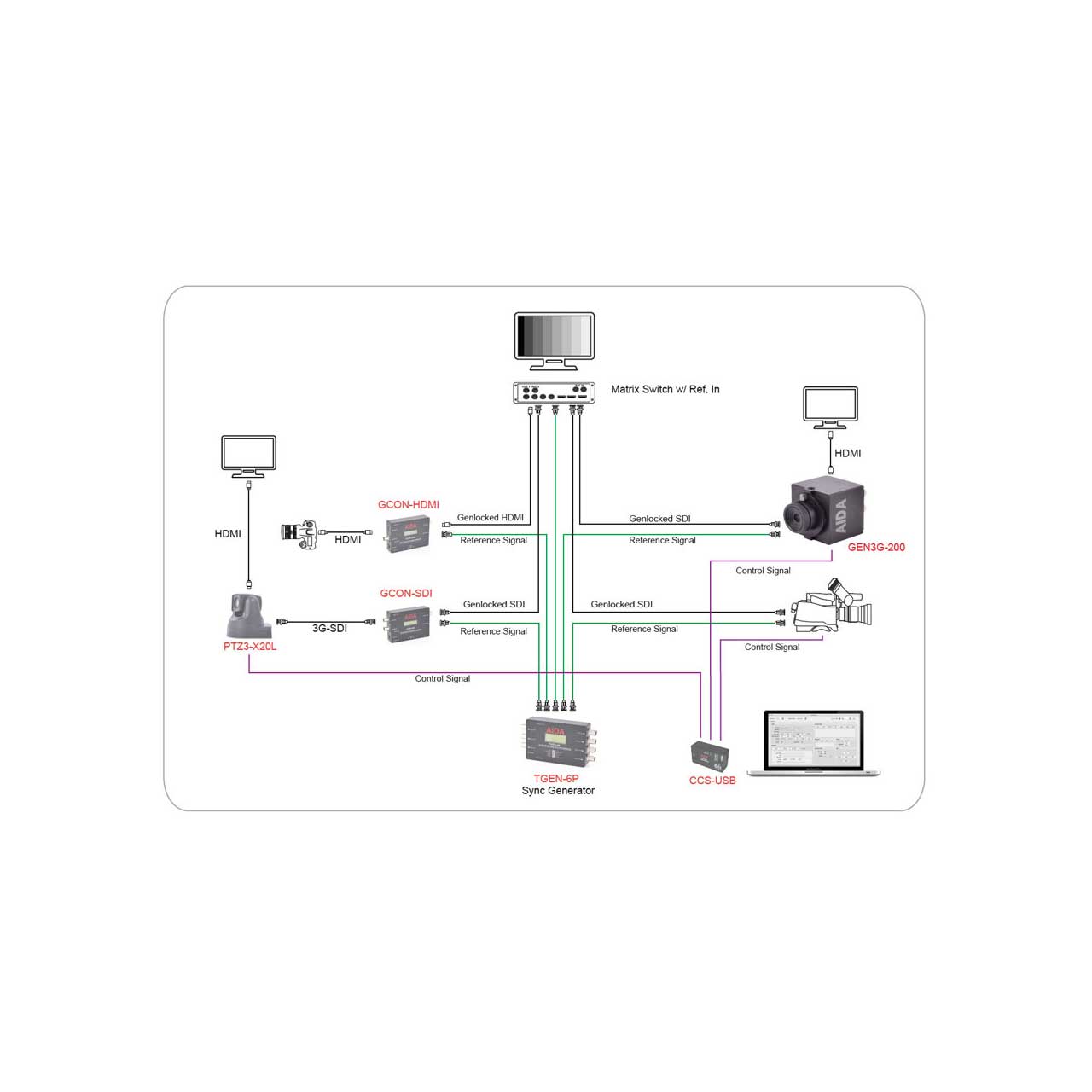

    • Tri level sync Genlock synchronizes GEN3 cameras and other system components for seamless vertical interval switching between sources.
    • 3G/HD-SDI & HDMI seamless video performance.
    • Compatible with other industry leading products, conforming with SMPTE 424M /292M standard.
    • Self-Adaptive Resolution Feature captures your reference feed instantly.
    • Black Level Set-up provides the better color transition from digital to analog.
    • Auto White balance and shutter speed provides the optimized performance in a variety of situations.
    • Interchangeable lens design making it compatible with auto-iris CS and C mount lenses.
    • Flawlessly relays embedded audio via SDI & HDMI.
    • Built-in OSD controls for customizable image settings.
    • Versatile, compact, and rugged design.


  • Specifications:

    • Video
    • Image Sensor: 1/3 inch Progressive CMOS
    • Sensor Size: 5.346mm x 3.003mm (16:9)
    • Effective Pixels: Horizontal: 1920, Vertical: 1080
    • Pixel Size: 2.75 micrometer x 2.75 micrometer
    • Resolution: 1080p & 1080i: 1920 x 1080; 720p & 720i: 1280 x 720
    • Resolution/Rate: 1080 60p/59.94p/50p/30p/29.97p/ 25p; 1080 60i/59.94i/50i; 720 60p/59.94p/50p/30p/25p

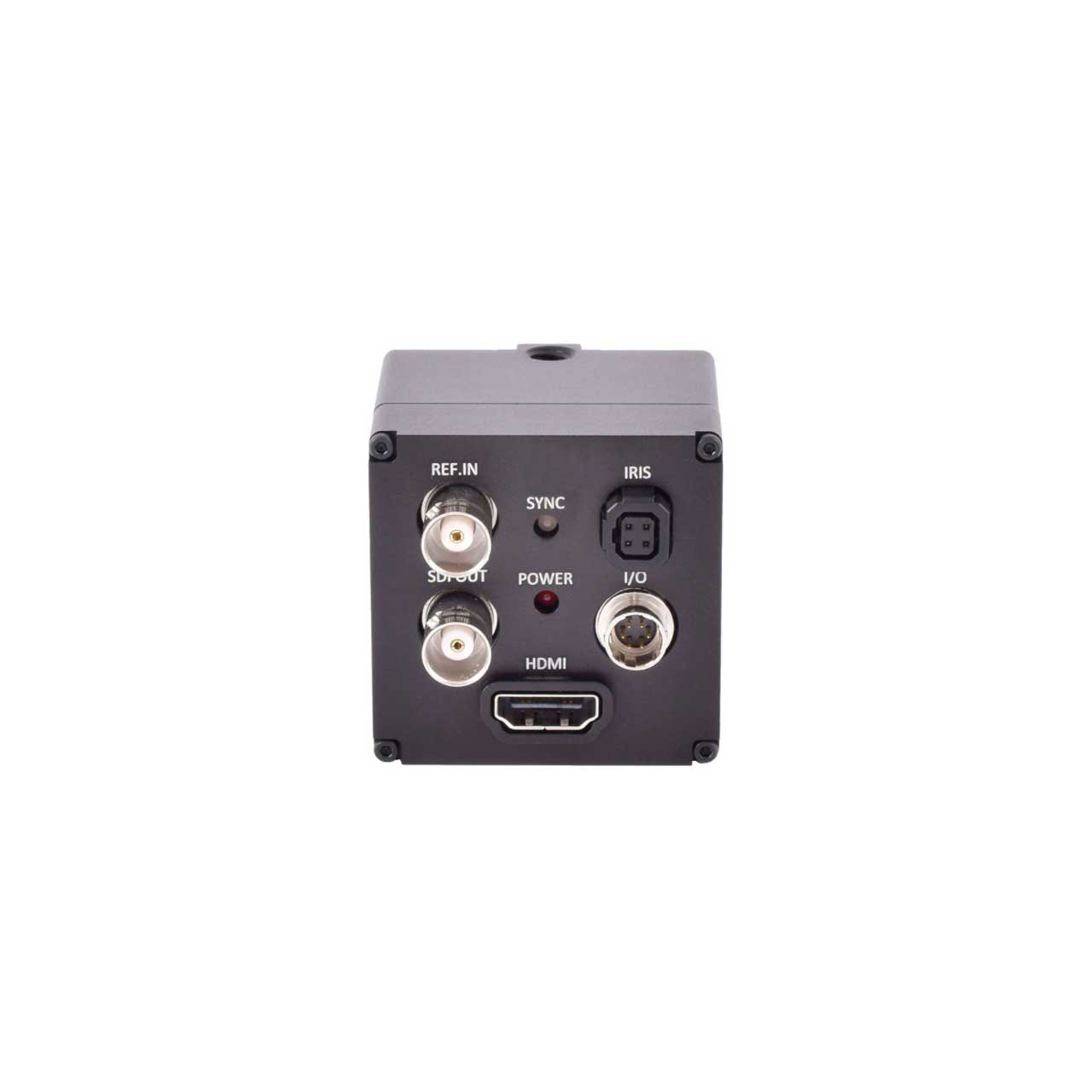

    • Output: HD-SDI/3G-SDI (1 BNC); HDMI 1.3a
    • Color Space: 4:2:2 (YCbCr) 10bit
    • Min. Illunination: 0.2Lux (Day), 0.1Lux (Night), 0.005Lux (Slow Shutter ON)
    • White Balance: Auto & Manual (19,000 K - 11,000 K)
      Lens
    • Lens: C/CS Mount (Default 3.6mm HD Lens)
      Audio
    • Audio Input: 3.5mm Analog Audio Input through I/O Cable
    • Sample Rate: 16 / 24 / 32 Bits
      Standard
    • SMPTE: SMPTE 292M, SMPTE 424M
      Synchronization
    • Genlock: External Tri-Level Input
      Physical

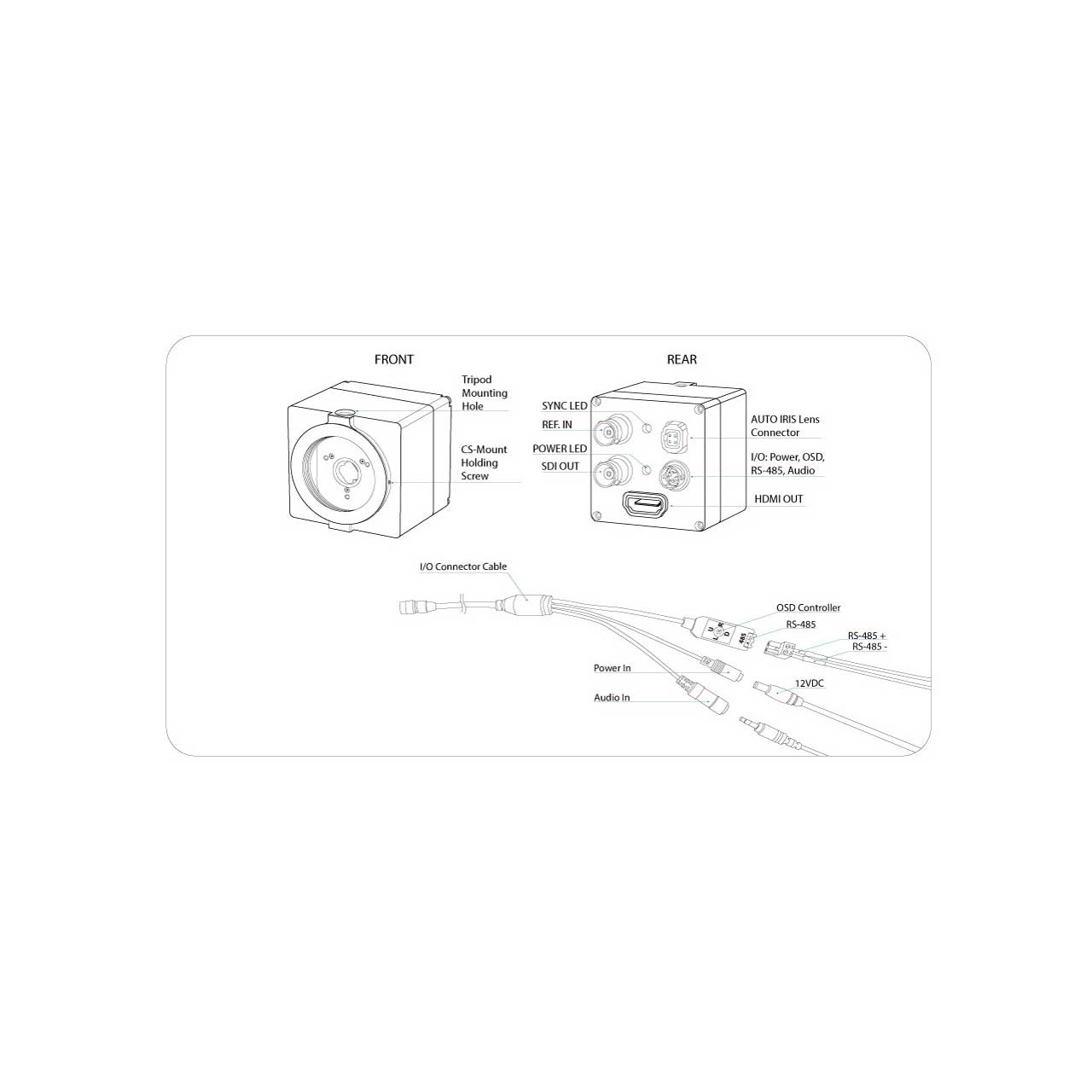

    • Camera Control: RS-485, OSD Button
    • Operation Temp: 32° F - 104° F
    • Dimension: 49mm x 49m x 71mm / 1.92" x 1.92" x 2.79" (With default 3.6mm Lens)
    • Weight: 180g / 0.39Lbs (With default 3.6mm Lens)
    • Power: 6W at 12VDC (+9 - +15VDC)


  • GTIN:

    0697691536354
