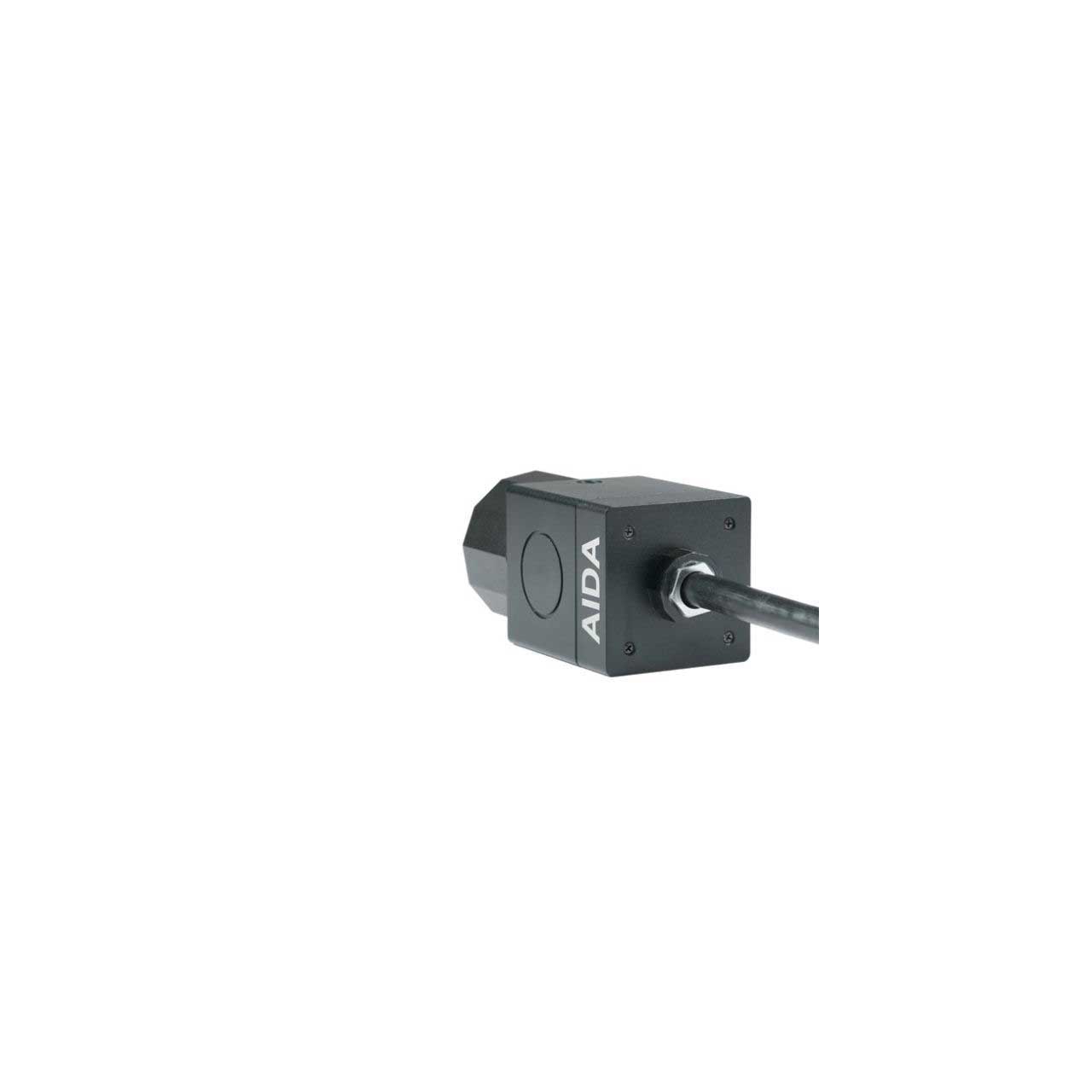

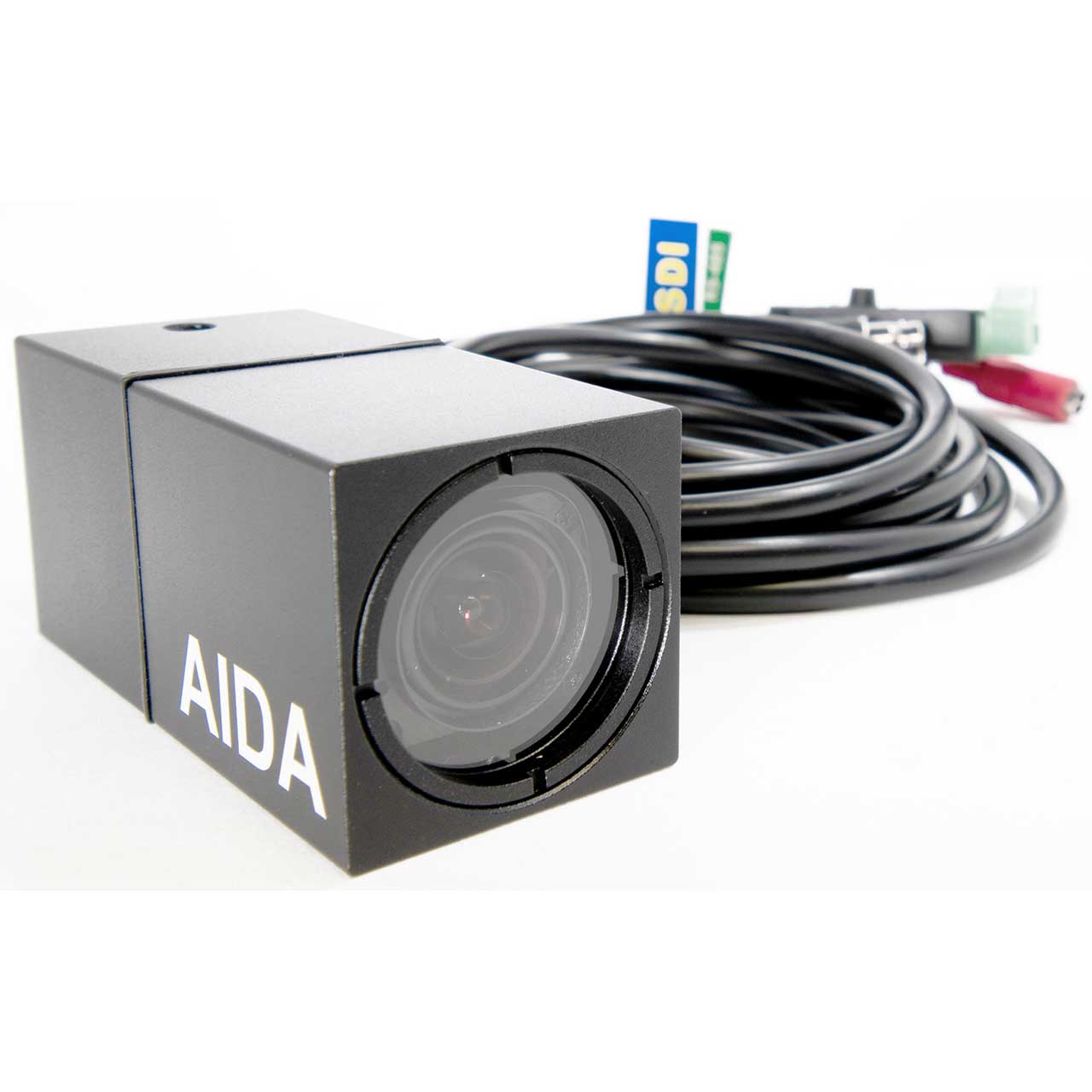

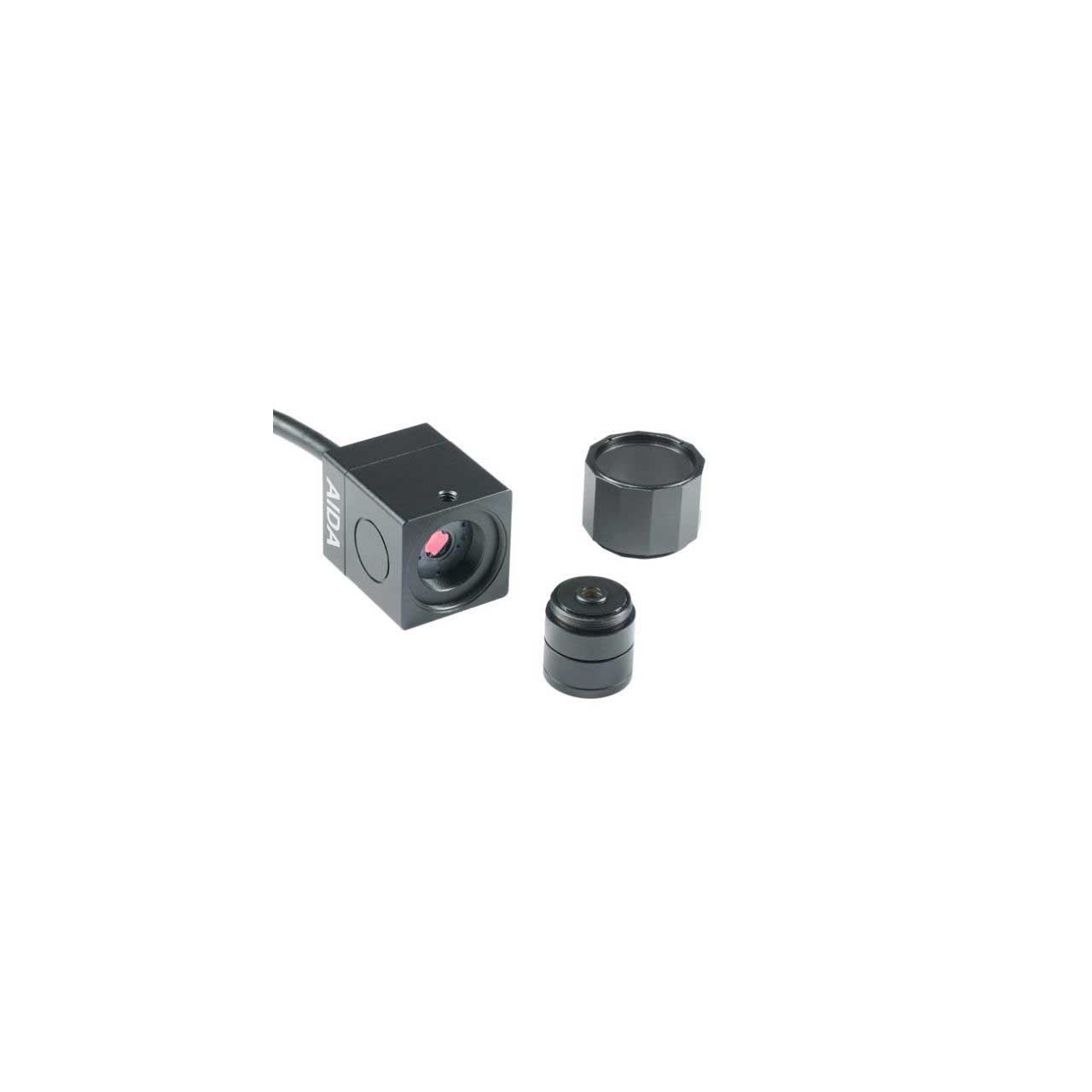

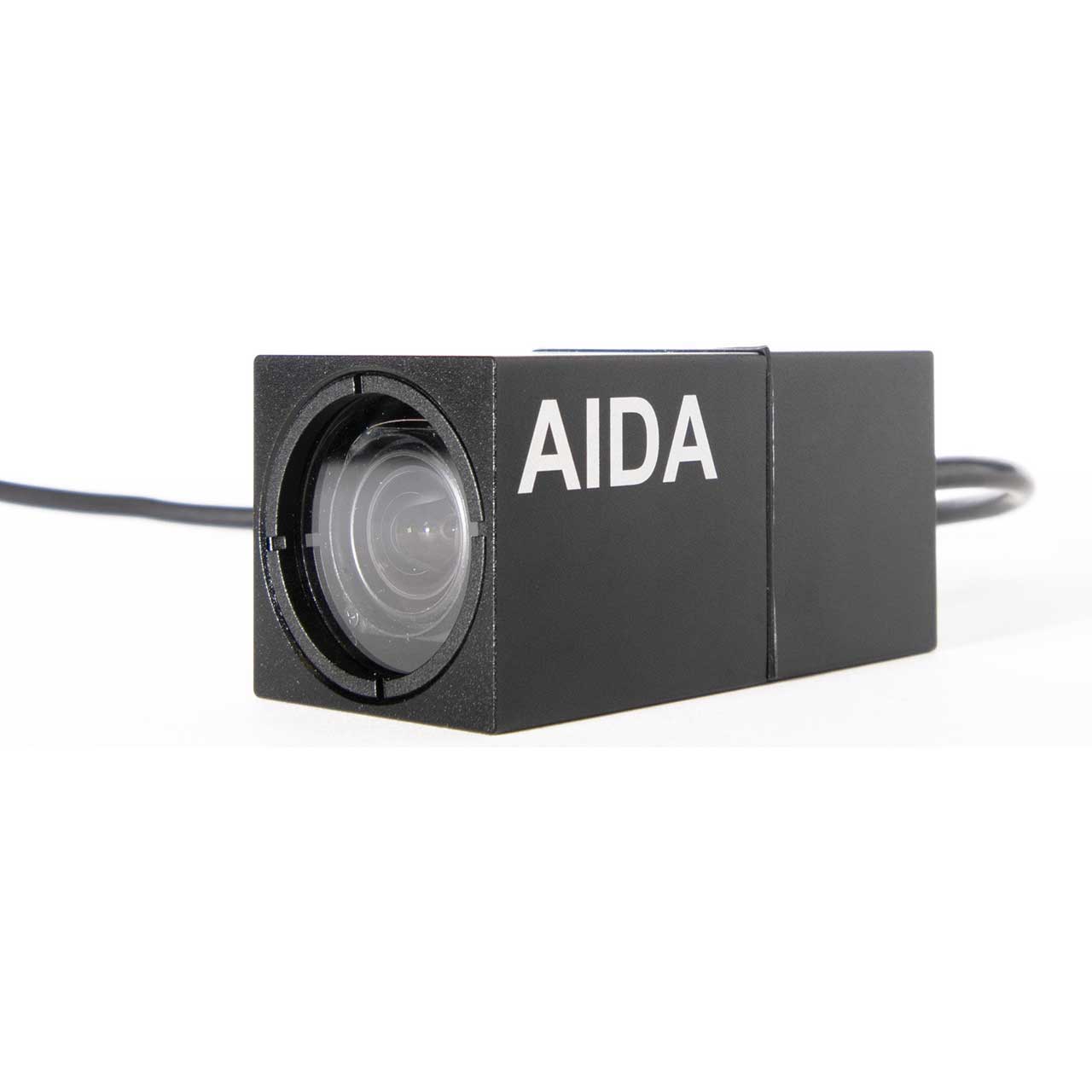

AIDA Imaging HD-X3L-IP67 Full HD 1080p60 Weatherproof 3G-SDI 3.5x Optical Zoom POV Camera

HD-X3L-IP67 - Overview

• Features:

  • Full-HD 1/3" Progressive Scan CMOS sensor captures sharp and vivid Full-HD video even under low light conditions.
  • X3 optical zoom features 78~ ~ 25~ wide angle of view.
  • Built-in zoom lens offers zoom, focus and iris control.
  • Advanced digital imaging processor provides vivid and detailed images by utilizing Dynamic Range, Auto White Balance, and Noise Reduction.
  • 10 ft weatherproof OSD breakout cable with power input, 3G-SDI out, and RS485 communications for remote control.
  • Perfectly suited for outdoor events, outdoor research, OB vehicles and security.
  • Versatile, compact, and IP67 rated protection covering dust, moisture, and water submersion up to 1m for 30 minutes.


• Specifications:

  • Video
  • Image Sensor: 1/3" Progressive CMOS
  • Sensor Size: Diagonal 7.20mm
  • Effective Pixels: Horizontal: 1920, Vertical: 1080
  • Pixel Size: 2.75 æm (H) x 2.75 æm (V)
  • Resolution: 1080p / 1080i : 1920 x 1080, 720p : 1280 x 720
  • Resolution | Rate: 1080p : 60 / 59.94 / 50 / 30 / 29.97 / 25 / 24, 1080i : 60 / 59.94 / 50i 720, 720p : 60 / 59.94 / 50p
  • Output: 3G-SDI
  • Color Space: 4:2:2 (YCbCr) 10bit

    Function
  • White Balance: AWB / AE / AF
  • Exposure: Full Auto, Bright, Shutter Priority, Iris Priority, Manual
  • Other: WDR, DIS (Digital Image Stabilization), 2D/3D Noise Reduction, Digital Slow Shutter, Black Level Compensation, Flicker Detection

    Lens
  • Lens: 3X Optical Zoom Lens, 3.85mm/78° (Wide) ~ 13.4mm/25° (Tele)

    Standards
  • SMPTE: SMPTE 292M, SMPTE 424M

    Physical
  • Weatherproof Rating: IP67
  • Camera Control: RS-485 OSD Button
  • Operation Temp: 32°F - 104°F
  • Dimension: 48mm x 48mm x 83.09mm / 1.89" x 1.89" x 3.27"
  • Weight: 140g / 0.30lbs
  • Power: 12 VDC (+9 - +15VDC)


• Item Includes:

  • 1x AIDA Imaging HD-X3L-IP67 Full HD 1080p60 Weatherproof 3G-SDI 3.5x Optical Zoom POV Camera
  • 1x DC 12V Power Supply
