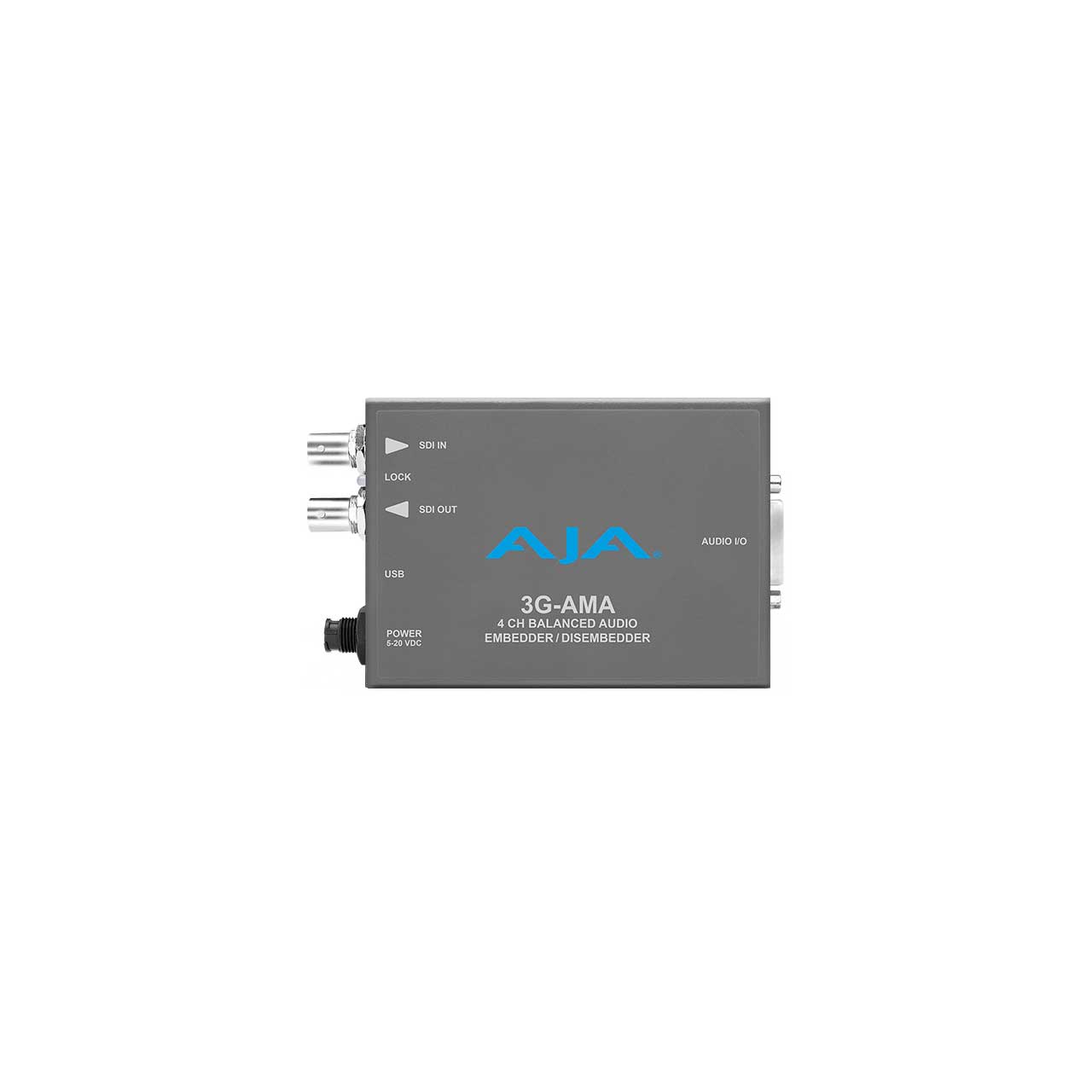

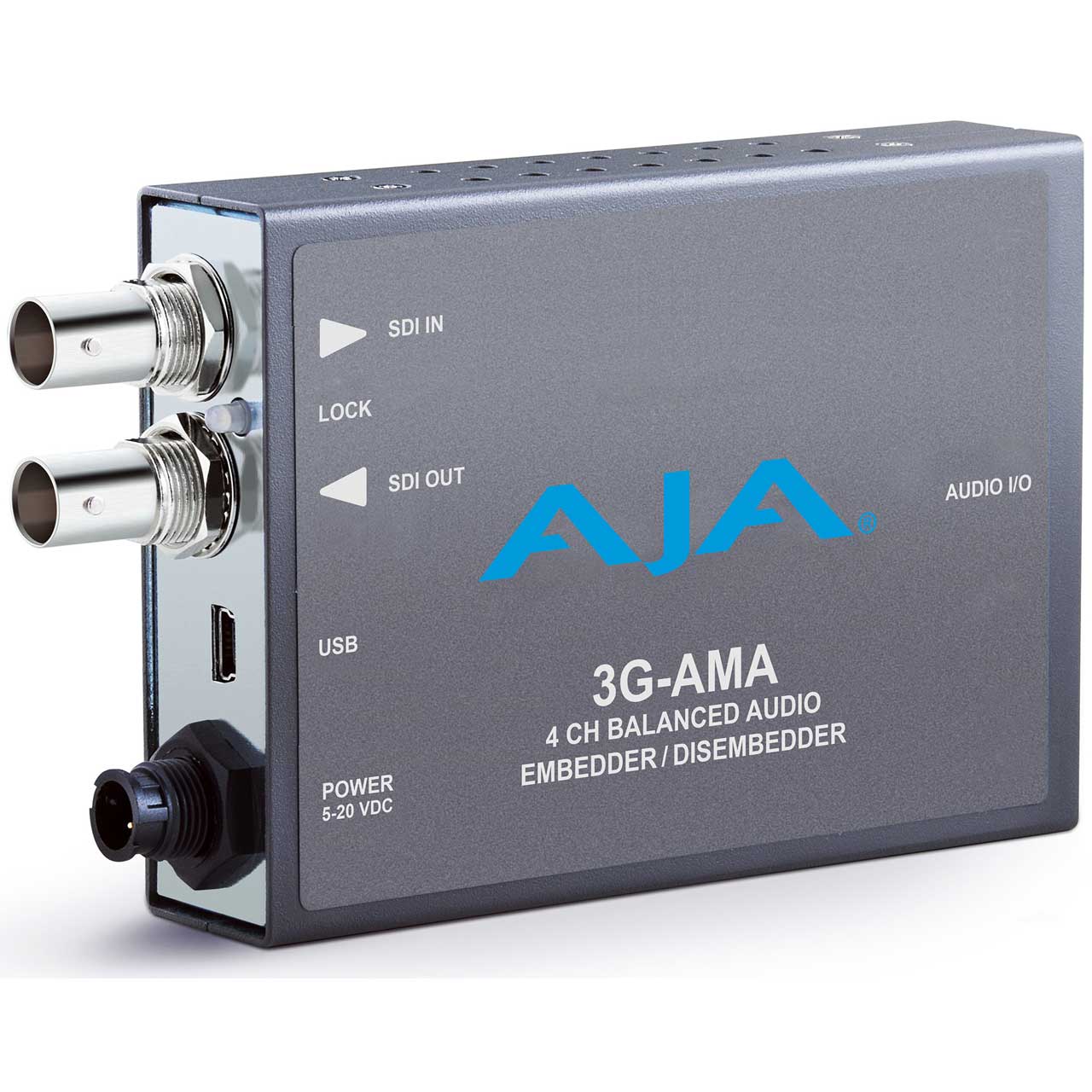

AJA 3G-AMA 3G-SDI Analog Audio Embedder/Disembedder

3G-AMA - Overview

3G-SDI Analog Audio Embedder/Disembedder

• Features:

  • 3G-SDI embedder/disembedder
  • 4-channel balanced analog audio I/O
  • Supplied XLR breakout cable
  • USB connectivity via AJA Mini-Config software
  • Dipswitch configuration
  • +5-20VDC Power


• Specifications:

  • Video Formats
  • (2K) 2048 x 1080p
  • (2K) 2048 x 1080PsF
  • (HD) 1920 x 1080p
  • (HD) 1920 x 1080PsF
  • (HD) 1920 x 1080i
  • (HD) 1280 x 720p
  • (SD) 720 x 576i
  • (SD) 720 x 480i

    Video Input Formats
  • 1x 3 Gb SDI (level A or B)
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080i 50, 59.94, 60
  • (HD) 1280 x 720p 50, 59.94, 60
  • 1x 1.5 Gb SDI
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
  • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080i 50, 59.94, 60
  • (HD) 1280 x 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 1x 270 Mb SDI
  • (SD) 625i
  • (SD) 525i

    Video Output Formats
  • Video Out is a delayed, reclocked version of Video In, at same frame rate, etc. Video Out is undefined when no input.
  • Video Latency, time measured between video input and video output connector:
    3G level A = 3.2 usec
    3G level B = 6.1 usec
    HD (1.5 Gb) = 6.3 usec
    SD (270 Mb) = 17.2 usec
  • Video Input Digital: 1x 3G-SDI BNC, SMPTE-259/292/424
  • Video Output Digital: 1x 3G-SDI BNC, SMPTE-259/292/424

    Audio Inputs and Outputs
  • Balanced Analog Audio, 1x 25 pin D female connector on converter, 4-Channels in, 4-Channels out.

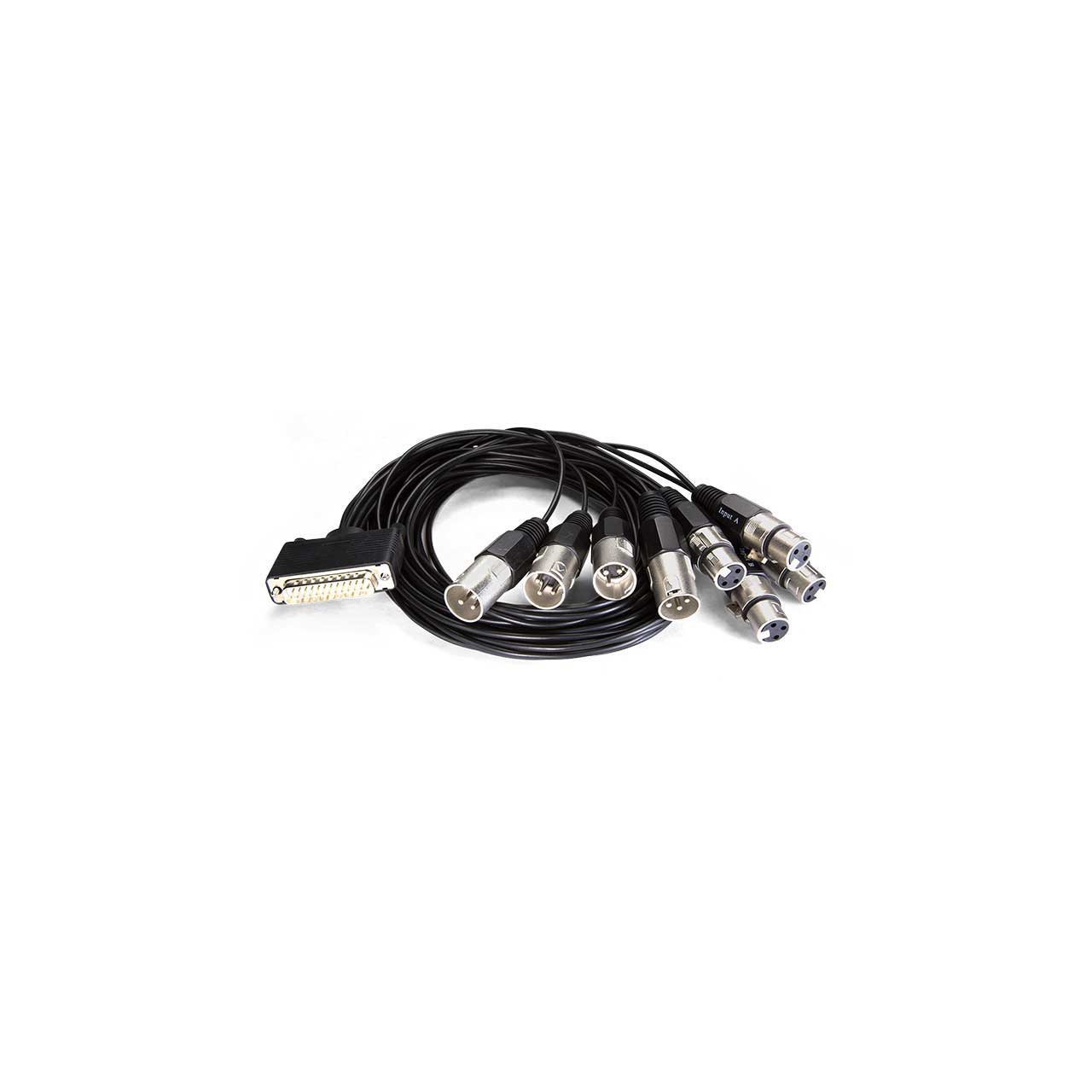

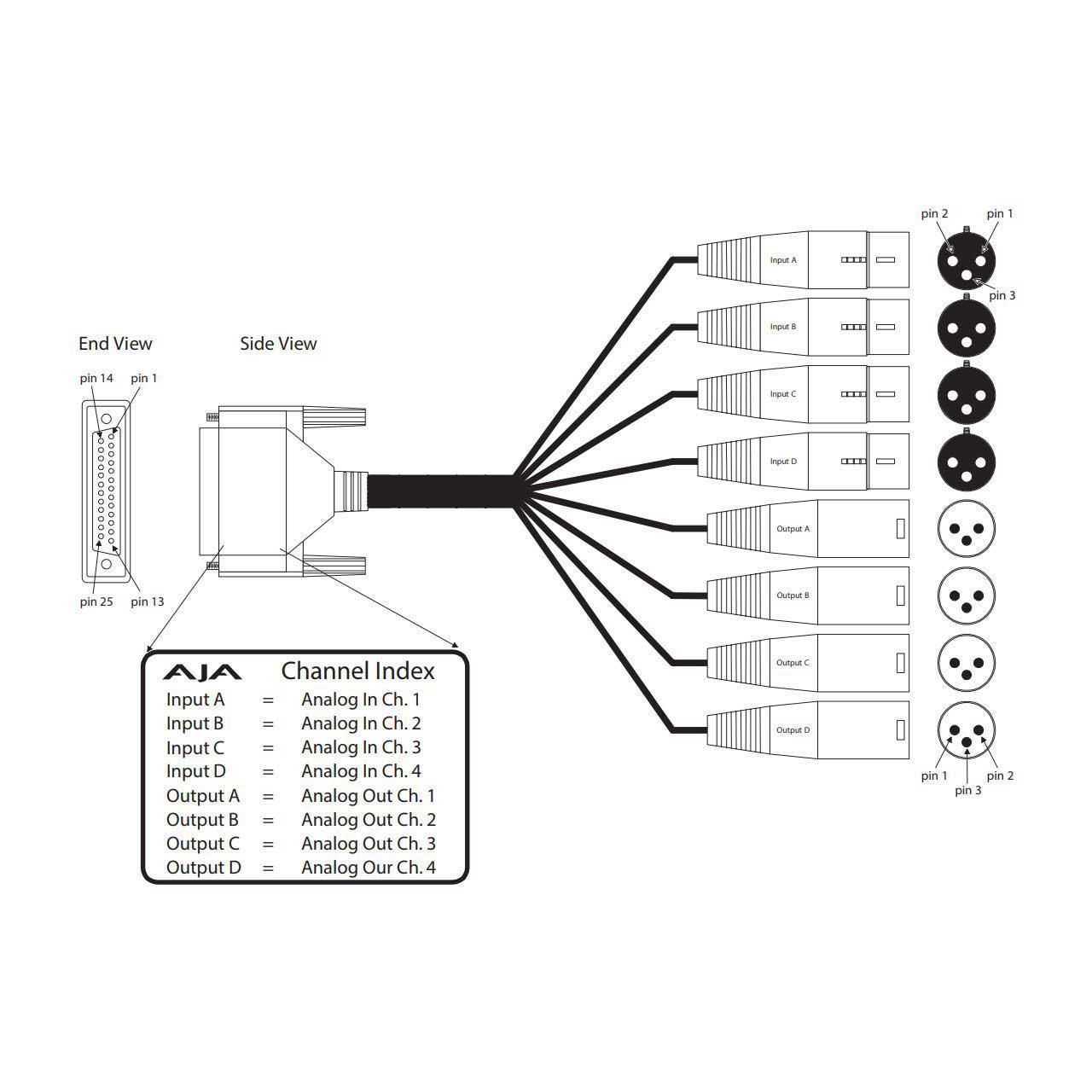

  • Breakout cable provided with 1x 25 pin D male connector:
    4x XLR female input breakout connectors
    4x XLR male output breakout connectors

    Audio Data Formats
  • AES3-2003
  • SMPTE 337M
  • Digital Audio Converters: 24-bit

    Embedded Audio
  • SMPTE 272M (SD): 20-bit, 48 KHz synchronous
  • SMPTE 299M (3G/HD): 24-bit, 48 KHz synchronous
  • Incoming embedded audio can be passed, removed, or overridden
  • Up to 16-Channels supported
  • NOTE: 2048 x 1080p/PsF 29.97 and 30 formats support a maximum of 8-Channels embedded audio

    Embed Path Audio Latency (time measured between audio input and video output connector)
  • 1500 usec (SRC ON)
  • 400 usec (SRC OFF)

    Disembed Path Audio Latency (time measured between video input and audio output connector)
  • 210 usec

    Analog Audio Levels
  • Configured via Mini-Config software:
    Pro 1: 0 dBfs = +24 dBu
    Pro 2: 0 dBfs = +18 dBu
    Pro 3: 0 dBfs = +15 dBu
    Consumer 1: 0 dBfs = +12 dBu

    User Controls
  • External DIP switch
  • USB port used with Mini-Config software application to configure device via PC/Mac

    Environment
  • Dimensions (WxDxH): 5.8 x 3.1 x 1.0" (147.32 x 78.74 x 25.4mm)
  • Power: +5-20VDC, 5 watts power supply required, included with purchase
  • Safe Operating Temperature: 0° to 40°C (32° to 104°F)
  • Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
  • Operating Relative Humidity: 10 to 90% non-condensing
  • Operating Altitude: <3,000 meters (<10,000 feet)


• GTIN:

  0892448000199
