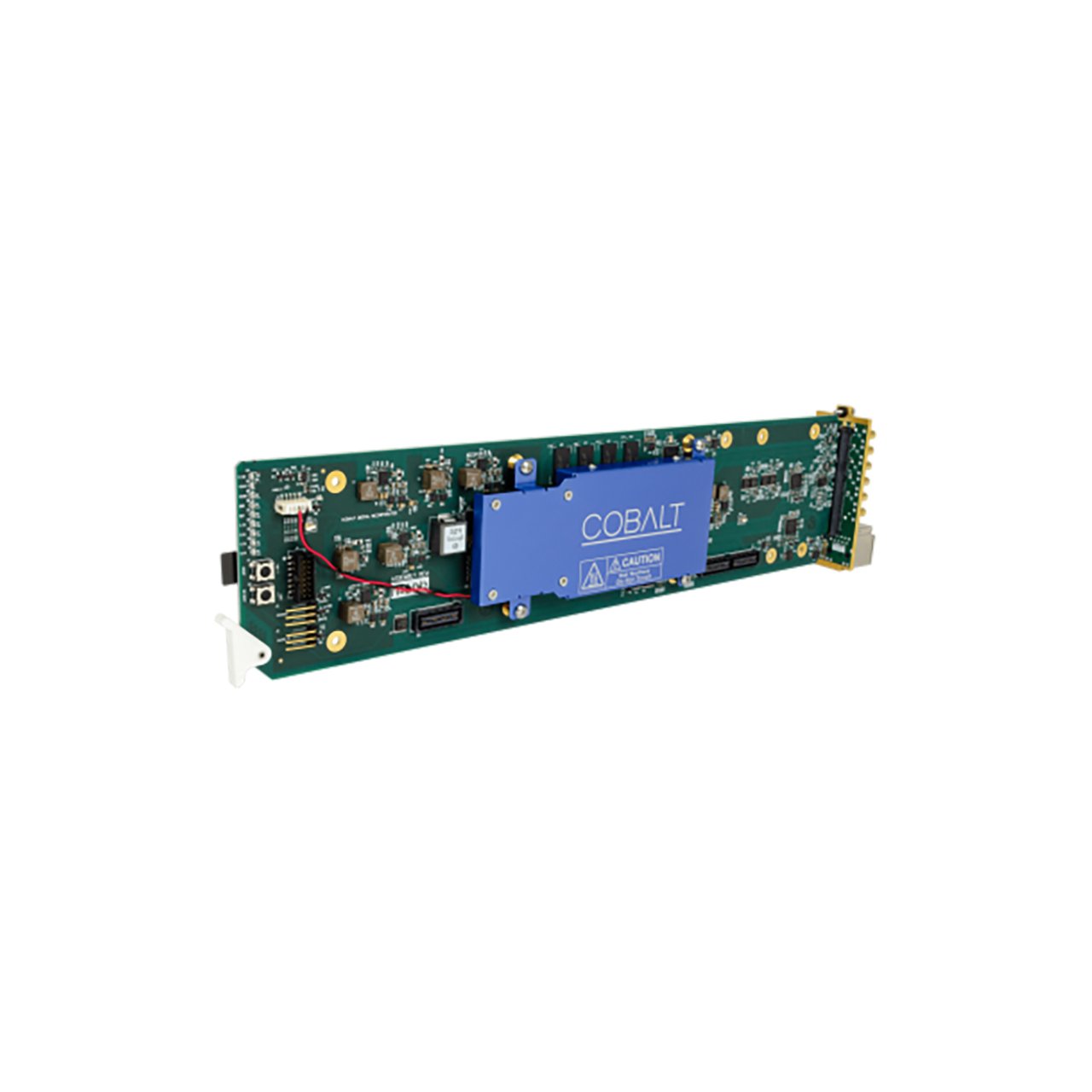

Cobalt Digital ARIA OG-AUD4-DANTE Quad Channel openGear 12G-SDI DANTE/AES/MADI/Embed & De-Embed Card w/ Frame Sync

ARIA OG-AUD4-DANTE - Overview

• Features:

  • Four SDI Inputs and Outputs, capable of up to 12G-SDI operation

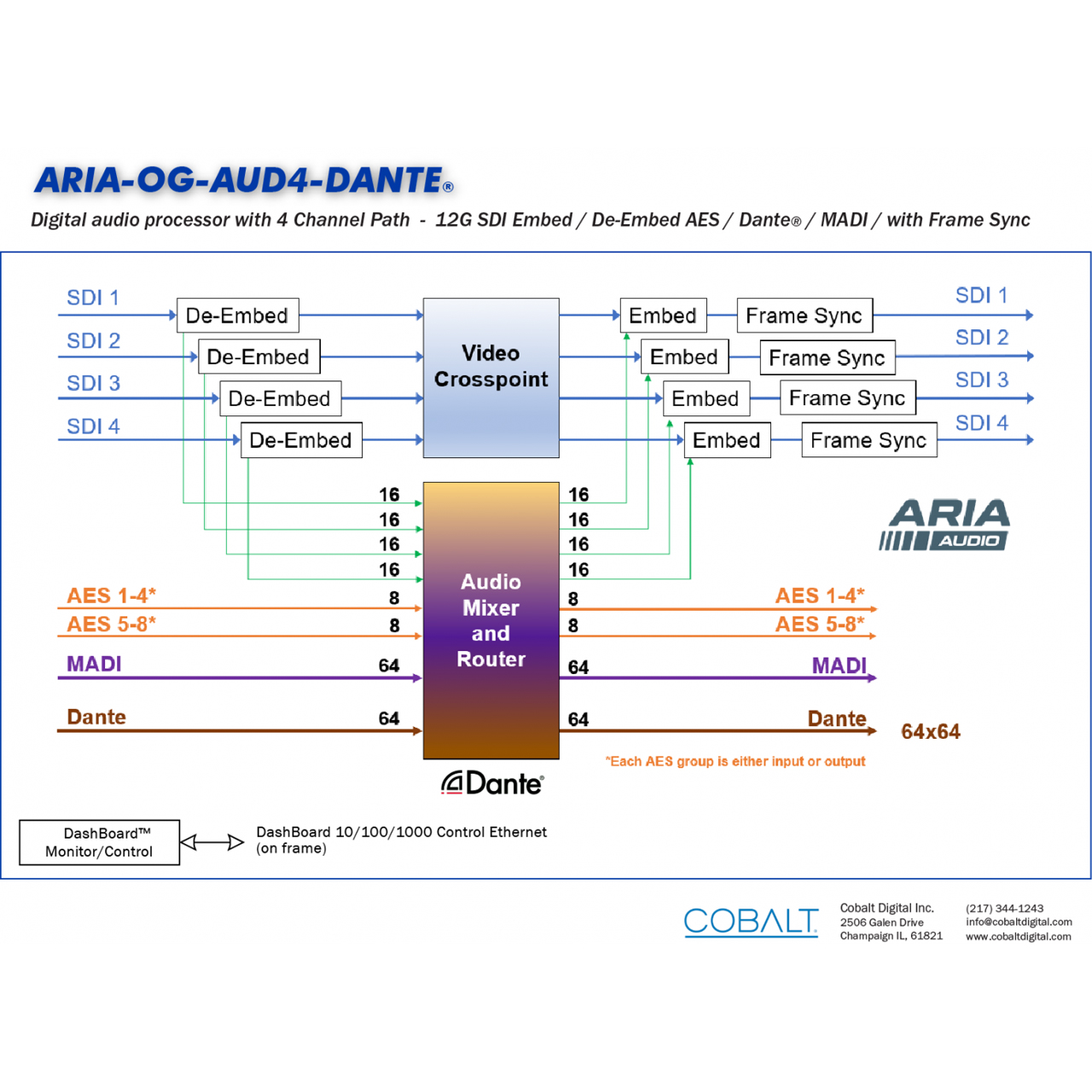

  • Full routing and mixing between SDI, DANTE, MADI and AES MADI Input and Output
  • SDI Output crosspoint - connect any Output to any Input
  • 8 AES inputs/outputs - each block of 4 ports is software configurable as Input or Output
  • Dual Gigabit Ethernet ports for redundant DANTE operation
  • Simultaneous embedding and de-embedding
  • DANTE matrix size: ARIA OG-AUD4-DANTE: 64x64
  • DashBoard™ Ethernet control & set up


• Specifications:

  12G/6G/3G/HD/SD-SDI Input/Outputs
  • 4x 75Ω inputs (max)
  • 4x 75Ω outputs (max)
  • SDI Formats Supported: SMPTE ST2082-1,10, 424M, 292M, SMPTE 259M-C.
  • Return Loss:
    - > 15 dB up to 1.485 GHz
    - > 10 dB up to 3 GHz
    - > 7 dB up to 6 GHz
    - > 5 dB up to 12 GHz
  • Input Cable Length:
    - 45m Belden 1694A cable at 11.88 Gbps
    - 120m Belden 1694A cable at 2.97 Gbps
    - 240m Belden 1694A cable at 1.485 Gbps
    - 400m Belden 1694A cable at 270 Mbps
  • Output Signal Level: 800 mV ±10%
  • DC Offset: 0 V ± 50 mV
  • Rise and Fall Time @ 11.88 Gbps: < 45 ps
  • Alignment Jitter (12G/3G/HD/SD): < 0.3/0.3/0.2/0.2 UI

    AES Audio Inputs/Outputs
  • 8x 75Ω coaxial ports (max); port direction assignable as inputs or outputs in groups of 4 ports.

    MADI Audio Inputs/Outputs
  • 2x 75Ω coaxial ports (see Rear Module illustrations for specific information)

    Frame Reference Input
  • 2x reference from frame bus. SMPTE 170M/318M "Black Burst", SMPTE 274M/296M "Tri-Level"


• Warranty:

  • 5 Year Warranty
