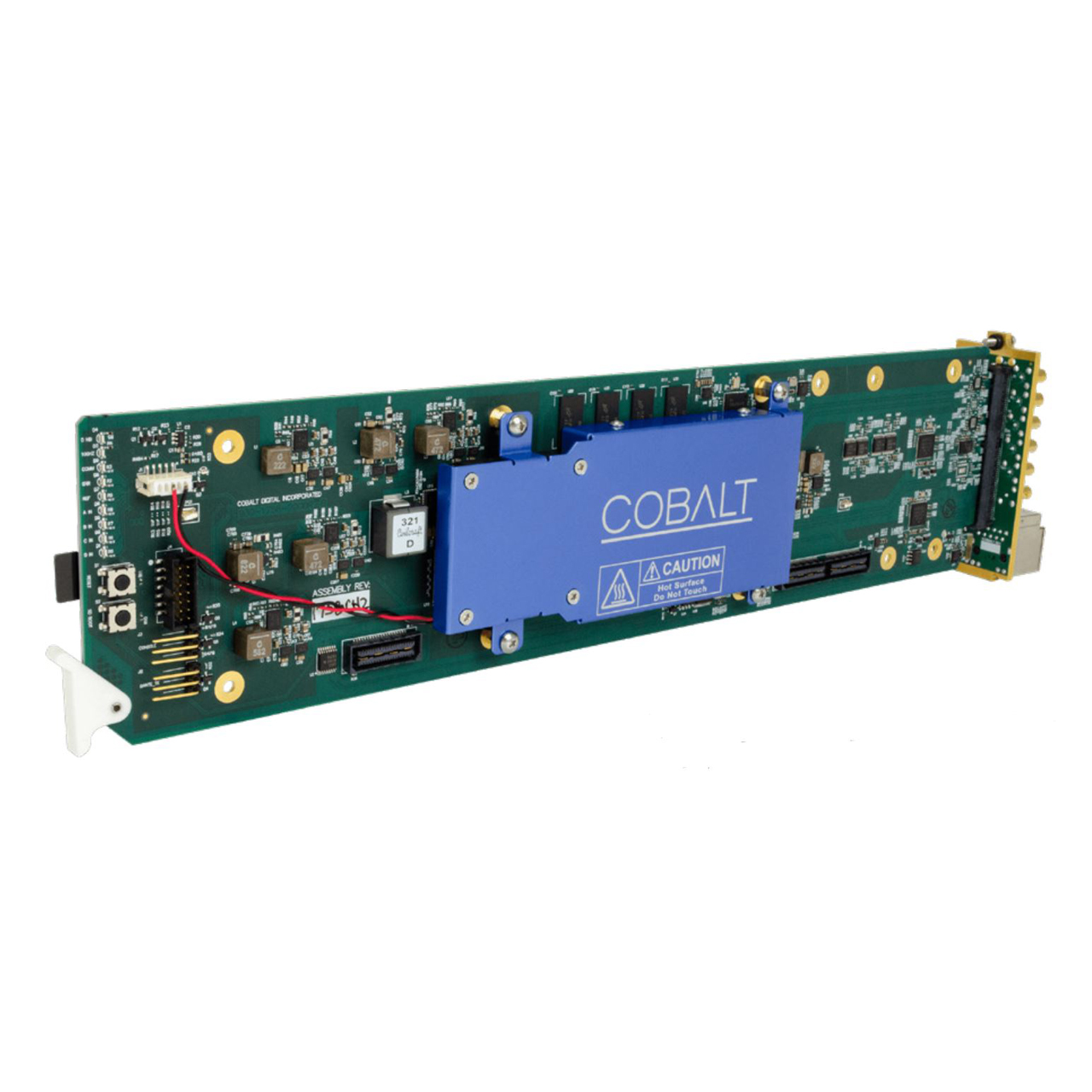

Cobalt Digital ARIA OG-AUD2-DANTE Dual Channel openGear 12G-SDI DANTE/AES/MADI/Embed and De-Embed Card with Frame Sync

ARIA OG-AUD2-DANTE - Overview

• Features:

  • 8 AES Inputs / Outputs each block of 4 ports is software configurable
  • as Input or Output
    Dual 1G Ethernet ports for redundant Dante operation
    2) 12G SDI Inputs
  • 2) 12G SDI Outputs
  • Embedding and De-embedding of AES I/O
  • Simultaneous embedding and de-embedding
    DANTE matrix size: ARIA OG-AUD2-DANTE: 32x32

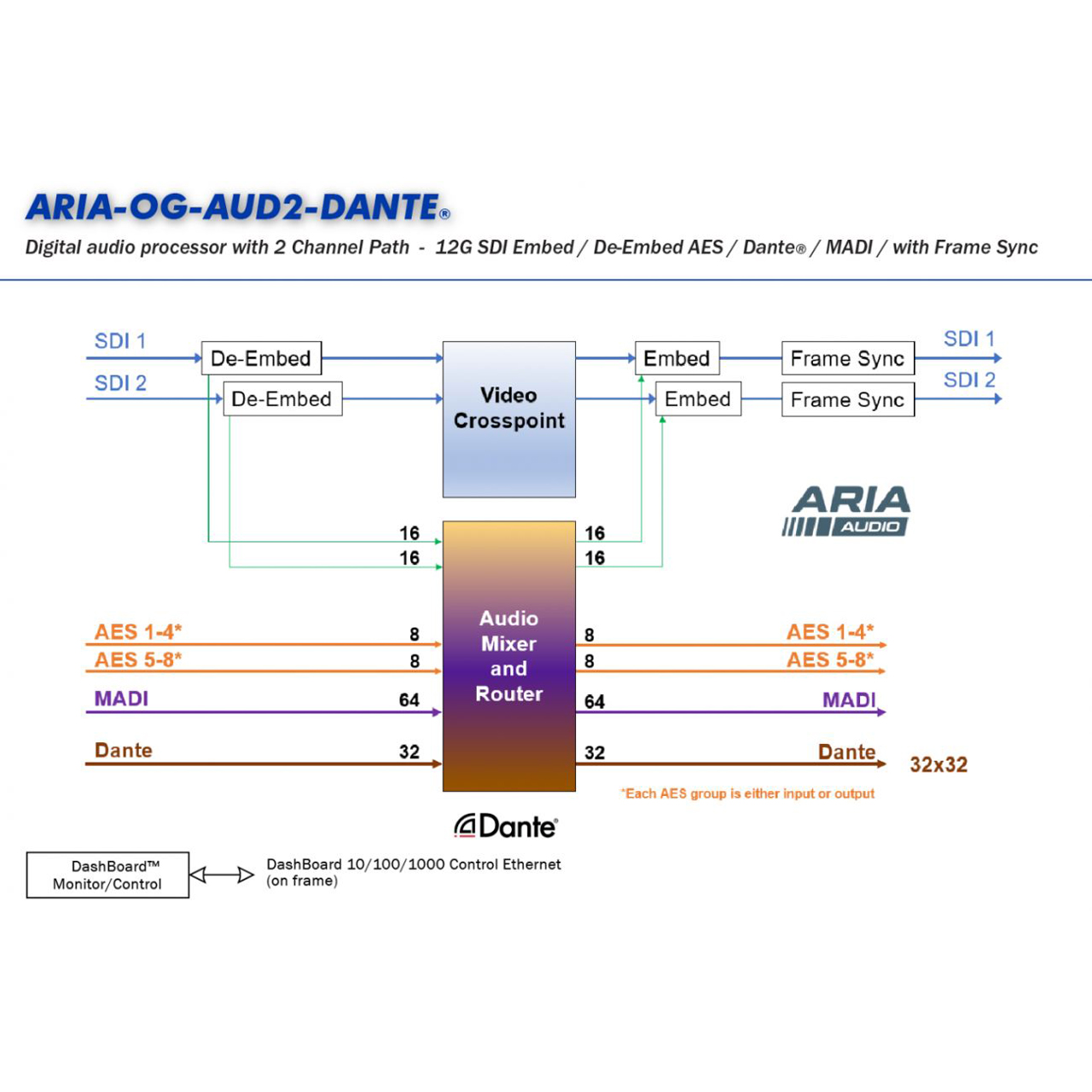

    Full routing and mixing between SDI, DANTE, MADI and AES
    SDI Output crosspoint - connect any Output to any Input
    FIVE YEAR WARRANTY


• Specifications:

  • DANTE networked audio
    12G/6G/3G/HD/SD/AES/MADI
    AES em-bedding & de-embedding
    12G/6G/3G/HD/SD-SDI Input/Outputs
    (2) 75O inputs (max)
  • (2) 75O outputs (max)
  • SDI Formats Supported: SMPTE ST2082-1,10, 424M, 292M, SMPTE 259M-C.
  • Return Loss:
  • > 15 dB up to 1.485 GHz
  • > 10 dB up to 3 GHz
  • > 7 dB up to 6 GHz
  • > 5 dB up to 12 GHz
  • Input Cable Length:
  • 45m Belden 1694A cable at 11.88 Gbps
  • 120m Belden 1694A cable at 2.97 Gbps
  • 240m Belden 1694A cable at 1.485 Gbps
  • 400m Belden 1694A cable at 270 Mbps
  • Output Signal Level: 800 mV ±10%
  • DC Offset: 0 V ± 50 mV
  • Rise and Fall Time @ 11.88 Gbps: < 45 ps
  • Alignment Jitter (12G/3G/HD/SD): < 0.3/0.3/0.2/0.2 UI
    AES Audio Inputs/Outputs
    (8) 75O coaxial ports (max); port direction assignable as inputs or outputs in groups of 4 ports.
    MADI Audio Inputs/Outputs
  • (2) 75O coaxial ports
  • See Rear Module illustrations for specific information.
    Frame Reference Input
  • (2) reference from frame bus. SMPTE 170M/318M "Black Burst", SMPTE 274M/296M "Tri-Level"
    Note: All specifications are preliminary and subject to change.
