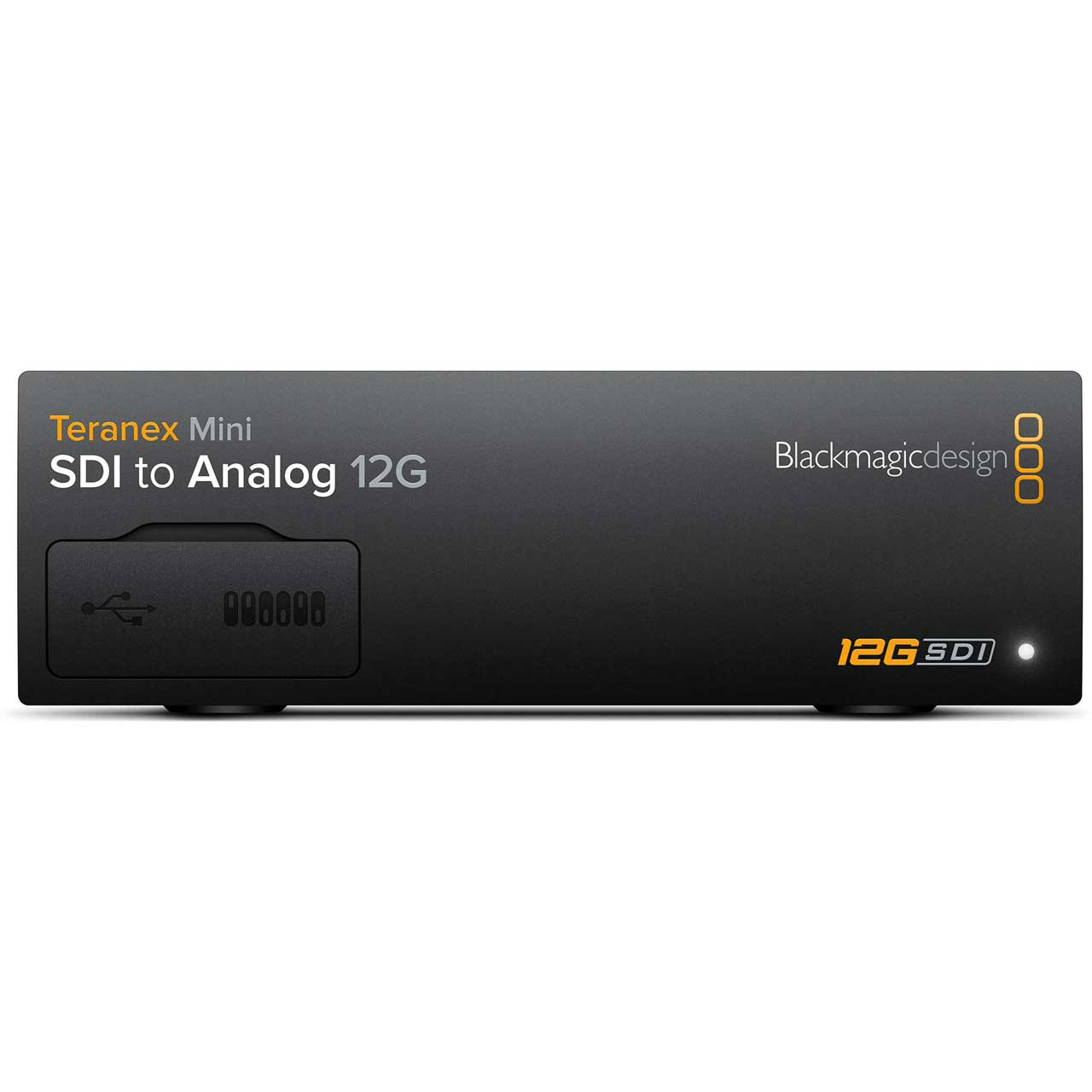

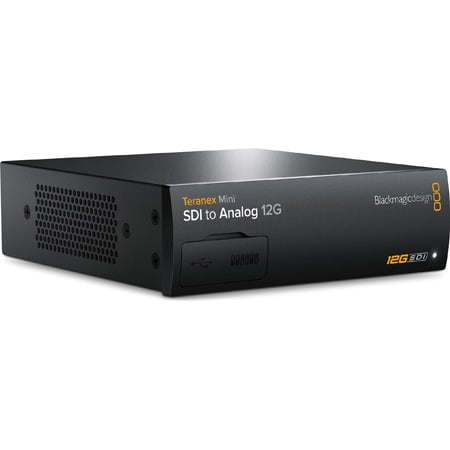

Blackmagic Design CONVNTRM/BA/SDIAN Teranex Mini - SDI to Analog 12G Video

ITEM #: BMD-CTMBASDIAN MFG #: CONVNTRM/BA/SDIAN

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Blackmagic Design
Free Shipping with $49 Minimum Order

Our Price:

$545.00

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

CONVNTRM/BA/SDIAN - Overview

The world's most versatile converter! Use Anywhere!

The Blackmagic Teranex Mini - SDI to 12G Analog converts from 12G-SDI to Analog. Choose SD, HD, 6G and 12G-SDI rates and convert to an analog video output. There is a built in down converter that lets you connect Ultra HD sources to component video equipment in SD or HD. You can also connect analog equipment including Betacam SP, VHS, and video monitors.

Teranex Mini converters feature cutting edge, multi rate 12G-SDI technology that's 8 times faster than regular HD-SDI. 12G-SDI is multi rate so it will automatically detect and change between all SD, HD and Ultra HD video formats instantly, so you can connect Teranex Mini to all of your existing SD and HD equipment. 12G-SDI supports high frame rate Ultra HD up to 2160p60 on a single BNC cable so you can work in Ultra HD and keep your high frame rate production workflow for fast moving sports and action programming.

  • Specifications:

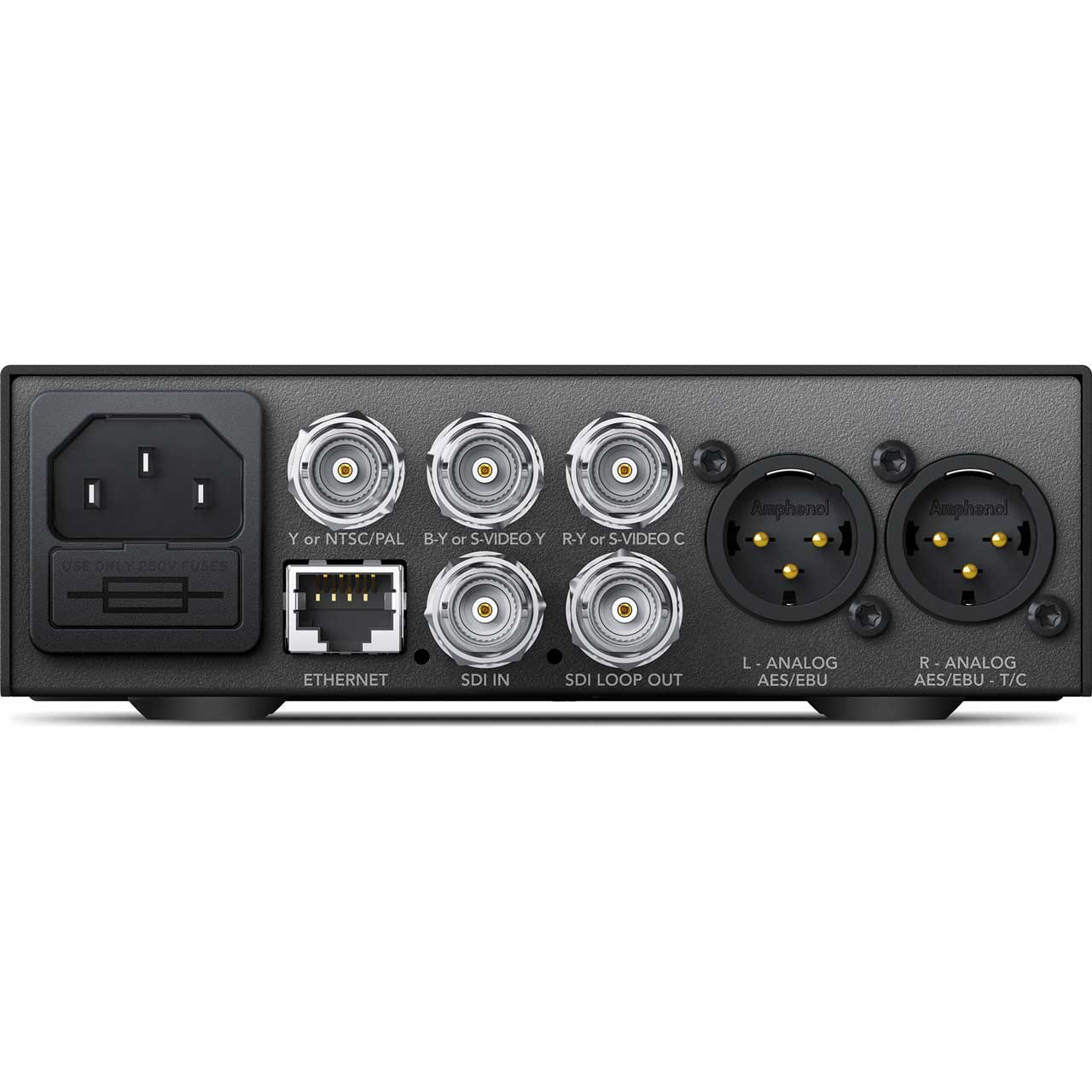

    • Connections
    • SDI Video Inputs: 1 x 12G-SDI SD/HD/2K/4K auto switching.
    • SDI Video Outputs: 1 x 12G-SDI loop output.
    • Analog Video Outputs: Composite, Y/C or Component.
    • Analog Audio Outputs: 2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode output.
    • Digital Audio Outputs: 4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode output.
    • Embedded Audio Support: 16 channels.
    • Multi Rate Support: Automatic switching between SD/HD/2K and 4K.
    • Updates and Configuration: USB or Ethernet.
    • Reclocking: Yes

    • Standards
    • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
    • HD Video Standards: 720p50, 720p59.94, 720p60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 1080i50, 1080i59.94, 1080i60
    • 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
    • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
    • 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1 and SMPTE 2082-10
    • SDI Video Rates: SDI video connections are auto switching between standard definition SDI, high definition level A and level B 3G-SDI, 6G-SDI, and 12G-SDI.
    • SDI Video Sampling: 4:2:2 and 4:4:4
    • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
    • SDI Color Precision: 4:2:2 and 4:4:4
    • SDI Color Space: YUV
    • Analog Video Standards: 525i59.94 NTSC, 625i50 PAL
    • Analog Color Space: REC 601, REC 709
    • Analog Color Precision: YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.

    • Format Conversion
    • HD down conversion:

    • Software
    • Software Control: Mac ™ and Windows ™ software upgrade via USB and Ethernet.
    • Internal Software Upgrade: Via included updater application.

    • Operating Systems
    • Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.

    • Settings Control
    • Basic Settings Control: Mini Switches, USB and Ethernet via free software utility.
    • Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons

    • Power Requirements
    • Power Supply: 1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.
    • Power Over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet).


  • Item Includes:

    • Teranex Mini SDI to Analog 12G
    • Software
    • SD Card
    • Operations Manual


  • Warranty:

    • 3 year Limited Manufacturer's Warranty


  • GTIN:

    9338716003260
