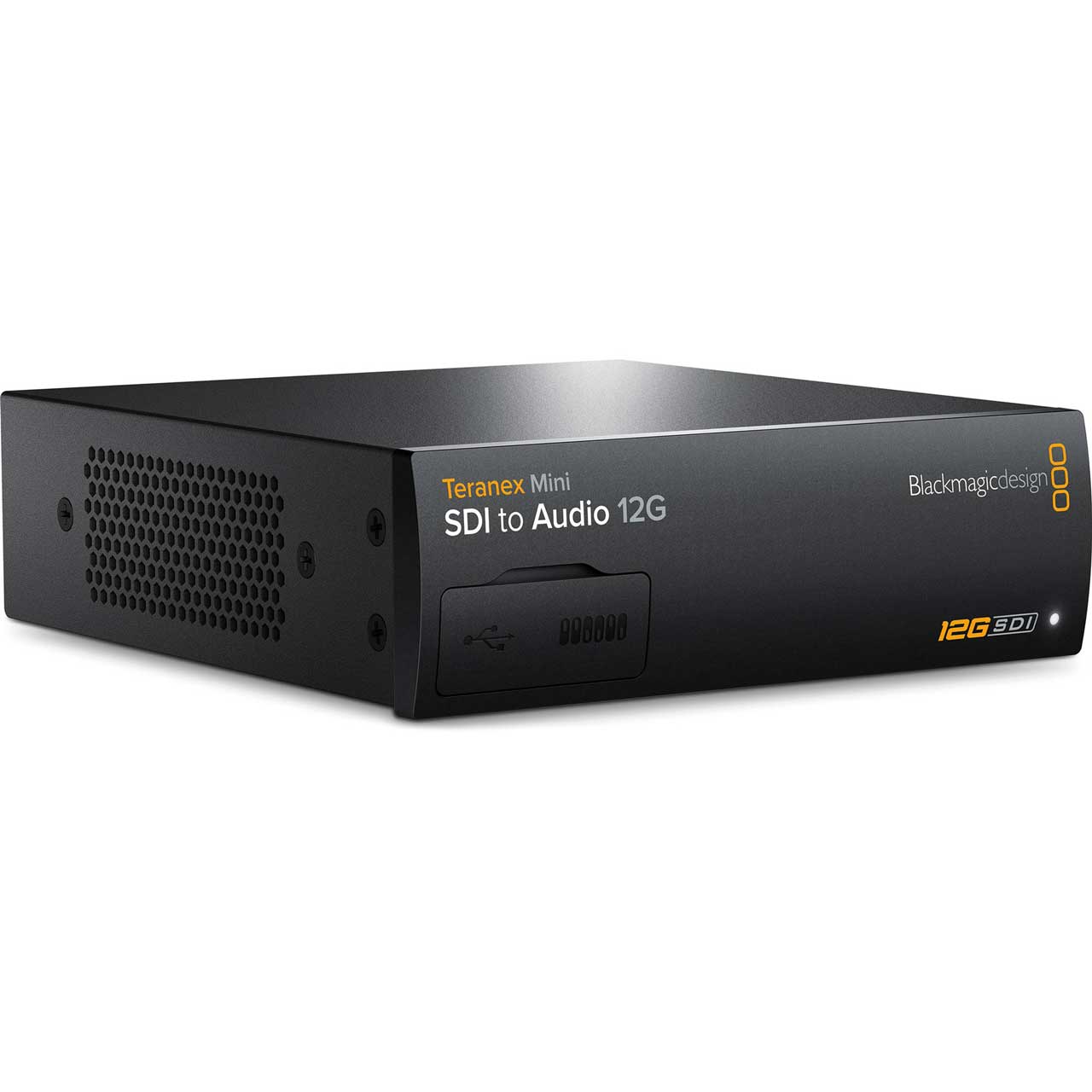

Blackmagic Design CONVNTRM/CA/SDIAU Teranex Mini - SDI to Audio 12G De-embedder

ITEM #: BMD-CTMCASDIAU MFG #: CONVNTRM/CA/SDIAU

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Blackmagic Design
Free Shipping with $49 Minimum Order

Our Price:

$545.00

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

CONVNTRM/CA/SDIAU - Overview

The world's most versatile converters!

The Blackmagic Teranex Mini SDI to Audio 12G allows you to de-embed audio from any SD, HD or Ultra HD SDI video connection and output 2 channels of analog audio to balanced XLR, optical or HiFi RCA, or output up to 4 channels of AES/EBU digital audio. Perfect for converting and outputting SDI audio to a massive range of audio equipment such as audio mixers, iPods, analog broadcast decks, audio monitors and more.

Teranex Mini converters feature cutting edge, multi rate 12G-SDI technology that's 8 times faster than regular HD-SDI. 12G-SDI is multi rate so it will automatically detect and change between all SD, HD and Ultra HD video formats instantly, so you can connect Teranex Mini to all of your existing SD and HD equipment. 12G-SDI supports high frame rate Ultra HD up to 2160p60 on a single BNC cable so you can work in Ultra HD and keep your high frame rate production workflow for fast moving sports and action programming.

  • Features:

    • The world's first 12G-SDI rack mount converters!
    • Blazing fast 12G-SDI for SD, HD and Ultra HD!
    • Easily handles 12G-SDI in tough environments!
    • Monitor video on your converter!
    • True XLR audio, ethernet and built in IEC AC power connectors.
    • Truly professional quality audio!


  • Specifications:

    • Connections
    • SDI Video Input: 1 x 12G-SDI SD/HD/2K/4K auto switching.
    • SDI Video Output: 1 x 12G-SDI loop output.
    • AES/EBU Audio Output: 4 channels professional 110? balanced digital audio via XLR connectors. Right XLR can be configured for timecode output.
    • Analog Audio Output: 2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode output.
    • Optical Audio Output: S/PDIF Signal with TOSLINK Connector.
    • Multi Rate Support: Automatic switching between SD/HD/2K and 4K.
    • Updates and Configuration: USB or Ethernet.
    • Re-Clocking: Yes

    • Standards
    • SD Format Support: 525/29.97 NTSC, 525/23.98 NTSC, 625/25 PAL
    • HD Format Support: 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1920 x 1080PsF23.98, 1920 x 1080PsF24, 1920 x 1080p23.98, 1920 x 1080p24, 1920 x 1080p25, 1920 x 1080p29.97, 1920 x 1080p30, 1920 x 1080p50, 1920 x 1080p59.94, 1920 x 1080p60.
    • 2K Format Support: 2048 x 1080p23.98, 2048 x 1080p24, 2048 x 1080p25, 2048 x 1080PsF23.98, 2048 x 1080PsF24, 2048 x 1080PsF25.
    • 4K Format Support: 3840 x 2160p23.98, 3840 x 2160p24,3840 x 2160p25, 3840 x 2160p29.97,3840 x 2160p30, 3840 x 2160p50,3840 x 2160p59.94, 3840 x 2160p60,4096 x 2160p23.98, 4096 x 2160p24,4096 x 2160p25, 4096 x 2160p29.97,4096 x 2160p30, 4096 x 2160p50,4096 x 2160p59.94, 4096 x 2160p60
    • SDI Compliance: SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE424M-B, SMPTE 425M, ITU-R BT.656, ITU-R BT.601, SMPTE ST-2036
    • SDI Video Rates: SDI video connections are auto switching between standard definition SDI, high definition level B 3G-SDI, 6G-SDI, and 12G-SDI.
    • SDI Auto Switching: Automatically selects between SD, HD, 3G, 6G and 12G-SDI.
    • SDI Video Sampling: 4:2:2, 4:4:4
    • SDI Audio Sampling: Television standard sample rate of 48kHz and 24-bit.
    • SDI Color Precision: YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
    • SDI Color Space: REC 601, REC 709

    • Software
    • Software Control: Mac OS X™ and Windows™ software upgrade via USB and Ethernet.
    • Internal Software Upgrade: Via included updater application.

    • Settings Control
    • Basic Settings Control: Mini Switches, USB and Ethernet via free software utility
    • Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons

    • Power Requirements
    • Power Supply:1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
    • Power Over Ethernet:Can be powered via 48V DC using PoE (power over ethernet).
    • Power Consumption:15 Watts
    • Operational Voltage Range: 90 - 240V AC


  • Item Includes:

    • Teranex Mini - SDI to Audio 12G
    • Software
    • SD Card


  • Warranty:

    • 3 year Limited Manufacturer's Warranty.


  • GTIN:

    9338716003284
