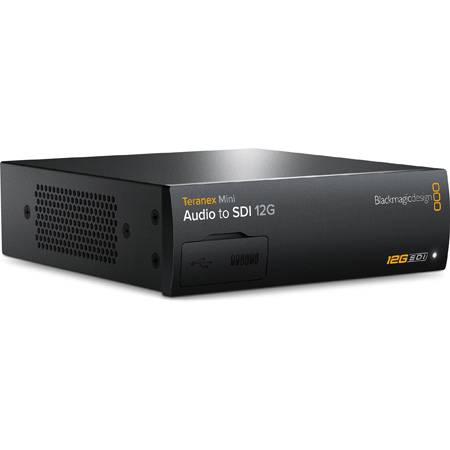

Blackmagic Design CONVNTRM/CB/AUSDI Teranex Mini Converter - Audio to SDI 12G

ITEM #: BMDCTMCBAUSDI MFG #: CONVNTRM/CB/AUSDI

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Blackmagic Design
Free Shipping with $49 Minimum Order

Our Price:

$545.00

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

CONVNTRM/CB/AUSDI - Overview

Use Anywhere! The world's most versatile converters!

With the Blackmagic Teranex Mini Audio to SDI 12G you can embed up to 2 channels of audio from balanced analog, optical or HiFi RCA, or embed up to or 4 channels of AES/EBU digital audio into any SD, HD, Ultra HD or DCI 4K SDI video connection! Take audio from devices such as audio mixers, Smartphones, Tablets, and analog decks and embed it into SDI video connections for use with SDI routers and decks.

  • Specifications:

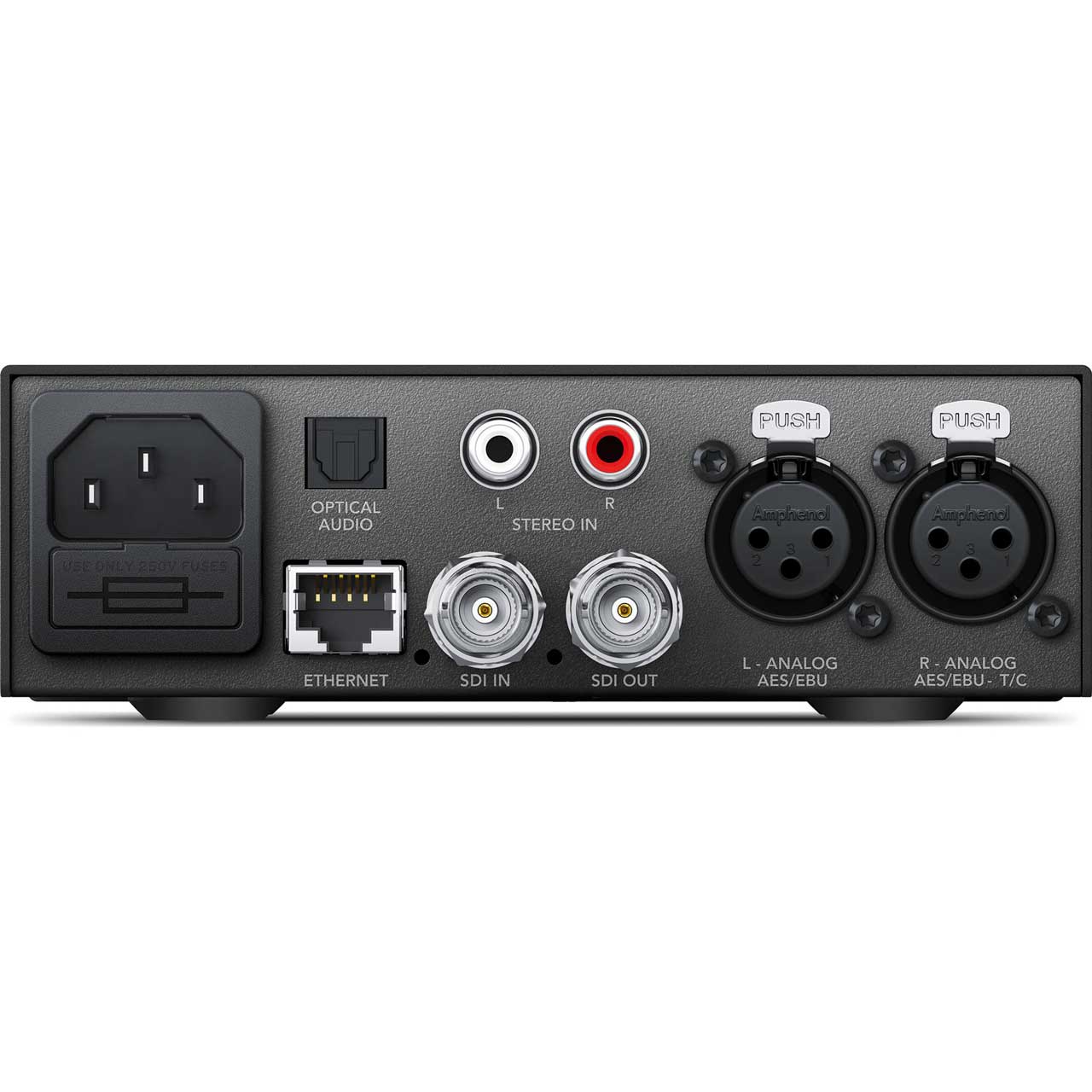

    • Connections
    • SDI Video Inputs: 1 x 12G-SDI SD/HD/2K/4K auto switching.
    • SDI Video Outputs: 1 x 12G-SDI output.
    • Analog Audio Inputs: 2 channels professional balanced analog audio via XLR connectors, or 2 channel unbalanced analog line level via RCA connectors. Right XLR can be configured for timecode input.
    • Digital Audio Inputs: 4 channels professional 110? balanced digital audio via XLR connectors. Right XLR can be configured for timecode input.
    • Embedded Audio Support: 16 channels.
    • Optical Audio Input: S/PDIF Signal with TOSLINK Connector.
    • Multi Rate Support: Automatic switching between SD/HD/2K and 4K.
    • Updates and Configuration: USB or Ethernet.
    • Reclocking: Yes

      Standards
    • SD Video Standards: 525i59.94 NTSC, 625i50 PAL
    • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF30,1080i50, 1080i59.94, 1080i60
    • 2K Video Standards: 1080p23.98, 1080p24, 1080p25, 1080PsF23.98, 1080PsF24, 1080PsF25
    • Ultra HD Video Standards: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
    • 4K Video Standards: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p
    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M Level B, SMPTE 297M for Optical Fiber SDI, SMPTE 2081 1, SMPTE 2081 10, SMPTE 2082 1, SMPTE 2082 10
    • SDI Video Rates: SDI video connections are auto switching between standard definition SDI, 1.5G SDI, 3G SDI, 6G SDI and 12G SDI.
    • SDI Video Sampling: 4:2:2, 4:4:4
    • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24-bit.
    • SDI Auto Switching: Automatically selects between SD, HD, 3G, 6G and 12G SDI.
    • SDI Color Precision: YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
    • SDI Color Space: REC 601, REC 709

      Software
    • Software Control: Mac™ and Windows™ software upgrade via USB and Ethernet.
    • Internal Software Upgrade: Via included updater application.

      Operating Systems
    • Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.

      Settings Control
    • Basic Settings Control: Mini Switches, USB and Ethernet via free software utility
    • Optional Front Panel Control: Front mounted Smart Panel with LCD, rotary knob and six settings buttons

      Power Requirements
    • Power Supply: 1 x built in international AC power supply with IEC C14 inlet. IEC Power cable required. 100 - 240V AC Input.
    • Power Over Ethernet: Can be powered via 48V DC using PoE+ (power over ethernet).
    • Power Consumption: 16 Watts
    • Operational Voltage Range: 100 - 240V AC


  • Item Includes:

    • Teranex Mini Audio to SDI 12G
    • SD Card
    • Operations Manual
    • Software


  • Warranty:

    • 3 year Limited


  • GTIN:

    9338716003291
