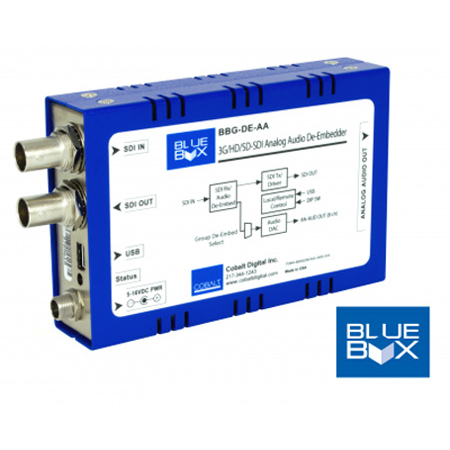

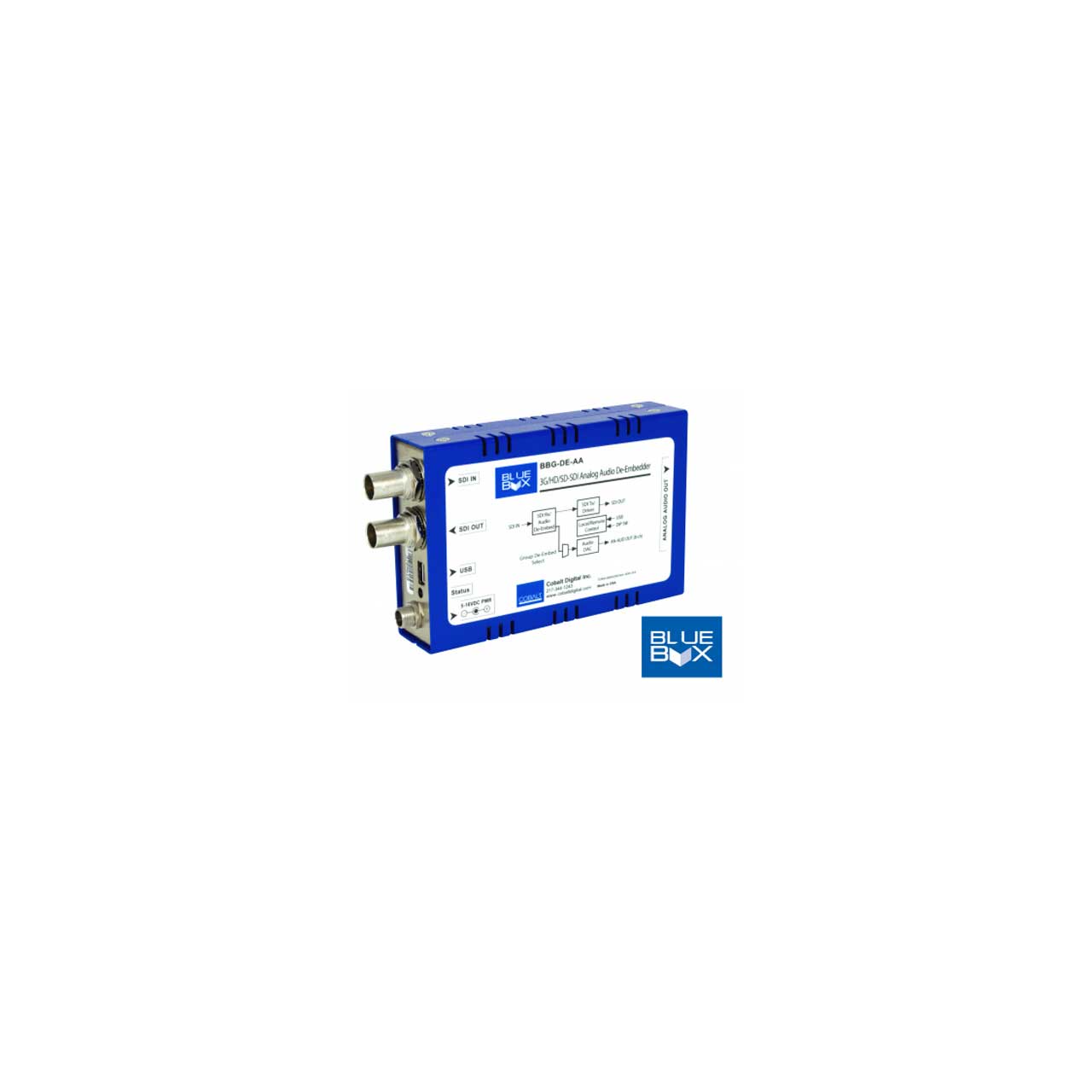

Cobalt BBG-DE-AA 3G/HD/SD Analog Audio De-Embedder

BBG-DE-AA - Overview

• Features:

  • Eight balanced analog audio outputs with user-selectable direct de-embedding of groups 1 thru 4. DB-25 connector provides compact footprint. Balanced analog audio outputs can utilize direct connection to standard DB-25 connectors, or by using accessory DB-25/XLR breakout cable (CB-BBG-CA110XLRM and CB-BBG-CA110XLRF available separately. Call to order.).


  • Configurable using device DIP switches or USB GUI remote control offering dynamic configuration control, status display, audio meters, tone generators, and other advanced control functions not commonly found on "throwdown" packages. USB GUI audio meters provide ready assessment of content presence and line-up.


  • Balanced audio de-embed with full 0 dBFS to 24 dBu 24-bit conversion.


  • Small rugged portable standalone package ideal for portable installations. Compact size and low weight design easily affixes directly to host device chassis. Optional BBG-MB mounting bracket provides rigid, secure mounting to mounting surfaces.


  • Rugged construction backed with a five-year warranty.


• Specifications:

  • Power
  • 5-16 VDC, <5 W (AC adapter included)


  • DC Power Connector
  • Coaxial locking connector (for use with supplied Cobalt power adapter)


  • USB Port
  • Mini-USB (used for USB remote control connection and firmware upgrade upload to device)


  • Standards/Data Rates Supported
  • SMPTE 292M, 259M, 424M


  • Inputs/Outputs
  • 3G/HD/SD-SDI In (75Ω BNC)
  • 8-channel balanced analog audio output via DB-25 connector and XLR breakout adapter (available separately)
  • 3G/HD/SD-SDI Out (75Ω BNC)


  • Audio Conversion Format
  • 48 kHz sampling, 24-bit. Supports outputs up to 24 dBu.


  • Dimensions
  • 5.5" x 3" x 1" (including connector projections)
  • (139 x 77 x 26 mm)


• Warranty:

  • 5 Years
