CONVMCAUDS2 - Overview

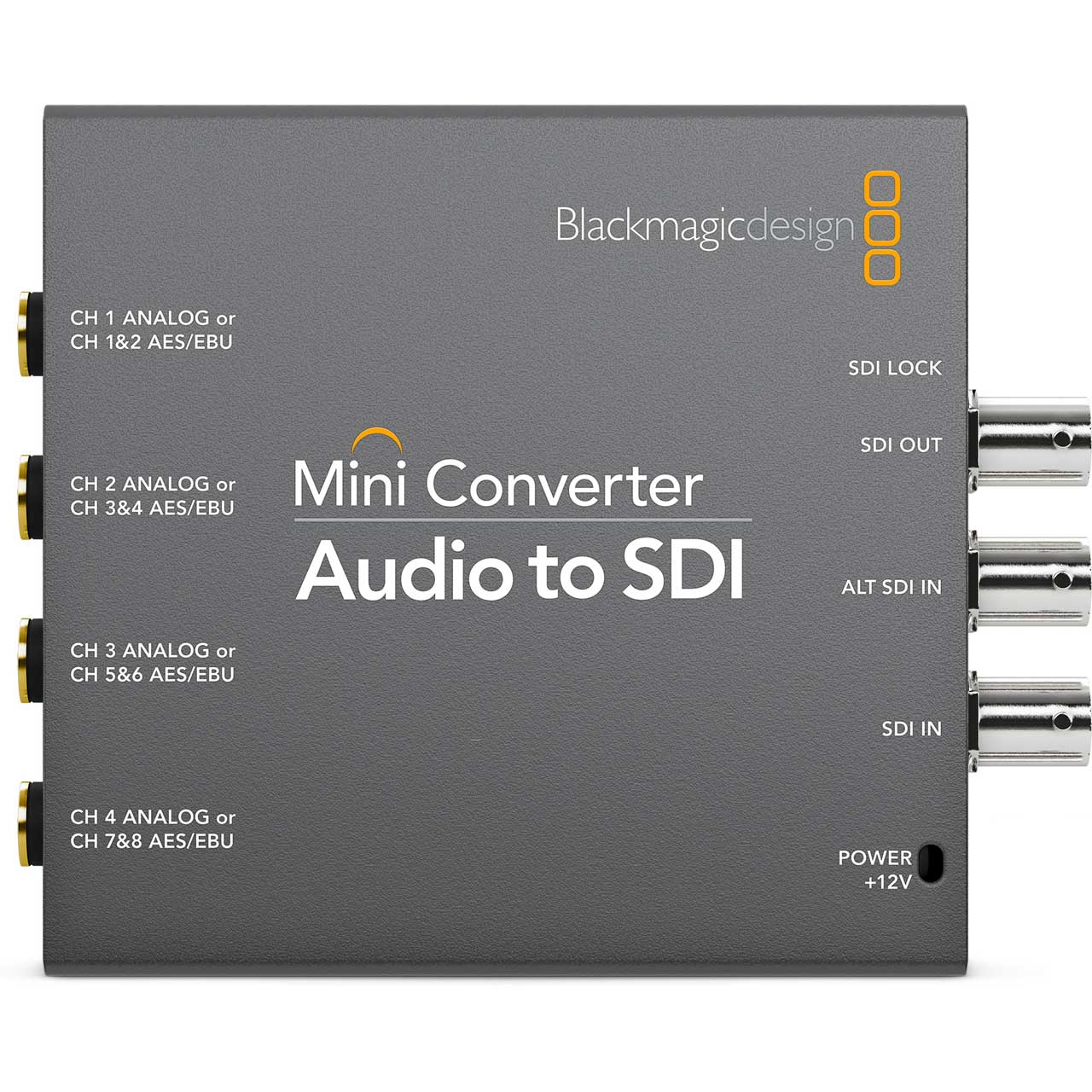

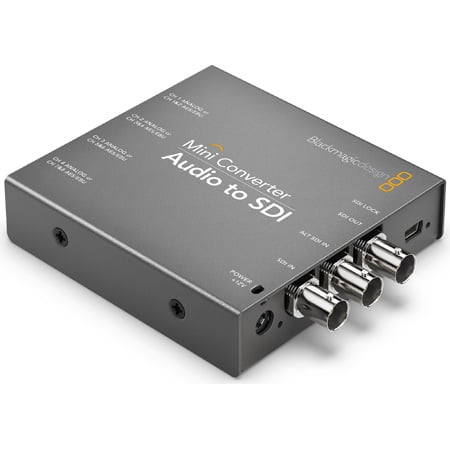

The Blackmagic Design Mini Converter Audio to SDI includes everything you need to embed 4 channels of analog audio, or 8 channels of AES/EBU digital audio into any SDI video connection. Embed audio from devices such as audio mixers and analog decks into SDI video connections for use with SDI routers and decks or to add extra audio channels to video converters! Audio is input as balanced analog or AES/EBU using 1/4-inch connectors. The Mini Converter Audio to SDI is the ideal SD/HD SDI audio embedder for when you don't need the cost of the Ultra HD model! Only Mini Converters include auto SD/HD switching, redundant input, AES/EBU and analog audio on standard 1/4-inch jack connections, combined with advanced 3 Gb/s SDI technology.

  • Features:

    • Audio to SDI
    • Auto Switching SD and HD
    • Redundant SDI Input
    • New 3 Gb/s SDI Technology
    • Built in AES/EBU or Analog Audio


  • Specifications:

    • Connections
    • SDI Video Inputs: 1 x SD, HD or 3G SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
    • SDI Video Outputs: 1 x Embedded SDI Output.
    • Analog Audio Inputs: 4 channels of balanced analog audio.
    • Digital Audio Inputs: 8 channels of balanced AES/EBU audio.
    • SDI Redundant Input: Automatically switches over if main SDI input is lost.
    • Multi Rate Support: Auto detection of SD, HD or 3G SDI.
    • Updates and Configuration: Via USB 2.0 high speed. (480 Mb/s)
    • Reclocking: Yes

      Standards
      SD Video Standards: 525i59.94 NTSC, 625i50 PAL
    • HD Video Standards: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
    • 2K Video Standards: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M B, SMPTE 425M, ITU R BT.656, ITU R BT.601, SMPTE ST 2036
    • SDI Video Rates: SDI video connections are switchable between standard definition and high definition.
    • SDI Video Sampling: 4:2:2, 4:4:4
    • SDI Audio Sampling: Television standard sample rate of 48 kHz and 24 bit.
    • SDI Color Precision: 4:2:2, 4:4:4
    • SDI Color Space: YUV, RGB
    • SDI Auto Switching: Automatically selects between SD, HD, and 3G SDI.

      Software
      Software Control: Mac ™ and Windows ™ software upgrade via USB.
    • Internal Software Upgrade: Via included updater application.

      Operating Systems
    • Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 8.1 and 10.

      Settings Control

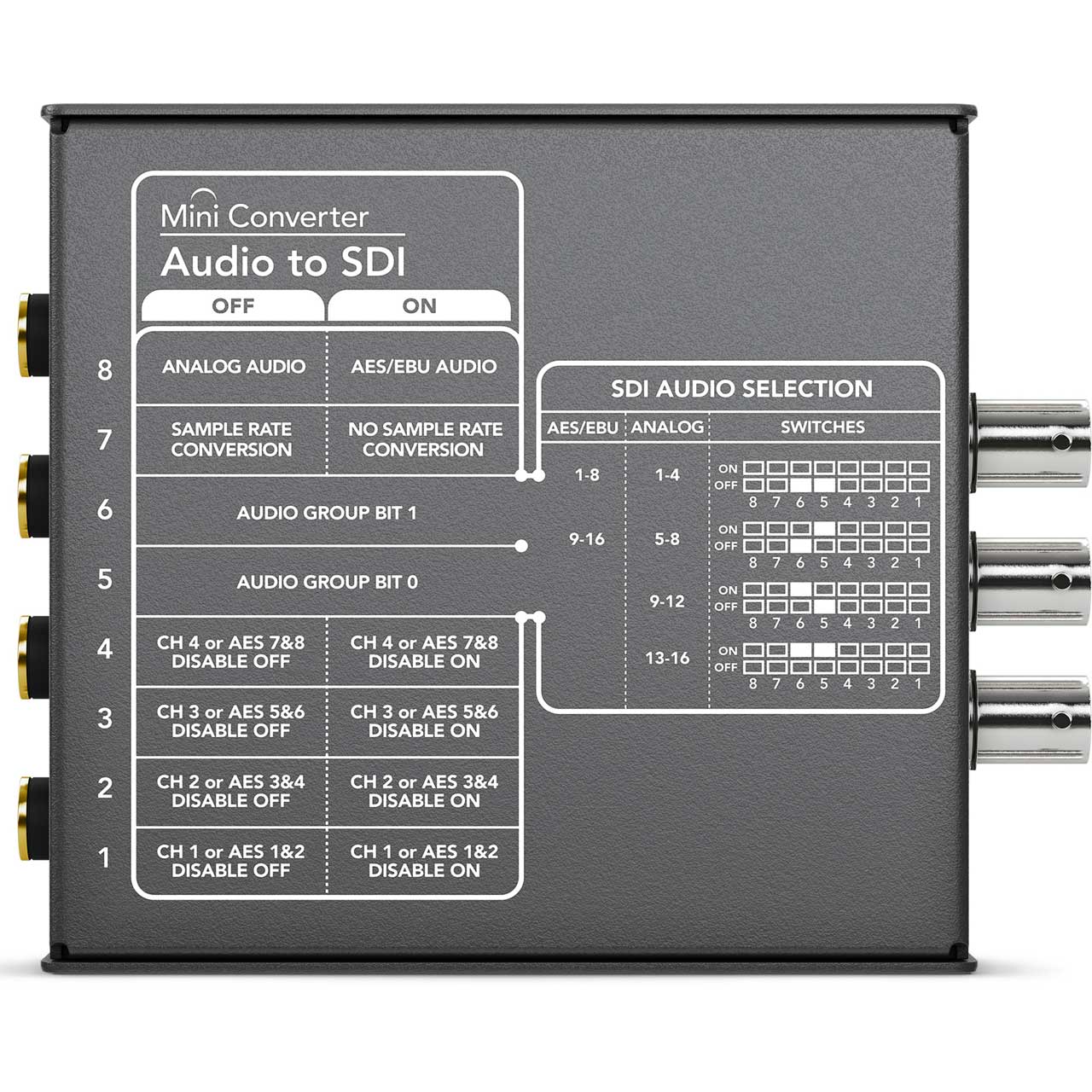

    • Mini Switches or USB software.

      Power Requirements
    • Power Supply: +12V universal power supply included with international socket adapters for all countries. Cable tie point.
    • Power Consumption: 8.40 Watts
    • Operational Voltage Range: 12V DC

      Environmental Specifications
    • Operating Temperature: 0° to 40° C (32° to 104° F)
    • Storage Temperature: -20° to 45° C (-4° to 113° F)


  • Item Includes:

    • Mini Converter Audio to SDI
    • 12V universal power supply with international socket adapters


  • Warranty:

    • 3 Year Limited Manufacturer's Warranty.


  • GTIN:

    9338716004571
