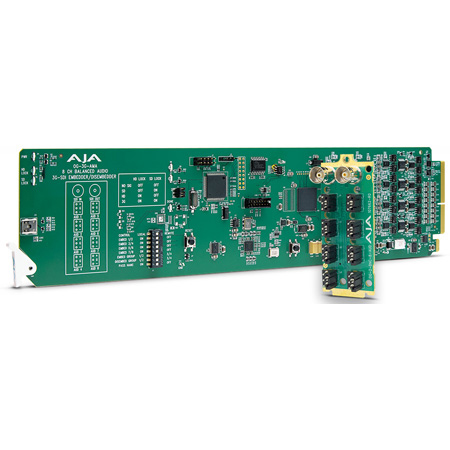

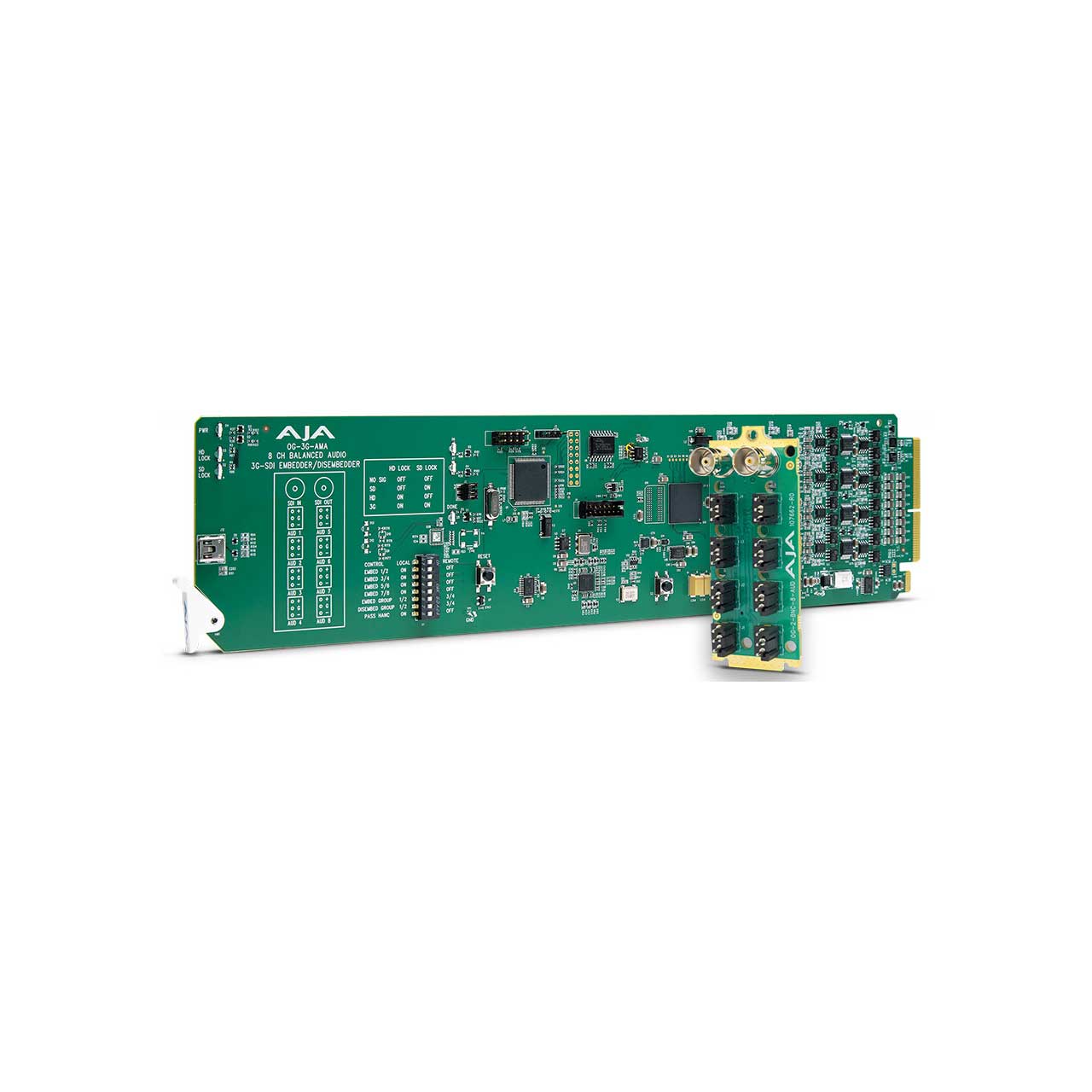

AJA OG-3G-AMA OpenGear 3G-SDI 8-Channel Analog Audio Embedder/Disembedder

OG-3G-AMA - Overview

• Features:

  • openGear compatible card
  • 3G-SDI Embedder/Disembedder
  • 8-Channel Balanced Analog Audio I/O
  • Controlled by DashBoard network control software and external DIP switch
  • 8x 3-Pin Terminal Block connectors (included)
  • Compatible with OGX, OG3 and DFR-8321 openGear frames


• Specifications:

  • Video Formats
  • (2K) 2048 x 1080p
  • (2K) 2048 x 1080PsF
  • (HD) 1920 x 1080p
  • (HD) 1920 x 1080PsF
  • (HD) 1920 x 1080i
  • (HD) 1280 x 720p
  • (SD) 720 x 576i
  • (SD) 720 x 480i

    Video Input Digital
  • 1x 3G-SDI BNC, SMPTE-259/292/372/424

    Video Input Formats
  • 1x 3 Gb SDI (level A or B)
    (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1920 x 1080i 50, 59.94, 60
    (HD) 1280 x 720p 50, 59.94, 60
  • 1x 1.5 Gb SDI
    (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
    (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
    (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
    (HD) 1920 x 1080i 50, 59.94, 60
    (HD) 1280 x 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 1x 270 Mb SDI
    (SD) 625i 50
    (SD) 525i 59.94

    Video Output Digital
  • 1x 3G-SDI BNC, SMPTE-259/292/372/424

    Video Output Formats
  • Video Out is a delayed, reclocked version of Video In, at same frame rate, etc. Video Out is undefined when no input.
  • Video Latency, time measured between video input and video output connector:
    3G level A = 3.2 usec
    3G level B = 6.1 usec
    HD (1.5 Gb) = 6.3 usec
    SD (270 Mb) = 17.2 usec

    Audio Inputs and Outputs
  • Audio Connectors
  • 8 Analog Audio: 4x 2-Pair Balanced Analog Audio 3-Pin Terminal Block connectors; 8 Channel In, 8 Channel Out or 4 Channel In & 4 Channel Out
  • Digital Audio Converters
  • 24-bit
  • Embedded Audio
  • SMPTE 272M (SD): 20-bit, 48 kHz synchronous
  • SMPTE 299M (3G/HD): 24-bit, 48 kHz synchronous
  • Incoming embedded audio can be passed, removed, or overridden.
  • 16 Channels supported on the SDI at any given time (8 of which can be from the analog inputs).
  • Embed Path Audio Latency, time measured between audio input and video output connector
    1100 usec
  • Disembed Path Audio Latency, time measured between video input and audio output connector
    1200 usec

    Analog Audio Levels
  • Configured via Dashboard software:
    Pro 1: 0 dBfs = +24 dBu
    Pro 2:0 dBfs = +18 dBu
    Pro 3: 0 dBfs = +15 dBu
    Consumer 1: 0 dBfs = +12 dBu

    User Controls
  • External DIP switch
  • openGear DashBoard network control software via Windows, macOS or Linux

    Dimensions (WxDxH)
  • openGear standard form factor, front slot and rear card. Two slots required for each card.

    Weight
  • 0.5Lbs (0.3kg)

    Power
  • openGear frame compatible, 5.0 watts max per card

    Environment
  • Safe Operating Temperature: 0° to 40°C (32° to 104°F)
  • Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
  • Operating Relative Humidity: 10 to 90% non-condensing
  • Operating Altitude: <3,000 meters (<10,000 feet)


• Warranty:

  • Five year warranty
