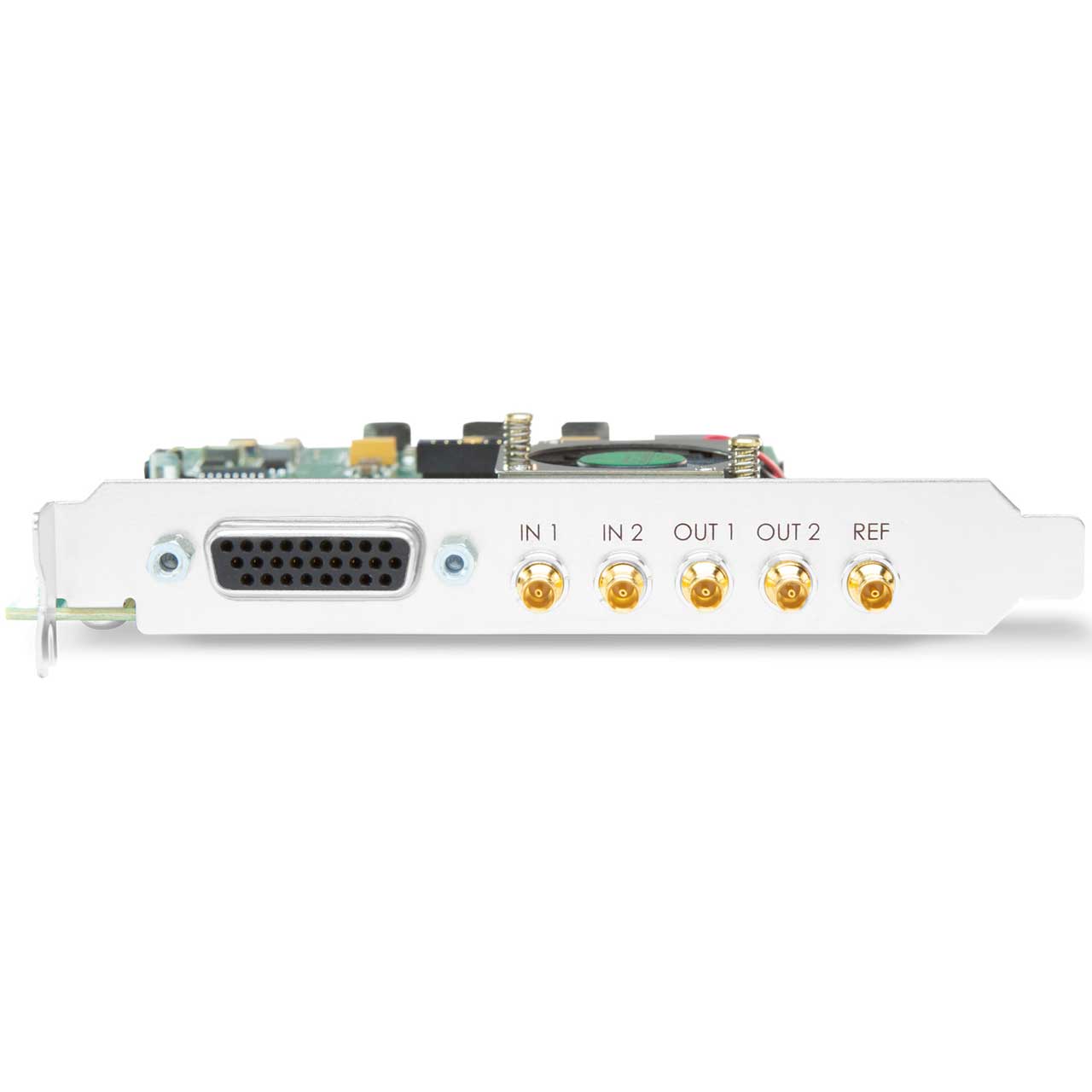

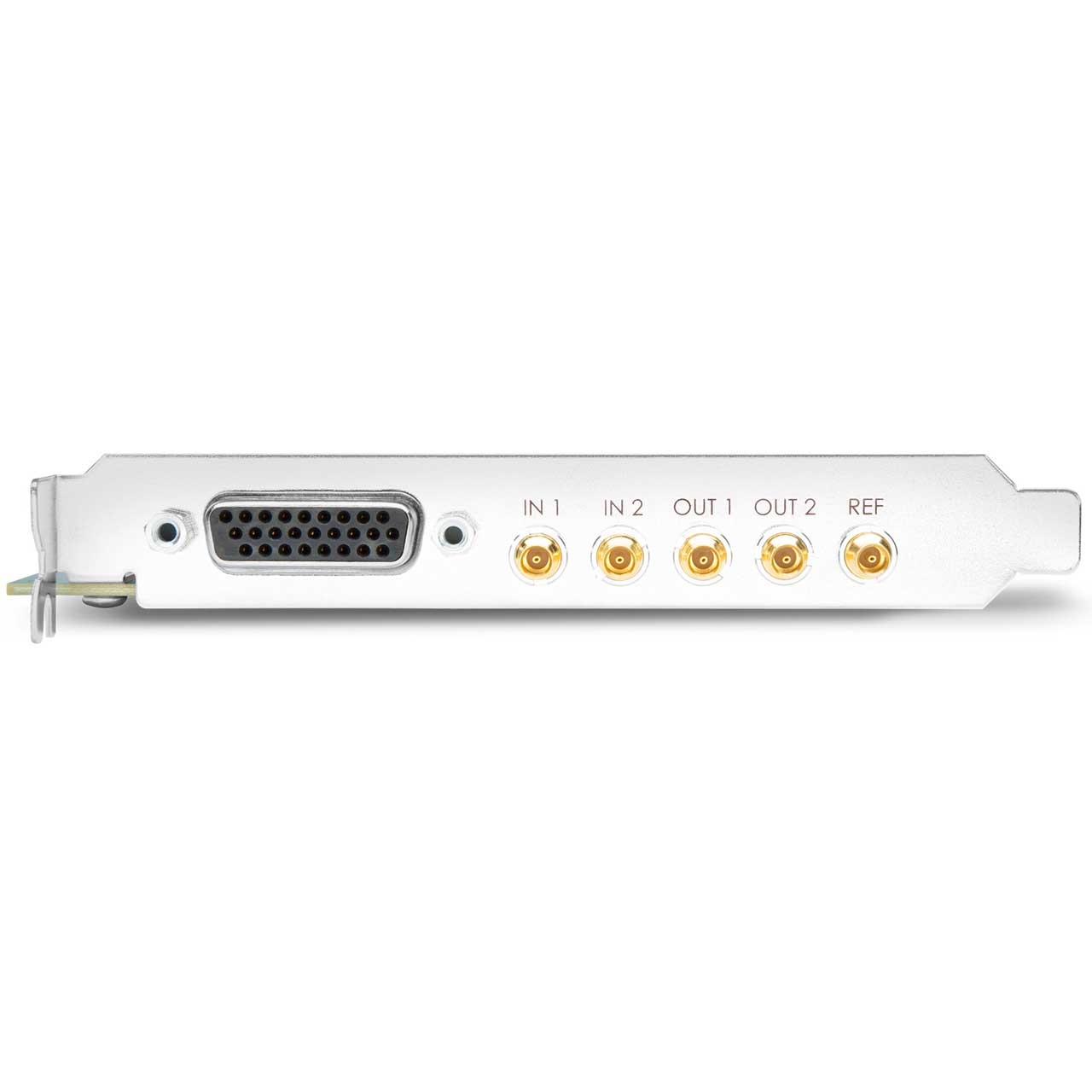

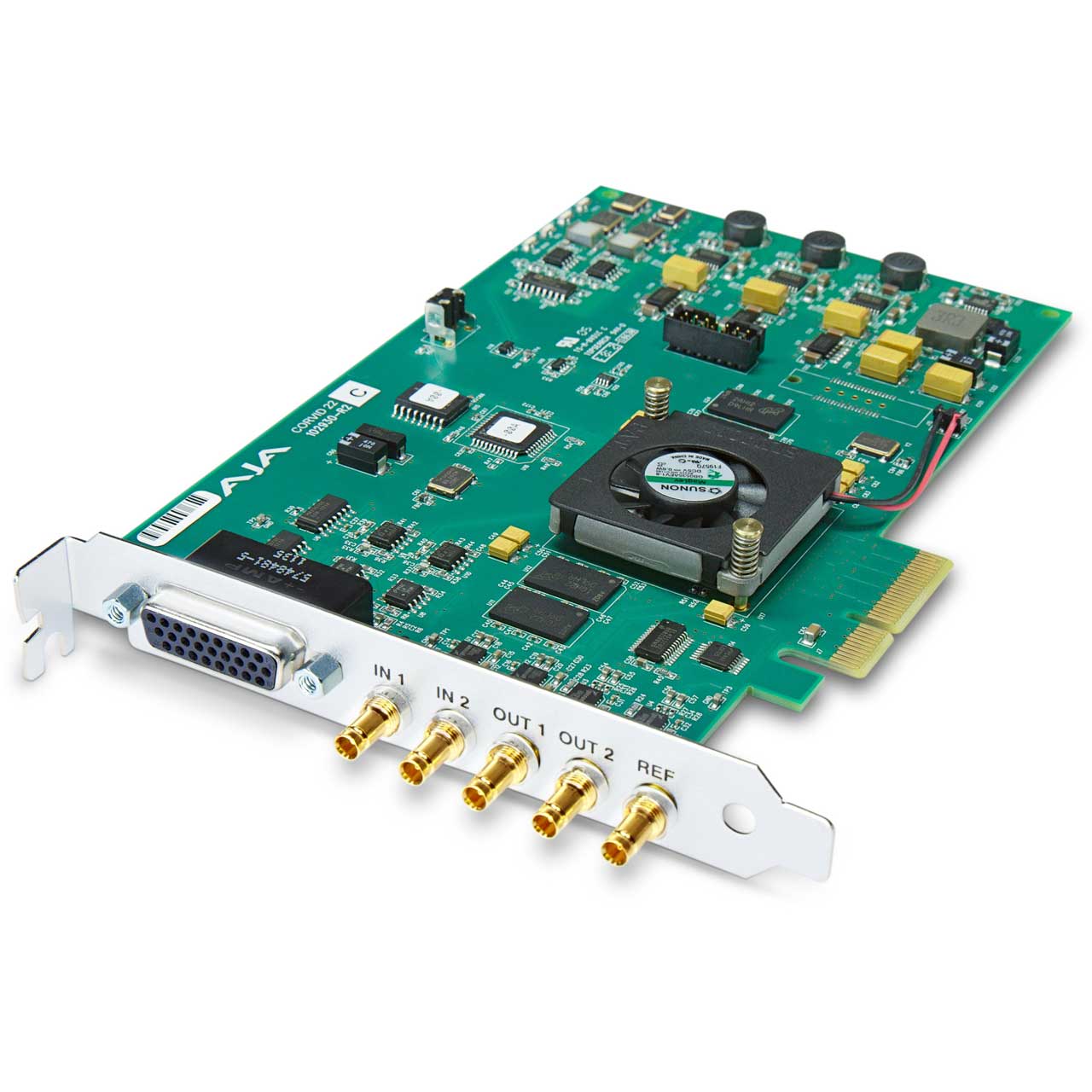

4-Lane PCIe 1.0 2-Channel I/O Card for Digital 3G, HD, SD-SDI!
Get multiple I/O Channels without taking up a lot of space with the AJA Corvid 22. Corvid 22 provides high performance, dual channel video and embedded 24-bit audio I/O in a single PCIe card. Two completely independent channels handle resolutions up to 2K and a high frame rate of 3G1080p!. With separate LTC and RS-422 machine control per channel and support for multiple operating systems, Corvid 22 gives you all the performance and capabilities you need.
.
-
- PCI Express 4 lane
- 2 Channels 3G, HD-SDI or SD-SDI Input, 2 Channels 3G, HD-SDI or SD-SDI Output
- All SD/HD/2Kx1080 Video Formats
- 3G Input/Output for 1080p50/60 and Video/Key (dual-link not supported)
- 8/10 Bit YCbCr and RGB frame buffer formats
- 2 Mixer/Keyer widgets. This allows output of two simultaneous video/key pairs over 3G.It also allows for up to two simultaneous downstream keyers.
- 2 Independent 16-ch 48khz SDI Embedded Audio I/O engines
- Analog Color Black or HD Tri-Level Sync
- 3-year warranty
-
- Video Formats
- (2K) 2048 x 1080p 23.98, 24, 25
- (2K) 2048 x 1080PsF 23.98, 24, 25
- (HD) 1080i 50, 59.94, 60
- (HD) 1080psF 23.98, 24, 25, 29.97, 30
- (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
- (HD) 720p 50, 59.94, 60
- (SD) 625i 50
- (SD) 525i 59.94
Video Input Digital - 3G-SDI, SMPTE-259/292/296/424
Video Output Digital - 3G-SDI, SMPTE-259/292/296/424
Audio Input Digital - 16-Channel 24-bit SDI embedded, 48 kHz synchronous
Audio Output Digital - 16-Channel 24-bit SDI embedded, 48 kHz synchronous
Reference - Analog Color Black or HD Tri-level sync
Output Sitter (Timing / Alignment) - (3G) .45 UI/.17 UI
- (HD) .21 UI/.08 UI
- (SD) .2 UI/.2 UI
Timecode - Independent LTC In/Out
Machine Code - Independent RS-422
Size (w x d x h) - 0.708" x 6.57" x 3.86" (17.99 x 166.88 x 98.05 mm)
Weight - 0.6 lbs (0.3 kg)
Power - 12w typical, 15w maximum
Environment - Safe Operating Temperature: 0° to 40°C (32° to 104°F)
- Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
- Operating Relative Humidity: 10 to 90% (non-condensing)
- Operating Altitude: <3,000 meters (<10,000 feet)
-
