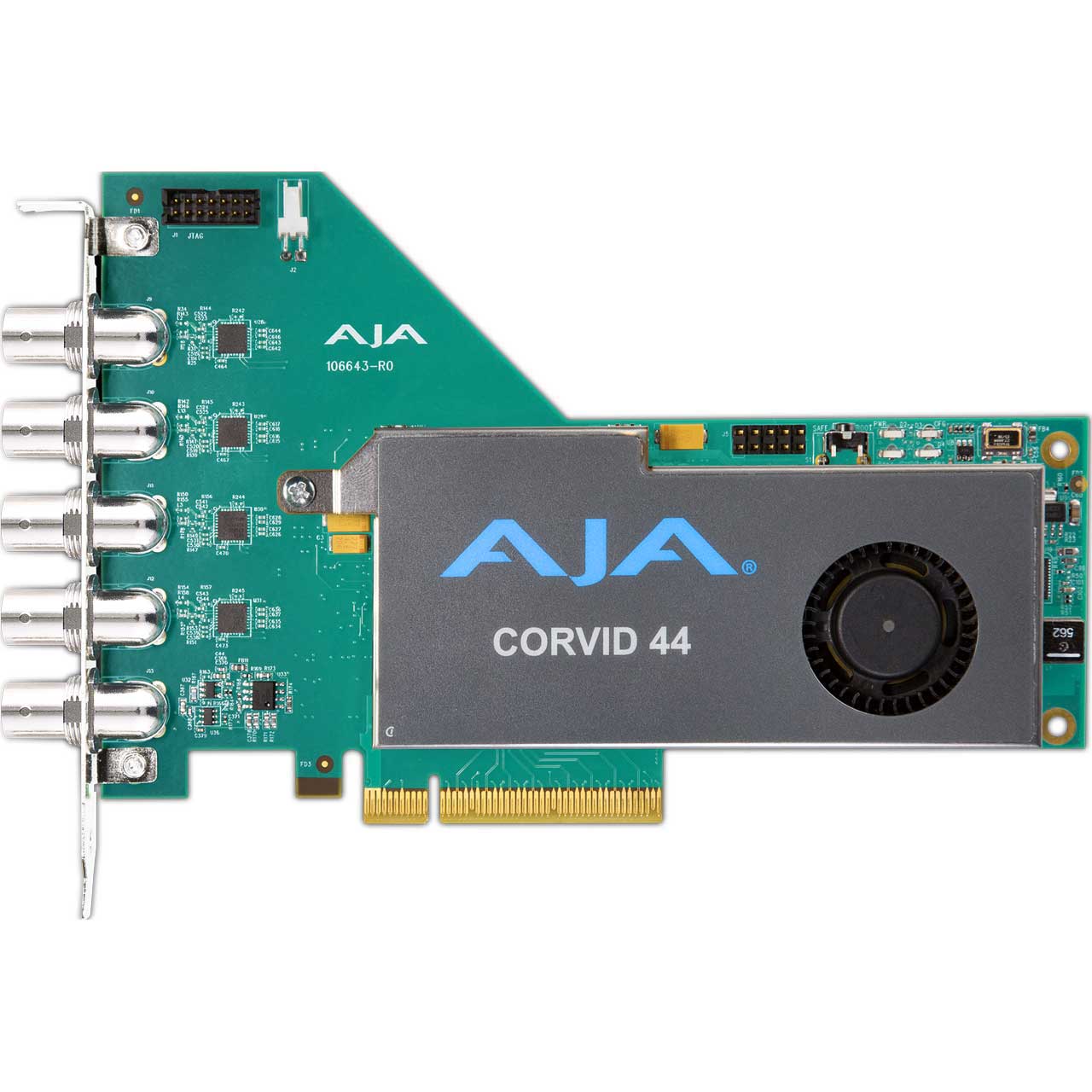

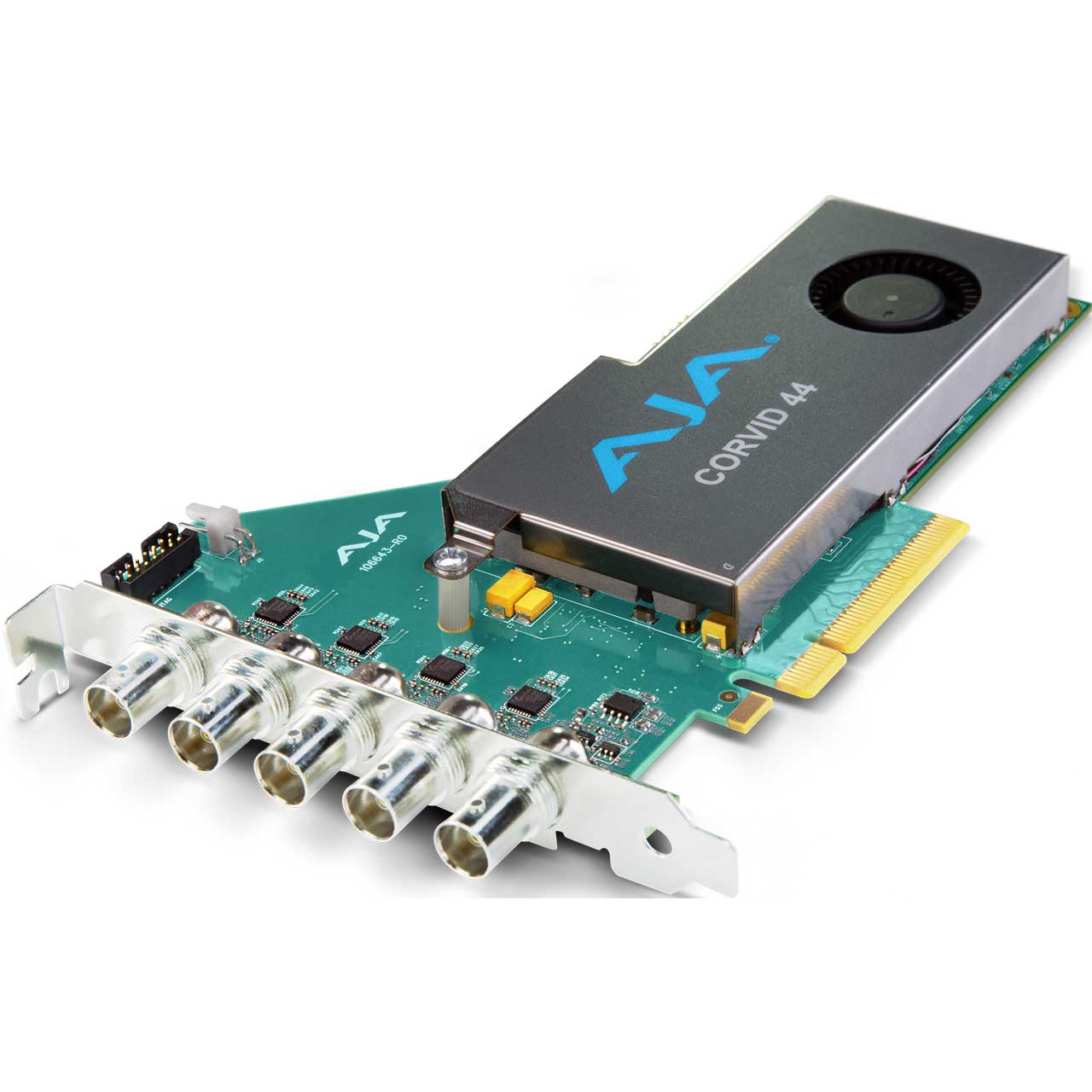

The AJA CORVID 44 BNC-R0 is a 4 Channel, Multi-Stream, Multi-Format Full-size BNC, Standard Size PCIe I/O Card without cables. Each BNC connection on Corvid 44 can be set programmatically as either an input or output and can support a different video format as long as all formats use the same clock timing. Connections can also be linked together to support dual link or 4K/UltraHD formats.
Corvid 44 supports 4K (4096 x 2160) and UltraHD (3840 x 2160) High Frame Rate (HFR) workflows. Working at frame rates of 48p, 50p and 60p ensure smooth motion for the most demanding 4K and UltraHD applications. High frame rates are not limited to 4K and UltraHD with Corvid 44, multiple 720p and 1080p HD inputs and outputs are also supported at frame rates up to 50p and 60p, making Corvid 44 extremely flexible for your current and future needs.
Capture real time footage with Corvid 44 over SDI from high quality cameras, meld your footage with your virtual environment created by the Unreal Engine and send it back out in real time to air - a growing need for broadcasters, augmented reality (AR) needs and more. Digital film makers can enhance your live action VFX work On Set with the ability to see a full composite live during the course of the shoot. This results in fewer reshoots, cost savings and a smoother transition into post production.
Corvid 44 provides one external, switchable LTC/Reference input connection on the back of the card. A second LTC input is available on an internal header for providing additional reference to Corvid 44. Corvid 44 allows AJA Developer Partner applications to access up to four simultaneous input and output streams on a single PCIe card, making it perfect for a wide variety of medium density applications.
