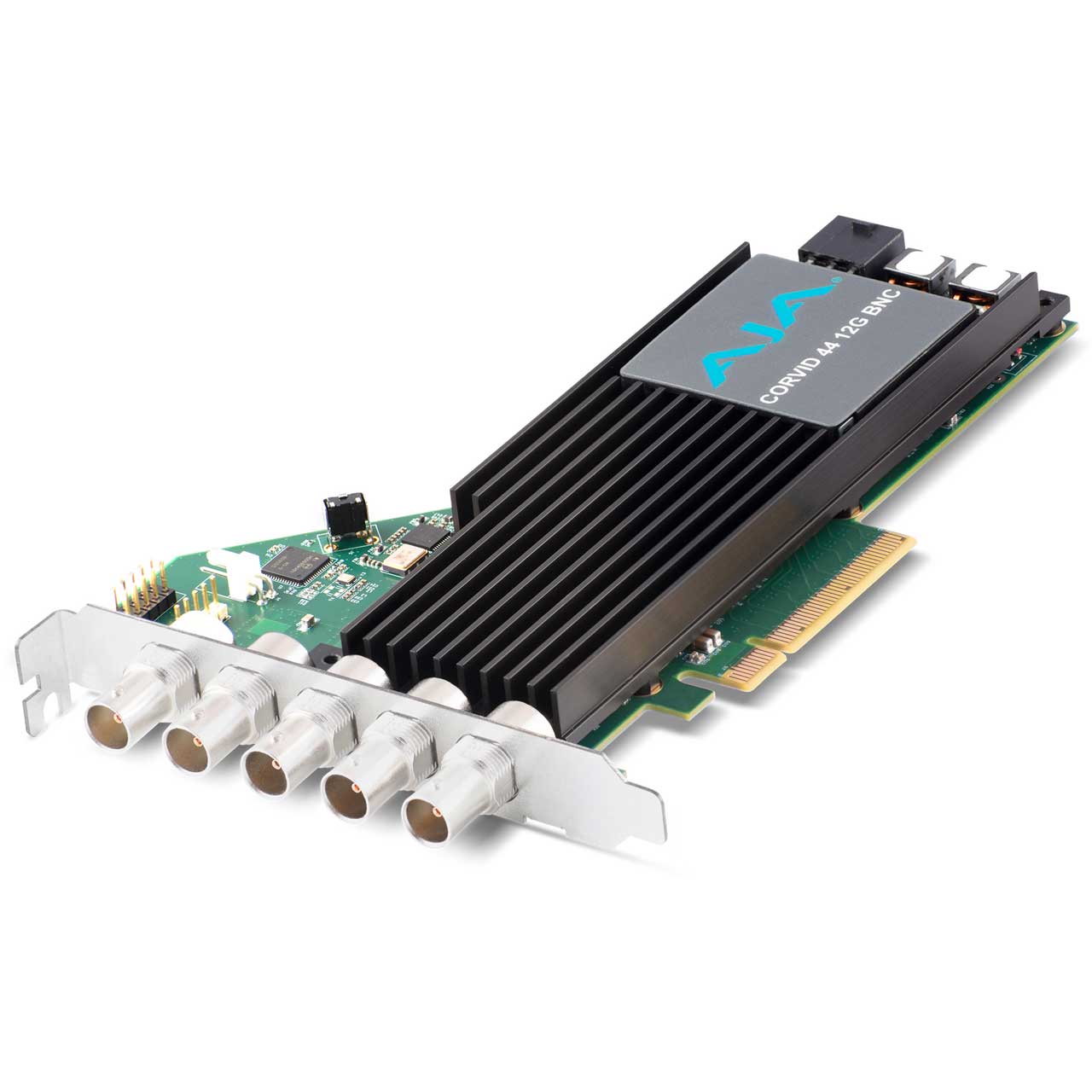

AJA Corvid CRV44-12G-R0-04 8-Lane 12G-SDI PCIe 3.0 x 4 Ch I/O Card - Tall Bracket with Fan - HDBNC - No Cables

ITEM #: AJA-CRV4412GR004 MFG #: CRV44-12G-R0-04

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$4,005.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CRV44-12G-R0-04 - Overview

Take command of the most challenging projects using the immense power of the newest member of the Corvid product line. The Corvid 44 12G is AJA's blazingly fast, compact 8-lane PCIe 3.0 I/O card with four bidirectional 12G-SDI HD-BNC connections, designed for today's most demanding video and audio workflows. Corvid 12G 44 is available in several configurations, including full-height or low-profile, with passive or active cooling.

Whether you are working with HFR 8K/4K/UltraHD, 2K/HD, SD, Deep Color and/or HDR, experience the quality and peace of mind that Corvid 44 12G brings to your projects. Supporting 10-bit 4:2:2 and 4:4:4, at up to 12-bit color spaces, Corvid 44 12G offers ingest and output over 12G-SDI, which is also backwards compatible with 6G-SDI, 3G-SDI, and 1.5G-SDI. The bidirectional 12G-SDI ports provide immense flexibility for capture and simultaneous pass-through for a range of solutions.

12G-SDI, Multi-Format PCIe I/O Card

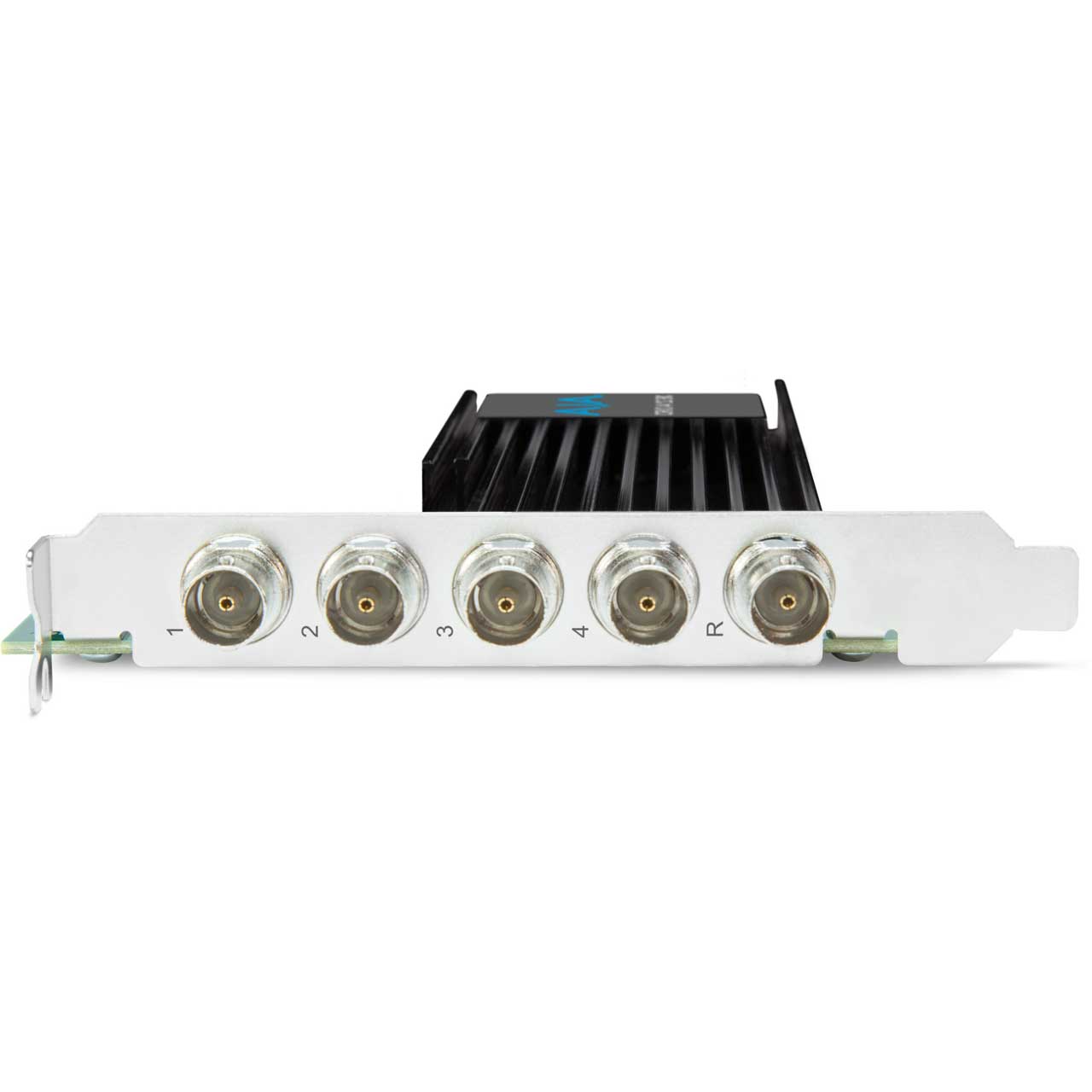

Corvid 44 12G boasts four bidirectional 12G-SDI spigots with a Reference Input. 8K Input or Output is possible using quad 12G-SDI cables and 4K/UltraHD I/O can be achieved with either a single 12G-SDI or 6G-SDI cable, or quad 3G-SDI cables. 2K/HD I/O can be achieved with a single SDI cable or dual link SDI, while allowing capture and monitoring via SDI to take place simultaneously.

The Corvid 44 12G family also includes models for active vs. passive cooling, RS422 on PCIe bracket vs. card header, and HD-BNC vs. full-size BNC connectors.

Flexible Frame Rate Support
Corvid 44 12G supports 8K (8192 x 4320) and UltraHD2 (7680 x 4320) High Frame Rate (HFR) workflows up to 50/60p for the most demanding applications. Film rates of 23.98, 24, 47.95 and 48p are also supported across 8K, 4K, and 2K.

High frame rates are not limited to 8K and UltraHD2 with Corvid 44 12G, multiple 4K, UltraHD, 1080p and 720p HD inputs and outputs are also supported at frame rates up to 50/60p, making Corvid 12G extremely flexible for your current and future needs

  • Specifications:

    • Video Formats
    • (8K) 8192 x 4320p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (UHD2) 7680 x 4320p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1080i 50, 59.94, 60
    • (HD) 720p 50, 59.94, 60
    • (SD) 625i 50
    • (SD) 525i 59.94
    • Note: High Frame Rate capabilities are dependent on host system attributes. Not all systems and configurations will support all frame rates.

      Video Inputs Digital
    • 12G-SDI, SMPTE-2082, 12-bit, 10-bit and 8-bit
    • 6G-SDI, SMPTE-2081, 10-bit and 8-bit
    • 3G-SDI, SMPTE-259/292/296/424/425, 12-bit, 10-bit and 8-bit
    • 4K/UltraHD 4:4:4 (4x BNC)
    • 1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2x BNC), 12-bit, 10-bit and 8-bit
    • 1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x BNC), 10-bit and 8-bit
    • Note: Corvid 44 12G SDI connectors are HD BNC

      Video Outputs Digital
    • 12G-SDI, SMPTE-2082, 12-bit, 10-bit and 8-bit
    • 6G-SDI, SMPTE-2081, 10-bit and 8-bit
    • 3G-SDI, SMPTE-259/292/296/424, 12-bit, 10-bit and 8-bit
    • 4K/UltraHD 4:4:4 (4x BNC)
    • 1.5G-SDI, SMPTE 372M, Dual Link HD 4:4:4 (2x BNC), 12-bit, 10-bit and 8-bit
    • 1.5G-SDI, SMPTE 292M, Single Link 4:2:2 (1x BNC), 10-bit and 8-bit
    • Note: Corvid 44 12G SDI connectors are HD BNC

      SDI I/O
    • SDI connections are bidirectional
    • 2K/HD, capture and monitoring is simultaneous
    • 4K/UltraHD with 12G-SDI, capture and monitoring is simultaneous.
    • 4K/UltraHD with 3G-SDI, all four connections must be used for either Input or Output.
    • 8K/UHD2 with 12G-SDI, connections must be used for either Input or Output.
    • Note: When connections are configured for 12G-SDI or 6G-SDI, only UltraHD/4K/UHD2/8K formats are supported.

      Audio Inputs Digital
    • 16-channel, 24 and 16-bit SDI embedded audio, 48 kHz sample rate, synchronous

      Audio Outputs Digital
    • 16-channel, 24-bit SDI embedded audio, 48 kHz sample rate, synchronous

      Downstream Keyer
    • Supports graphics with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte up to UltraHD/4K

      Reference
    • Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V) via 1x HD-BNC on PCIe bracket
    • Reference input is terminated into 75 ohms when Genlock is set to Ref In

      Timecode
    • LTC timecode input via 2-pin header on PCIe card [both short (low profile) and tall (full height) models]
    • LTC timecode input via HD-BNC Ref In connector (switchable) on PCIe bracket [tall (full height) models only]

      Electrical Interface
    • 8-lane PCIe 3.0

      Machine Controls
    • RS-422, Sony 9-pin protocol via header on PCIe card [both short (low profile) and tall (full height) models]
    • RS-422, Sony 9-pin protocol via port on PCIe bracket connected to header via DB9 cable [tall (full height) models only]
    • 9-pin D-connector pinout is as follows:
    • 1 - GND
    • 2 - RX-
    • 3 - TX+
    • 4 - GND
    • 5 - No Connection
    • 6 - GND
    • 7 - RX+
    • 8 - TX-
    • 9 - GND
    • Shell - GND

      Noise
    • <50dBA (A-weighted at 1m in free air) [models with active cooling (fan)]
    • Ultra quiet (virtually silent) [models with passive* cooling (no fan)]
    • Passive cooling requires in-host/chassis air-flow minimum of 150 LFM (linear feet per minute) at 30 C

      Size (w x d x h)
    • 0.75" x 7.0" x 3.15" (19 x 178 x 80 mm) [short (low profile) models]
    • 0.75" x 7.0" x 4.75" (19 x 178 x 121 mm) [tall (full height) models]

  • Warranty:

    • 3 Year Warranty

  • GTIN:

    0812321032055
