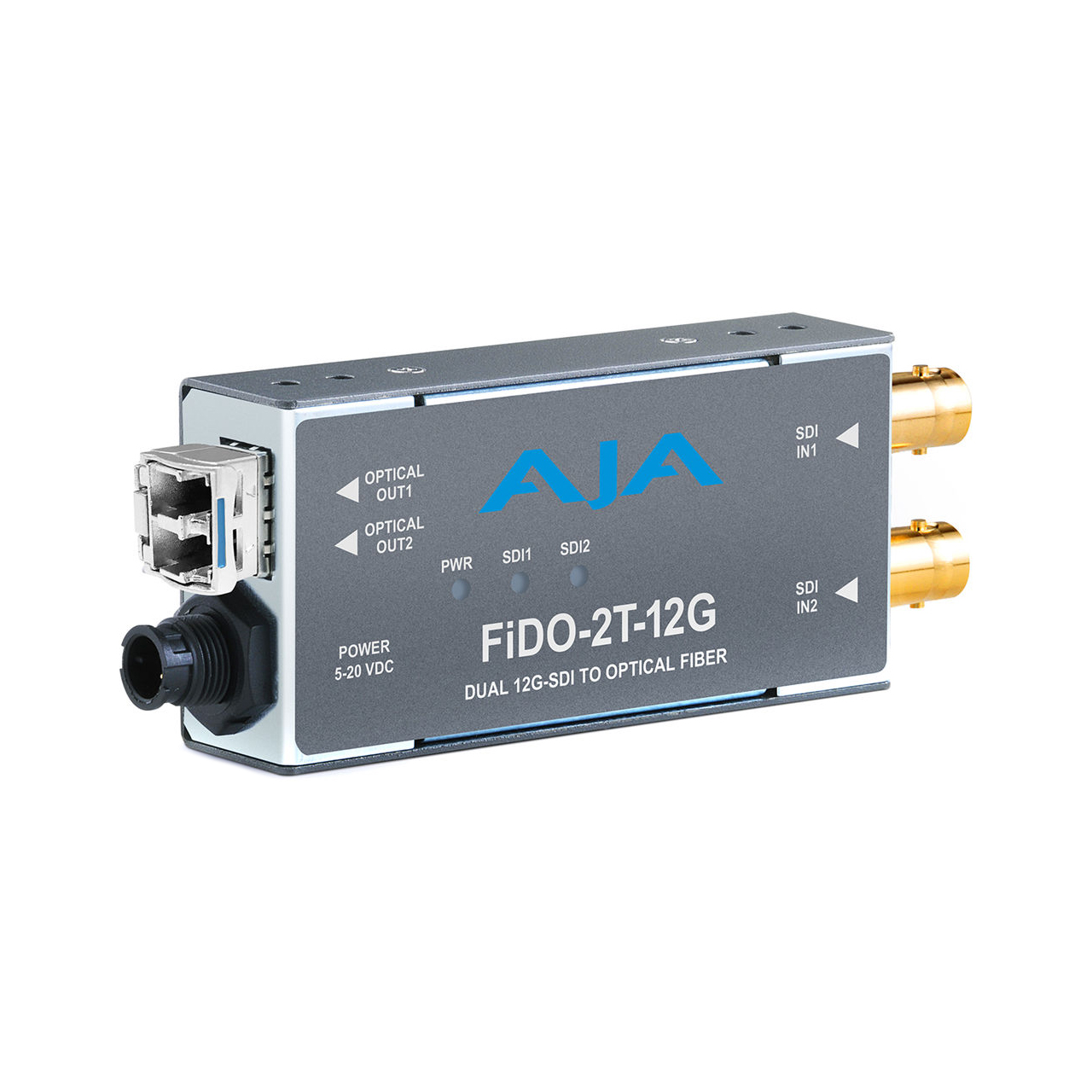

AJA FiDO-2T-12G 2-Channel 12G-SDI to Single-Mode LC Fiber Transmitter

FIDO-2T-12G - Overview

• Features:

  • 2-Channel 12G-SDI to Single-Mode LC Fiber Transmitter
  • 2 simplex or 1 duplex connection (LC connector)
  • 2 independent channels of 12G-SDI inputs, which also support 6G/3G/HD/SD-SDI
  • Both SDI-to-Fiber paths are completely independent
  • Uses 5-20VDC power (DWP-U-R1 universal power supply included)


• Specifications:

  • Video Formats
  • 270Mbps - 12 Gbps, format agnostic

    Video Input Digital
  • 2-Channel Independent 12G-SDI BNC connectors, SMPTE 259/292/424/2081/2082

    Video Output Digital
  • 2-Channel Independent Single Mode LC Fiber connectors, SMPTE 297/259/292/424/2081/2082
  • Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
  • Optical Power: -5 dBm (min), 0.5 dBm (max)
  • Extinction Ratio: 5.4 dB(min)

    Reclocking
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
  • All other rates are passed through and not reclocked

    Dimensions (WxDxH)
  • 4.6 x 1.71 x.85" (117 x 43.5 x 21.6mm)

    Weight
  • 0.4Lbs (0.2kg)

    Power
  • 3.5 watts (max)
  • Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)

    Environment
  • Safe Operating Temperature: 0° to 40°C (32° to 104°F)
  • Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
  • Operating Relative Humidity: 10 to 90% non-condensing
  • Operating Altitude: <3,000 meters (<10,000 feet)


• Warranty:

  • 5 Year


• GTIN:

  0812321030242
