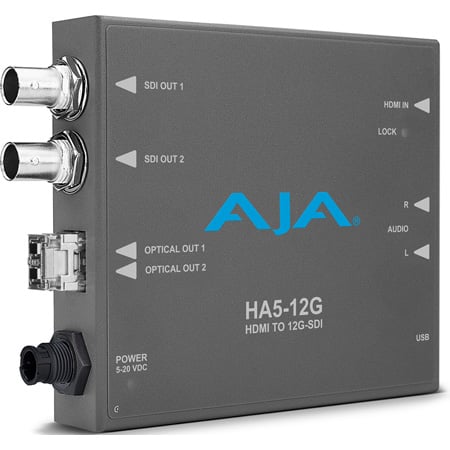

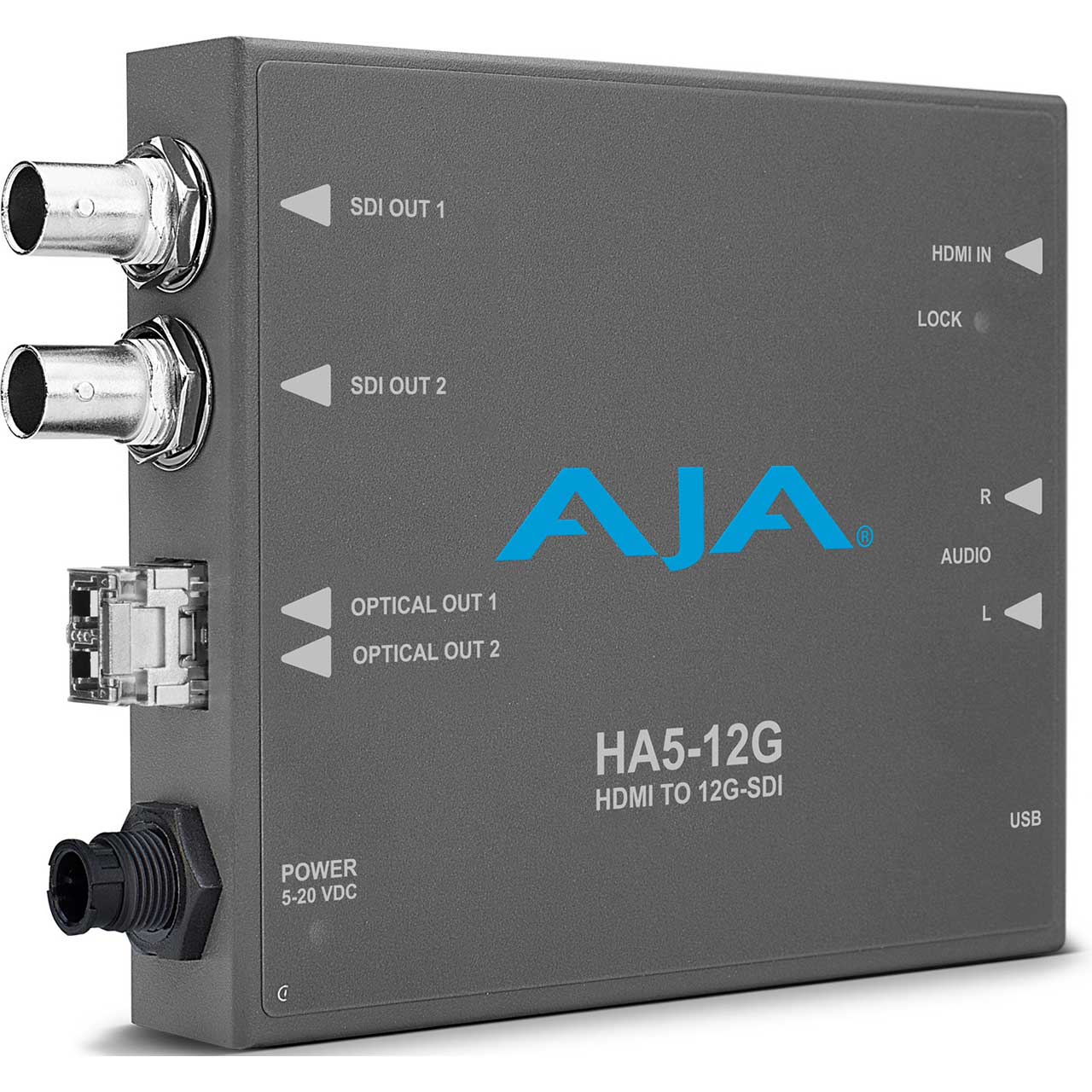

AJA HA5-12G-T HDMI 2.0 to 12G-SDI Mini-Converter with Single Channel Fiber 12G LC Transmitter

HA5-12G-T - Overview

• Features:

  • Convert HDMI 2.0b to 4K 60p to 12G-SDI with a second mirrored output

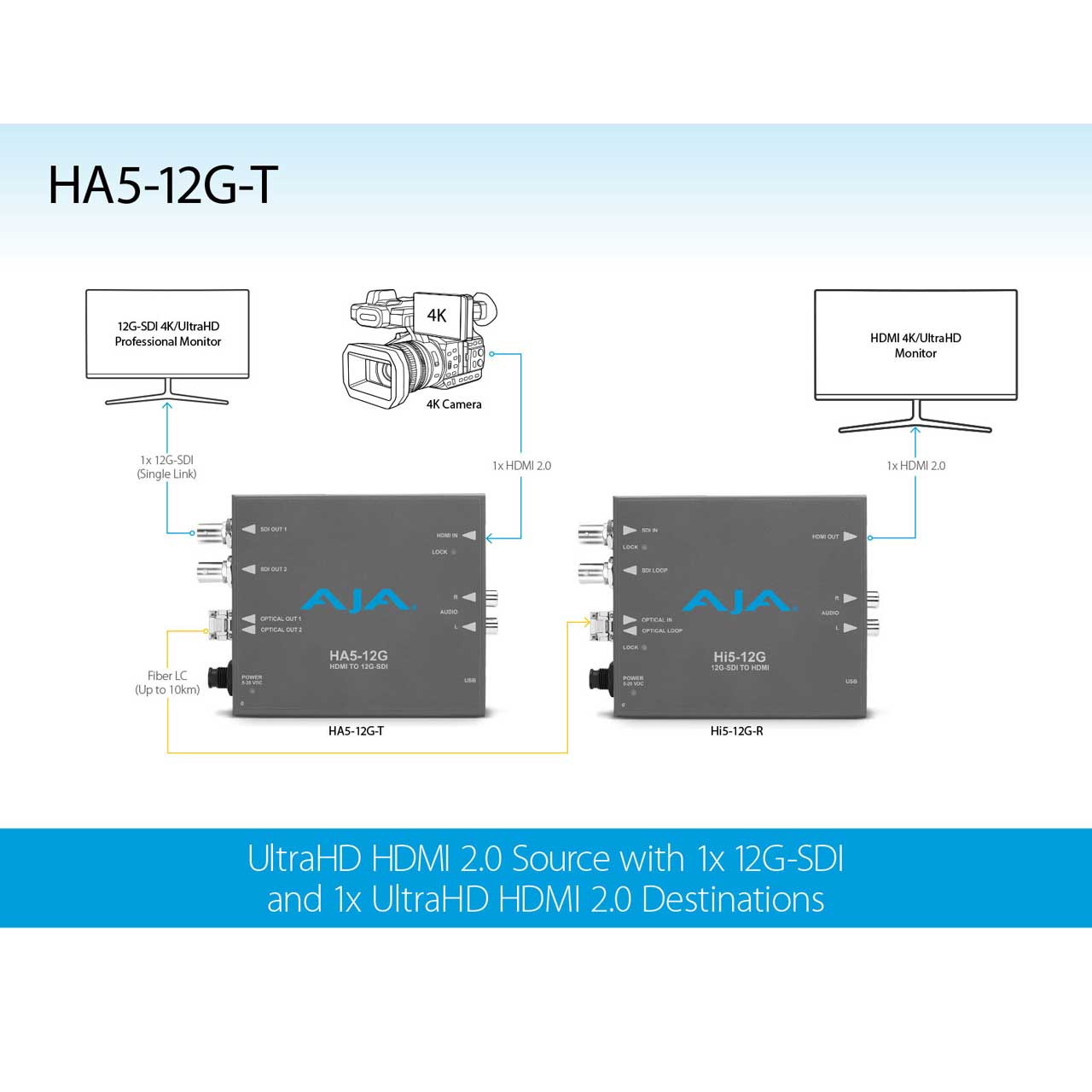

  • Includes a single channel Fiber 12G LC transmitter, which extends 12G-SDI signals over long distances (10 km Single Mode)
  • HA5-12G-T ships with FiberLC-1T-12G SFP installed
  • Support for up to 60p input at 4:4:4/4:2:2/4:2:0
  • EDID Emulation
  • Two Sample Interleave (2SI) 4K/UltraHD source mapping
  • Analyzes HDR Infoframe data coming in over HDMI in accordance with HDMI v2.0b/CTA-861-G
  • Simple Frame Rate Conversion (FRC) 60 fps to 59.94 fps, and 59.94 fps to 60 fps
  • Embedded audio can be selected from the HDMI or Analog audio inputs
  • Embedded audio pass-through of E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC) immersive sound
  • Configure via USB port and supplied AJA Mini-Config software on PC/Mac
  • Uses 5-16 VDC power (DWP-U-R1 universal power supply included)


• Specifications:

  • Video Input Formats
  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080i 50, 59.94, 60
  • (HD) 1280 x 720p 50, 59.94, 60
  • (SD) 720 x 576p 50
  • (SD) 720 x 576i 50
  • (SD) 720 x 480p 59.94
  • (SD) 720 x 480i 59.94
  • RGB and YCbCr, 4:4:4/4:2:2, 8/10/12-bit
  • (Raster and Frame Rate Dependent, please see HA5-12G Video Formats in Documents and Manual)

    Video Input Digital
  • 1x HDMI Type A connector, HDMI v2.0b

    Video Output Formats
  • 1x 12 Gb SDI
  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (Ultra HD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
  • 1x 6 Gb SDI
  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
  • (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97, 30
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
  • (Ultra HD) 3840 x 2160PsF 23.98, 24, 25, 29.97, 30
  • 1x 3 Gb SDI (Level A or B-Dual Link)
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080i 50, 59.94, 60
  • (HD) 1280 x 720p* 50, 59.94, 60
  • 1x 1.5 Gb SDI
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
  • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080i 50, 59.94, 60
  • (HD) 1280 x 720p 50, 59.94, 60
  • 1x 270 Mb SDI
  • (SD) 625i 50
  • (SD) 525i 59.94
  • RGB and YCbCr, 4:4:4/4:2:2/, 8/10/12-bit
  • (Raster and Frame Rate Dependent, please see HA5-12G Video Formats in Documents and Manual)
  • *1280 x 720p is Level A Only

    Video Output Digital
  • 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
  • Single Link SD/HD/2K/UltraHD/4K

    Video Output Digital - Additional for HA5-12G-T Only
  • 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
  • Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
  • Optical Power: -5 dBm (min), 0.5 dBm (max)
  • Extinction Ratio: 5.4 dB (min)

    Cable Equalization
  • (Belden 1694A coax)
  • 12 Gbps, 65m
  • 6 Gbps, 125m
  • 3 Gbps, 190m
  • 1.5 Gbps, 200m
  • 270 Mbps, 405m

    Audio Input Digital
  • HDMI embedded audio, 24-bit, 8-channel

    Audio Input Analog
  • 2x RCA style connector, 2-channel -10dBu (nominal)

    Audio Output Digital
  • SDI embedded audio, 24-bit, 8-channel


• Warranty:

  • 5 Year


• GTIN:

  0812321031508
