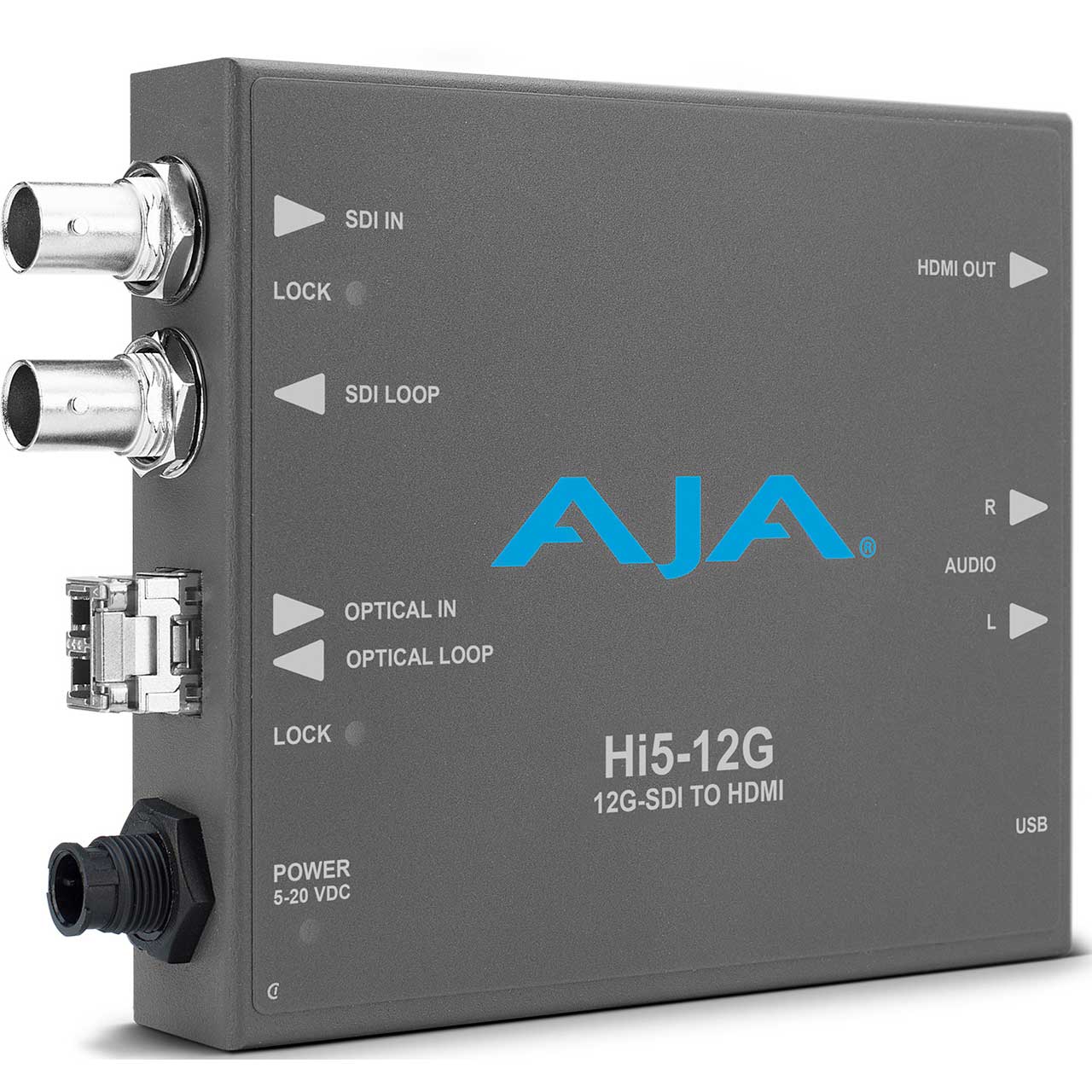

AJA Hi5-12G-TR 12G-SDI to HDMI 2.0 Mini-Converter with LC Fiber Transceiver

HI5-12G-TR - Overview

• Features:

  • Pristine image fidelity and HFR support up to 60p for 4K/UltraHD 12G-SDI to HDMI 2.0 conversion with a single cable
  • Generates HDR10 metadata in accordance with HDMI v2.0b/CTA-861-G and supports HLG over HDMI
  • Simple monitoring connection from professional 4K devices using 12G-SDI outputs to new displays with HDMI 2.0 inputs, for cost effective monitoring

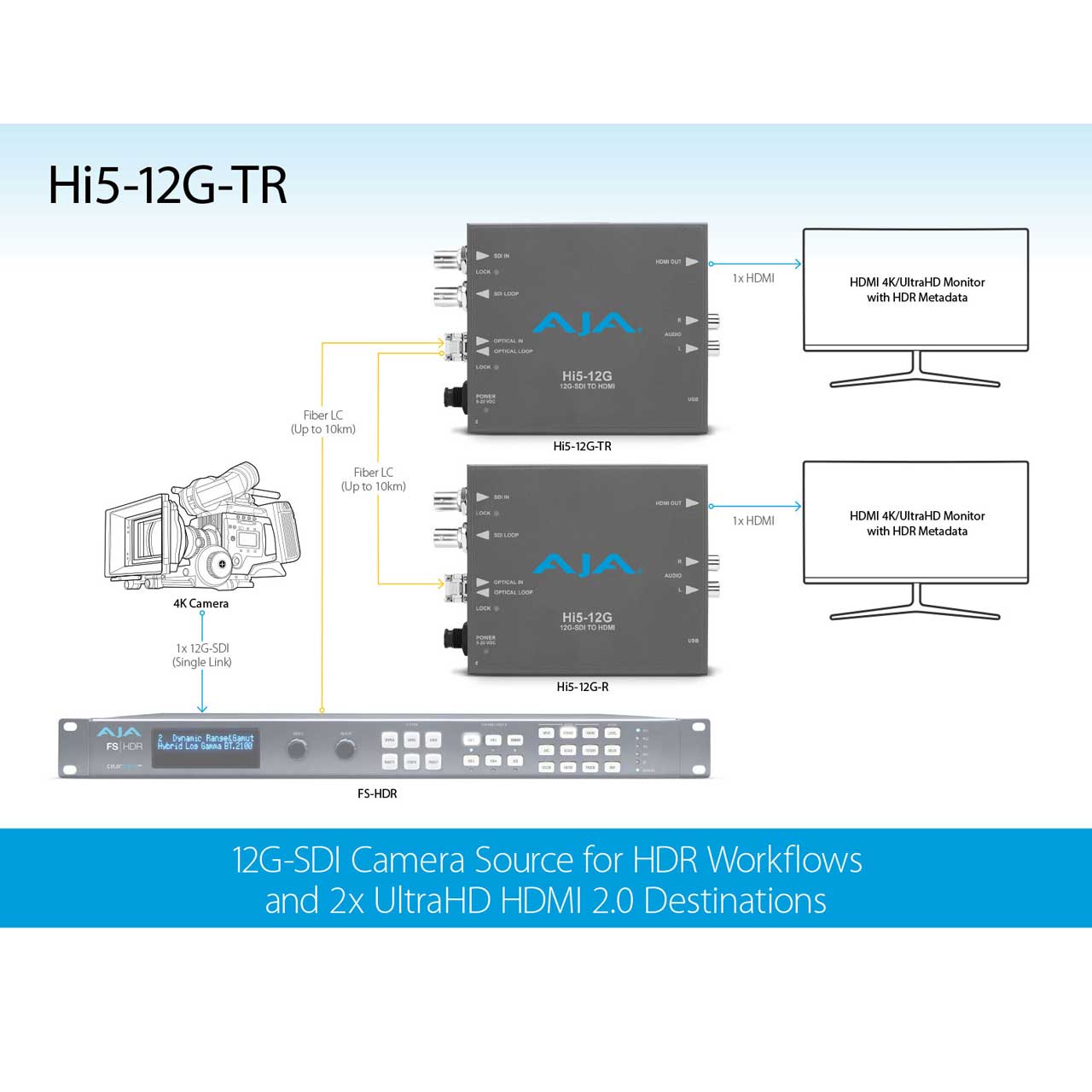

  • Features a 12G-SDI single link input with a reclocked SDI loop out and includes a Fiber LC single channel SFP transceiver which delivers a 4K/UltraHD SDI or Fiber source signal to an HDMI destination with pass on of the source through SDI or Fiber to a secondary destination

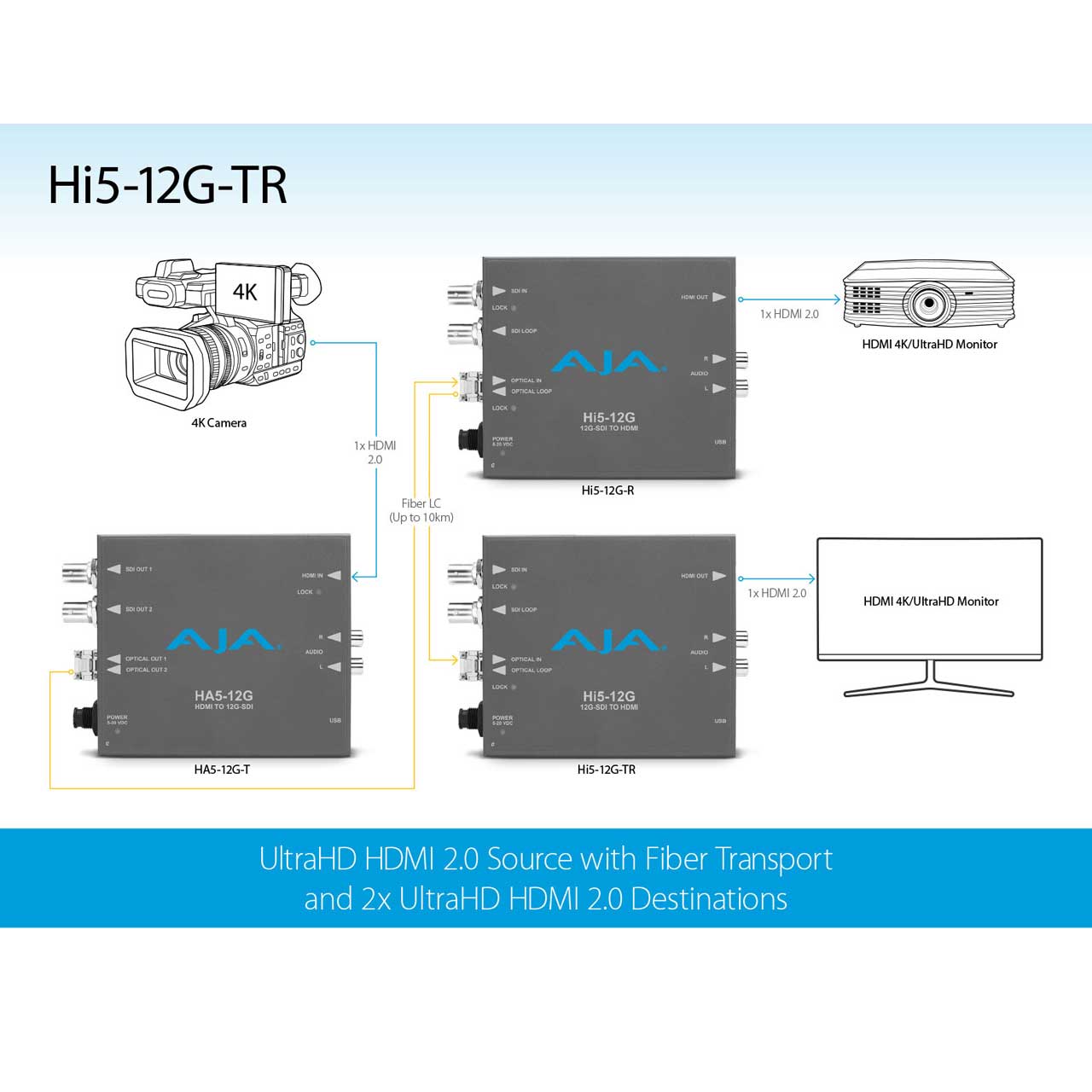

  • Ships with a Fiber LC single channel SFP transceiver for extending 4K signals over long distances
  • DWP-U power supply and a USB port for firmware updates
  • Five year warranty


• Specifications:

  • Video Formats
  • (4K) 4096 x 2160p
  • (UltraHD) 3840 x 2160p
  • (2K) 2048 x 1080p
  • (HD) 1920 x 1080p
  • (HD) 1920 x 1080i
  • (HD) 1280 x 720p
  • (SD) 720 x 576i
  • (SD) 720 x 480i

    Video Input Digital
  • 1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
  • YCbCr 4:2:2/4:4:4
  • 8 or 10-bit
  • Two Sample Interleave (2SI) 4K/UltraHD source mapping
  • 1x 12 Gb SDI
  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 1x 6 Gb SDI
  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
  • 1x 3 Gb SDI (Level A or B-Dual Link)
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080i 50, 59.94, 60
  • (HD) 1280 x 720p* 50, 59.94, 60
  • 1x 1.5 Gb SDI
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30
  • (2K) 2048 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920 x 1080i 50, 59.94, 60
  • (HD) 1280 x 720p 50, 59.94, 60
  • 1x 270 Mb SDI
  • (SD) 625i 50
  • (SD) 525i 59.94
  • *1280 x 720p is Level A Only

    Input Signal Selection -Hi5-12G-R and Hi5-12G-TR Only
  • 1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
  • 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
  • Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)
  • Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
  • Overload Power: -2 dBm (min)

    Video Output Digital
  • 1x HDMI Type A connector*, HDMI v2.0b
  • YCbCr 4:2:2/4:4:4/4:2:0
  • 8 or 10-bit (HFR 4K/UltraHD 4:4:4 limited to 8-bit)
  • HDR Infoframe generation as defined in CTA-861-G and HDMI v2.0b
  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920 x 1080i 50, 59.94, 60
  • (HD) 1280 x 720p 50, 59.94, 60
  • (SD) 720 x 576i 50
  • (SD) 720 x 480i 59.94
  • *If a connected monitor doesn't support HDMI protocol the unit automatically switches to DVI protocol (which does not pass audio)

    Video Output Digital - Additional for Hi5-12G-TR Only
  • 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
  • Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
  • Optical Power: -5 dBm (min), 0.5 dBm (max)
  • Extinction Ratio: 5.4 dB (min)

    Audio Input Digital
  • SDI embedded audio, 24-bit, 16-channel

    Audio Output Digital
  • HDMI embedded audio, 24-bit, 8-channel

    Audio Output Analog
  • 2x RCA style connector, 2-channel -10dBu (nominal)

    User Interface
  • USB port used with supplied cable and Mini-Config software application to configure and view device status via Mac or Windows


• Warranty:

  • 5 Year


• GTIN:

  0812321031539
