AJA OG-2x4-SDI-DA OpenGear 2 x 4 3G-SDI Re-clocking DA

ITEM #: AJA-OG2X4SDI-DA MFG #: OG-2X4-SDI-DA

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AJA-OG2X4SDI-DA

OG-2X4-SDI-DA - Overview

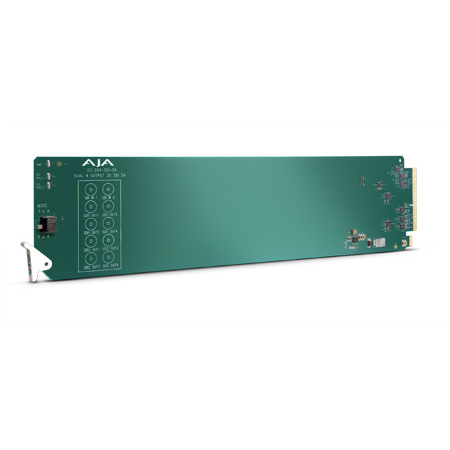

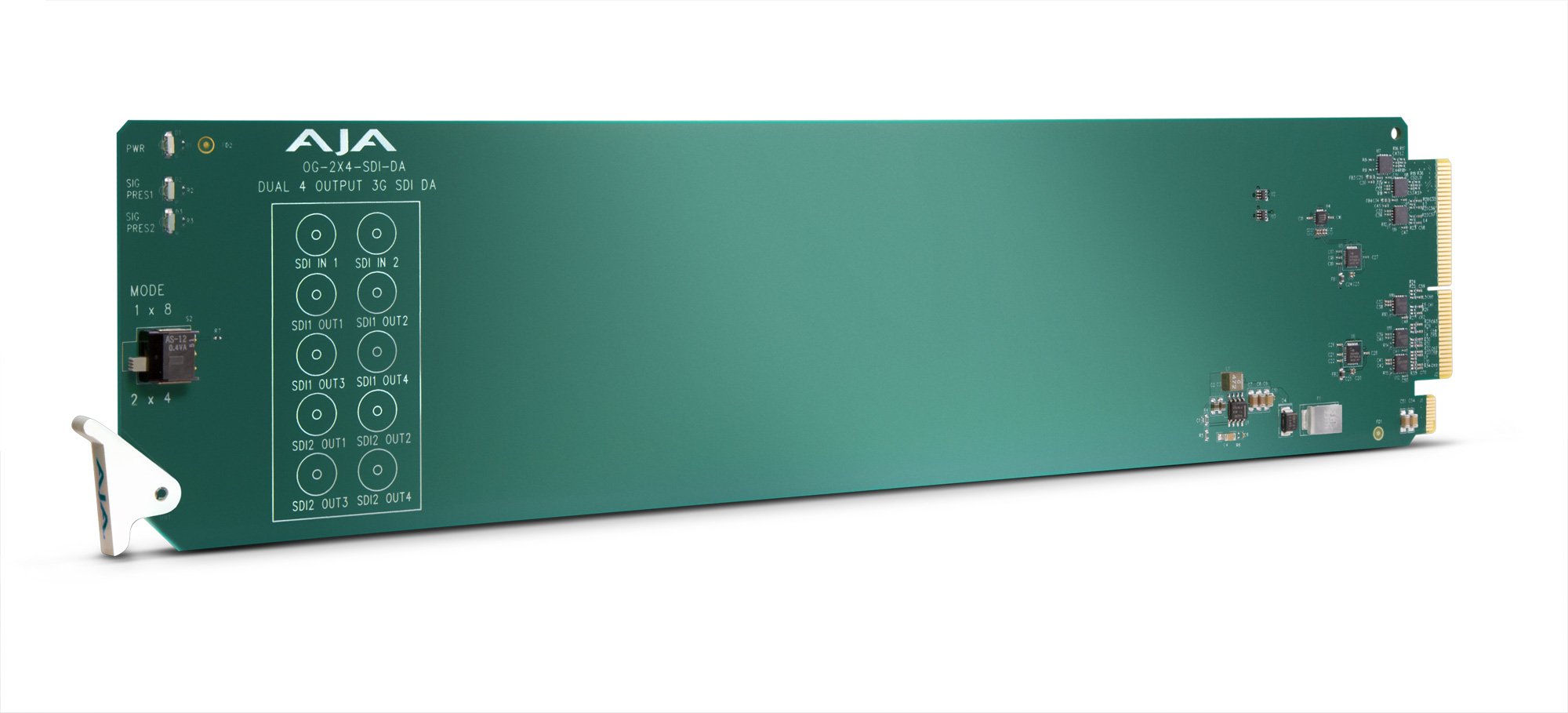

The OG-2x4-SDI-DA is an openGear-compatible, state of the art 3G-SDI distribution amplifier. The incoming 3G-SDI signals on the 2 input channels are reclocked and distributed to 4 x 3G-SDI outputs each, or alternatively can function as a 1 x 8-Channel DA, allowing the same signal to be sent to eight destinations simultaneously. This dual input capability allows double the number of DAs in limited frame space. A 10 BNC rear Open Gear connector module is included.

OpenGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.

Connectivity
The 3G-SDI inputs are equalized and re- clocked with best-in-class cable length capability and input jitter tolerance. SDI rates of 270Mb, 1.5Gb, and 3Gb are supported. Two SDIs input and 8 SDI outputs are provided. A 10-BNC rear openGear connector module is included.

  • Features:

    • Input: 2 x 3G-SDI, BNC connector (2 x 4 mode)
    • 1 x 3G-SDI, BNC connector (1 x 8 mode)?
    • Outputs: 4 x 3G-SDI each DA, BNC connector (2 x 4 mode)
    • 8 x 3G-SDI, BNC connector (1 x 8 mode)
    • Automatic cable equalizer and automatic reclocker bypass
    • Automatic detection and reclocking of 270Mb, 1.5Gb, and 3Gb SDI data rates
    • Advanced jitter input tolerance and low jitter reclocked outputs
    • Power: 2.0 watts max per card
    • Hot swap capable
    • Compatible with DFR-8321 and OG3 openGear frames


  • Specifications:

    • Video Formats
    • 100 Mbps - 3 Gbps, format agnostic

    • Video Input Digital
    • 1 x 8 Mode (Single 1x8 DA)
    • 1 x 3G-SDI BNC, SMPTE-259/292/424
    • 2 x 4 Mode (Dual 1x4 DA)
    • 2 x 3G-SDI BNC, SMPTE-259/292/424

    • Video Output Digital
    • 1 x 8 Mode (Single 1x8 DA)
    • 8 x 3G-SDI, SMPTE-259/292/424
    • 4 outputs noninverting
    • 2 x 4 Mode (Dual 1x4 DA)
    • 8 x 3G-SDI, SMPTE-259/292/424
    • 2 outputs noninverting (each DA)

    • Cable Equalization
    • (Belden 1694A coax)
    • 270 Mbps, 350m
    • 1.5 Gbps, 200m
    • 3 Gbps, 120m

    • Reclocking
    • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
    • All other rates are passed through and not reclocked

    • Size
    • OpenGear standard form-factor, front slot and rear card
    • Slots: Two slots required for each card
    • Rear Card: OG-10-BNC-Rear
    • 10 x BNC, SMPTE-259/292/424

    • Environment
    • Operating Temperature: 0°C to 40°C (32°F to 104°F)
    • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 10-90% non-condensing
    • Operating Altitude: <3,000m (<10,000ft)

    • Weight: 0.2 lb (0.1 kg)
    • Power: OpenGear frame compatible, 2.0 watts max per card


Required Accessories

OG-2X4-SDI-DA - Required Accessories

    Recommended Accessories

    Similar Products
