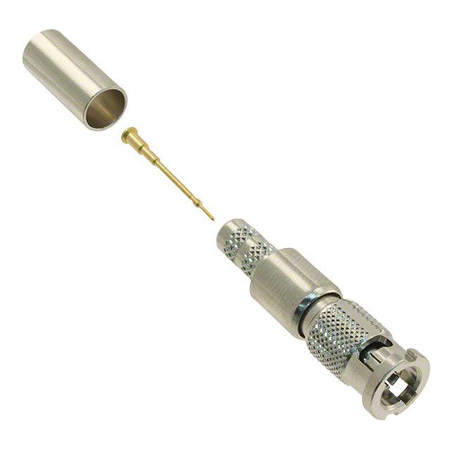

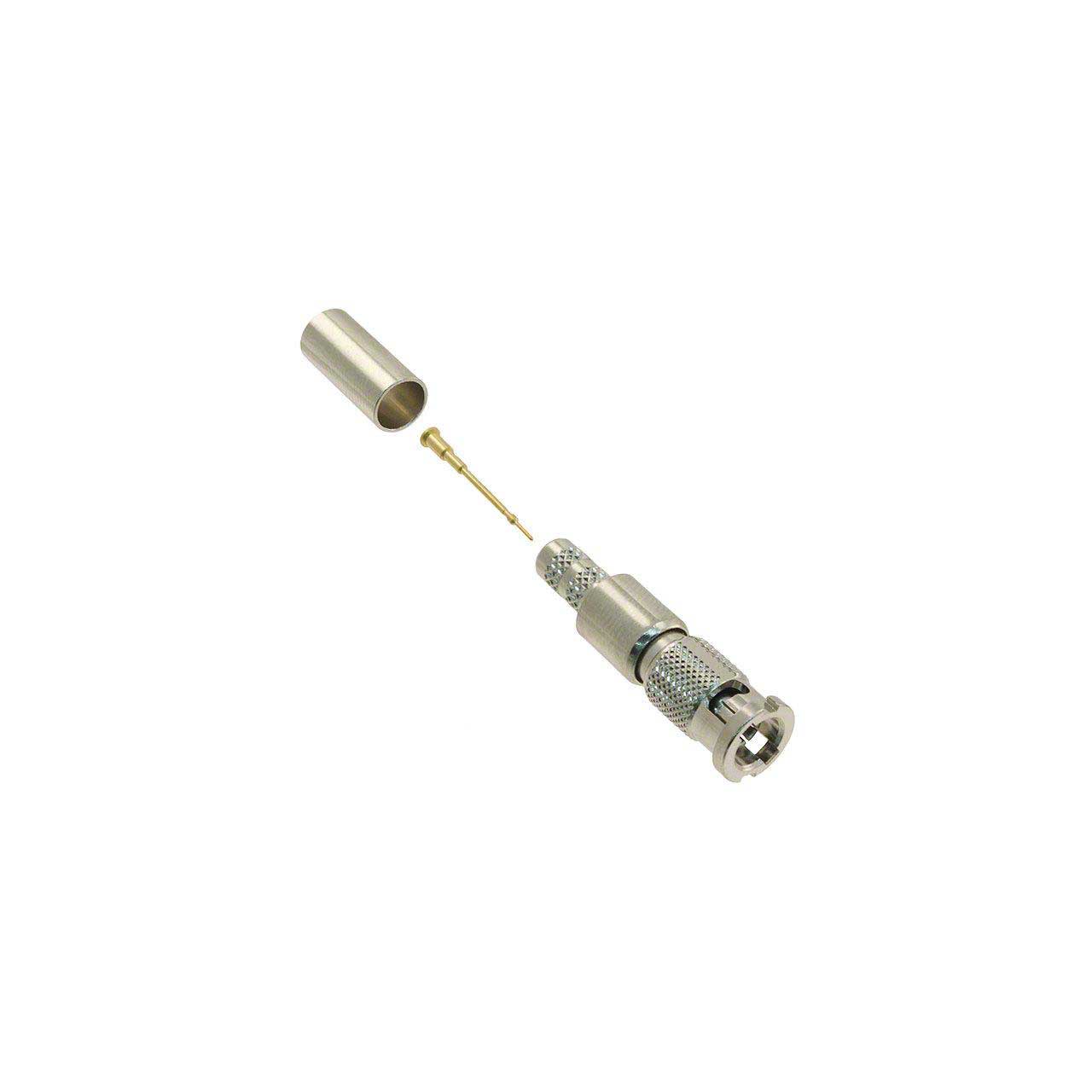

Amphenol 034-1037 High Density BNC Straight Crimp Plug for Belden 1855A Cable 75 Ohm

ITEM #: AMPH-034-1037 MFG #: 034-1037

Primary Image
Amphenol
Free Shipping with $49 Minimum Order

List Price:

$19.95

Our Price:

$19.15

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

034-1037 - Overview

RF Connector, HD-BNC Straight Crimp Plug for Belden 1855A Cable, 75 Ohm

  • Specifications:

    • Cable Type: Belden 1855, Belden 1865A, RG-122, RG-180, RG-180A, RG-180B, RG-195
    • Crimp Contact Die: 0.042" Square
    • Crimp Ferrule Die: 0.197" or 0.187" Hex
    • Gender: Plug
    • Orientation: Straight
    • Termination Style: Cable - Crimp
    • Impedance (Ohms): 75
    • Body Finish: Nickel
    • Body Material: Brass
    • Contact Finish: Gold
    • Contact Material: Beryllium Copper
    • Contact Termination Style: Crimp
    • Insulator Material: PTFE
    • Cable Group: K3
    • Coupling Mechanism: Bayonet
    • Max Frequency (GHz): 4
    • Polarity: Standard
    • Min. Temp. (Celsius): -65
    • Max. Temp. (Celsius): 165
    • Mating Cycles: 500
    • Weight (Grams): 3.6
    • Package Type: BAG
