Amphenol 034-1017-12G Straight Crimp Plug HD-BNC Connector for Belden 1694A Cable - 75 Ohm

Name: Amphenol 034-1017-12G Straight Crimp Plug HD-BNC Connector for Belden 1694A Cable - 75 Ohm
Brand: Amphenol
SKU: AMPH-034101712G
Price: 13.56 USD
Availability: InStock

ITEM #: AMPH-034101712G MFG #: 034-1017-12G

Amphenol

List Price:

$15.00

Our Price:

$13.56

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

034-1017-12G - Overview

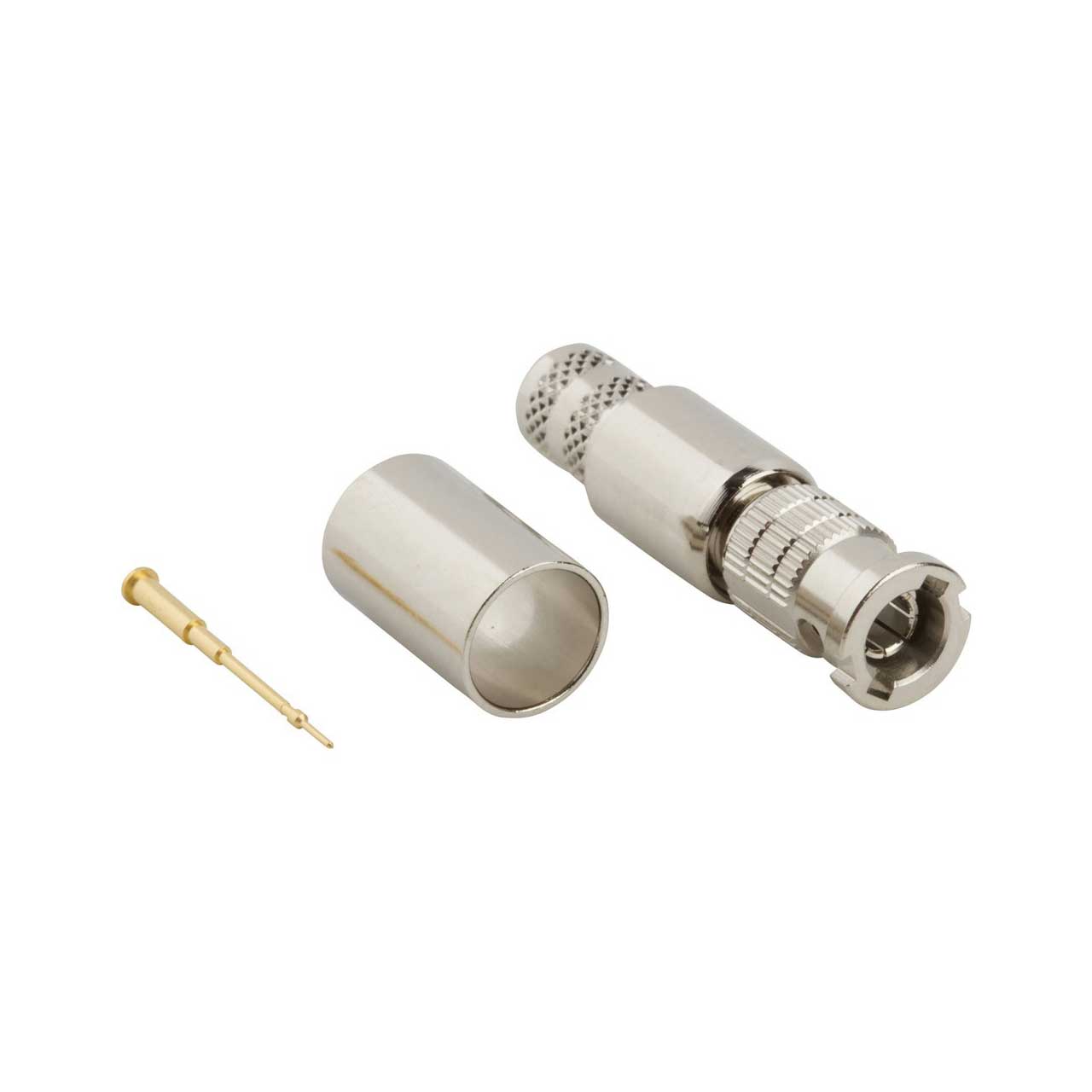

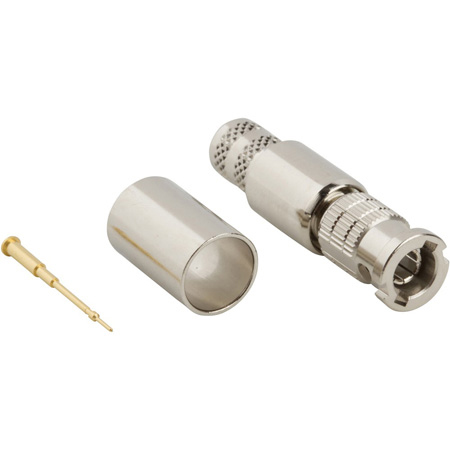

The 034-1017-12G is an RF Connector, HD-BNC Straight Crimp Plug for Belden 1694A Cable, 12G Optimized, 75 Ohm.

Specifications:
- Gender: Plug(Male)
- Orientation: Straight
- Termination Style: Cable - Crimp
- Impedance (Ohms): 75
- Body Finish: Nickel
- Body Material: Brass
- Contact Finish: Gold
- Contact Material: Phosphor Bronze
- Contact Termination Style: Crimp
- Insulator Material: PTFE
- Cable Group: H1
- Cable Type: Belden 1694, Belden 1694A, Belden 9248
- Coupling Mechanism: Bayonet
- Max Frequency (GHz): 18
- Polarity: Standard
- Min. Temp. (Celsius): -65
- Max. Temp. (Celsius): 165
- Mating Cycles: 500
- Weight (Grams): 3.75

034-1017-12G - Recommended Accessories

Amphenol CTL-17 CTL Series Crimp Tool For 12G BNC and HD-BNC Connectors
AMPH-CTL-17
Our Price: $182.02
Belden 1694A 0101000 CMR Rated 6G-SDI RG6 75 Ohm Digital Coaxial Video Cable 18AWG - Black - 1000 Ft
BL-1694A-1000
Our Price: $589.00
Canare TS100u 5-In-1 Universal Coax Cable Stripper for Belden & Canare Cable
TS100U
Our Price: $86.43
Amphenol 227-T2000 HD-BNC Removal Tool / HD-BNC Installation Tool
227-T2000
Our Price: $104.95
Amphenol APH-BNCJ-HDBNCP BNC Jack to HD BNC Plug Adapter
APH-BNCJ-HDBNCP
Our Price: $46.18
Belden 9248 RG6/18 Analog Coaxial Cable - 1000 Foot
BL-9248-1000
Our Price: $917.22
Brother P-Touch PT-E110 Industrial Handheld Labeling Tool Kit
BRO-PTE110
Our Price: $55.63
Switchcraft DIN1694A DIN 1.0/2.3 Connector for Belden 1694A Cable
SWC-DIN1694A
Our Price: $7.15
JackReel-3 High Capacity Low Cost Cable Reel
JACKREEL-3
Our Price: $59.95
Cable Joe Clamp-On Roller Glide Cable Install Helper
CBL-JOE
Our Price: $138.95
Seco 90520 Gopher Pole 22 Foot Telescoping Wire Installation Tool
GO-POLE
Our Price: $199.00
LaserLine 21010-9 Pull String Shooter Cable Installation Kit
WI-D21010-9
Our Price: $299.99
Paladin PA1258 LC CST-Mini Coaxial Cable Stripper
PAL-1258
Our Price: $27.77

034-1017-12G - Reviews

034-1017-12G - Attachments

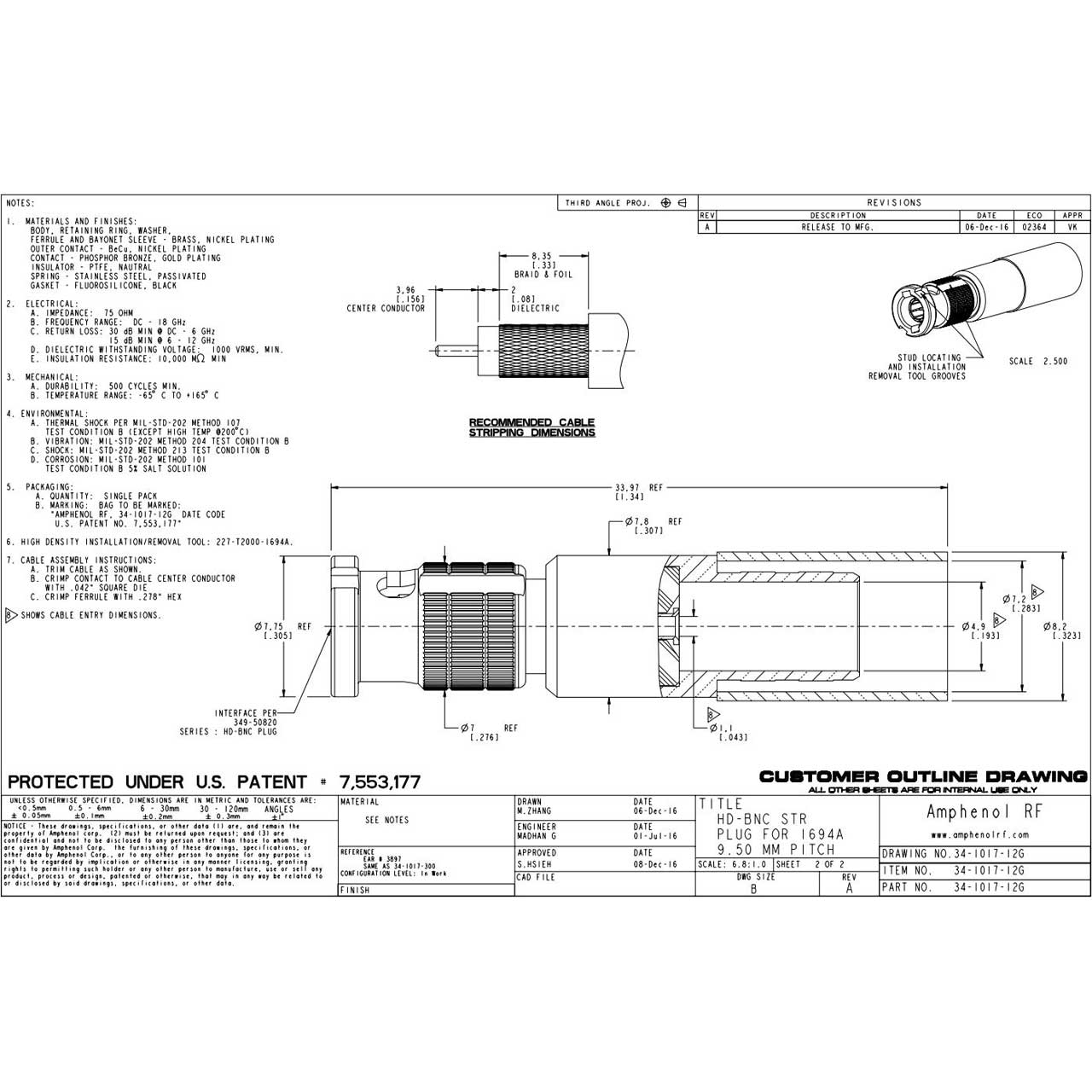

See Amphenol 034-1017-12G Specifications (PDF)
