Amphenol 112606 BNC Straight Crimp Plug for RG-11/U 14AWG 75 Ohm Compatible w/ Belden 1620/1859/7731/9292 & 8213

ITEM #: AMPH-112606 MFG #: 112606

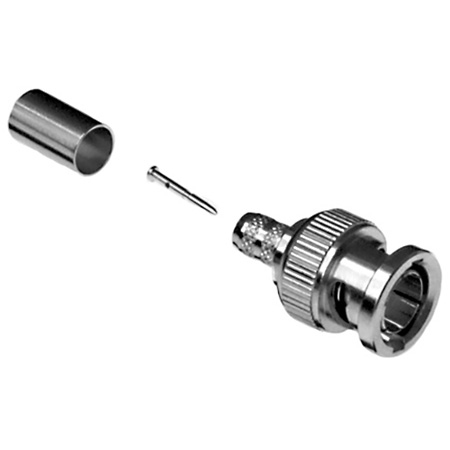

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Amphenol
Free Shipping with $49 Minimum Order
We are an authorized dealer for this series; however, the manufacturer does not permit online sales. Please contact a sales engineer at 1-800-522-2025 to complete your purchase.
Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

112606 - Overview

This Amphenol 112606 RF Connector is a BNC series straight crimp plug for RG-11/U 14AWG. Compatible with Belden 1620, Belden 1859, Belden 7731, Belden 8213, Belden 9292, RG-11, RG-11 14AWG, RG-11A, RG-391, RG-392.

  • Specifications:

    • Brand: Amphenol Connex
    • Gender: Plug
    • Orientation: Straight
    • Termination Style: Cable - Crimp
    • Impedance (Ohms): 75
    • Body Finish: Nickel
    • Body Material: Brass
    • Contact Finish: Gold
    • Contact Material: Brass
    • Contact Termination Style: Crimp
    • Insulator Material: PTFE
    • Cable Group: H
    • Cable Type: Belden 1620 - Belden 1859 - Belden 7731 - Belden 8213 - Belden 9292 - RG-11 - RG-11 14AWG - RG-11A - RG-391 - RG-392
    • Coupling Mechanism: Bayonet
    • Max Frequency (GHz): 4
    • Polarity: Standard
    • Min. Temp.: -85F / -65C
    • Max. Temp.: 329F / 165C
    • Mating Cycles: 500
    • Weight (Grams): 13.9
    • Package Type: BAG
