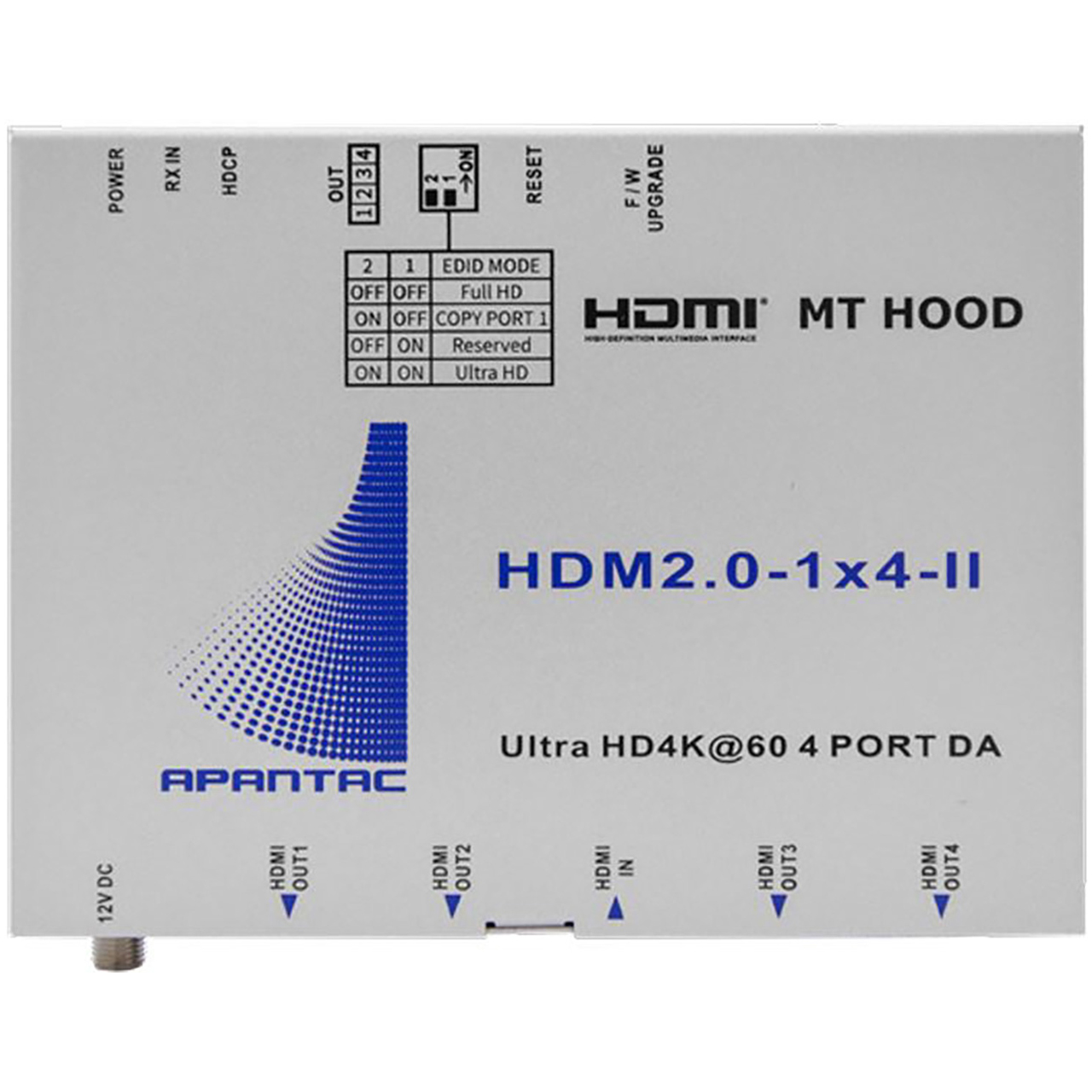

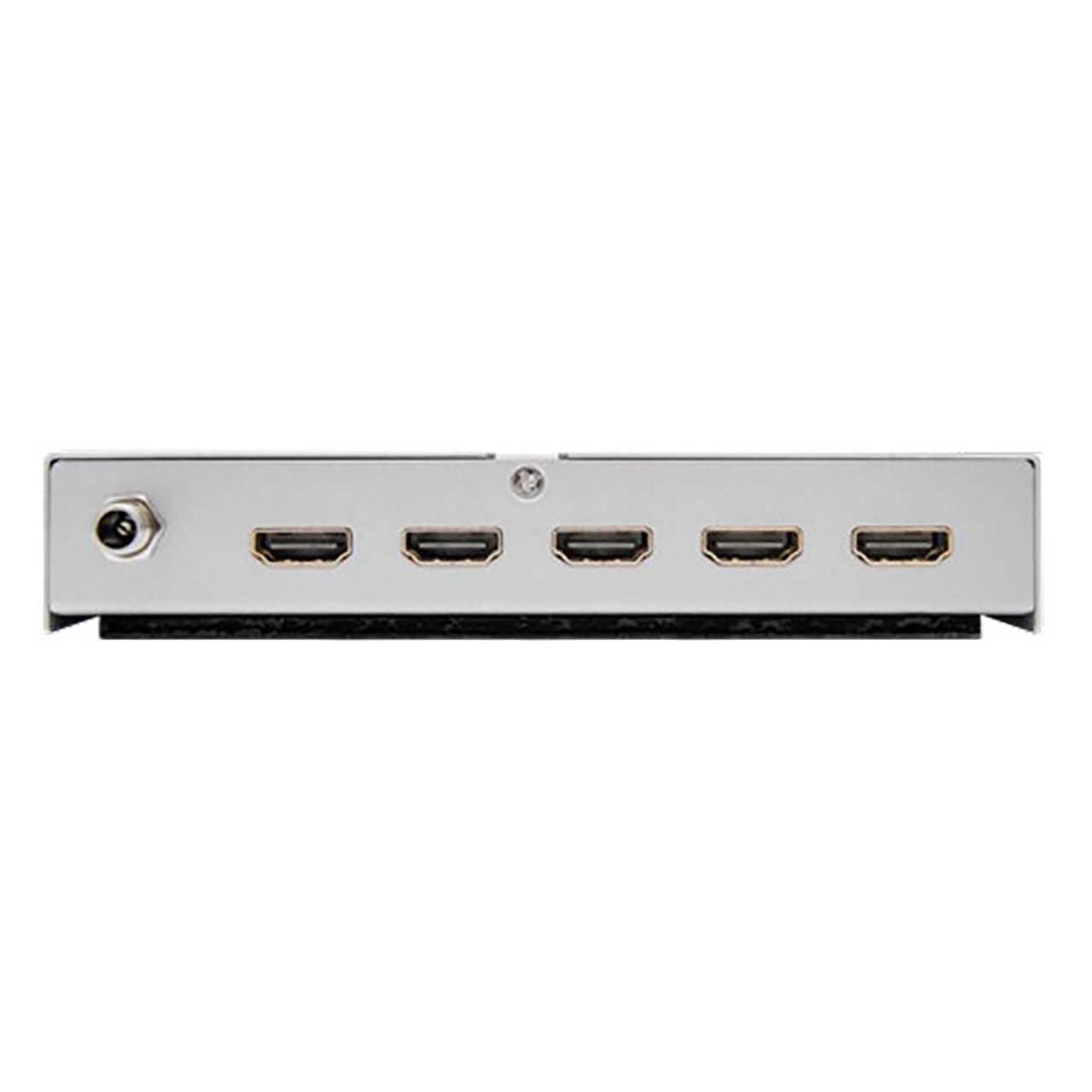

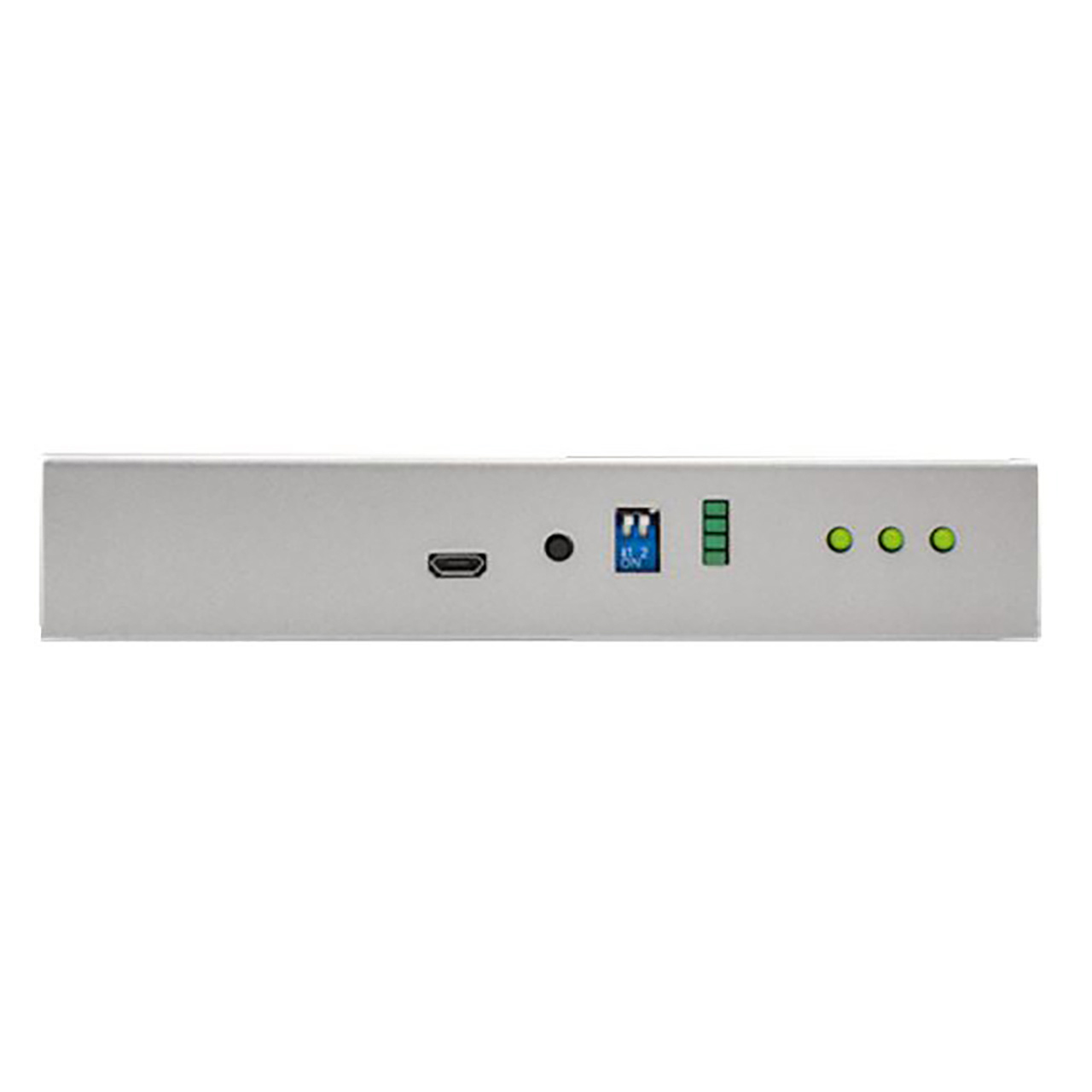

Apantac HDM2.0-1x4-II MT Hood 1x4 HDMI 2.0 Splitter/Distribution Amplifier - Supports 4K 60Hz 4:4:4 and HDCP 2.2

ITEM #: APA-HDM20-1X4-II MFG #: HDM20-1X4-II

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Apantac
Free Shipping with $49 Minimum Order

Our Price:

$400.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

HDM20-1X4-II - Overview

The Apantac HDM2.0-1x4-II is a high-performance HDMI distribution amplifier. It provides high quality audio and video output up to UHD/4K@60Hz resolution and supports patent pending IDOT™ EDID management. The IDOT™ EDID management will dynamically read the EDID of each display that is connected to the outputs of the HDM2.0-1x2 and automatically perform down scaling, chroma sampling and color depth adjustments.

  • Features:

    • Supports resolution up to 4Kx2K@60Hz (4:4:4)
    • Supports HDMI 2.0/HDCP 2.2/HDCP 1.4
    • Supports pixel clocks up to 600MHz
    • Supports HDR
    • Supports 3D pass-through
    • Supports EDID mode selection
    • Patent Pending Intelligent EDID management Technology (iDOT™) that supports built-in down scaler, chroma re-sampler and color space conversion
    • Supports LPCM, Dolby True HD and Dolby Digital
    • Cascadable for input expansion up to 8 levels


  • Specifications:

    • HDMI Input: 1
    • HDMI Output: 4
    • Micro USB: 1
    • DIP Switch: EDID Mode Selection
    • Max Resolution: 4Kx2K@60Hz (4:4:4 8bit, 4:2:0 12bit)
    • HDCP Compliance: HDCP 1.4/2/2
    • Audio Support: LPCM, Dolby True HD, Dolby Digital/Plus/EX, DTS, DTS-HD
    • Cable Reach: 32.8ft (10m)
    • Power Supply: 12V/1A DC
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Humidity: 0% - 80% RH, Non-Condensing
    • Dimensions (LxWxH): 4.88" x 3.27" x 0.98" (124mm x 83mm x 25mm)
    • Weight: 10.41oz (295g)


  • Item Includes:

    • 1x HDM2.0-1x4-II
    • 1x User manual
    • 1x Power adapter DC12V with lock
