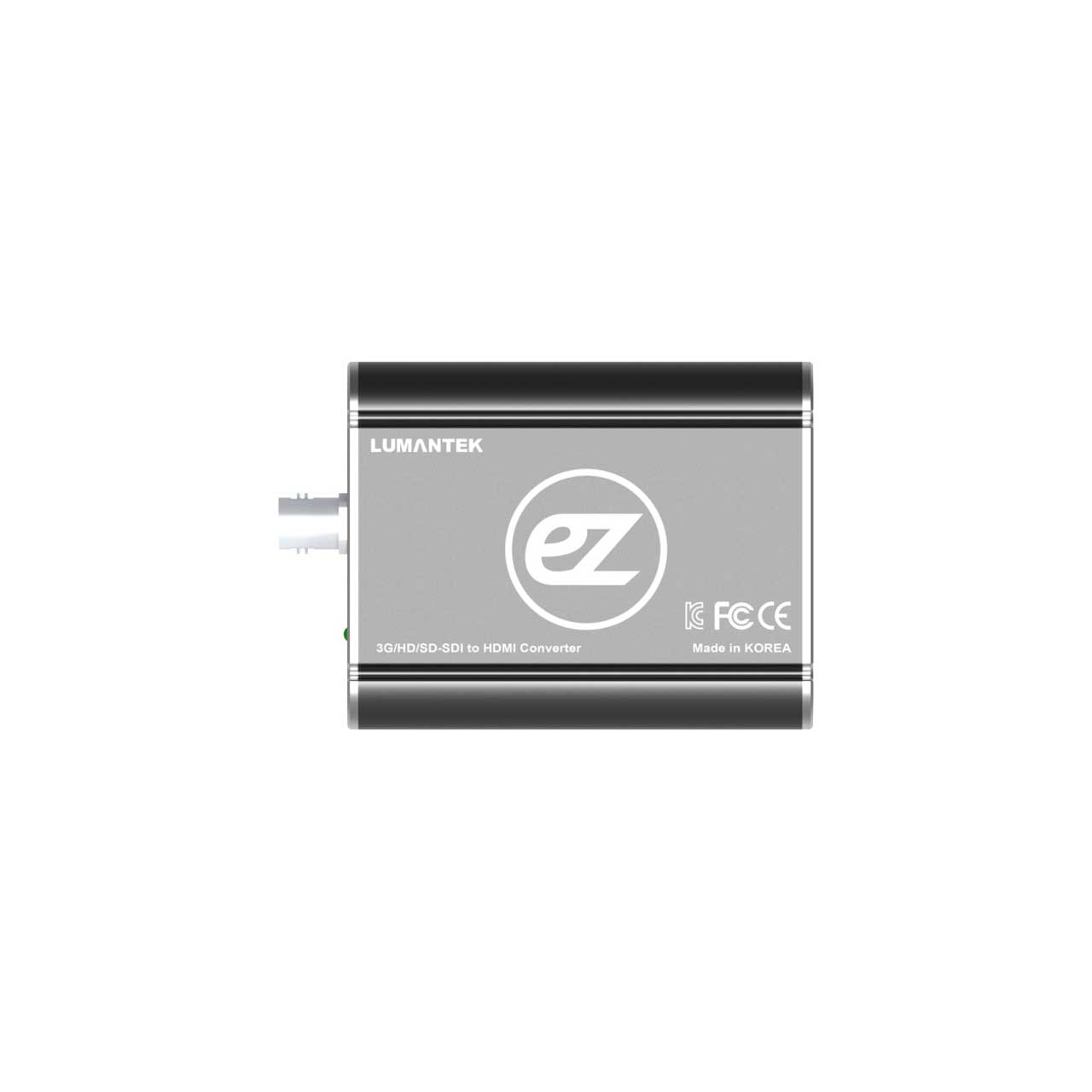

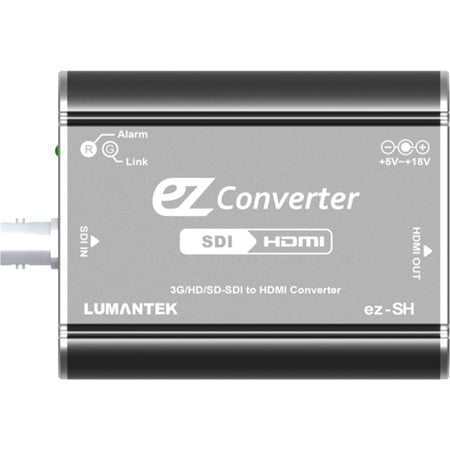

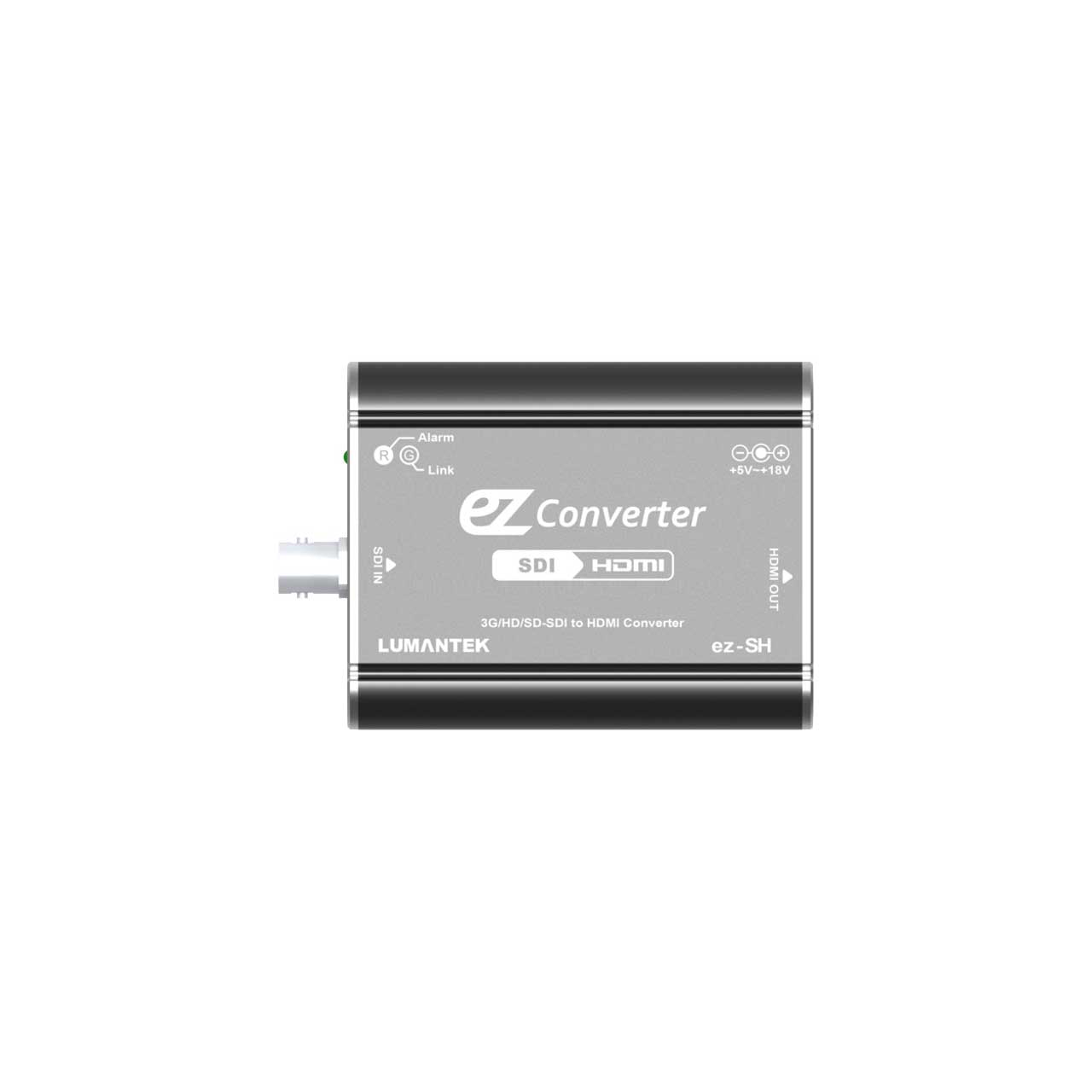

Lumantek ez-Converter SH 3G/HD/SD-SDI to HDMI Converter

EZ-CONVERTER SH - Overview

• Features:

  • 3G/HD/SD-SDI Input
  • HDMI Output
  • Up to 1080p60 Resolution Input/Output
  • 48 kHz Audio Sample Rate
  • Over 656' signal delivery


• Specifications:

  • Input/Output: 1920 x 1080p at 23.94/24/25/29.97/30/50/59.94/60 fps 1920 x 1080i at 50/59.94/60 fps 1280 x 720p at 50/59.94/60 fps 720 x 576i at 50 fps
  • 720 x 480i at 59.94/60 fps
  • Input: 1 x 3G/HD/SD-SDI on BNC (75 Ohms)
  • Output: 1 x HDMI Type A
  • Signal Range: 656' / 200 m
  • Audio Sample Rate: 48 kHz
  • DC Power Input: 5-18 VDC
  • Power Consumption: < 2 W
  • Operating Temperature: 32 to 122°F (0 to 50°C)
  • Relative Humidity: 0 - 90%
  • Dimensions: 3.4 x 2.6 x 1.1" (8.6 x 6.7 x 2.8 cm)
  • Weight: 5.25 oz (149 g)


• GTIN:

  0887367000146
