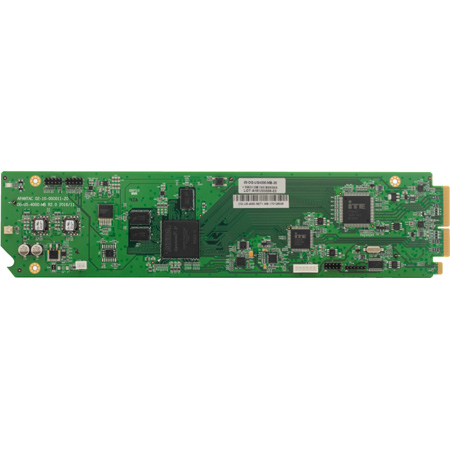

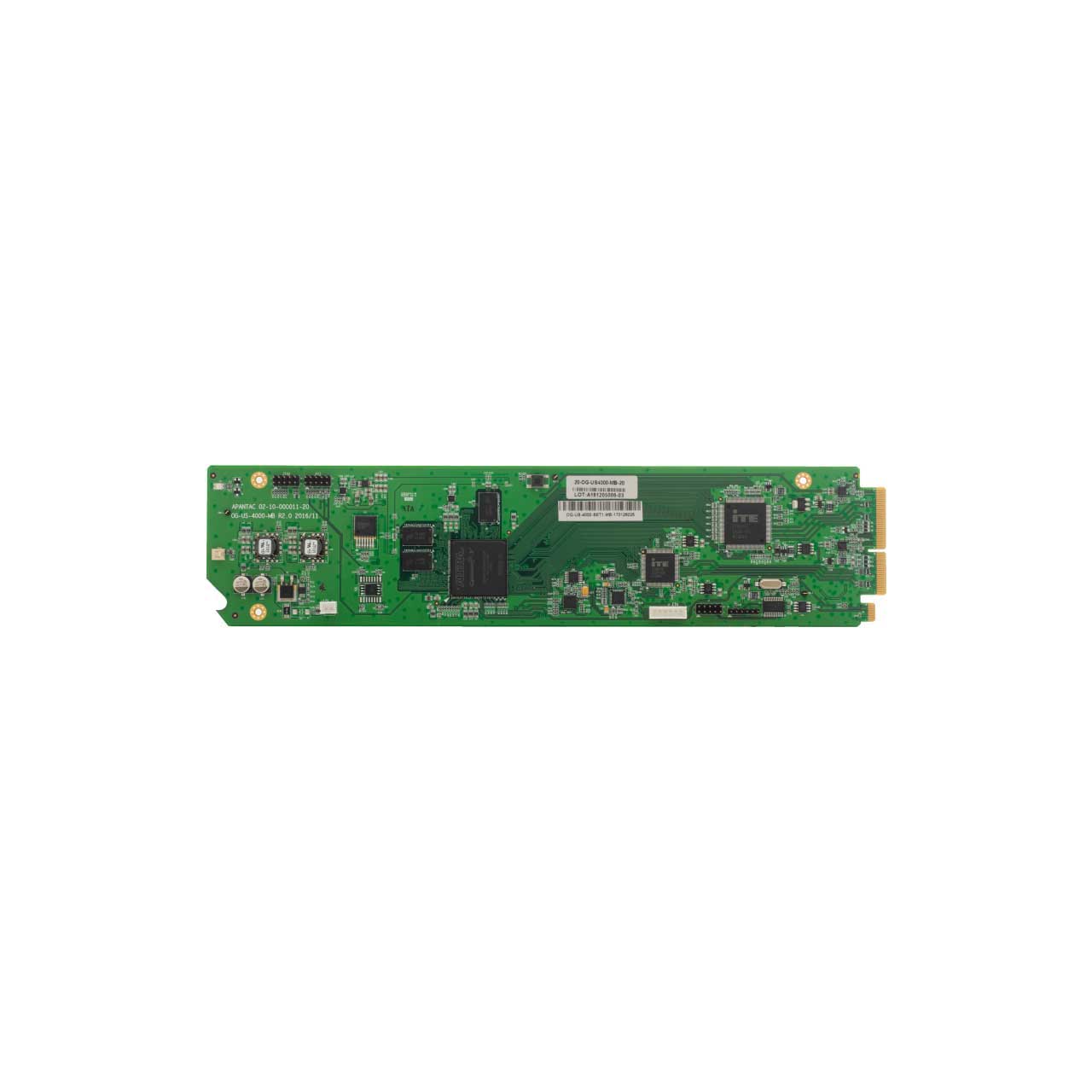

Apantac OG-US-4000-SET-1 Bi-Directional Scaler Bundle: OG-US-4000-MB & OG-US-4000-RM 2 Slot openGear Card w/ Rear Module

OG-US-4000-SET-1 - Overview

• Features:

  • OGX/3.0 card-based form factor
  • Dashboard control enabled
  • Supports HDMI and SDI inputs
  • Supports HDMI and SDI outputs
  • Supports 8 channels of HDMI audio to SDI and vise versa
  • Supports Genlock via openGear frame
  • Scales any SDI input resolution to HDMI and SDI
  • Scales any HDMI input resolutions to HDMI and SDI
  • SDI output supports 720P, 480/576i, 480/576P, 1080i/P in 23.98, 24, 25,
  • 29.97, 30, 50, 59.94 and 60Hz
  • HDMI output support 720P, 480/576i, 480/576P, 1080i/P in 50 and 60Hz
  • Low power consumption


• Specifications:

  • Input: HDMI and SDI
  • Output: HDMI and SDI
  • Control: Dashboard
  • Genlock: Analog black burst via BNC
  • Supported Input Resolution for DVI, HDMI 8/10 bit RGB/YPbPr: 640x480@60 Hz, 800x600@60Hz, 1024x768@60Hz, 1280x720@60Hz, 1280x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1360x768@60Hz, 1366x768@60Hz, 1440x900@60Hz, 1400x1050@60Hz, 1680x1050@60Hz, [email protected], 720x576i@50Hz, [email protected], 720x576P@50Hz, 1280x720@50/60Hz, 1920x1080i@50/60Hz, 1920x1080P@50/60Hz (1600x1200@60Hz, 1920x1200, 1152x864 NOT SUPPORTED)


• Item Includes:

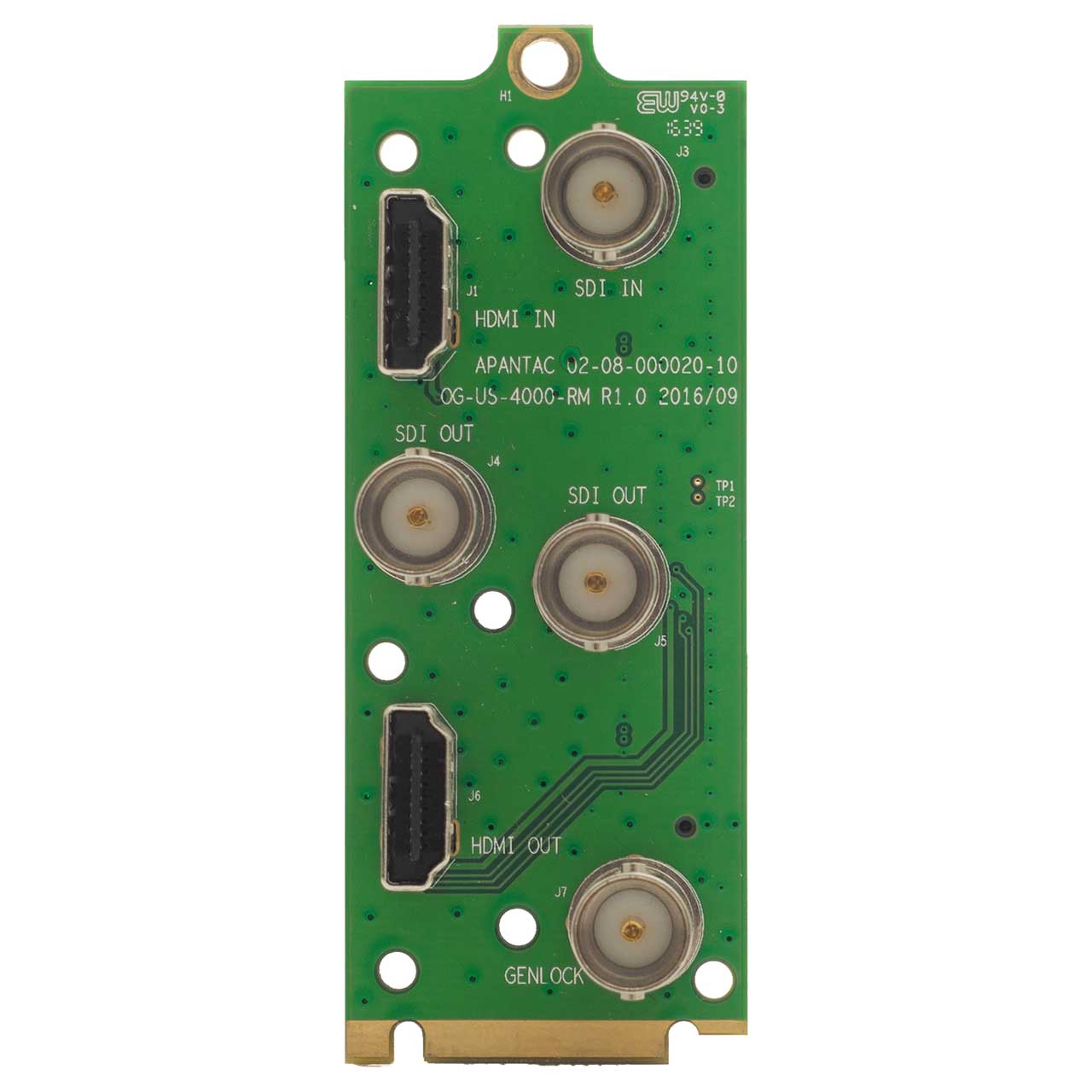

  • 1x Apantac OG-US-4000-SET-1 Bi-Directional Scaler Bundle: OG-US-4000-MB & OG-US-4000-RM Occupies 2 Slots in openGear Frame


• Warranty:

  • 5-Year Limited Warranty
