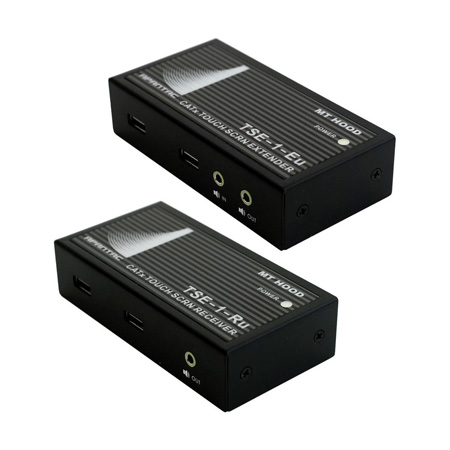

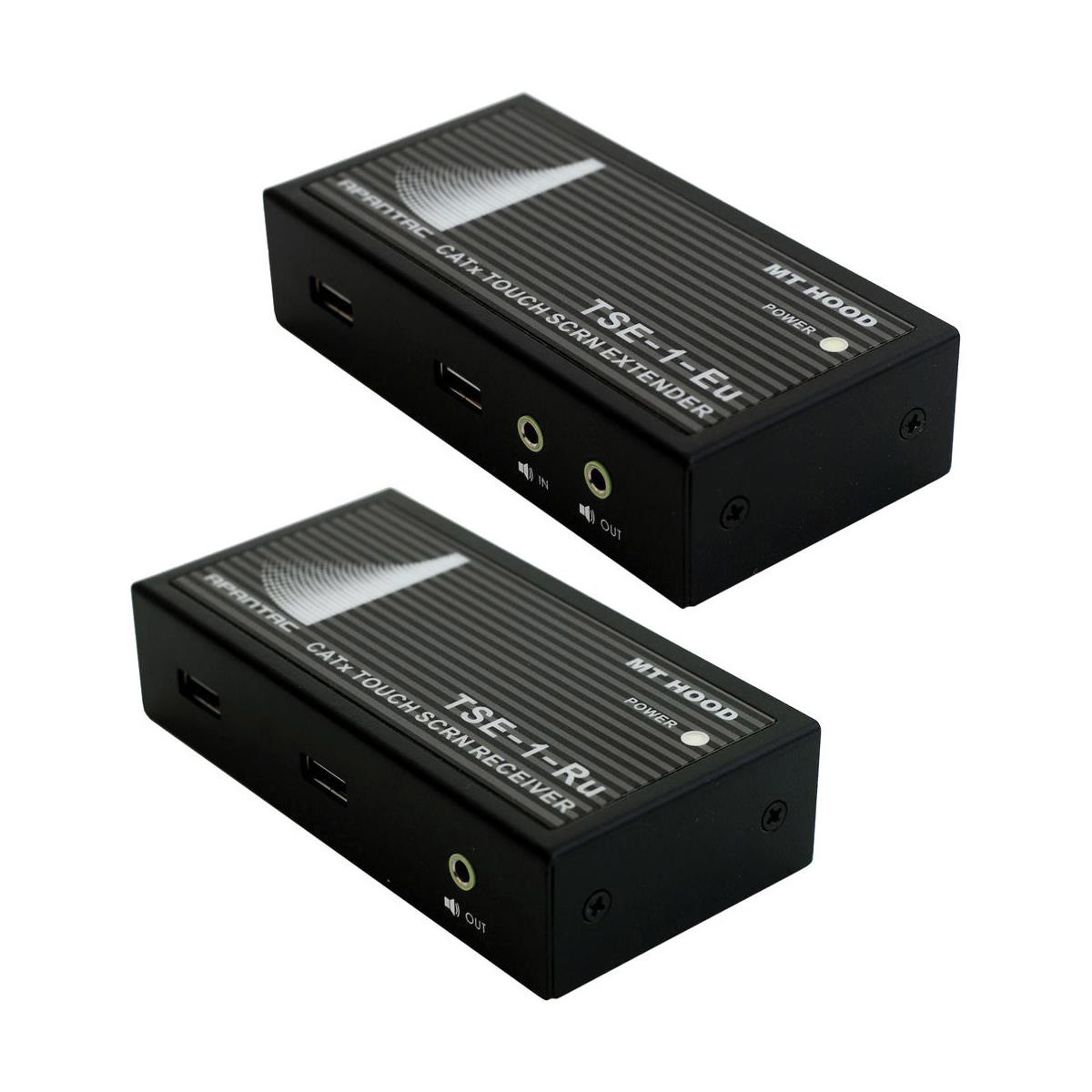

Apantac TSE-SET-2 Touch Screen Extender Pair (TSE-1-Eu Transmitter & TSE-1-Ru Receiver) Extends VGA Audio & USB

ITEM #: APA-TSE-SET-2 MFG #: TSE-SET-2

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the APA-TSE-SET-2

TSE-SET-2 - Overview

The TSE-SET-2 is a touch screen extender pair (TSE-1-Eu Transmitter & TSE-1-Ru Receiver). supports resolution up to [email protected] VGA with USB control over a single CATx cable with a maximum VGA resolution of 2048 x 1536 up to 330 meters (1000 feet). The TSE-SET-2 features Plug and play - no software required, and remote/local monitoring and control along with the ability to Work with most major touch screen brands. The following Touch Screen have been tested: Abon Touch, AIM Touch, ELO 15"-22" interface, HP Compaq L2105tm, One Touch, WACOM Clintiq 17SX PL700, Planar 15"-19" & ADESSO Cyber Tablet Z12 Touch Pad.

  • Features:

    • Extend VGA with USB control over a single CATx Cable
    • Maximum VGA resolution of 2048 x 1536 up to 330 meters (1000 feet)
    • Plug and play - no software required
    • Remote / local monitoring and control
    • Works with most major touch screen brands


  • Specifications:

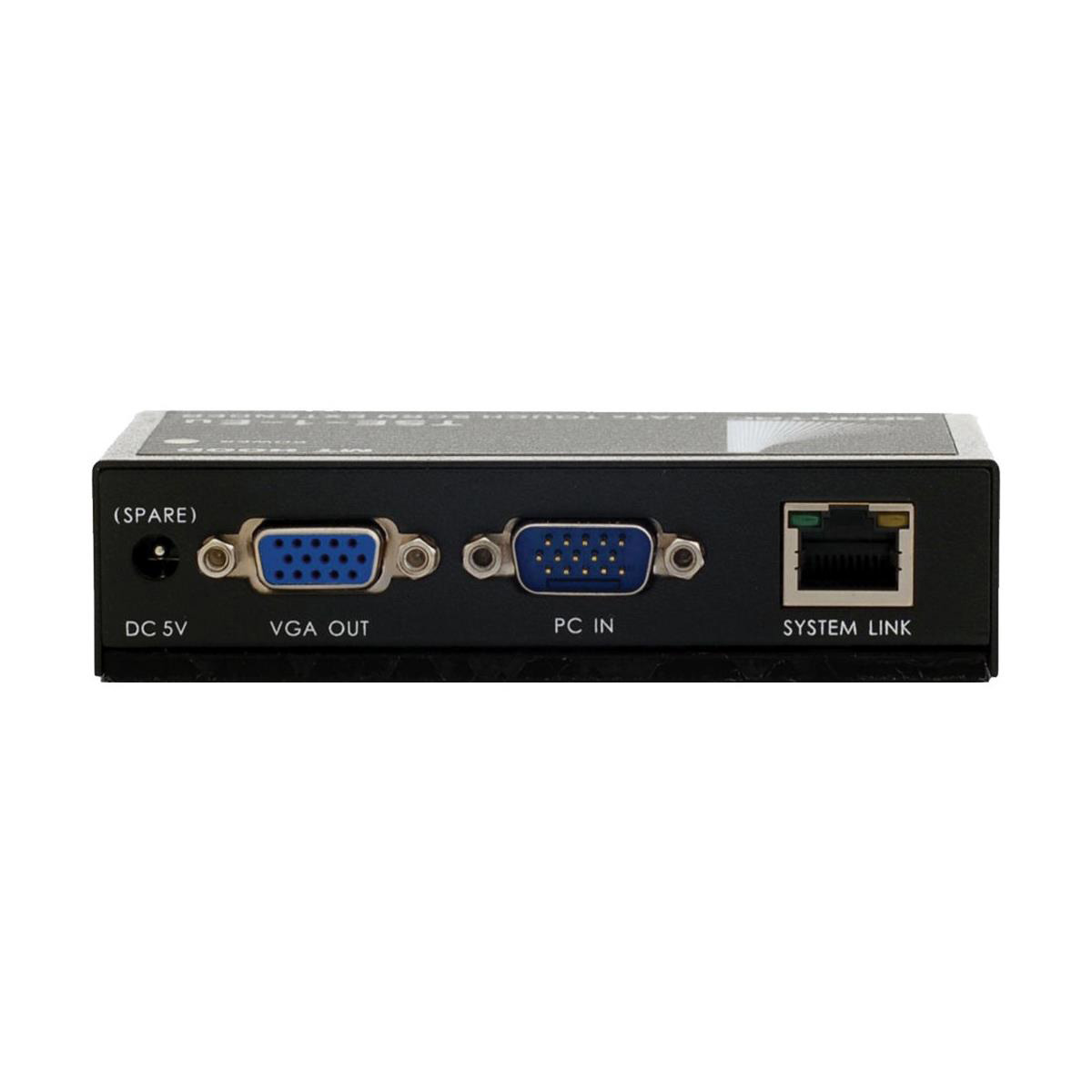

    • TSE-1-Eu
    • Description: VGA / USB Touch-Screen Extender with Audio
    • Input: 2 x USB (with VGA, USB Power Combo Cable); 1 x Audio
    • Output: 1 x RJ45 (Link); 1 x VGA (Local Output); 1 x Audio
    • Resolution/Distance: Maximum 2048 x 1536 up to 330 meters (1,000 feet)
    • Mount: Magnetic
    • Dimensions (W x D x H): 2.44 x 4.44 x 1.14 Inches
    • Power: USB/Optional 5V 1000mA

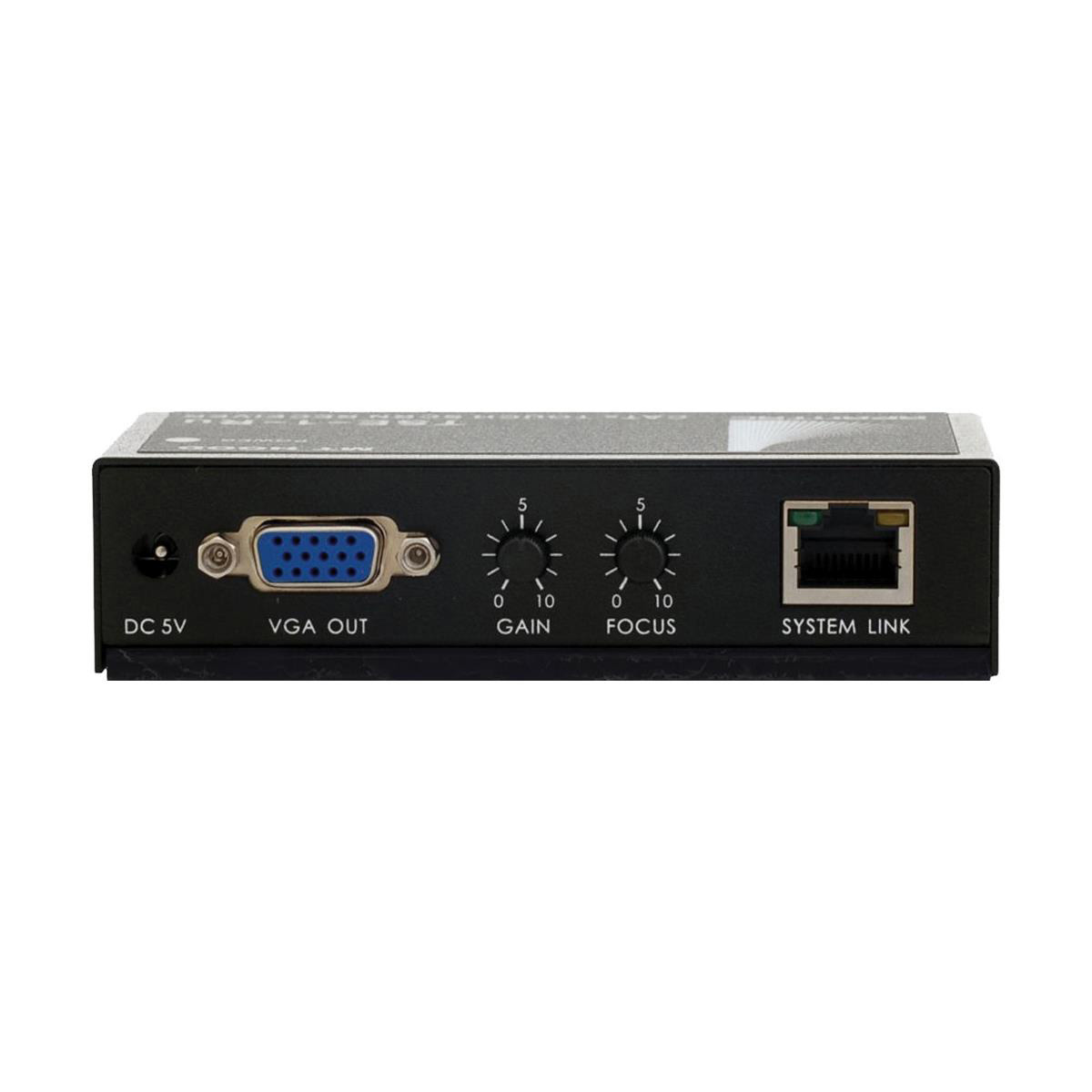

      TSE-1-Ru
    • Description: VGA / USB Touch-Screen Receiver with Audio
    • Input: 1 x RJ45 (Link)
    • Output: 1 x VGA; 1 x USB; 1 x Audio
    • Adjustments: Equalizer, Gain
    • Resolution/Distance: Maximum 2048 x 1536 up to 330 meters (1,000 feet)
    • Mount: Magnetic
    • Dimensions (W x D x H): 2.44 x 4.44 x 1.14 Inches
    • Power: DC 5v 1000 mA
