AudioPressBox APB-008-IW-EX In-wall AudioPressBox with 1 Line Input and 8 Mic Outputs - Black

ITEM #: APB-008-IW-EX-BK MFG #: APB-008-IW-EX-BK

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
AudioPressBox
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$769.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

APB-008-IW-EX-BK - Overview

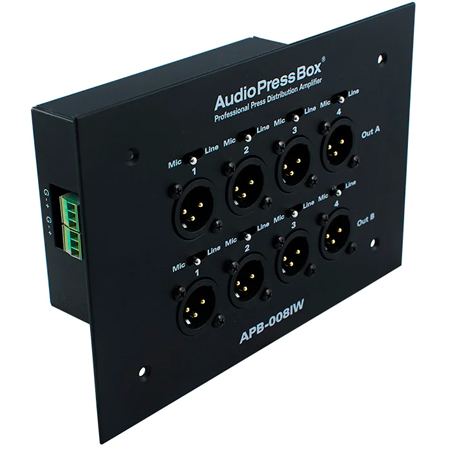

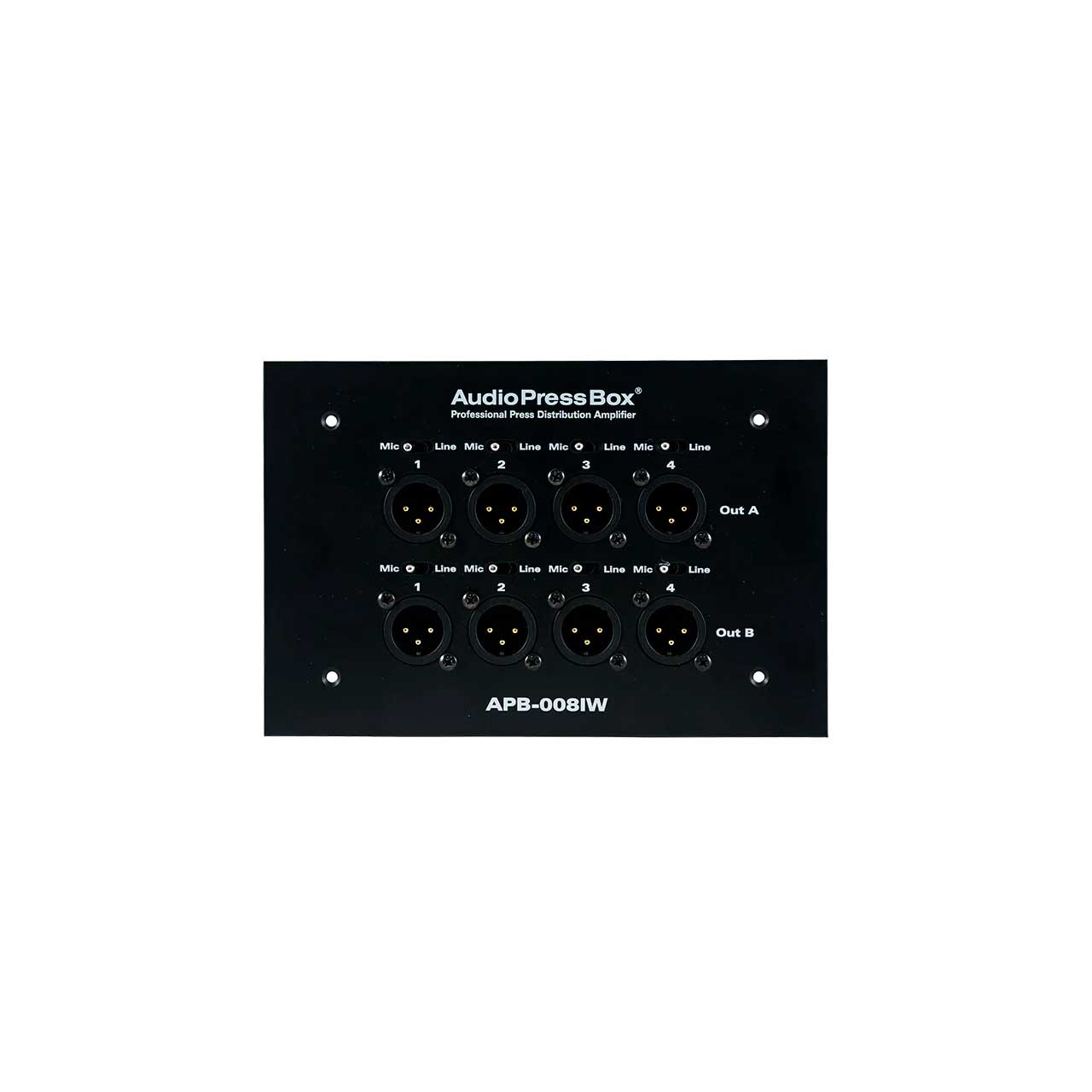

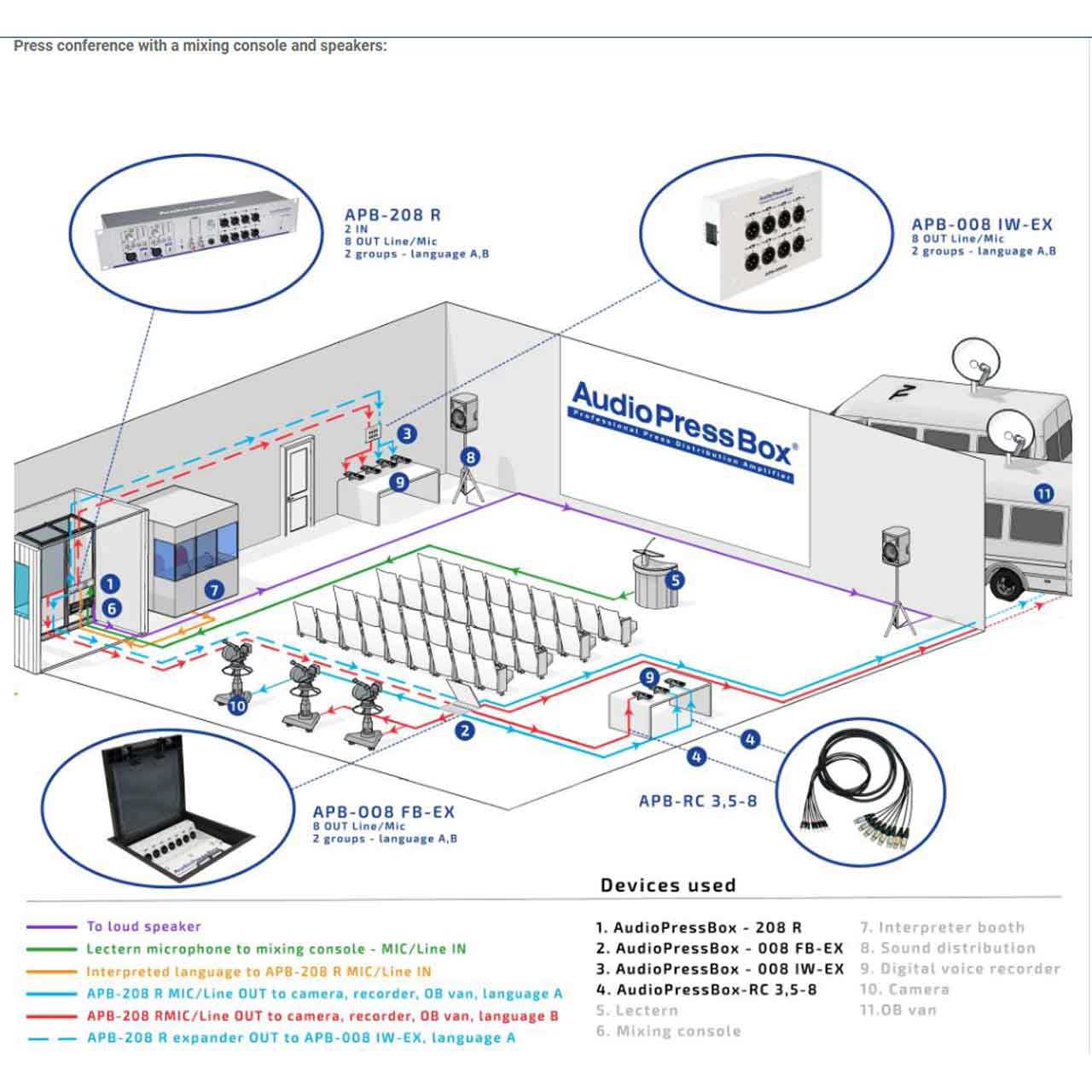

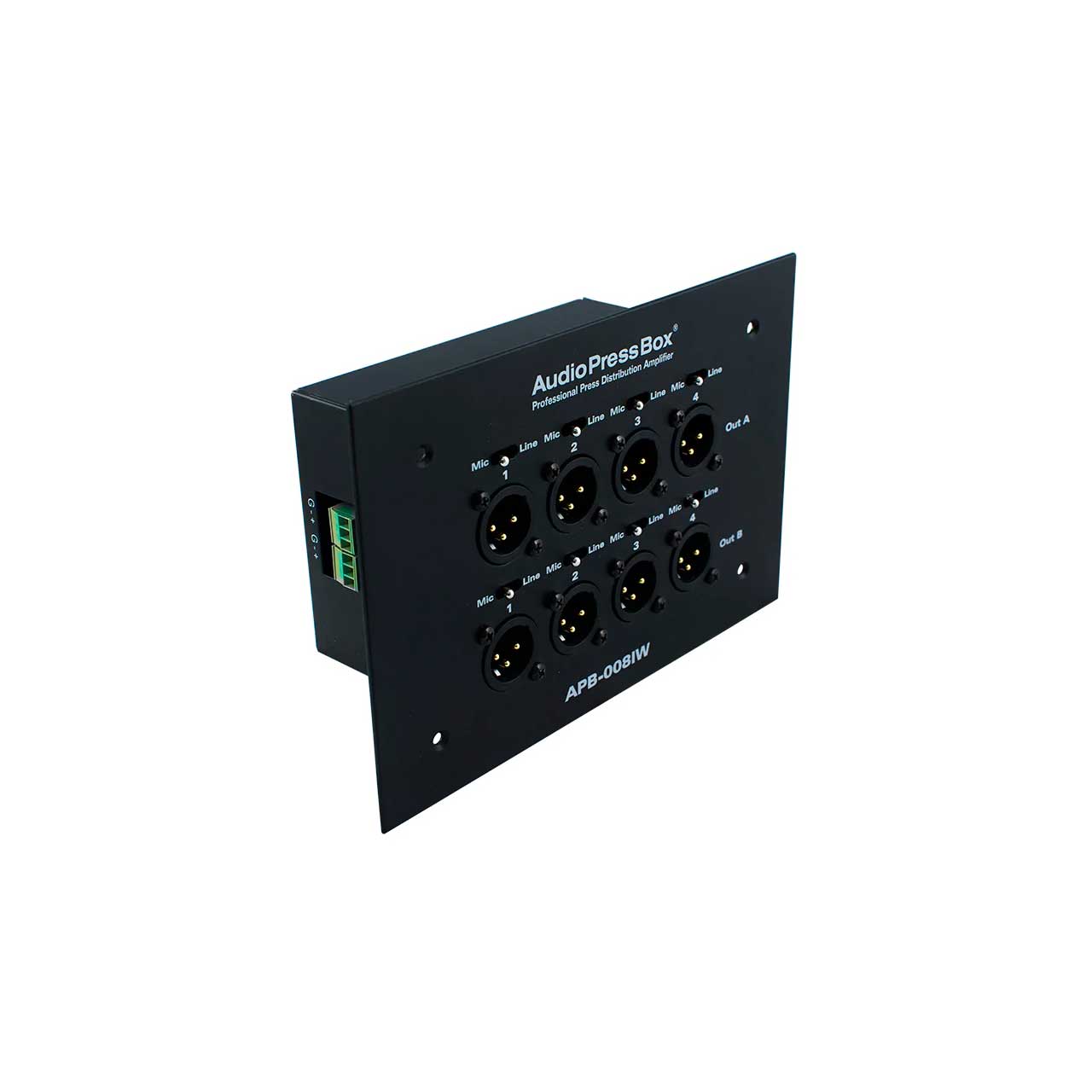

The AudioPressBox APB-008 IW-EX is a professional press box (Audio Splitter) expander featuring 8 Line/MIC outputs designed for system integrators for fixed installation. The IW stands for IN WALL as it is for flush mounting. Outputs are divided to channel A and channel B so it can also be used for bilingual conferences. Each Output is independent transformer balanced and isolated. It has 2 inputs with 3-pin phoenix connectors, one for each Output channel. You can route each Input to Output Channel A or B or both via jumpers.

The expander must be fed with an APB-Drive unit in order to function properly.

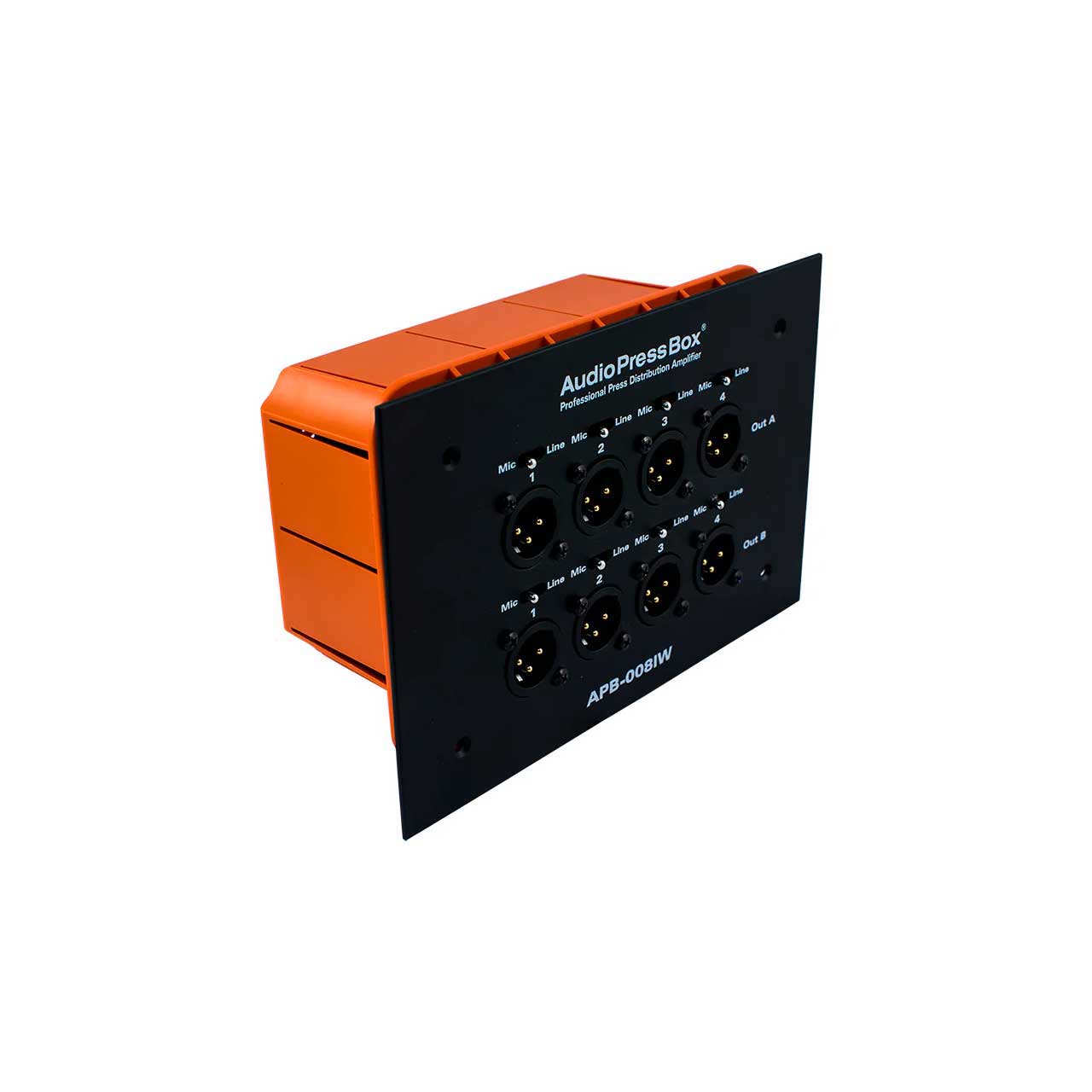

Flush mounting junction box is included in the APB-008 IW-EX package.

Note: Requires drive unit as a source.

  • Features:

    • 8 High quality balanced Outputs, each Output is independent transformer isolated
    • Each Output is switchable between LINE or MIC Output level.
    • 2 internal Output Groups: 4x Output A and 4x Output B


  • Specifications:

    • Type: Expander
    • Groups: 2
    • Inputs: 1x Bus A / 1x Bus B
    • Input Connectors: ballanced, 3-pin phoenix connector
    • Ouputs: 4x Bus A, Line/Mic level / 4x Bus B, Line/Mic level
    • Output Connectors: Ballanced, XLR-M connector
    • Transfomer Isolated Outputs: Yes (each output)
    • Nominal Output Level: Mic: -20dBu / Line: +6 dBu
    • Output Impedance: Mic - 220Ω / Line - 600Ω

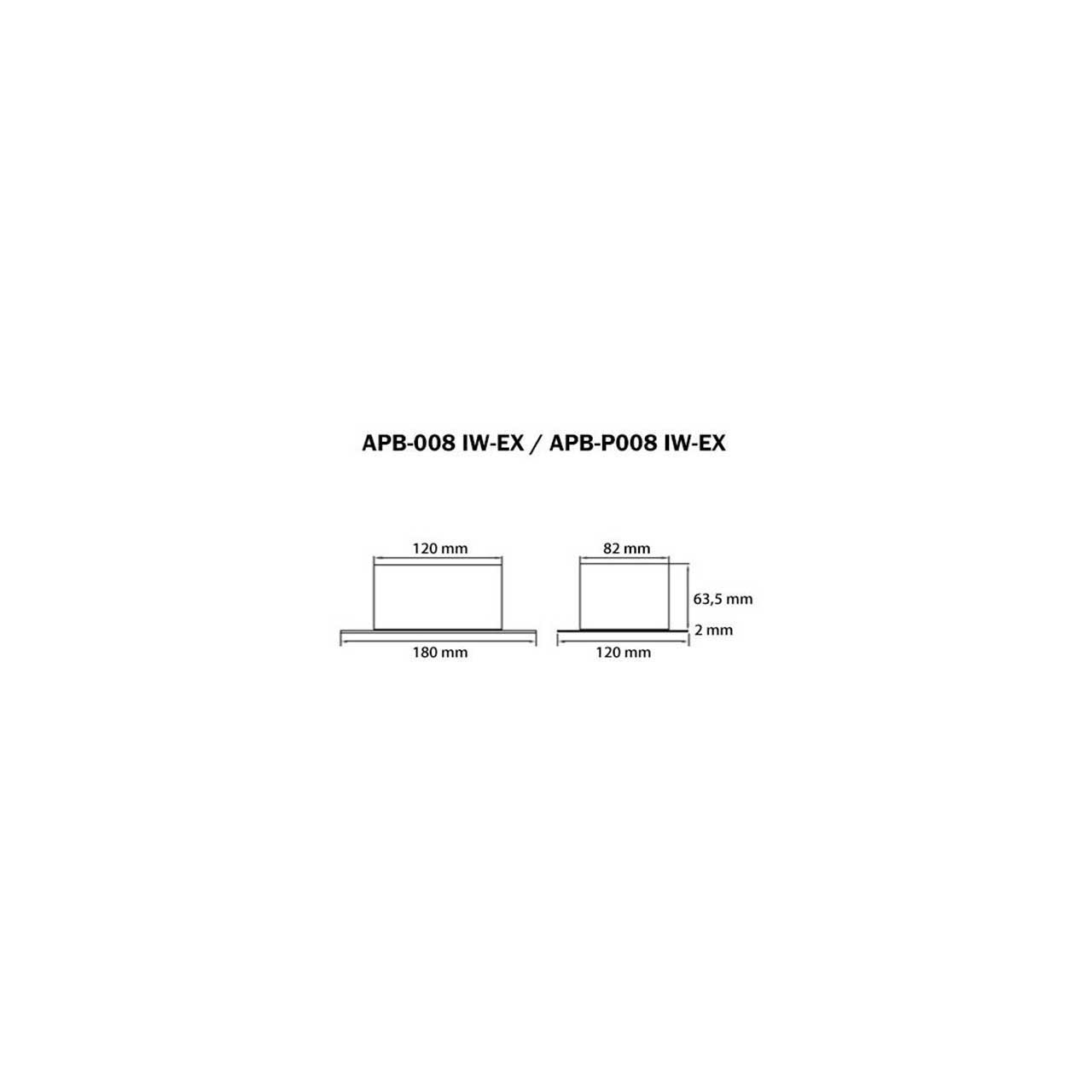

    • Dimensions (WxHxD): 7.08 x 4.72 x 2.48" (180 x 120 x 63mm)
    • Weight: 2.13lbs (970g)


  • Item Includes:

    • 1x APB-008-IW-EX Passive In-wall AudioPressBox with 1 Line Input and 8 Mic Outputs - Black
    • 1x Flush mounting junction box


  • Warranty:

    • 2 Year
