AudioPressBox APB-320 C-D-USB Indoor/Outdoor Portable Active Press Box in Waterproof Case with USB-C and Dante - Black

APB-320-C-D-USB - Overview

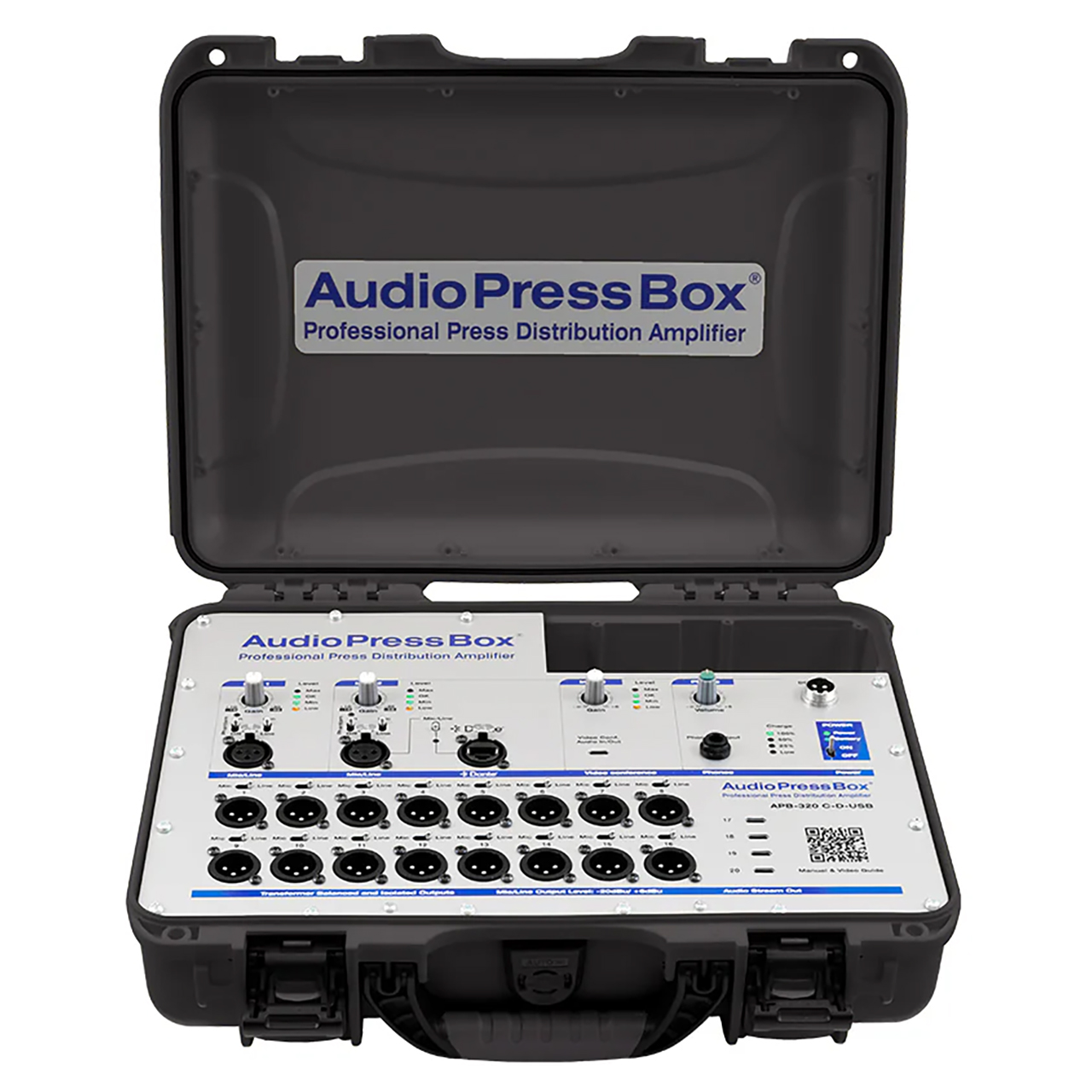

Built-in rechargeable accu pack Li-Ion battery with 20 hour runtime in a heavy duty Nanuk hardshell case!

• Features:

  • 2 Analog MIC (phantom power) / LINE inputs - balanced with gain control and 26dB PAD
  • 1 Channel DANTE Input - RJ45 ethercon
  • 1 Digital USB-C input & output

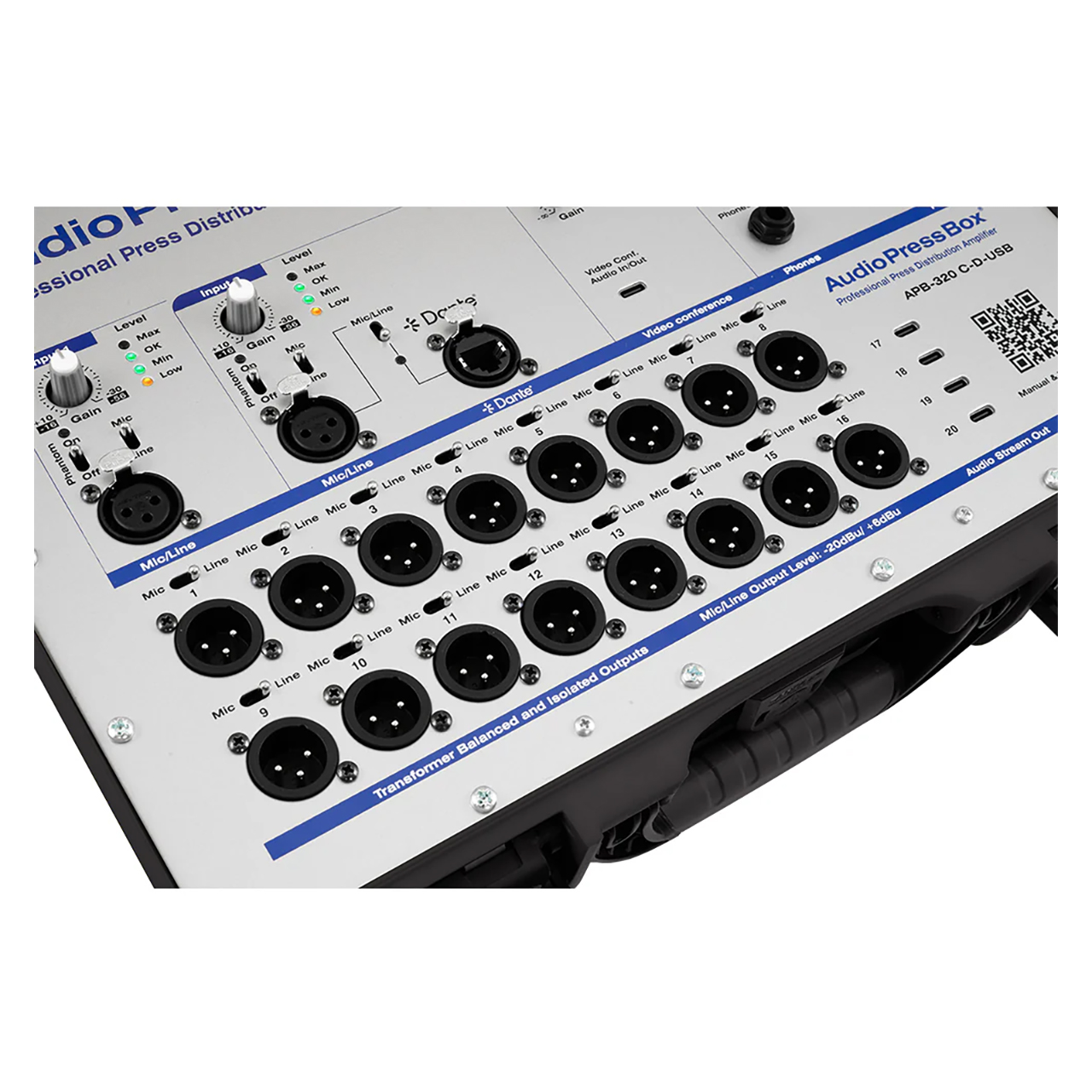

  • 16 Analog XLR balanced and individually transformer isolated outputs
  • XLR outputs are switchable between MIC or LINE output level
  • 4 Digital USB-C outputs
  • Built-in Compressor and Limiter for Analog (XLR) inputs
  • Phones out
  • Li-Ion AccuPack with microprocessor controlled battery management
  • 20 hours battery operation time. Note: AccuPack is placed (built-in) inside the unit
  • On unit printed QR code for online access to manual, user guide and video guide


• Specifications:

  • Type: 3 in 20 out
  • Groups: 1

    Analog Inputs
  • Input Connectors: 2x XLR, balanced
  • Input Gain:
    - Mic: +22/+62dB
    - Line: -4/+36dB
  • Max. Input Level:
    - Mic: -10/-30dBu
    - Line: +36/-4dBu
  • Phantom Voltage: 48V
  • Input Impedance:
    - Mic: 2.4 kΩ
    - Line: 3.5 kΩ

    Digital Inputs
  • Input Connector: 1x USB Type C
  • Compliant USB Specifications: USB 2.0
  • Input Gain: -∞/+6 dB
  • Supported Sampling Rates:
    - 32kHz
    - 44.1kHz
    - 48kHz
  • Bit Depth: 16-Bit
  • Interface Powering: Bus Powered*
  • Charging Capability: No

    Analog Outputs
  • Output Connectors: 16x XLR, balanced
  • Nominal Output Level: +6dBu
  • Maximum Output Level: +20dBu (no load) +14dBu (600Ω)
  • Output Impedance:
    - Mic: 220Ω
    - Line: 600Ω
  • Transformer Isolated Outputs: Yes (each output)
  • SNR: 86dB
  • Frequency Response: 120Hz - 30kHz/-3dB

    Digital Outputs
  • Output Connector: 4x USB Type C
  • Compliant USB Specification: USB 2.0
  • Supported Sampling Rates:
    - 8kHz
    - 11.025kHz
    - 16kHz
    - 22.05kHz
    - 32kHz
    - 44.1kHz
    - 48kHz
  • Bit Depth: 16-Bit
  • Interface Powering: Internal
  • Charging Capability: Yes, max. 0,5A

    Controls
  • Input Section: 26dB PAD, Input gain, Phantom
  • Output Section:
    - Power switch
    - Output PAD

    Indicators
  • Input Section:
    - Phantom power
    - Input level

    Power
  • Power Supply: 24V DC, 1A external adaptor
  • Battery:
    - Li-Ion
    - 14.4V
    - 2200mAh
  • Battery Operation Time: up to 20 hours
    *USB Interface is powered from connected USB host device


• Item Includes:

  • 1x APN-320 C-D-USB Pressbox
  • 1x External Power Supply with US/EU/UK plugs
  • 1x Owners Manual
  • 1x Test report


• Warranty:

  • 2 years


• GTIN:

  8588007614007
