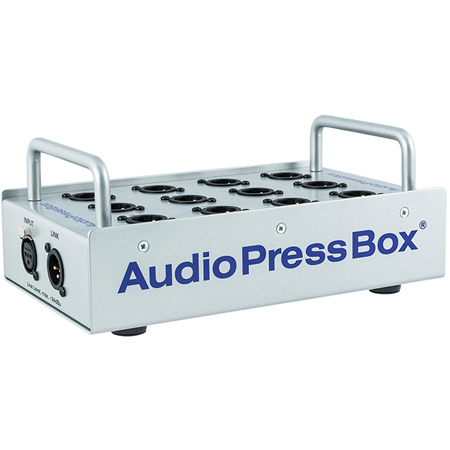

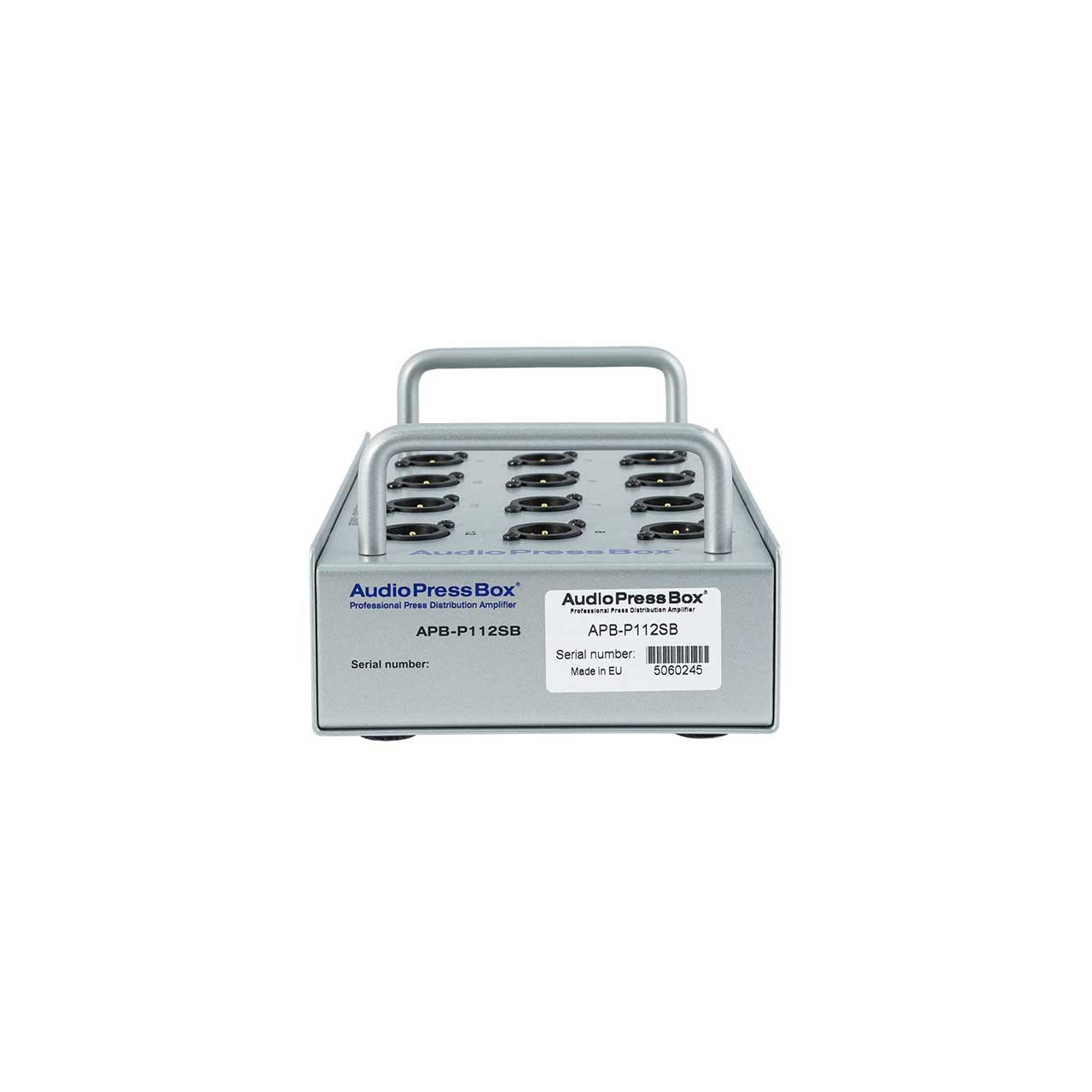

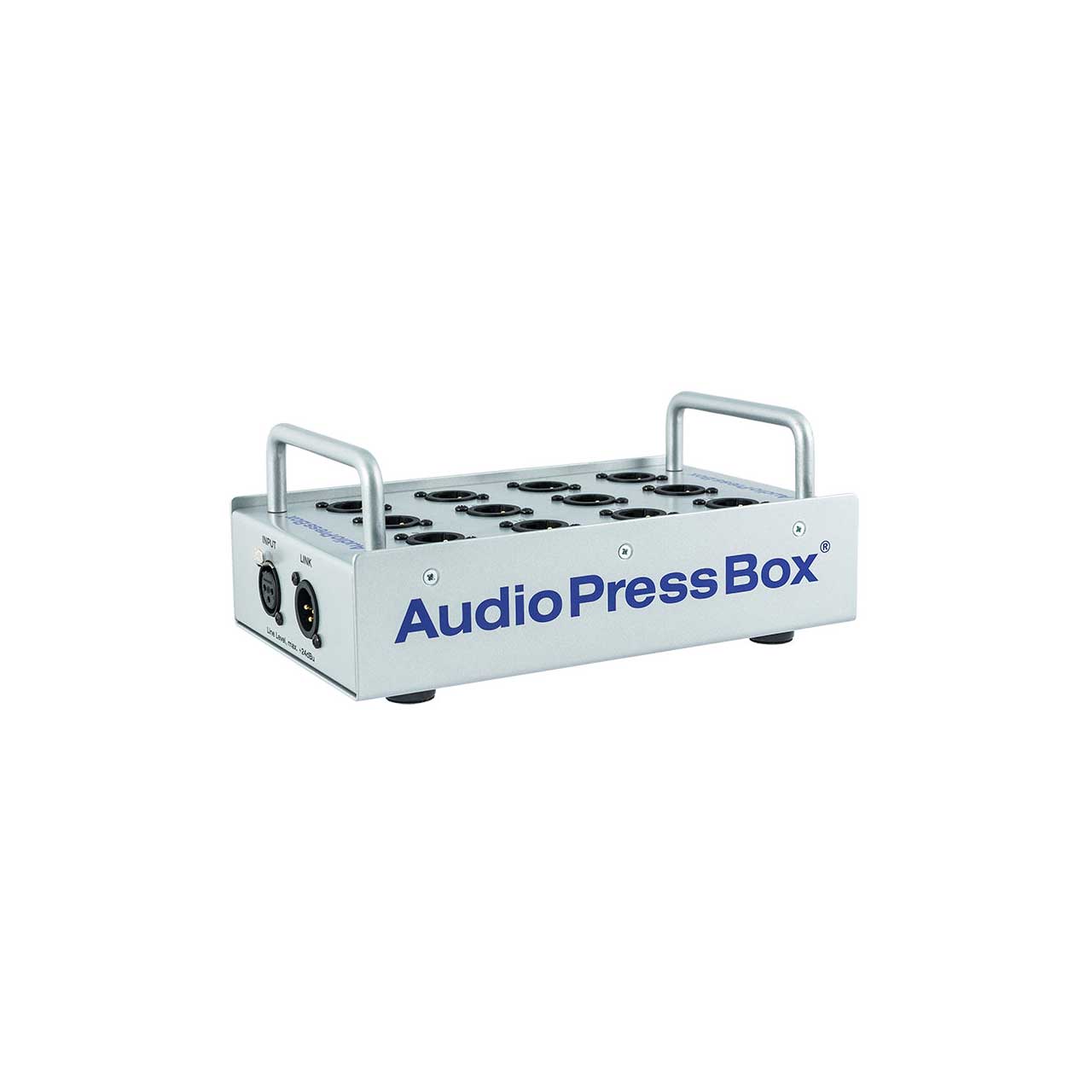

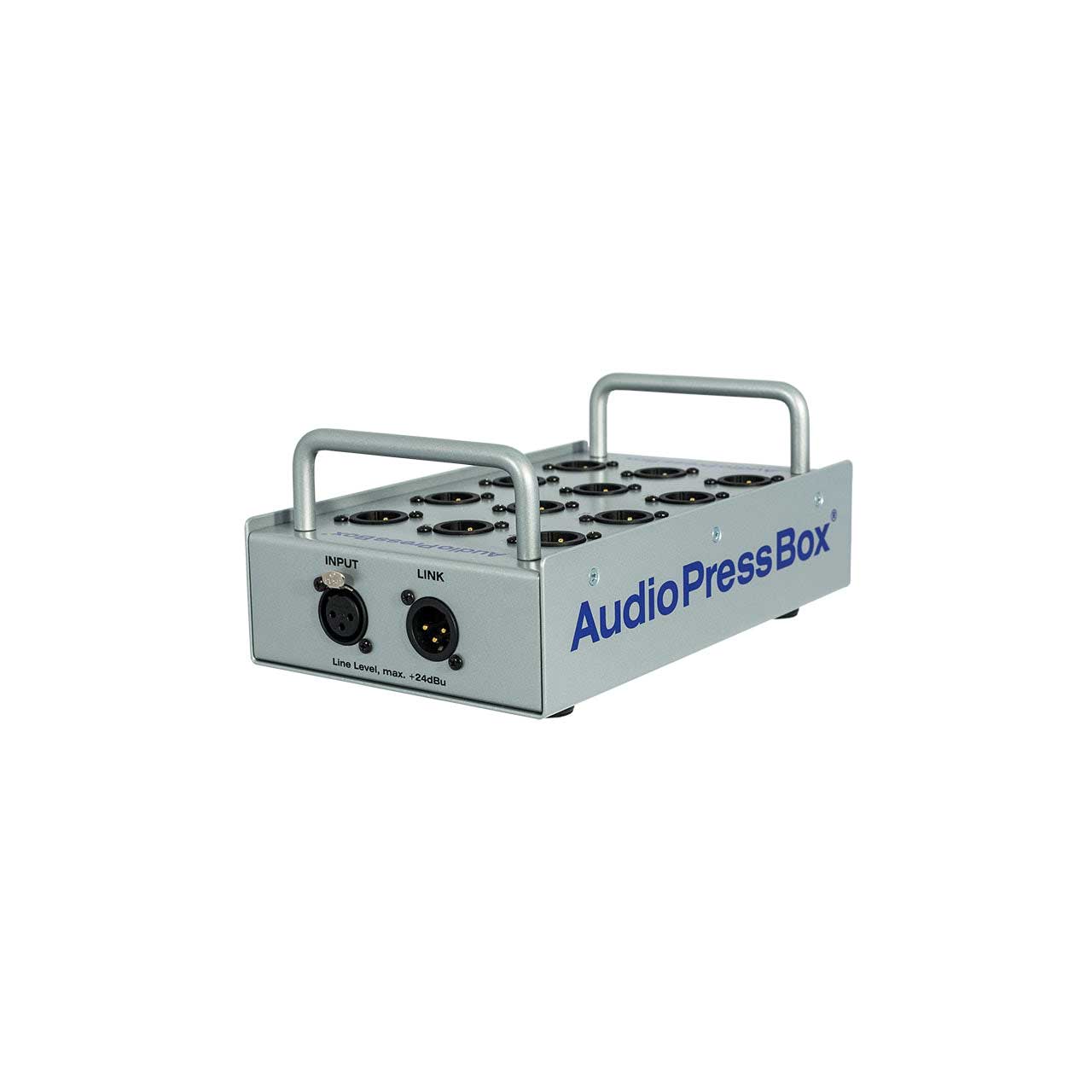

AudioPressBox APB-P112 SB Pro Portable Passive Press Box (Audio Splitter) Suitable for Both In/Outdoor Press Conferences

APB-P112 SB - Overview

• Features:

  • 1 balanced LINE Input

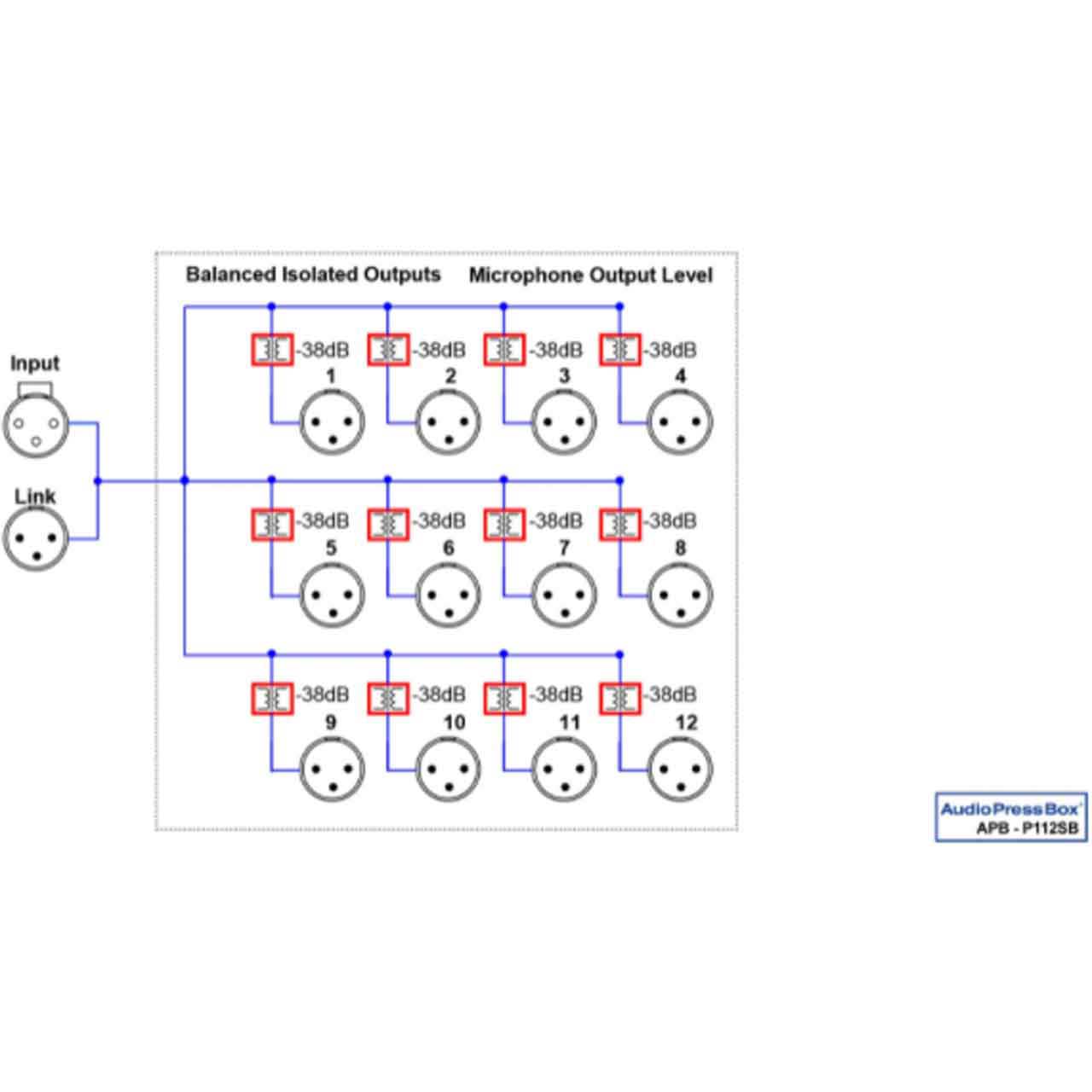

  • 12 High quality balanced Outputs, each Output is independent transformer isolated
  • Source: Balanced Line Output of professional audio equipment.
  • Transformer Separately transformer isolated outputs.


• Specifications:

  • Type: 1 in 12 out
  • Groups: 1
  • Inputs: 1
  • Input Connectors: balanced, XLR
  • Max. Input Level: Line: +24dBu
  • Input Impedance: 2.5kOhm
  • Outputs: 12 MIC level (-38dBu) 1 Input link (Line level)
  • Output Connectors: balanced, XLR-M connector
  • Transformer Isolated Outputs: Yes (each output)
  • Nominal Output Level: -38dBu (0dBu on the input)
  • Maximum Output Level: -14dBu (no load) -20dBu (150 Ohm)
  • Output Impedance: 150 Ohm
  • Frequency Response: 10Hz to 30kHz/-1dB
  • Dimensions (WxHxD): 8.85 x 5.31 x 3.74" (225 x 135 x 95mm)
  • Weight: 4.1Lbs (1.85kg)
