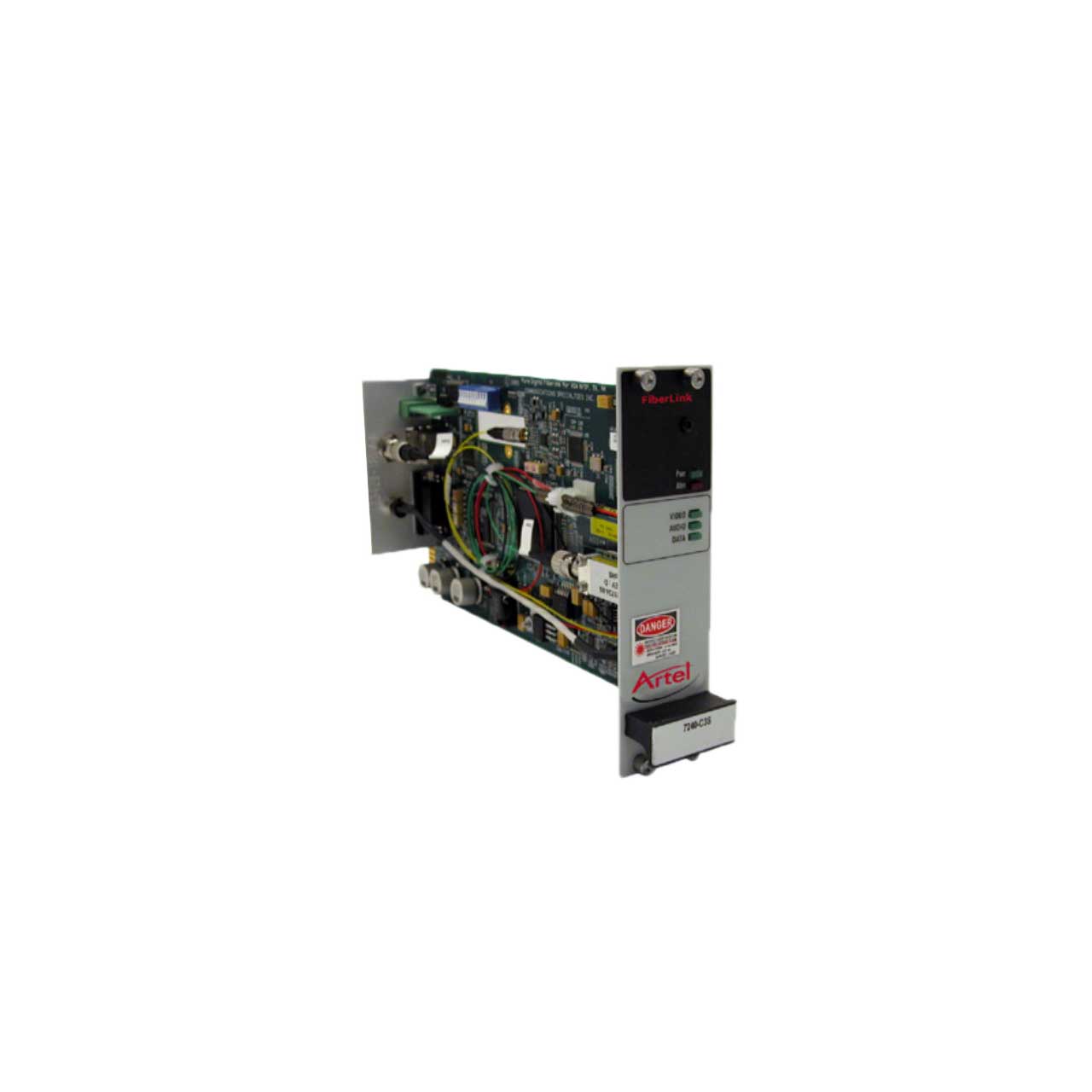

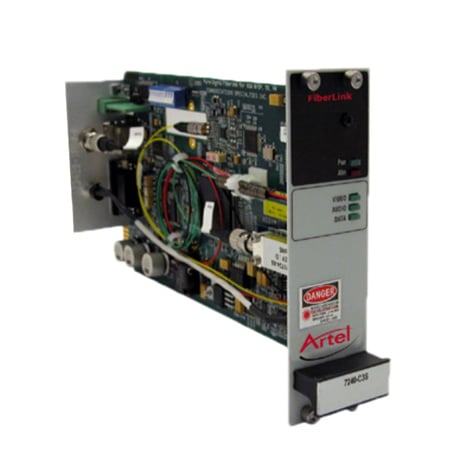

Artel 3513A-C7S FiberLink 2 Channel 3G/HD/SD-SDI (4K/UHD) Series Receiver - ST Card

3513A-C7S - Overview

• Features:

  • Broadcast or corporate studios, OB Vans, film & production, rental & staging, stadiums and theaters, surgical or medical imaging and more!
  • Signal is equalized and re-clocked prior to fiber optic transmission
  • Receiver features two re-clocked SDI outputs
  • Immunity to pathological patterns over entire link budget and operating temperature range
  • Compliant with SMPTE ST 425-3, 259M-2006, 292-2006, 424M-2006
  • Supports transmission of SMPTE 305M-2005, 310M-2004, 344M-2000, DVB-ASI
  • Operates on either Single Mode or Multimode (62.5u & 50u) fiber (standard power version)
  • Supports 3G/HD/SD-SDI inputs with or without embedded audio and data
  • Supports 4K/UHD resolutions up to 30 fps
  • 14 dB Standard transmitter version 19 dB Optical Link Budget @ 2.97 Gbps for High Power, Longer Distance version
  • Wide operating temperature range: -10° C to +50° C
  • Compatible with all Artel SDI transmitters and receivers using Artel CWDM products
  • Available in Box and Card versions
  • Card version compatible with the FiberLink 6000A Rack Card Cage
  • Designed and manufactured in the USA by Artel


• Specifications:

  • Fiber Optic Input
  • Connector: ST
  • Wavelength: 1100 - 1620 nm
  • Minimum Input Sensitivity: -17 dBm at 2.97 Gbps; -20 dBm at 1.485 Gbps -21 dBm at 270 Mbps;
  • Maximum Input Power: -1 dBm

    Serial Video BNC Outputs
  • Number of Outputs: 2
  • Signal Level: 800mV ± 10%
  • DC Offset: 0V ± 0.5V
  • Rise/Fall Time: < 135 ps at 2.97 Gbps per SMPTE 424M-2006; < 270 ps at 1.485 Gbps per SMPTE 292; 0.4 ns to 1.5 ns at 270 Mbps per SMPTE 259M
  • Overshoot: < 10% of amplitude
  • Timing Jitter: < 0.2 UI at 270 Mbps; < 1.0 UI at 1.485 Gbps; < 2.0 UI at 2.97 Gbps with color bar signal
  • Alignment Jitter: < 0.2 UI at 270 Mbps; < 0.2 UI at 1.485 Gbps; < 0.3 UI at 2.97 Gbps with color bar signal
  • Re-clocking: At 270 Mbps, 1.485 Gbps & 2.97 Gbps

    General
  • 4K/UHD Support: up to 30 fps using 2 inputs
  • Link Timing Difference: 0.3ns/km of Fiber
  • Indicators: Power, Data Rate lock (SD, HD/3G), Alarm
  • Slots in 6000A Card Cage: 1
  • Weight 12.3 ounces
  • Power: 9-24 volts/DC, 5 watts; 95-250 VAC, 50/60 Hz; 4.0 watts, 13.64 BTU/Hr
  • Operating Temperature: -10° C to +50° C
  • MTBF: 72,000 Hours
