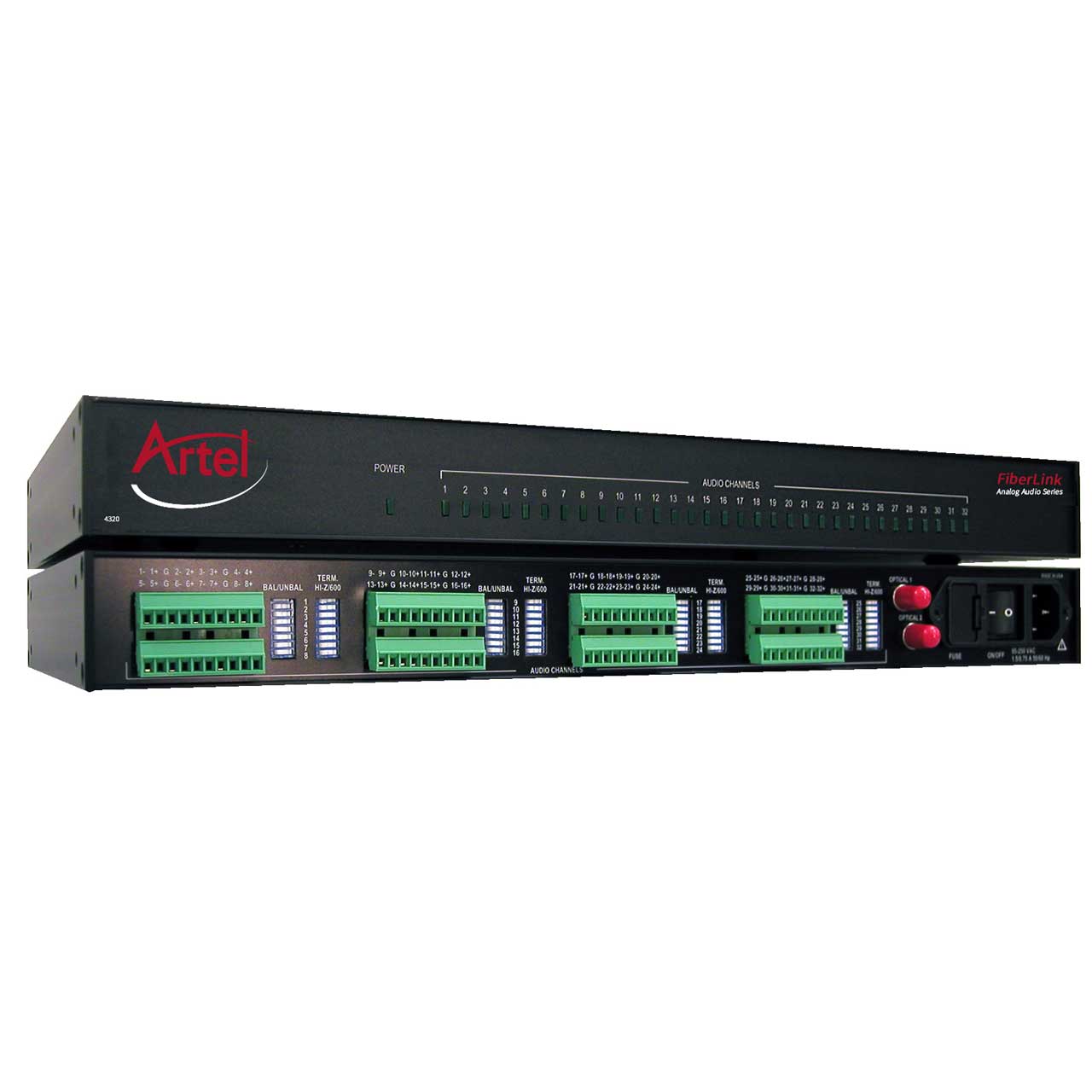

Artel 4320-SN10-NA Fiberlink 32Ch Audio Tx 850nm MM Dual Output ST Connector

4320-SN10-NA - Overview

• Features:

  • System consists of transmitter and receiver unit
  • No adjustments; pure digital processing and transmission
  • Optional redundant optical input/output 24 bit/96 kHz sampling; maximum audio level +24 dBu 20 Hz to 20 kHz frequency response
  • Line level, balanced or unbalanced audio operation
  • Indicator LEDs monitor audio signals and power
  • Wide range internal power supply
  • Unit stands 1 RU high
  • Rackmount ears are included


• Specifications:

  • General
  • LED Indicators: Power; Audio Present (per channel)
  • Power Requirements: 95-250 volts AC, 47-63 Hz
  • Operating Temperature Range: -35° to +55°C
  • Relative Humidity: 10%-90% (non-condensing)
  • Optical Connectors: ST
  • Operating Wavelength: 850, 1310, or 1550 nm
  • Physical Size: 1.75" H x 16.75" W x 10" D (Unit stands 1 RU high)
  • Weight Approximately 5 lbs.
    Audio
  • Number of Audio Channels: 32, balanced or unbalanced
  • Frequency Response: 20 Hz - 20 kHz, +0/-0.5 dB
  • Bits-per-Sample/Sampling Rate: 24 bits; 96 kHz
  • Maximum Audio Level: +24 dBu
  • SNR (A-Weighted): 95 dB
  • THD+N: 0.002%; 20 Hz - 20 kHz
  • Channel Phase Differential: 0.1o
  • System Latency: 200 us + fiber cable propagation delay (typically 5 us/km of fiber)
  • Input Impedance: 600 Ohms terminated; 24 k Ohms unterminated
  • Output Impedance: 50 Ohms
  • Audio Connectors: Removable screw terminal
  • Switches: Dip switches to select input termination, balanced or unbalanced input/output; Selectable on a per-channel basis
