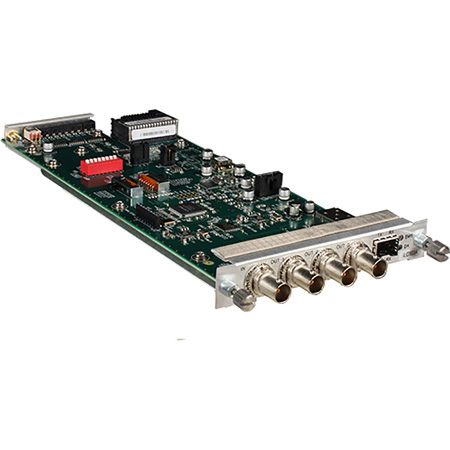

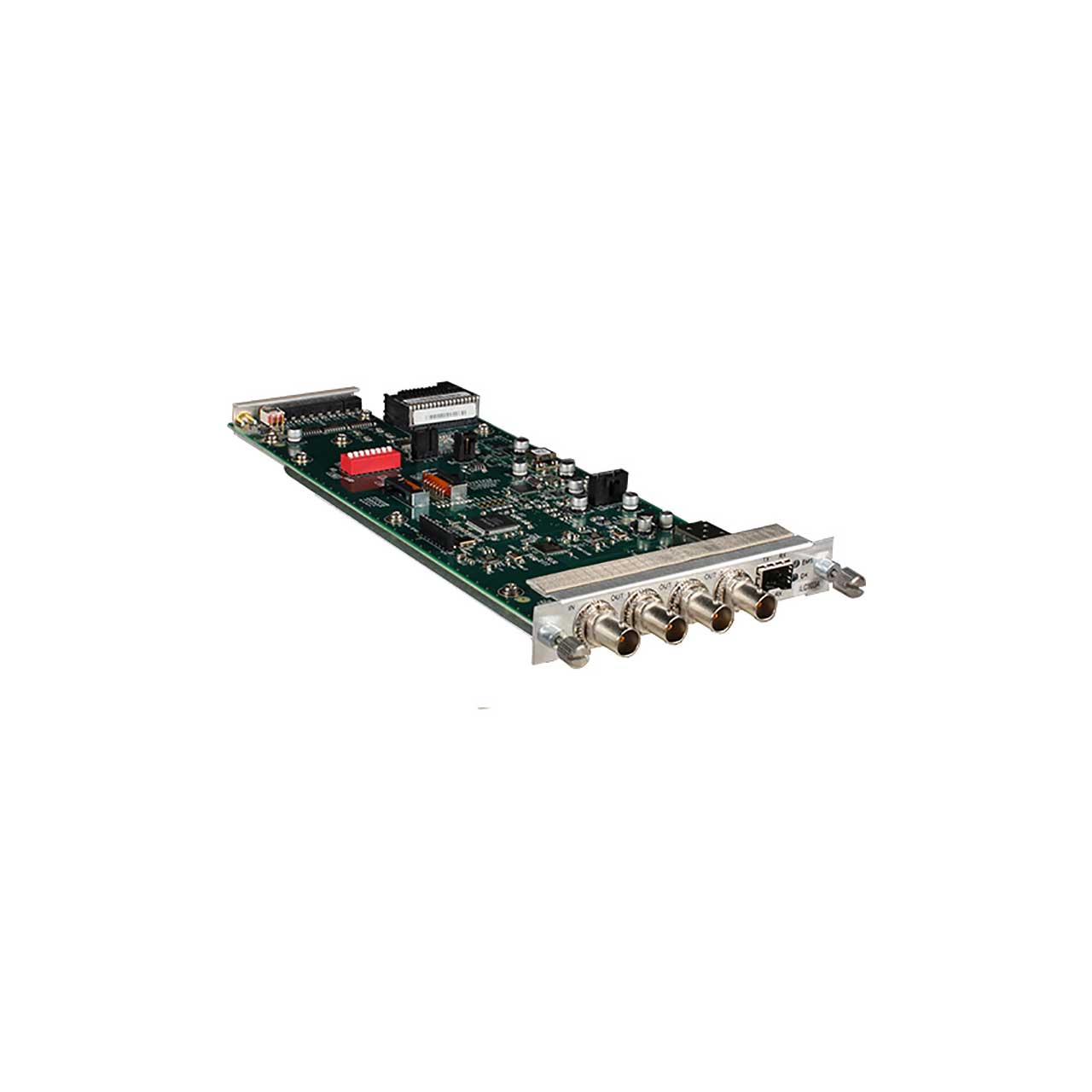

Artel InfinityLink ILC103A 3G/HD/SD-SDI/ ASI Transmitter/Receiver

ITEM #: ARTL-ILC103A MFG #: ILC103A

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the ARTL-ILC103A

ILC103A - Overview

The ILC103A is a flexible, cost-effective, bi-directional fiber optic transport module for all digital video formats ranging from 19.39 Mb/s to 2.97 Gb/s. The module is user configurable to function as a transmitter, receiver, transceiver, repeater, or 4-channel distribution amplifier.

The ILC103A and the InfinityLink chassis combine to create the backbone of a video transmission network that can span feet or miles. Using removable SFPs transceivers available in 1310 nm, 1550 nm, and 18 CWDM wavelengths, make the ILC103A the most flexible, easy-to-deploy, and reliable single channel digital video optical transport module ever developed.

  • Specifications:

    • SIGNAL FORMATS: 2.967 Gb/s - 3G-SDI (SMPTE 424M), 1.485 Gb/s - HD-SDI (SMPTE 292M),
    • SIGNAL FORMATS: 270 Mb/s: SD-SDI (SMPTE 259M-C, ITU 656), SDTI (SMPTE 305M), DVB-ASI, ARTEL 270
    • SIGNAL FORMATS: 19.39 Mb/s ATSC (SMPTE 310M)
    • SIGNAL POLARITY: Non inverting
    • CHANNELS: 1-transmit, 1-receive
    • INPUT: (1) BNC 75 Ohm
    • OUTPUT: (3) BNC 75 Ohm
    • MONITOR: HD-BNC 75 Ohm
    • RETURN LOSS (WITH ACTIVE VIDEO): >15 dB, 5-1485 MHz, >10 dB, 1486-2967 MHz
    • CABLE EQUALIZATION BELDEN 1694A: 0 to 250 meters (270 Mb/s), 0 to 100 meters (1.485 Gb/s), 0 to 100 meters (2.967 Gb/s)
    • AMBIENT OPERATING TEMPERATURE: 0 to 50°C
    • AMBIENT STORAGE TEMPERATURE: -40 to 80°C
    • RELATIVE HUMIDITY: 10 to 95% (non-condensing)
    • POWER DISSIPATION: <8 Watts
    • DIMENSIONS: 0.8” x 5” x 10.8” (1 slot in InfinityLink chassis)
    • OPTICAL INTERFACE: See InfinityLink SFP/EXP Datasheet
    • COMPLIANCE: CSA 60950, EN60950, EN55022 FCC Part 15 (Class A), CISPR 22
