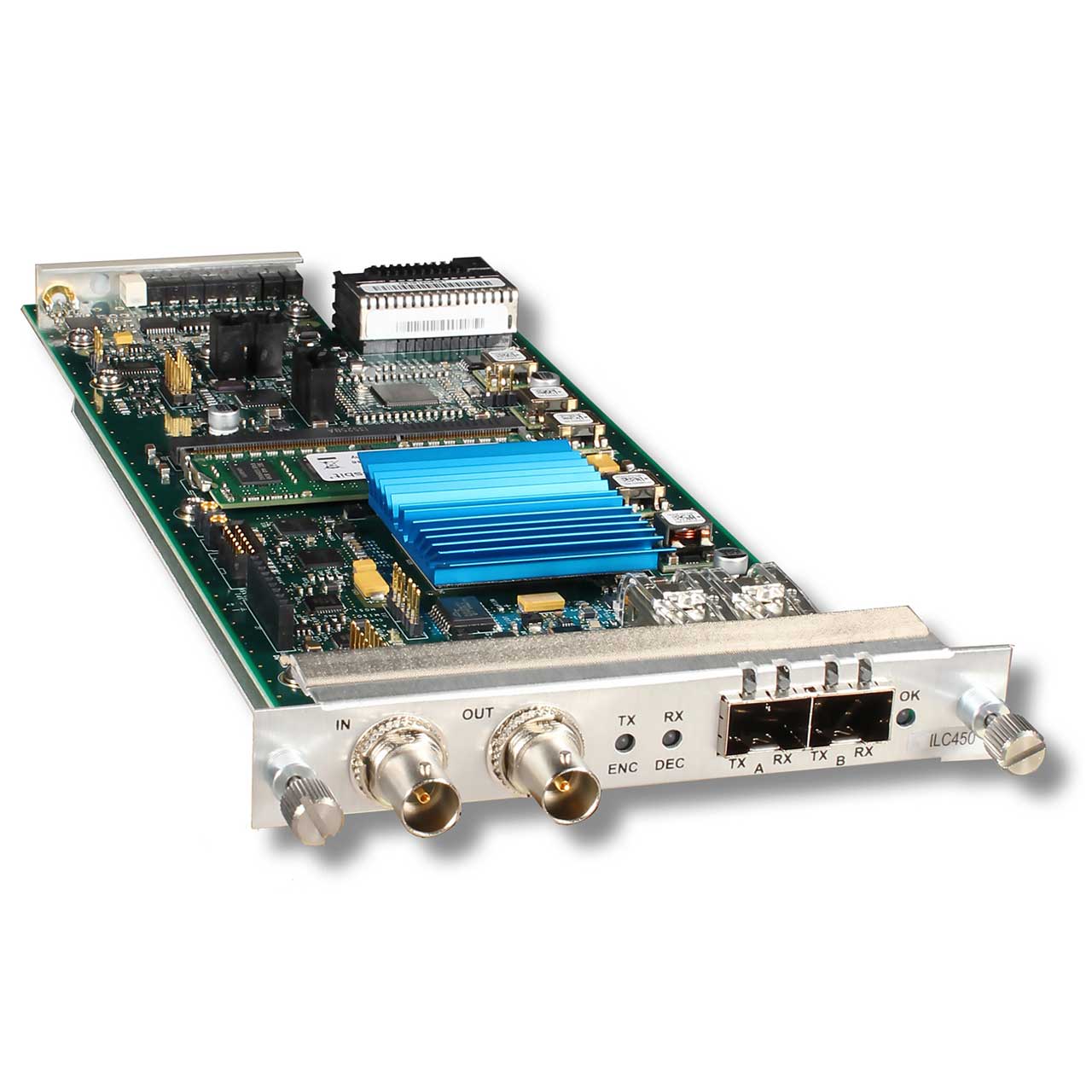

Artel InfinityLink ILC450 10G HD/SD-SDI/ASI IP Gateway and GigE Data Transport

ILC450 - Overview

• Features:

  • Video-Over-IP Transport of HD/SD-SDI and ASI
  • Single module user configurable as a transmitter or receiver
  • Fully transparent carriage of HD/SD-SDI, and ASI including audio and ancillary data
  • Gig E data bridged over 10G interface
  • Supports unicast or multicast streaming

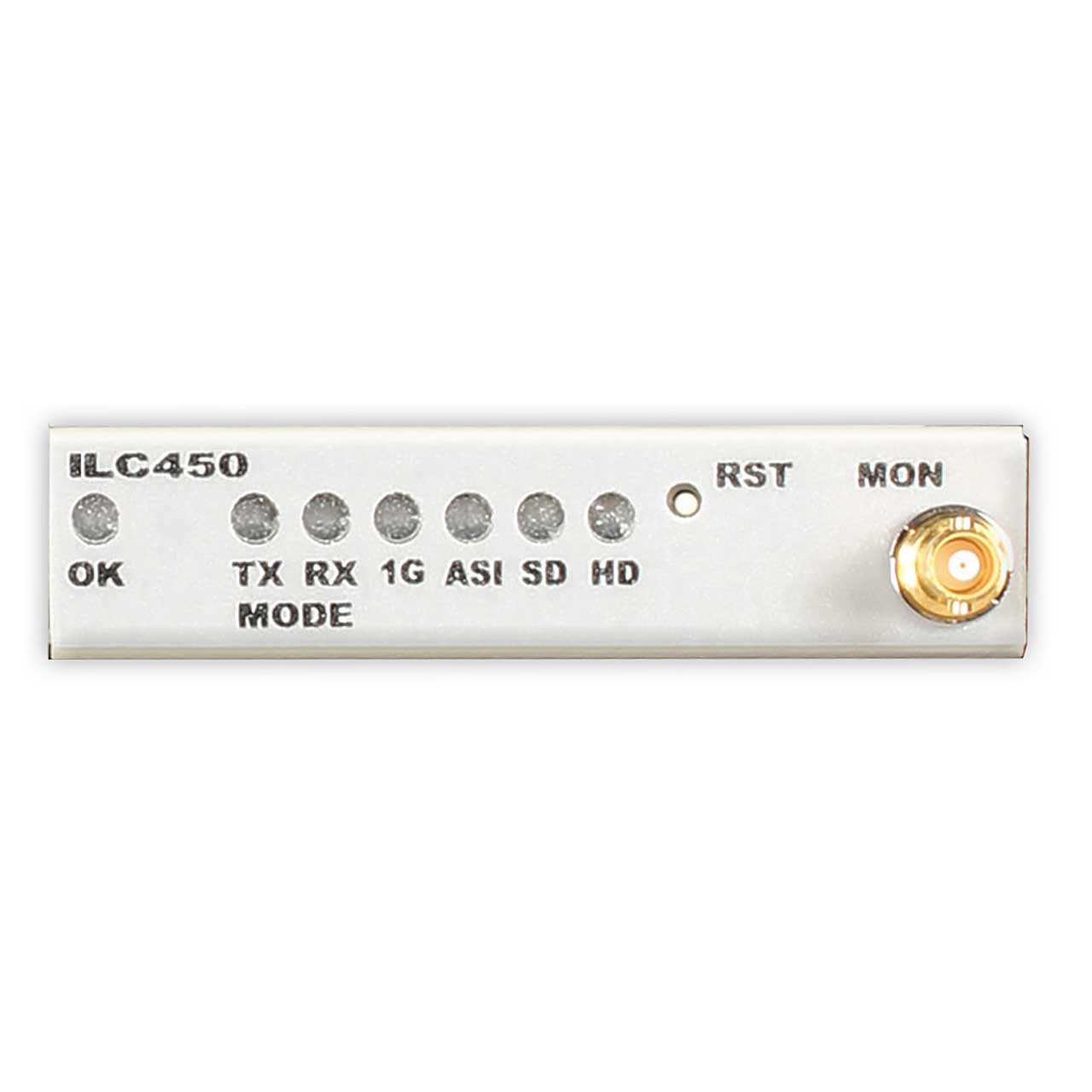

  • Front panel HD-BNC monitor
  • 1G Ethernet SFP Electrical/Optical Interface Auto-Negotiable to 10/100/1000
  • Configure, monitor, and manage via on-board InfinityLink Manager or SNMPv2
  • Low power design consumes a single function slot in a InfinityLink chassis


• Specifications:

  • Automatic rate selection
  • 1.485 Gb/s HD-SDI (SMPTE 292M)
  • 270 Mb/s SD-SDI (SMPTE 259M-C, ITU 656)
  • >DVB-ASI

    Standards-based encapsulation and forward error correction
  • SMPTE 2022-6 IP Encapsulation of HD and SD-SDI
  • SMPTE 2022-2 IP Encapsulation of DVB-ASI
  • SMPTE 2022-5 FEC recovers lost, damaged, or delayed packets of HD and SD SDI
  • SMPTE 2022-1 FEC recovers lost, damaged or delayed packets of ASI

    Flexible user configurable FEC and buffering setting
  • Selectable transmitter row and column Forward Error Correction settings
  • Selectable receiver buffering
  • Designed to withstand burst outages in excess of 3 ms

    Externally accessible SFP+ transceiver
  • WDM (1310 nm, 1550 nm)
  • CWDM ITU G.694.2 (Channels 27-61)
  • DWDM ITU G.694.1 (Channels 21-60)

    Externally accessible SFP transceiver
  • Optical budget to 33dB
  • WDM (1310nm, 1550nm)
  • CWDM ITU G.694.2 (Channels 27-61)
  • DWDM ITU G.694.1 (Channels 21-60)


• Item Includes:

  • FORMATS: HD-SDI (SMPTE 292M), SD-SDI (SMPTE 259M-C, ITU 656), DVB-ASI

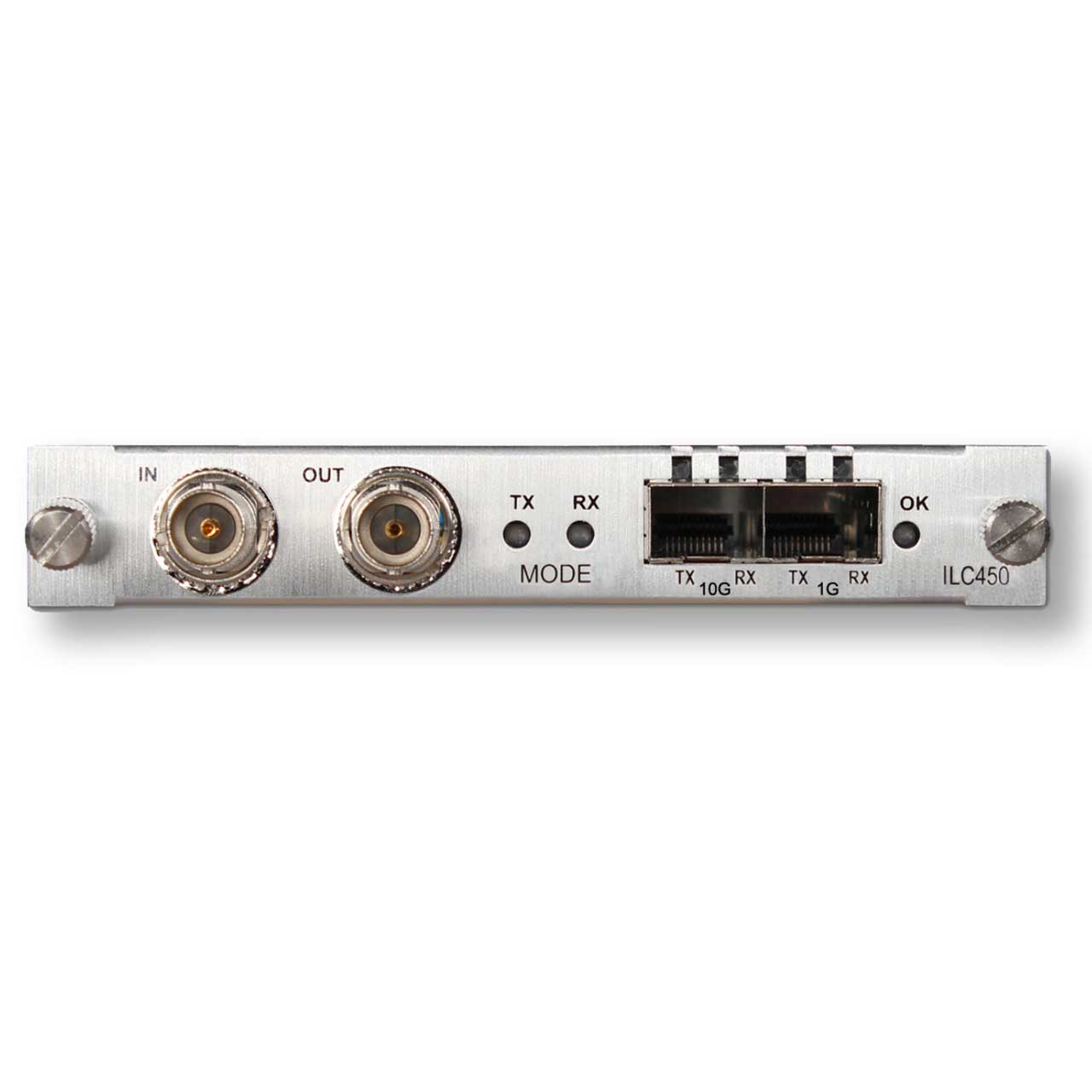

  • INPUT: Rear BNC 75 Ohm
  • OUTPUT: Rear BNC 75 Ohm, Front HD-BNC 75 Ohm
  • RETURN LOSS: >15 dB, 5-1485 MHz
  • CABLE EQUALIZATION BELDEN 1694A: 0 to 100 meters (1,485 Gb/s), 0 to 250 meters (270 Mb/s)
  • 10G NETWORK INTERFACE: TYPE Ethernet SFP+ via LC CONNECTOR, 10 Gig-E FORMAT
  • GIG E NETWORK INTERFACE: EXTERNAL SFP 1 (Optical or RJ45), INTERNAL 1 to other modules in InfinityLink chassis
  • GIG E NETWORK DATA RATES: 10/100/1000 Ethernet
  • COMPLIANCE: CSA 60950, EN60950, EN55022 FCC Part 15 (Class A), CISPR 22
  • OPERATING TEMPERATURE: 0 to 50°C
  • AMBIENT STORAGE TEMPERATURE: -40 to 80°C
  • RELATIVE HUMIDITY (NON-CONDENSING): 10 to 95%
  • POWER DISSIPATION: 17 Watts
  • WEIGHT: <2 pounds, (1kg)
  • DIMENSIONS: 0.8” x 5” x 10.8” (1 slot in InfinityLink chassis) 1 slot in DigiLink chassis
