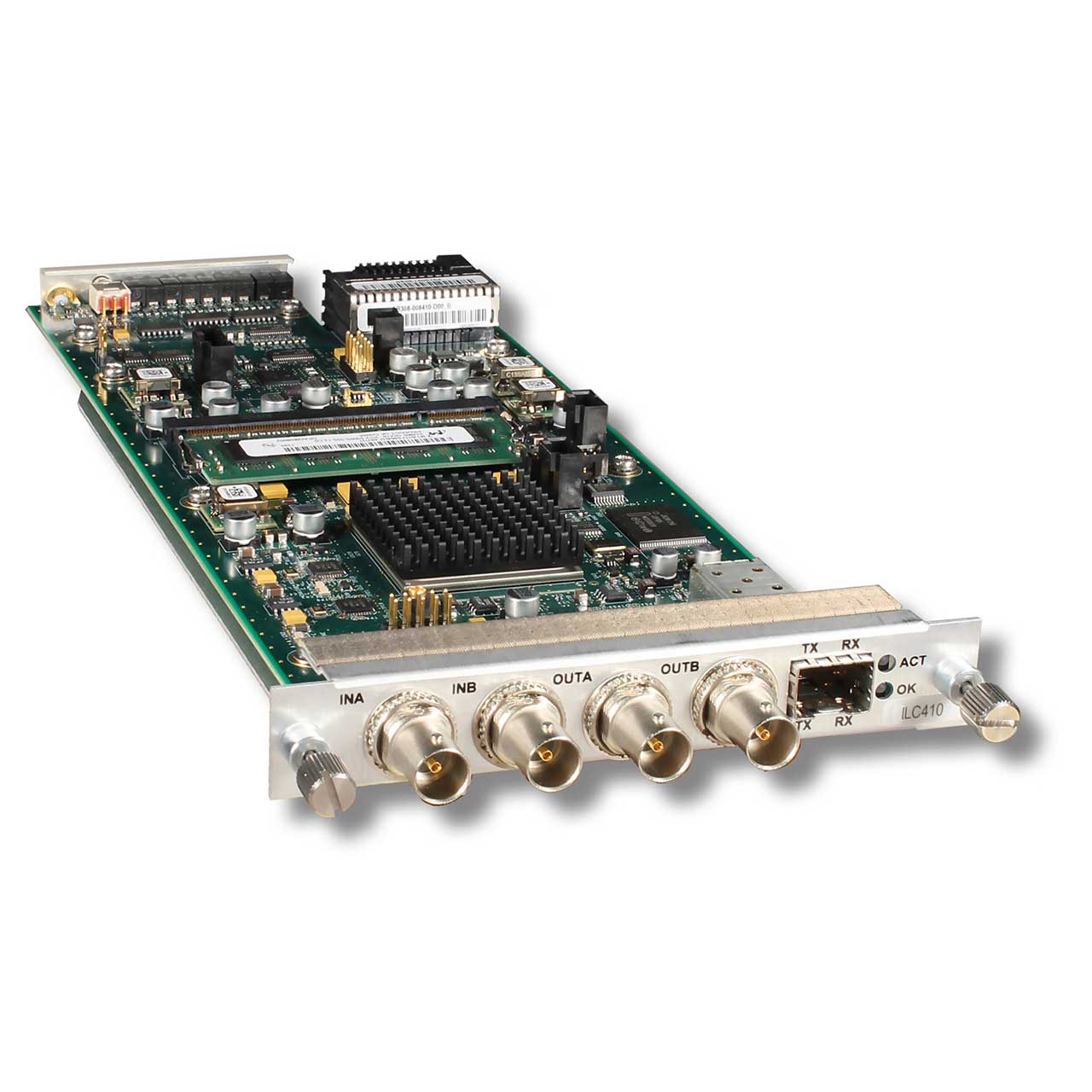

The ILC410 expands the InfinityLink video platform capabilities to include SMPTE standards-based video-over-IP transport for both DVB-ASI and SD-SDI formats.
Based on SMPTE 2022 standards for encapsulation and Forward Error Correction (FEC), the ILC410 enables SDI and ASI to be reliably transported across managed IP networks. The module is capable of transporting four channels (two in each direction) of DVB-ASI or SD-SDI over a gigabit Ethernet IP network connection. SDI video is transported in its entirety, including all ancillary data. ASI video streams from less than 20 Mb/s to over 200 Mb/s are supported and can be rate limited.

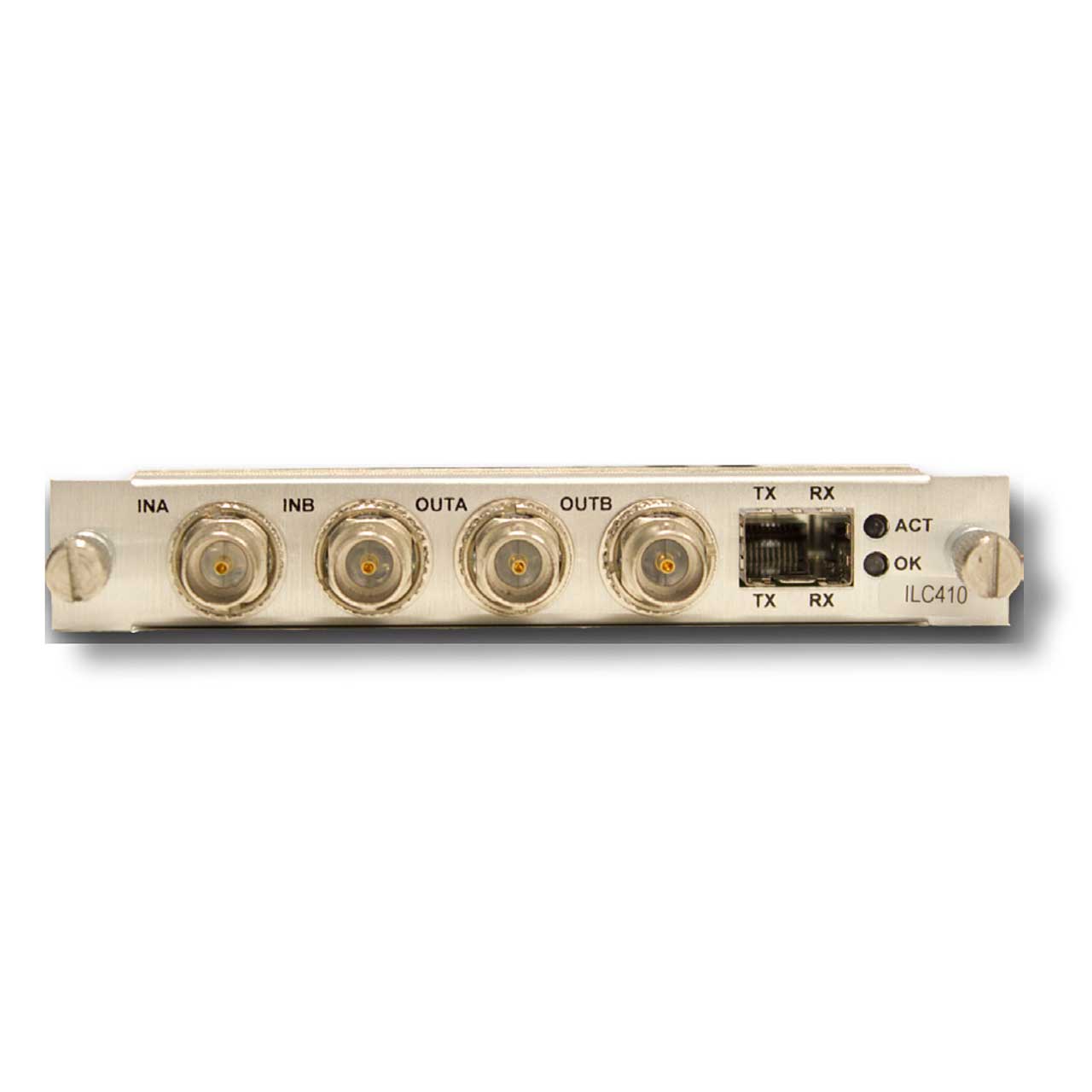

The ILC410 FEC enables the recovery of lost, errored, or delayed IP packets and can withstand burst outages in excess of 3 ms. Access to the IP network is through rear accessible, field replaceable SFPs either optically in WDM, CWDM , and DWDM wavelengths or electrically via an RJ-45 SFP.
