NX4004 - Overview

Ashly NX4004 nX Multi-Mode Amplifiers feature energy-efficient Class-D switching amplifier technology combined with a switch mode power supply. All feature Selectable Outputs on each channel so you can connect to virtually any speaker: low impedance (2, 4, and 8-ohm), or constant voltage (70V or 100V). Offered in 2- and 4 Channels, nX is available in two and four-channel models with 3000, 1500, 800, 400, 150 and 75 Watts per channel.

  • Features:

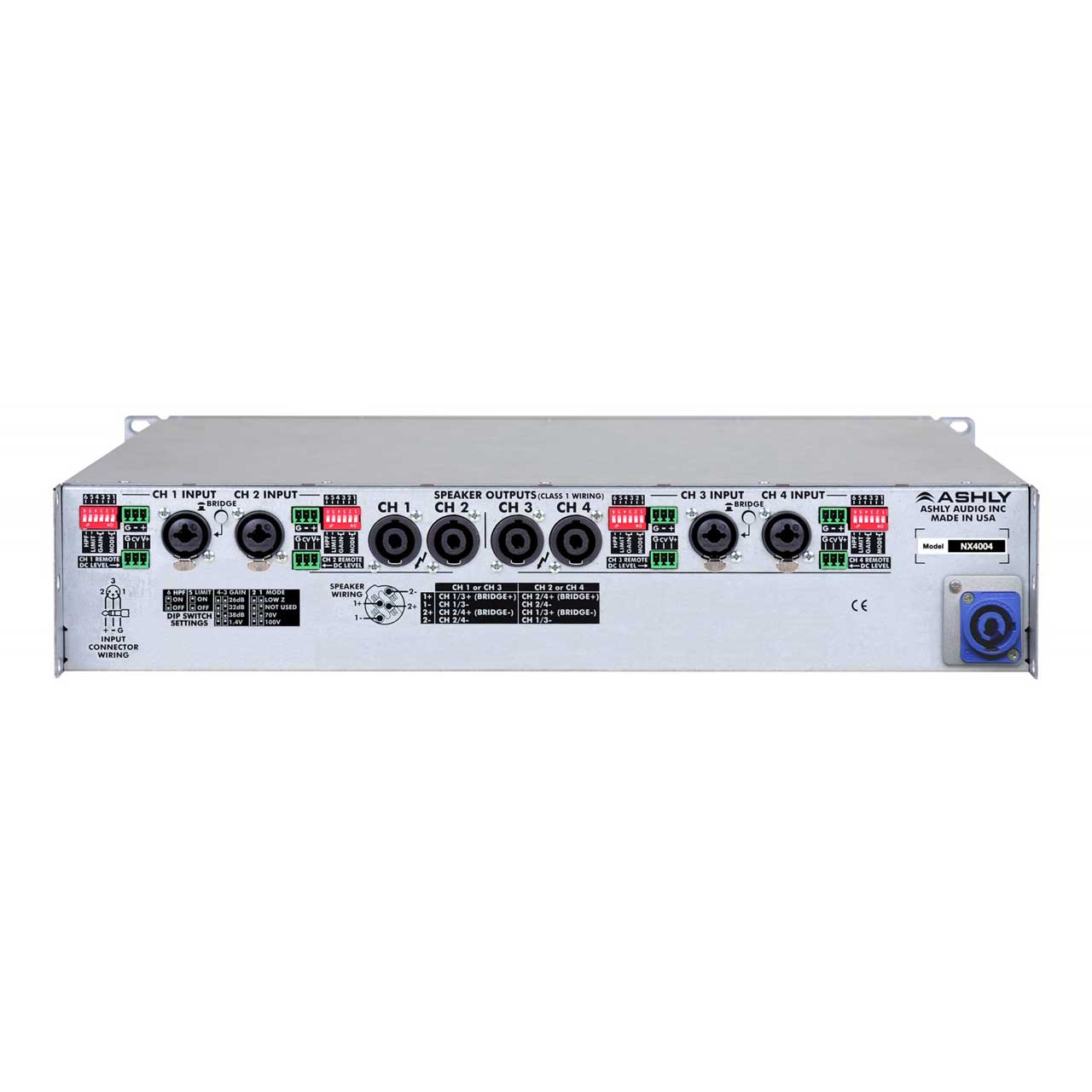

    • Rear panel DIP switches select low impedance (2, 4, and 8 Ohm), constant voltage (70V or 100V), high pass filter, limiter and input gain on each channel
    • Ashly Energy Management System (EMS) for increased efficiency) automatic <1Wsleep-mode (defeatable)
    • Switch mode power supply automatically detects 120V or 240V AC operation
    • Extensive protection circuitry
    • Continuously variable cooling fans

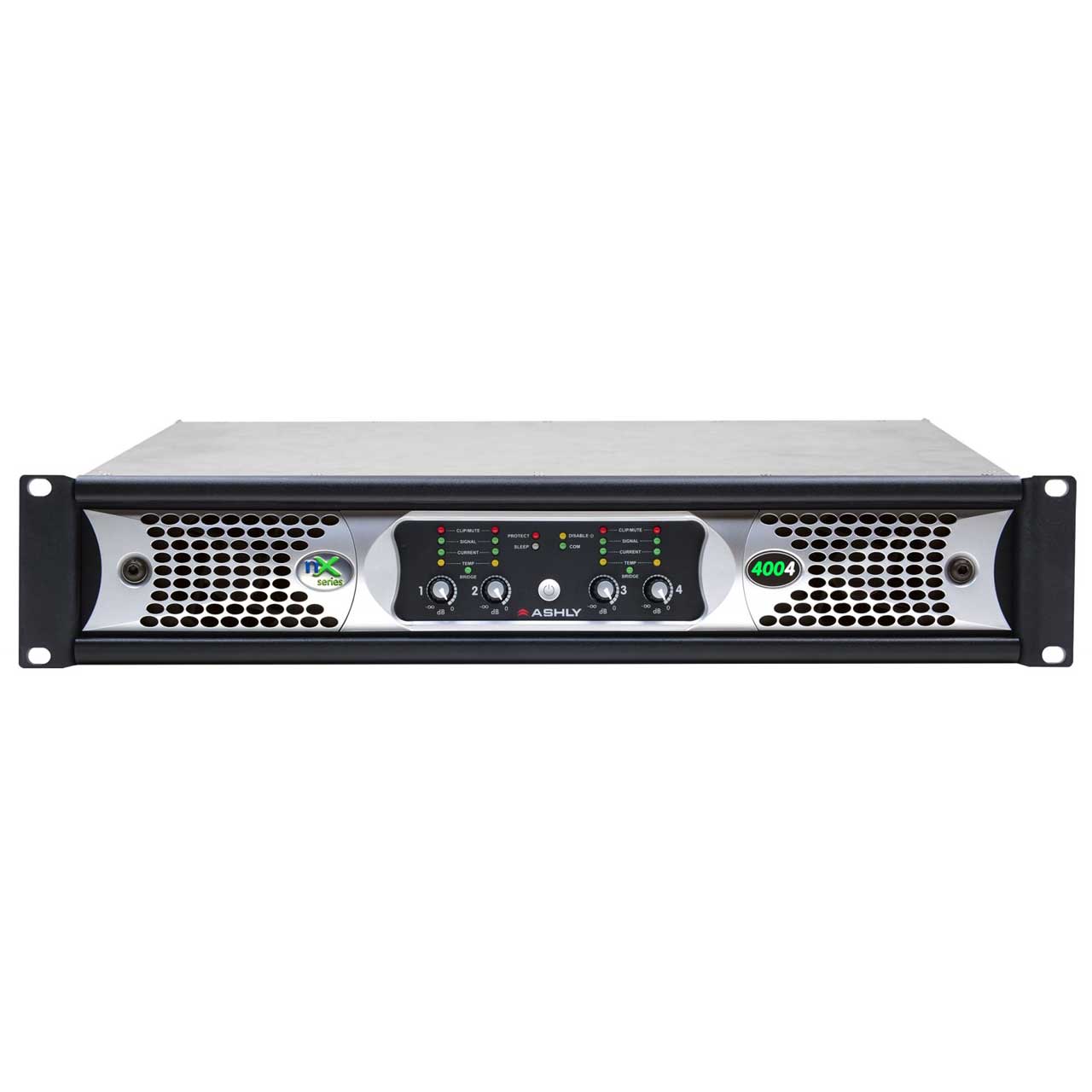

    • Front panel power switch and level controls (can be disabled for security)
    • Multiple internal power supplies provide increased channel separation and reliability
    • Remote DC level control on each input channel (2 RU models only)
    • Genuine Neutrik® connectors on 2 RU models for security, safety, and reliability
    • Safety / Compliance: cTUVus, CE, FCC, RoHS

  • Specifications:

    • Voltage Gain: Selectable at 26dB, 32dB, 38dB, or 1.4V
    • Damping Factor: >250 (8 Ohms load <1kHz)
    • Input High Pass Filter: 80Hz 2nd order
    • Distortion (SMPTE, typical): <0.5%
    • Distortion (THD-N, typical): <0.5% (8 Ohms, 10dB below rated power, 20Hz-20kHz)
    • Channel Separation: -75dB (dB from full output, 1kHz)
    • Signal to Noise (20Hz-20kHz, unweighted):
      >114dB (all 3.0x models)
      >111dB (all 1.5x models)
      >108dB (all 800x models)
      >105dB (all 400x models)
    • Frequency Response: 20Hz-20kHz, +/-0.05dB
    • Balanced Input Connector: Euroblock 3.5mm, 1/4" TRS and XLR Combo jack
    • Input Impedance: 10k Ohms
    • Maximum Input Level: +21dBu
    • Speaker Output Connector: Neutrik® speakON®
    • Remote DC Level Control: Euroblock 3.5mm - Gnd, CV, V+ per input
    • Attenuators (per channel): Front panel and remote. Fully off = Mute
    • Amplifier Protection: Inrush current limitation, temperature monitoring, output over-power protection, mains fuses
    • Airflow: In through sides, Out through front
    • Cooling: Continuously variable temperature controlled axial fan(s)
    • Environmental: 32° to 113°F (0° to 45°C) (non-condensing)

  • GTIN:

    0694970612235
