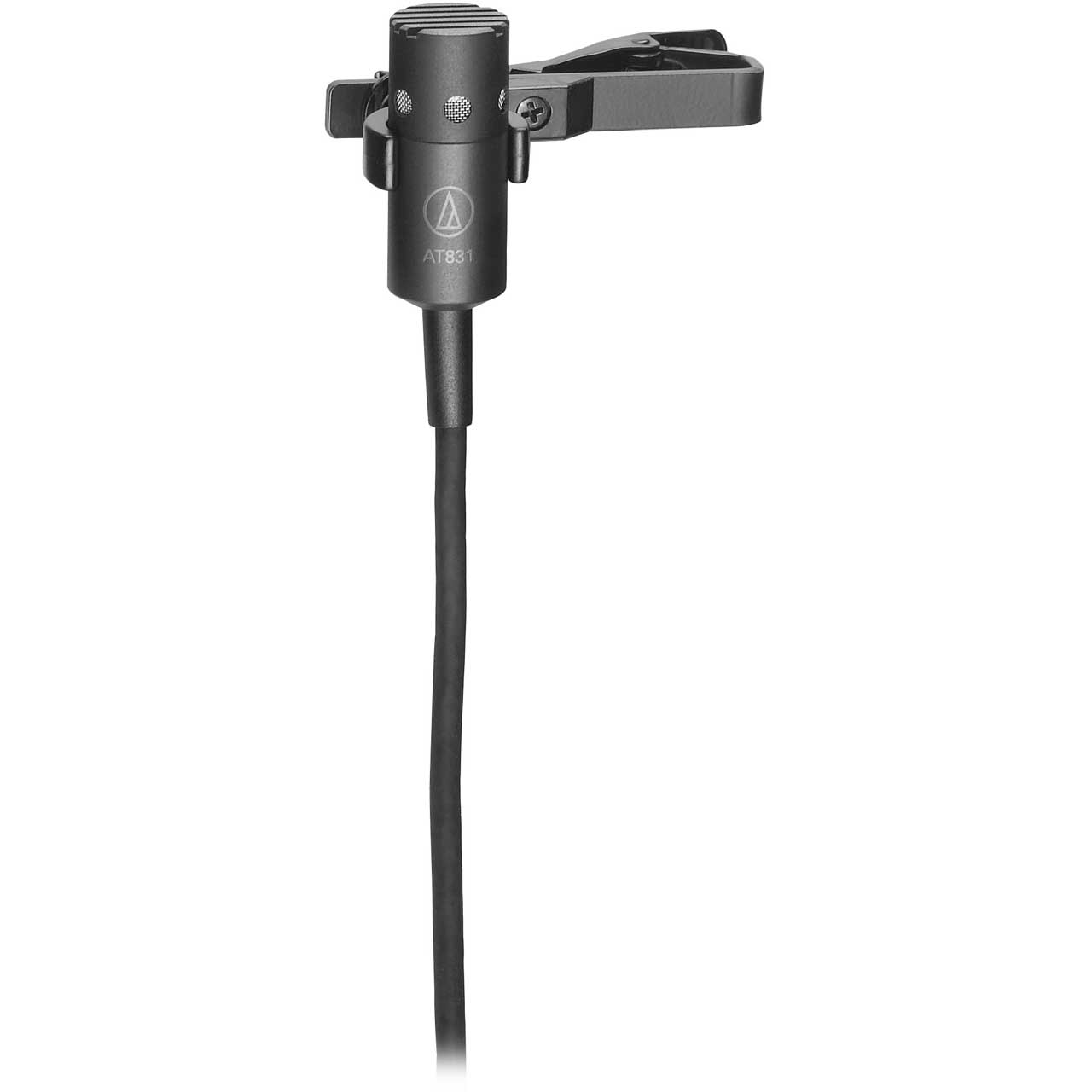

Audio-Technica AT831cH Cardioid Condenser Lavalier Mic for cH-Style Body-Pack Transmitters - Black

AT831CH - Overview

• Features:

  • Clip-on lavalier mic also excels in acoustic guitar applications
  • Provides crisp, full-sounding voice and instrument pickup
  • Excellent gain before feedback and suppression of background noise
  • Operates on phantom power only
  • 4.0 m (13.1') cable permanently attached to mic, TA3F connector at power module
  • RoHS compliant-free from all substances specified in the EU directive on hazardous substances


• Specifications:

  • Element
  • Fixed-charge back plate, permanently polarized condenser

    Polar Pattern
  • Cardioid

    Frequency Response
  • 40-16,000 Hz

    Low Frewuency Roll-Off
  • 80 Hz, 18 dB/octave

    Open Circuit Sensitivity
  • -42 dB (7.9 mV) re 1V at 1 Pa

    Impedance
  • 250 ohms

    Maximum Input Sound Level
  • 141 dB SPL, 1 kHz at 1% T.H.D.

    Dynamic Range
  • (typical) 112 dB, 1 kHz at Max SPL

    Signtal-to-Noise Ratio
  • 65 dB, 1 kHz at 1 Pa

    Phantom Power Requirements
  • 11-52V DC, 2 mA typical

    Switch
  • Flat, roll-off

    Weight (Mic)
  • 0.1 oz (2.8 g)

    Weight (power module)
  • 2.9 oz (81 g)

    Dimensions (mic)
  • 0.98" (25.0 mm) long, 0.40" (10.2 mm) diameter

    Dimensions (power module)
  • 3.66" (92.9 mm) long, 0.74" (18.9 mm) diameter

    Output Connector (power module)
  • Integral 3-pin XLRM-type


• GTIN:

  0042005196098
