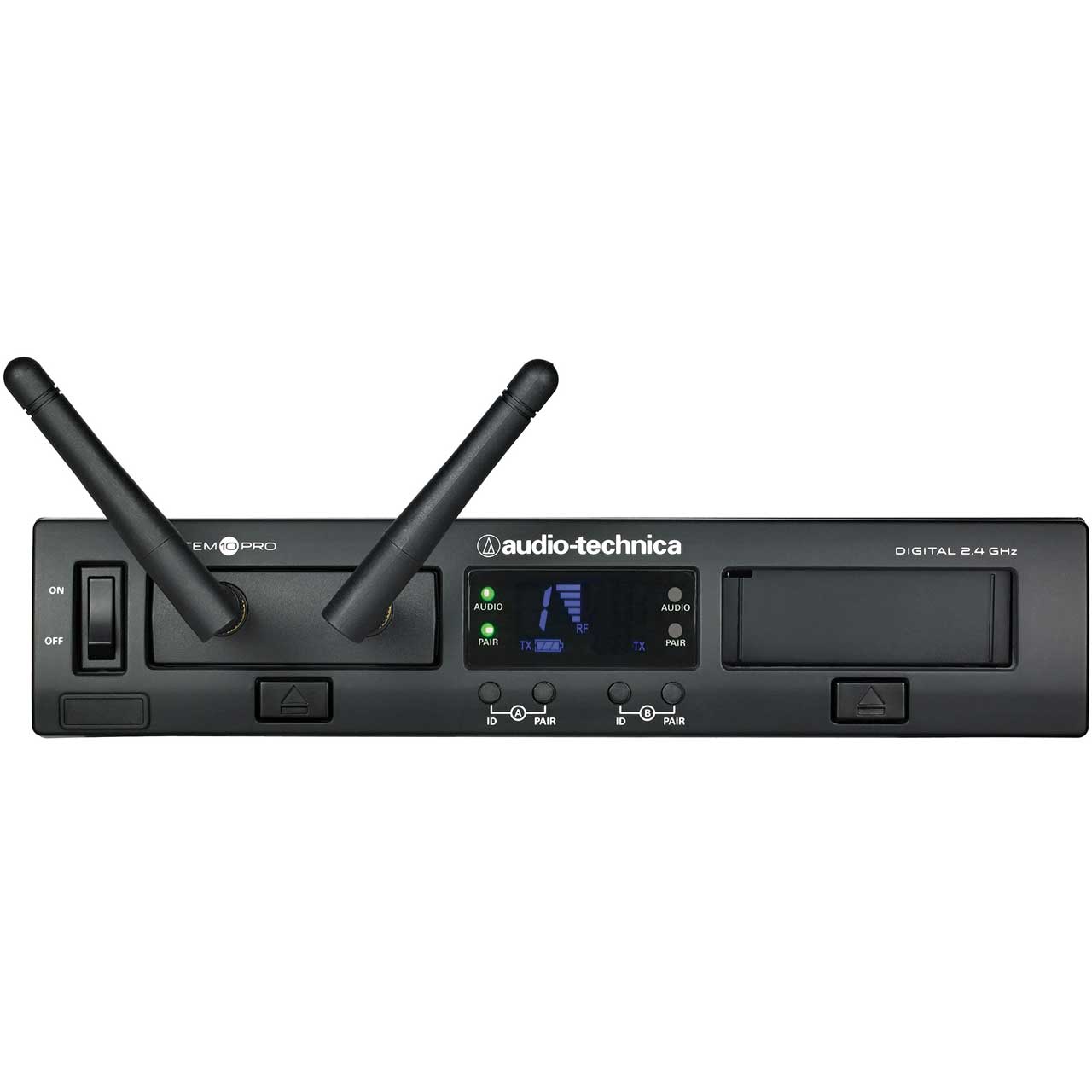

Audio-Technica ATW-RC13 System 10 PRO ATW-RC13 Rackmount Receiver Chassis

ITEM #: AT-ATW-RC13 MFG #: ATW-RC13

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AT-ATW-RC13

ATW-RC13 - Overview

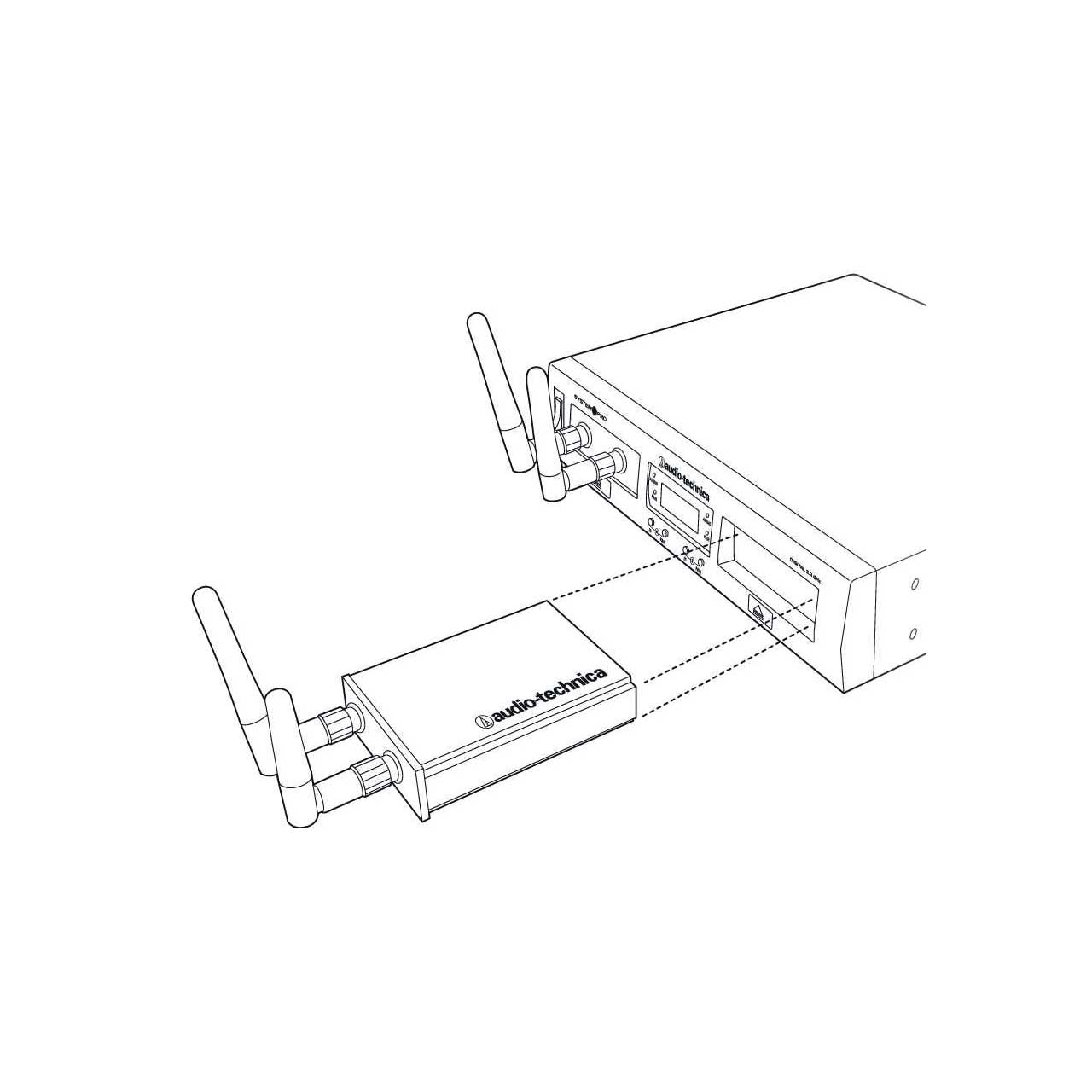

Audio-Technica's ATW-RC13 System 10 PRO rack-mount digital wireless system provides wireless that's so simple to use, so dependable, and so automatic, you never have to think about it. Set it up anywhere, turn it on and it's good to go. System 10 PRO delivers interference-free operation in the 2.4 GHz range (i.e., outside TV bands) with many innovative features for ultimate versatility. The durable half-rack chassis houses two receiver units that can be operated locally or released from the chassis and mounted remotely (up to 328 feet away) via Ethernet cable. Up to five chassis (10 receiver units) can be linked using the RJ12 cable included with each system, creating a stable, multichannel system with the simultaneous use of up to 10 channels. Like all the products in the System 10 wireless family, the System 10 PRO rack-mount features 24-bit/48kHz operation, easy setup, clear, natural sound quality, and three levels of diversity assurance: frequency, time and space.

Please Note: There are several components that make up this system. This is the ATW-RC13 Chassis only! See "Required" items for additional components.

Included with the ATW-RC13 are the AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet.

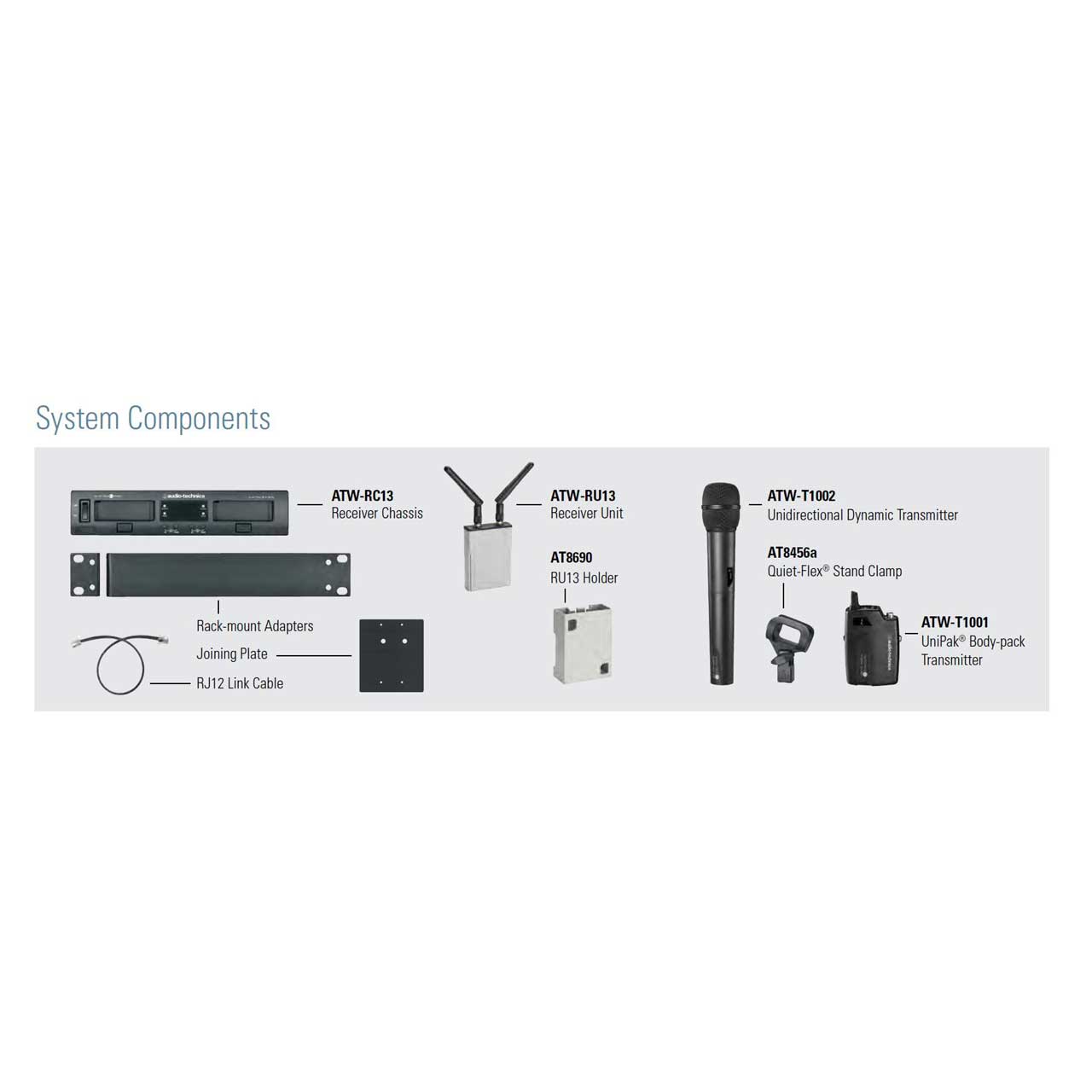

Ths System10 PRO is available in a variety of configurations complete with everything you need for a fully working wireless mic system. They are as follows....

ATW-1301
ATW-RC13 Rack-mount receiver chassis, ATW-RU13 receiver unit and ATW-T1001 UniPak transmitter. Select a Wireless Essentials microphone or cable to complete the system.

ATW-1301/L
ATW-RC13 Rack-mount receiver chassis, ATW-RU13 receiver unit and ATW-T1001 UniPak transmitter with MT830cW lavalier microphone.

ATW-1302
ATW-RC13 Rack-mount receiver chassis, ATW-RU13 receiver unit and ATW-T1002 handheld dynamic unidirectional microphone/transmitter

ATW-1311/L
ATW-RC13 Rack-mount receiver chassis, ATW-RU13x2 receiver unit and ATW-T1001 x2 UniPak transmitter with MT830cW x2 lavalier microphone.

ATW-1312
ATW-RC13 Rack-mount receiver chassis, ATW-RU13x2 receiver unit, ATW-T1002 handheld dynamic unidirectional microphone/transmitter and ATW-T1001 UniPak transmitter. Select a Wireless Essentials microphone or cable to complete the system.

ATW-1312/L
ATW-RC13 Rack-mount receiver chassis, ATW-RU13x2 receiver unit, ATW-T1002 handheld dynamic unidirectional microphone/transmitter and ATW-T1001 UniPak transmitter with MT830cW lavalier microphone.

  • Features:

    • Digital 24-bit/48kHz wireless operation for ultimate sound quality and dependable performance
    • Operates in the 2.4GHz range - completely free from TV interference
    • Receiver units can be docked in the chassis or mounted remotely (up to 328ft away) via Ethernet cable for added versatility
    • Up to five chassis (ten receiver units) can be linked and used simultaneously
    • Each receiver unit can be paired with up to 10 transmitters, allowing users to instantly switch between different transmitter configurations
    • Chassis' System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
    • Automatic frequency selection for seamless, interference-free operation
    • Extremely easy operation with instantaneous channel selection, sync, and setup
    • Three levels of diversity assurance: frequency, time & space
    • Ground-lift switch helps eliminate audible hum caused by ground loops

  • Specifications:

    • Overall System Specifications
    • Operating Frequencies: 2.4GHz ISM band (2400 - 2483.5MHz)
    • Dynamic Range: >109dB (A-weighted), typical
    • Total Harmonic Distortion: <0.05% typical
    • Operating Range: 200ft, Open range environment with no interfering signals
    • Operating Temperature Range: 32°F - 104°F, Battery performance may be reduced at very low temperatures
    • Frequency Response: 20Hz - 20kHz, Depending on microphone type
    • Maximum Simultaneous Use (Recommended): 200ft minimum

      Receiver Specifications
    • Receiving System: Diversity (frequency/time/space)
    • Output Connectors: Remote Receiver Connector: RJ45; Link Connector: RJ12
    • Maximum Output Level: XLR, balanced: 0dBV; 1/4", unbalanced: +6dBV
    • Power Supply: 100 - 240V AC (50/60Hz) to 12V DC 0.5A power supply switched mode external
    • Operating Temperature Range: 40°F - 110°F
    • Dimensions (HxWxD): 1.73" x 8.26" x 6.67"
    • Net Weight: 33.2oz

  • Item Includes:

    • Power supply
    • AC adapter
    • Link cable
    • Rack-mount adapters
    • Joining plate
    • Rubber feet

  • Warranty:

    • 2 Year Limited End-User

  • GTIN:

    4961310130930
