Audio-Technica ES945O/XLR Water-Resistant Omnidirectional Condenser Boundary Microphone w/XLR Out & RF Shielding - Black

ITEM #: AT-ES945O-XLR MFG #: ES945 O-XLR

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$268.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    ES945 O-XLR - Overview

    IPX4 Water Resistant Boundary Microphone with UniGuard® RFI-shielding Technology!

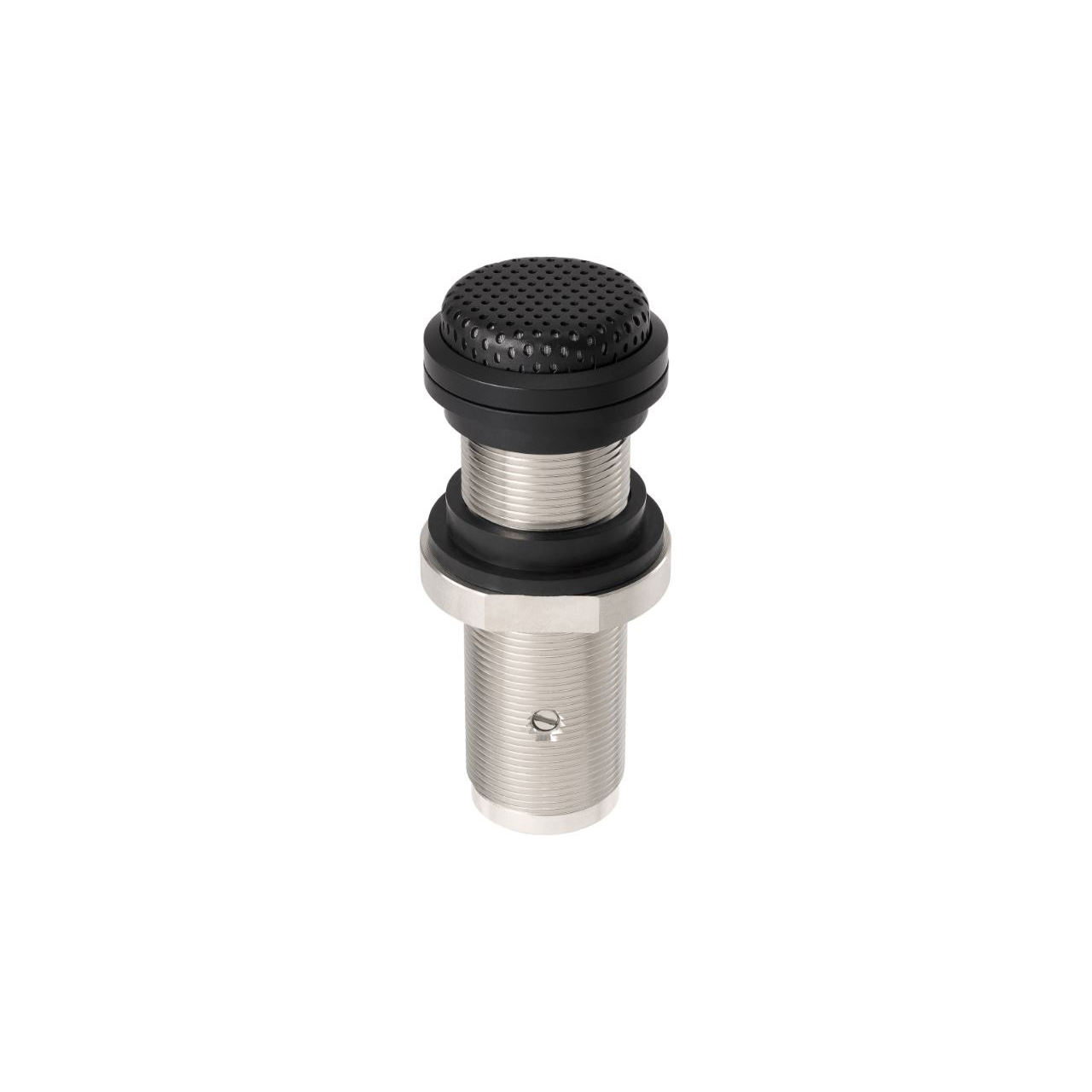

    The Audio-Technica ES945O/XLR is a black, omnidirectional condenser boundary microphone that provides clear, highly intelligible audio. It's perfect for conferencing, recording, monitoring and other demanding sound pickup applications. With its low-profile design that mounts unobtrusively in tabletops, ceilings or panels for minimum visibility.

    Protected by a rugged all-metal case with a two-layer perforated grille, the microphone's omnidirectional polar pattern affords a 360° pickup angle, while its UniGuard® RFI-shielding technology provides outstanding rejection of radio frequency interference (RFI). The microphone also offers IPX4 water resistance to protect it from splashes of water.

    The ES945O/XLR is equipped with a self-contained power module with an XLRM-type output connector, eliminating the need for an external power module. The microphone comes with a pair of rubber isolators for optional mechanical isolation from the mounting surface.

    • Features:

      • Designed for surface-mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
      • Low-profile element provides uniform omnidirectional polar pattern with 360° acceptance angle

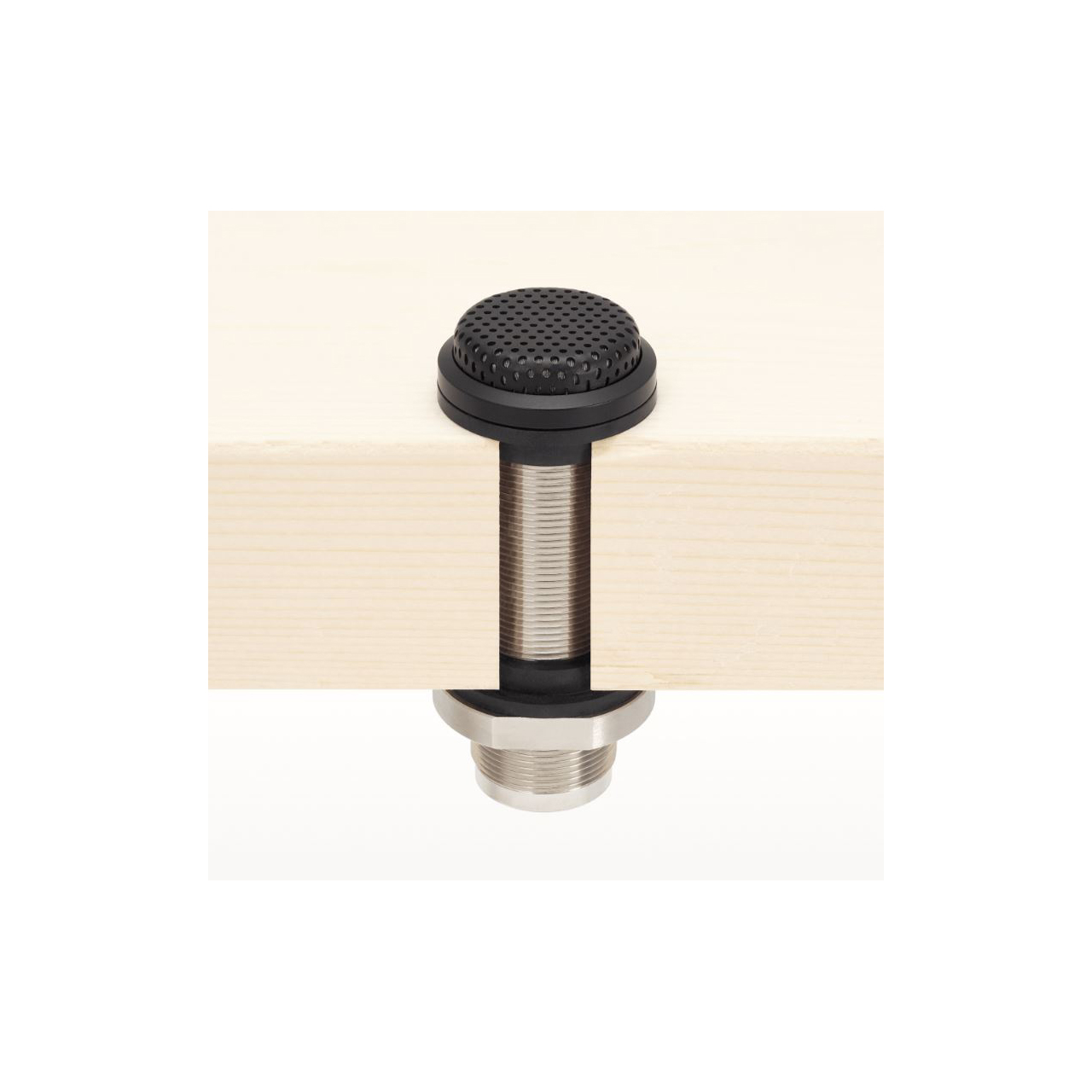

      • Mounts unobtrusively in tabletops, ceilings and panels
      • IPX4 water resistance protects the microphone from splashes of water
      • Self-contained power module with XLRM-type output connector

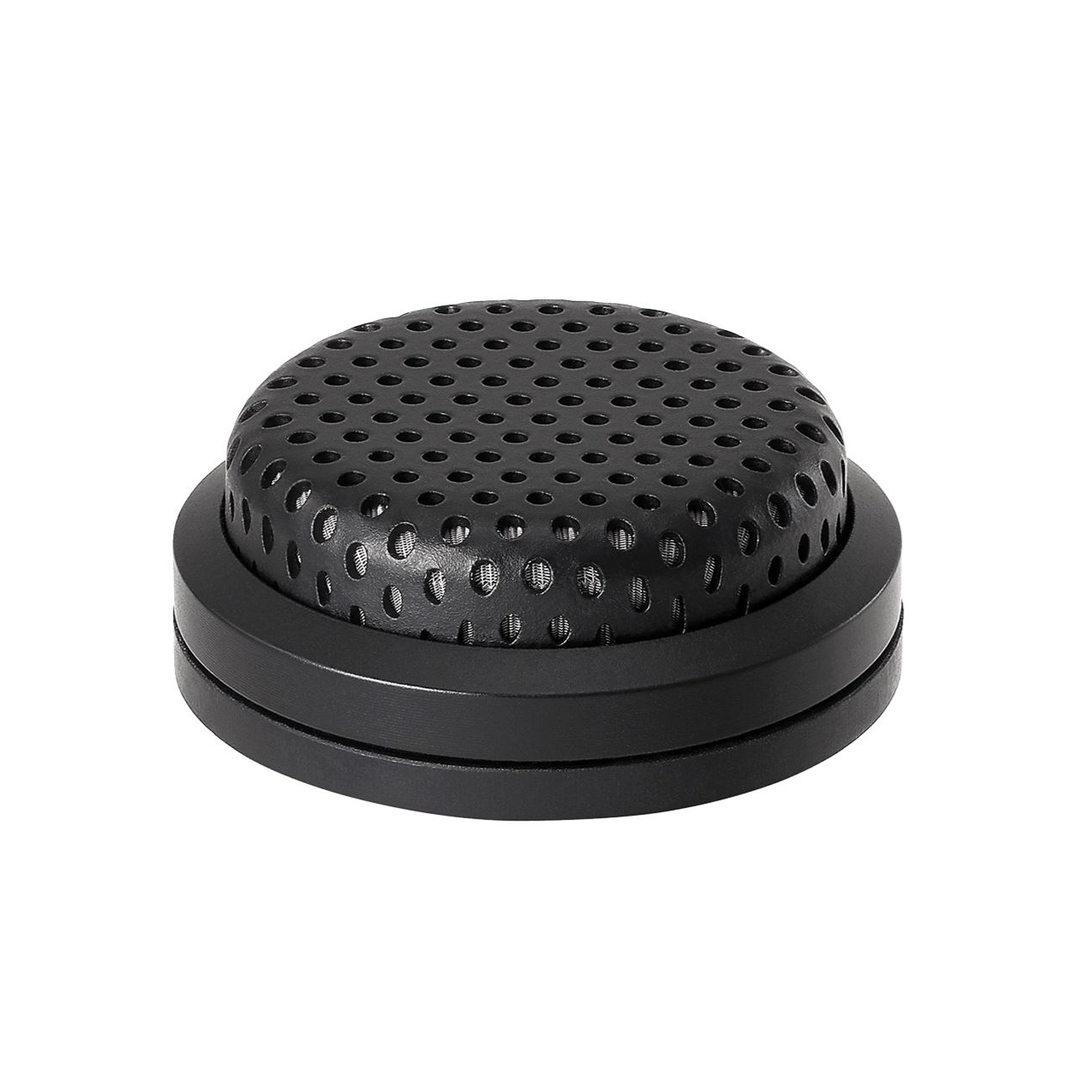

      • Rugged all-metal case with a two-layer perforated grille
      • Rubber Isolators provide mechanical dampening of mounting-surface vibration
      • Requires 11V to 52V DC phantom power
      • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
      • Available in two colors: black (ES945O/XLR) and white (ES945WO/XLR)
      • RoHS compliant-free from all substances specified in the EU directive on hazardous substances

    • Specifications:

      • Element: Fixed-charge back plate, permanently polarized condenser
      • Polar Pattern: Omnidirectional
      • Frequency Response: 60 - 15,000 Hz
      • Open Circuit Sensitivity: -33 dB (0 dB = 1V/Pa, 1 kHz)
      • Output Impedance: 100 ohms
      • Maximum Input Sound Level: 130 dB SPL (1 kHz at 1% THD)
      • Dynamic Range: (Typical) 109 dB (1 kHz at max SPL)
      • Signal-to-Noise Ratio: 73 dB (1 kHz at 1 Pa, A-weighted)
      • Power Requirements: 11 - 52V DC, 2 mA
      • Weight: 0.13lbs (62g)
      • Dimensions:
        - Length: 2.72" (69.0mm)
        - Head Diameter: 1.10" (28.0mm)

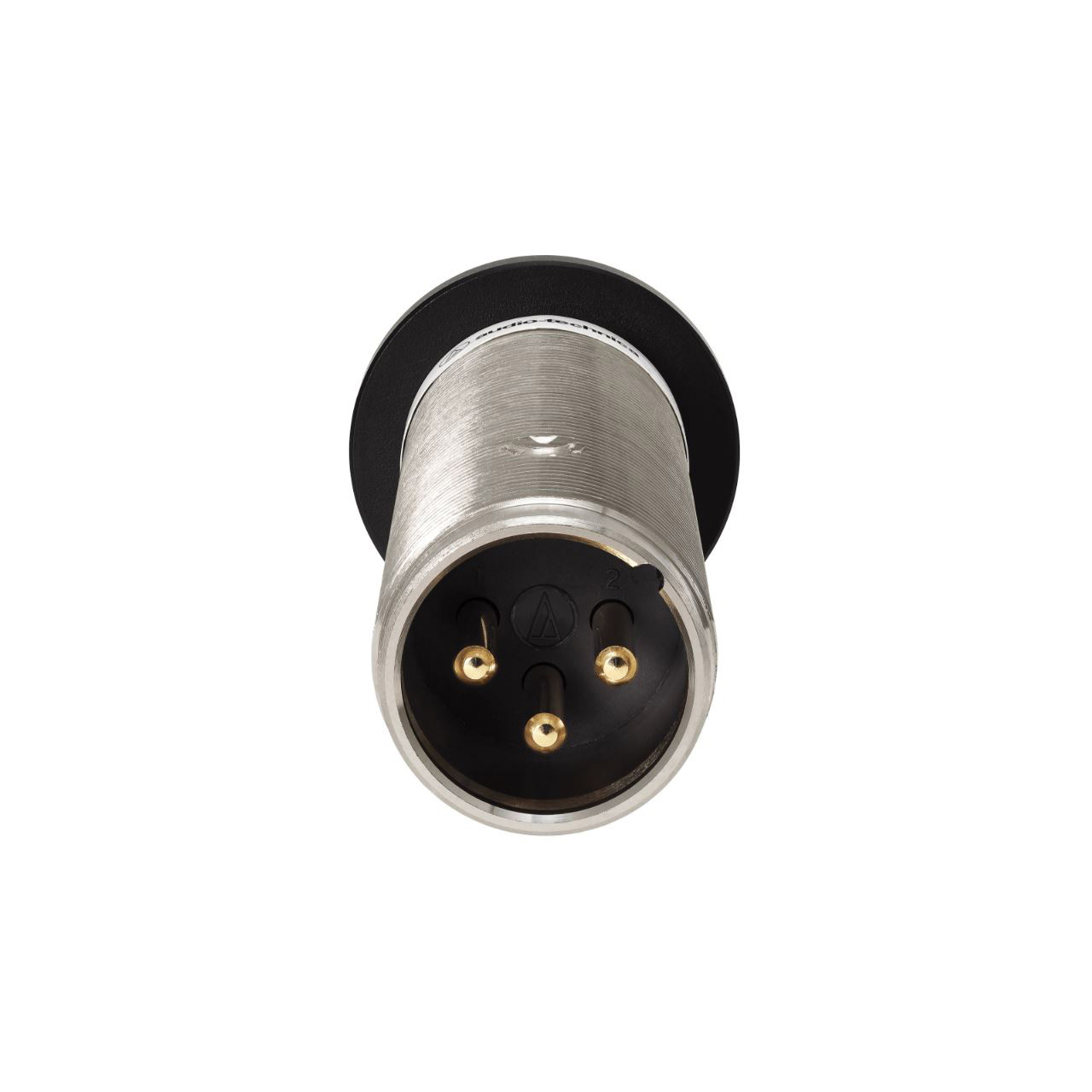

      • Output Connector: 3-pin XLRM-type

    • Item Includes:

      • 1x ES945O/XLR IPX4 Boundary Microphone with XLR Output

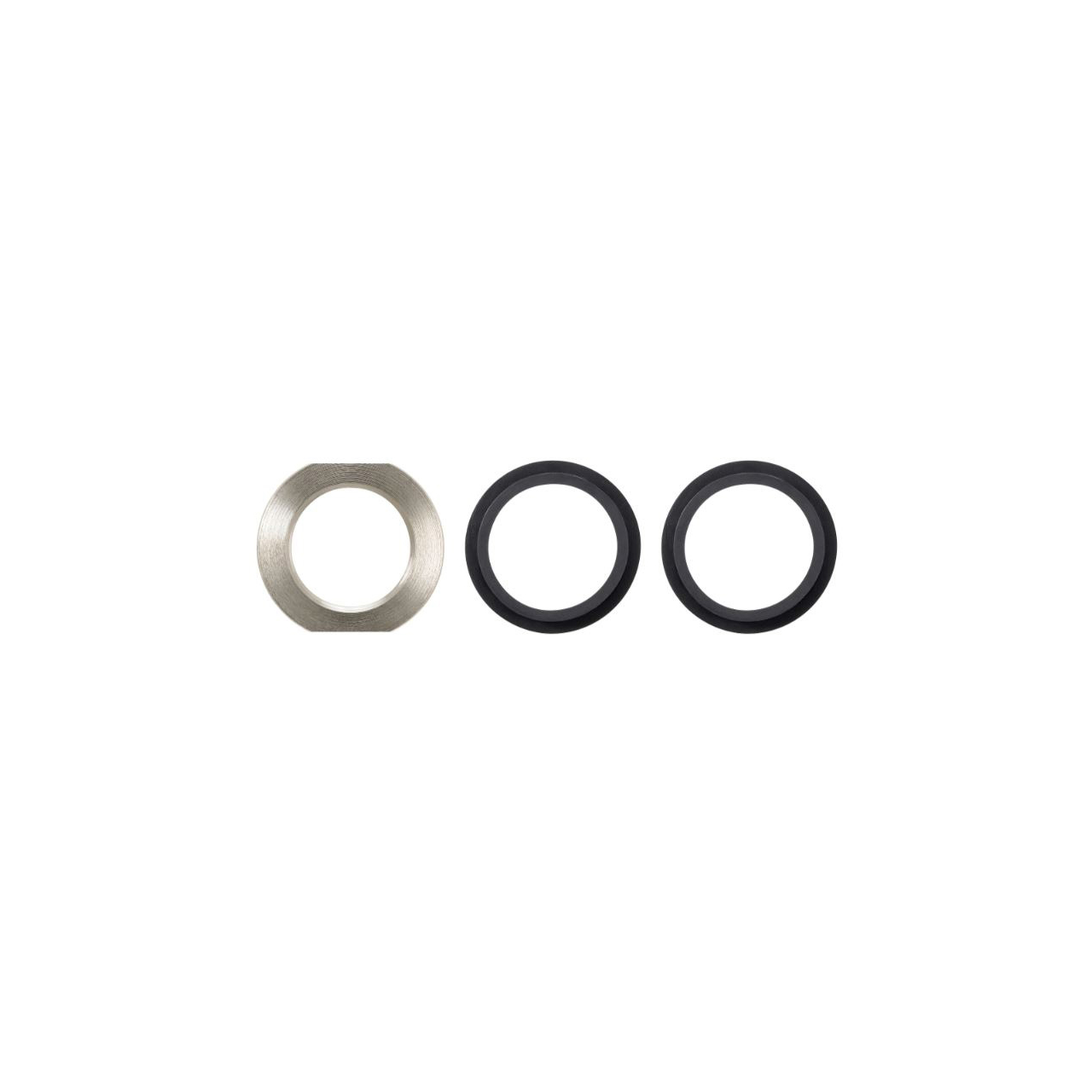

      • 2x Rubber isolator
      • 1x Nut

    • Warranty:

      • 5-year Limited
