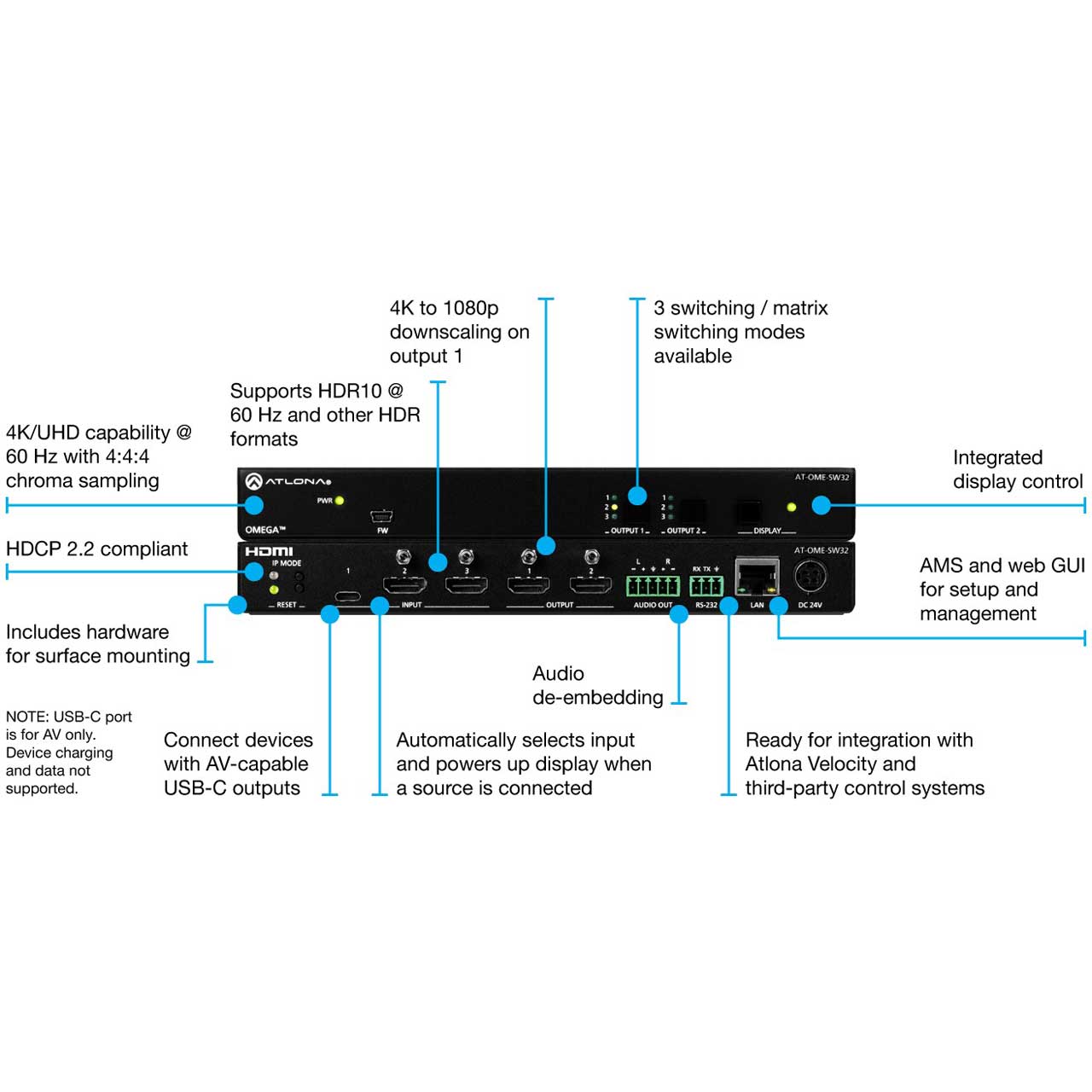

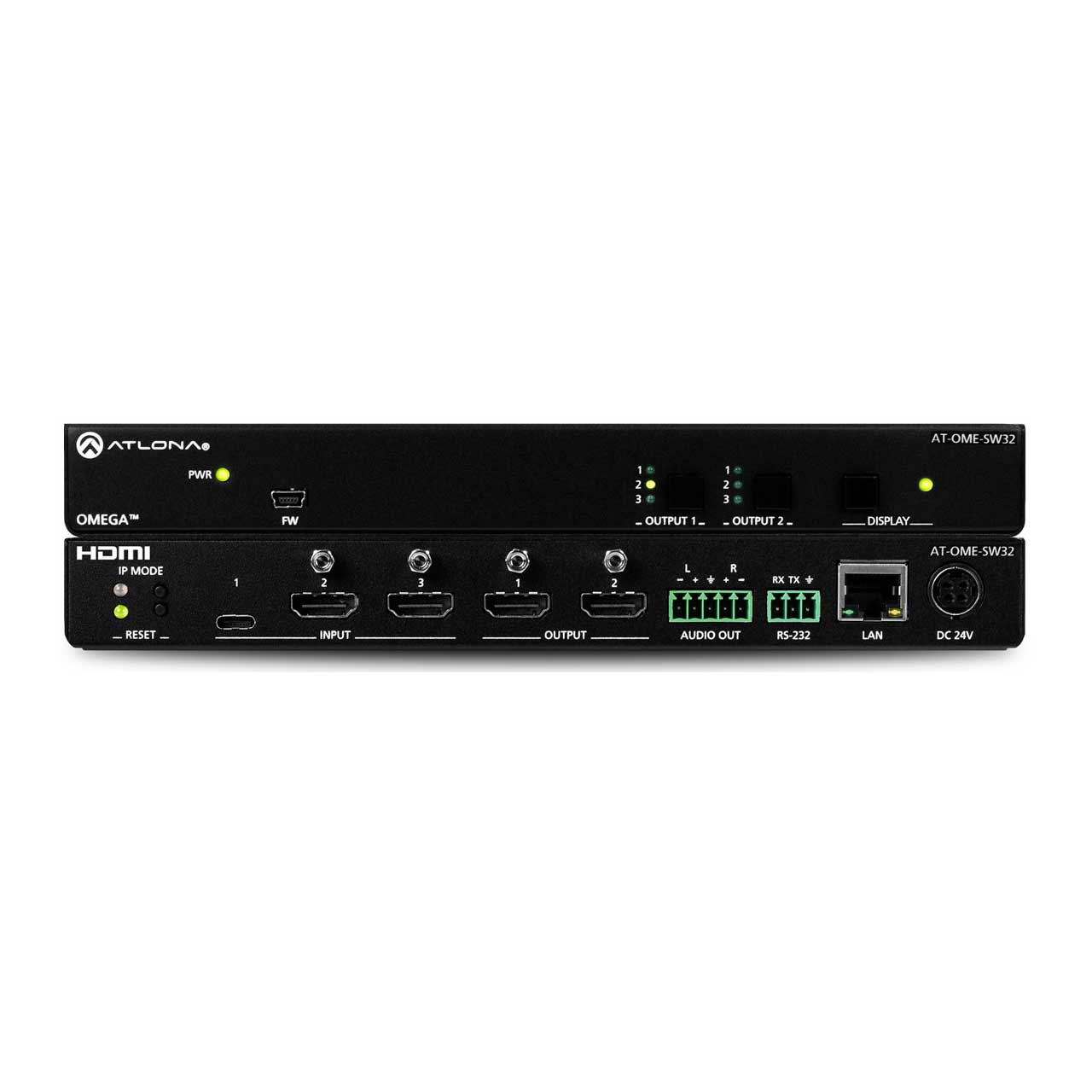

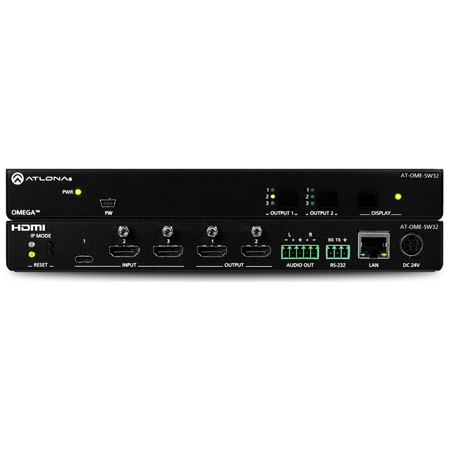

The Atlona AT-OME-SW32 is a 3x2 matrix switcher with HDMI and USB-C inputs, and HDMI outputs. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-SW32 is HDCP 2.2 compliant and supports 4K HDR and 4K/60 4:4:4 at HDMI data rates up to 18 Gbps. The USB-C input is ideal for AV interfacing with newer Mac®, Chromebook™, and Windows® PCs, as well as smartphones and tablets. Additionally, 4K downscaling to 1080p @ 60, 30, and 24 Hz is available for one of the HDMI outputs when connected to an HD sink. Depending on the intended application, the OME-SW32 can be set to specific switching modes that include mirrored outputs (default), one of the outputs fixed to an input, or unrestricted matrix switching.
Applications

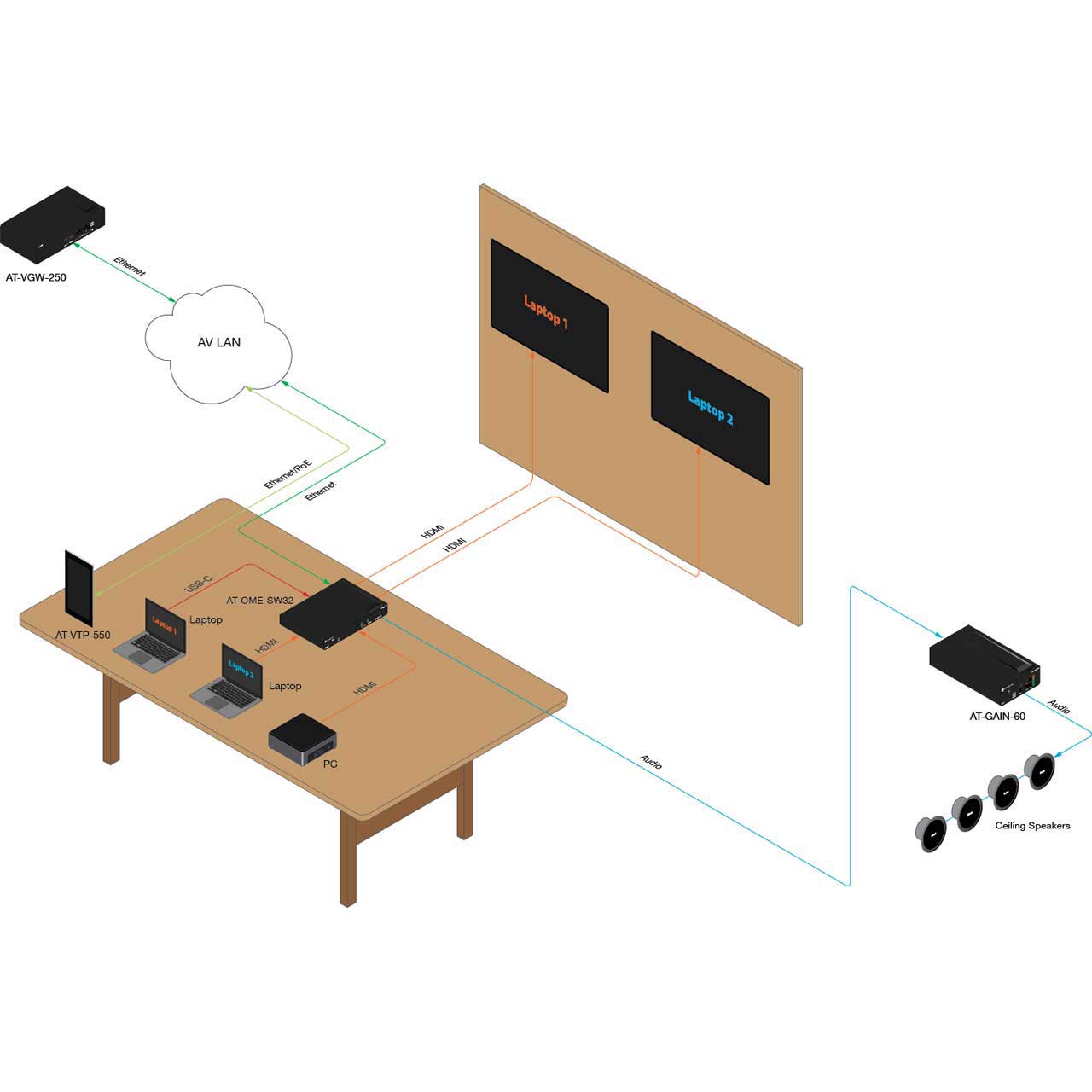

Meeting rooms with dual displays - The OME-SW32 is compact and easily installs under a conference table. The matrixed, dual HDMI outputs can directly feed into two flat-panel displays side-by-side.
Conference rooms and classrooms - One or more OME-SW32 units can be integrated with a larger AV switcher or matrix switcher.
Multi-room AV distribution systems - This compact matrix switcher is also ideal for localized switching into or out of a centralized AV distribution system such as OmniStream™.

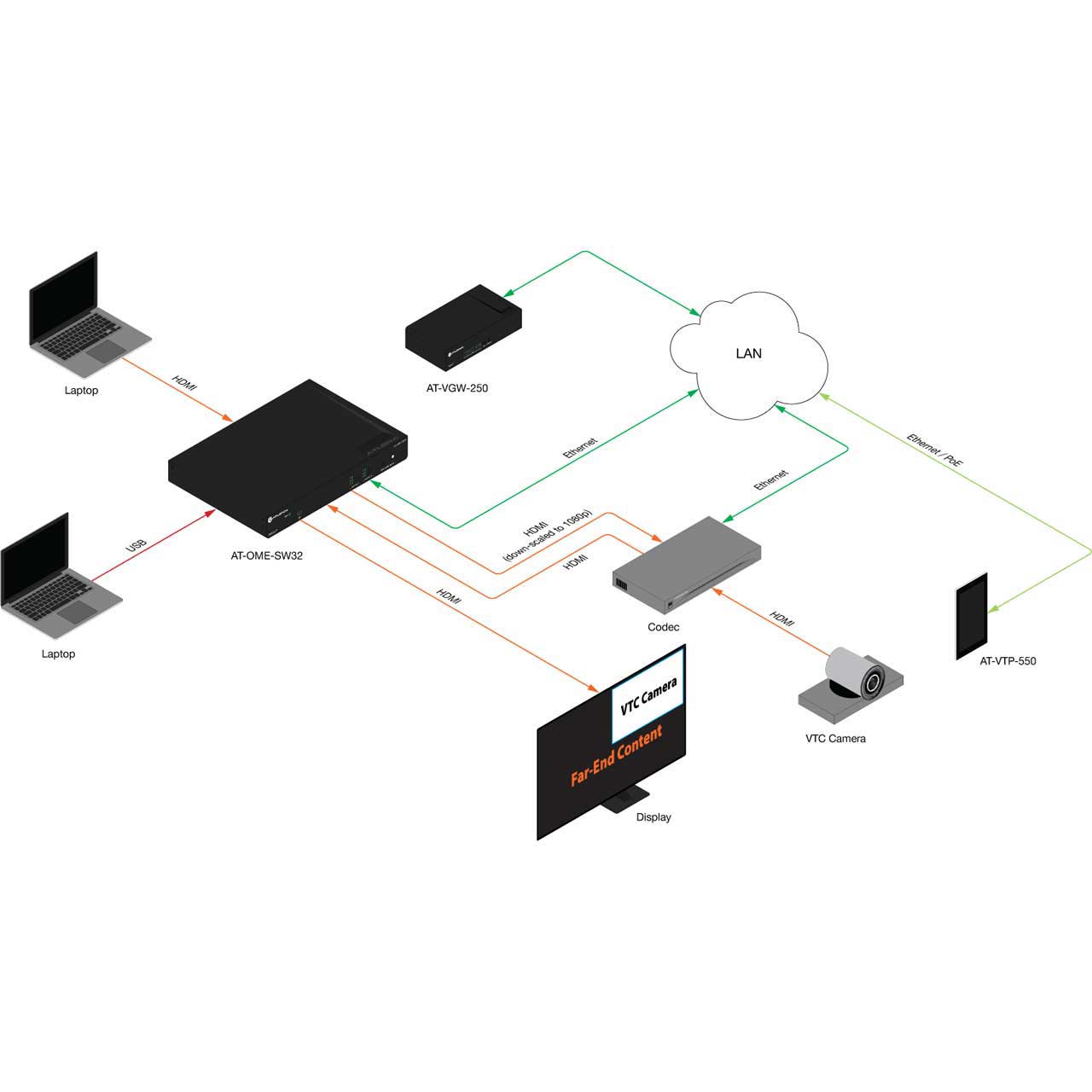

Video conferencing system upgrade - The OME-SW32 can provide a cost-effective update to an existing system, adding 4K/60 capability with downconversion to 1080p for the codec.
