Thor Maximus4KFly-B 4K HDMI and USB3.0 ePTZ Compact Camera

ITEM #: MAXIMUS4KFLY-B MFG #: MAXIMUS4KFLY-B

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$594.00

Our Price:

$495.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


MAXIMUS4KFLY-B - Overview

The Thor Maximus4kFly-B is a 4K ePTZ camera that has a built-in microphone making it ready to operate out of the box.

This minimal design and compact structure has a 4K 1/2.5" CMOS image sensor with a built-in ultra-wide-angle 120-degree autofocus lens. Easy to operate and includes USB3.0 and HDMI dual interface simultaneous video output, the maximum resolution is 4K@30FPS/25fps, 4k only available with USB3.0, while using USB2.0 will allow transmission from 1080p and down to lower resolutions. The built-in microphone has a maximum pickup distance up to about 6 meters. Built in features like low illumination, low latency, clear picture quality, and delicate video quality means you can be set up and running in no time without fussy software and difficult attachments.

Comes equipped with an adjustable bracket to put on a desktop PC, laptop/notebook, large screen, monitor, television, and other video capture and applications. Ideally used in, but not limited to, teleconferencing, telemedicine, education, remote meetings, remote classrooms, live event streaming, church streaming, house of worship, court systems & virtually any live streaming application.

Ultra 4K HD
Supports 4K Ultra HD with super resolution up to 4K@30fps/25fps encoding output, and downward compatible with 1080p,720p.

USB 3.0
Full functional USB 3.0 connection means it is the power supply, video, and audio all in one port, HDMI Output - HDMI1.4, AF Lens.

Complete customized auto focus non-distortion lens, view angle 120°, small lens with big view, EPTZ plug and play camera.

Built in Microphone
Built in microphone array with omnidirectional pickup, pickup distance up to 6 meters, unique noise suppressing algorithm with excellent sound to pick up your voice and dim background noise.

Low Light
Star-level ultra-high noise ratio of the new CMOS image sensor can effectively reduce the low noise if image noise is present, while applying the 2D and 3D noise reduction algorithm significantly reduces image noise even under low light conditions. All this means is you'll still have a clean and clear image with a signal to noise ratio up to 55dB or more.

Easy Installation
Equipped with damping rotary shaft bracket, simple and practical, made to fit nearly any laptop, display, and television for easy setup.

  • Features:

    • Sony 1/2.5 Exmor 4K CMOS sensor
    • Video Output support Max 4K@ 30fps; 1080p, 720p, 960x540, 848x480, 800x448 640x480, 640x360, 424x240, 320x240, 320x180 at 60, 30, 15 fps
    • 4K with 130° Horizontal of View, 1080P with 68°HOV

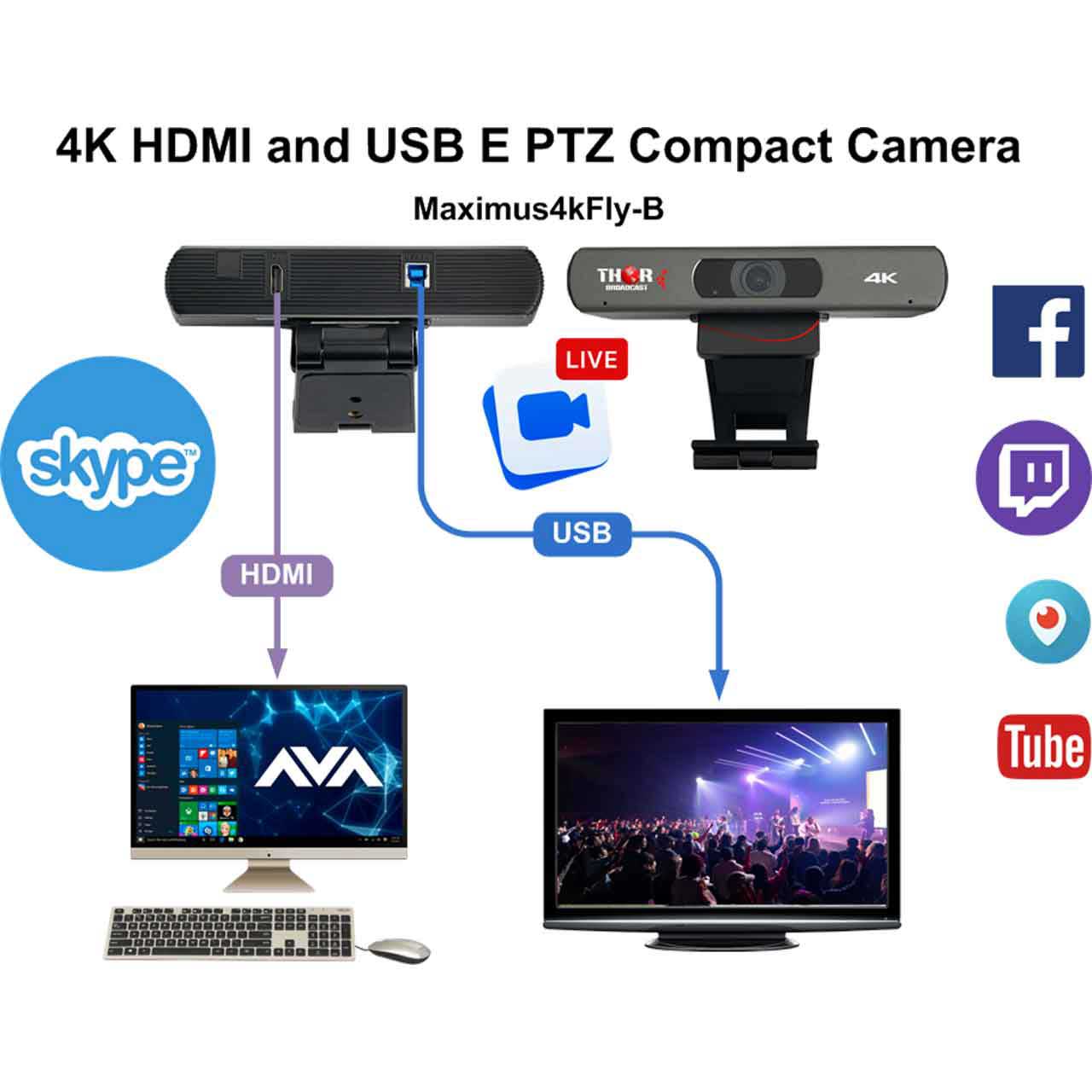

    • USB3.0, HDMI Simultaneous Video Output, USB3.0 Support( Voice+Video+Communication function+Power Supply)
    • Built in microphone array, with omnidirectional pickup, pickup distance up to 25 feet
    • H265/H264/MJPEG Support and 4x digital zoom at 1080P60fps
    • 2D/3D digital noise reduction
    • Compatible with virtually any video of conferencing systems and software
    • USB suppport for Windows 7 / 8 / 8.1 / 10 & MAC OSX 10.7 or newer
    • Remote Control Included; Tripod is not included with purchase(shown for accessibility)

  • Specifications:

    • Video System(HDMI): 4K@30fps/25fps, 1080P@60/50/30/25fps, 1080I@60/50fps, 720P@60/50fps
    • Sensor: 1/2.5", CMOS, Effective Pixel: 8.51M
    • Scanning Mode: Progressive
    • Lens Mount: M12
    • Lens 1: Focus: f=3.5mm, FOV: 84°
    • Lens 2: Focus: f=2.8mm, FOV: 120°
    • Autofocus: Lens 1 Support
    • Minimal Illumination: 0.05 Lux @ (F1.8, AGC ON)
    • Shutter: 1/30s ~ 1/10000s
    • White Balance: Auto, Indoor, Outdoor, One Push, Manual
    • Camera Bracket: bracket with damper
    • Digital Noise Reduction: 2D, 3D digital noise reduction
    • Backlight Compensation: Included Support

      USB Features
    • Operate System: Windows® 7 (1080P and under only), Windows 8.1, Windows 10 or higher, macOS™ 10.10 or higher, Google™ Chromebook™ Version 29.0.1547.70 or higher, Linux
    • Hardware Requirement: 2.4 GHz Intel® Core 2 Duo processor or higher, 2 GB RAM or more, USB 2.0 port (USB 3.0 required for 4K)
    • Color System / Compression: H.264 / MJPEG / YUY2
    • Resolution: 4K, 1080P, 720P, 960x540P, 640x360P, 320x240P
    • Frame rate: 30fps, 25fps, 24fps, 20fps, 15fps, 10fps, 7.5fps, 5fps
    • USB Video Communication: UVC v1.0/v1.1/v1.5
    • UVC PTZ: EPTZ

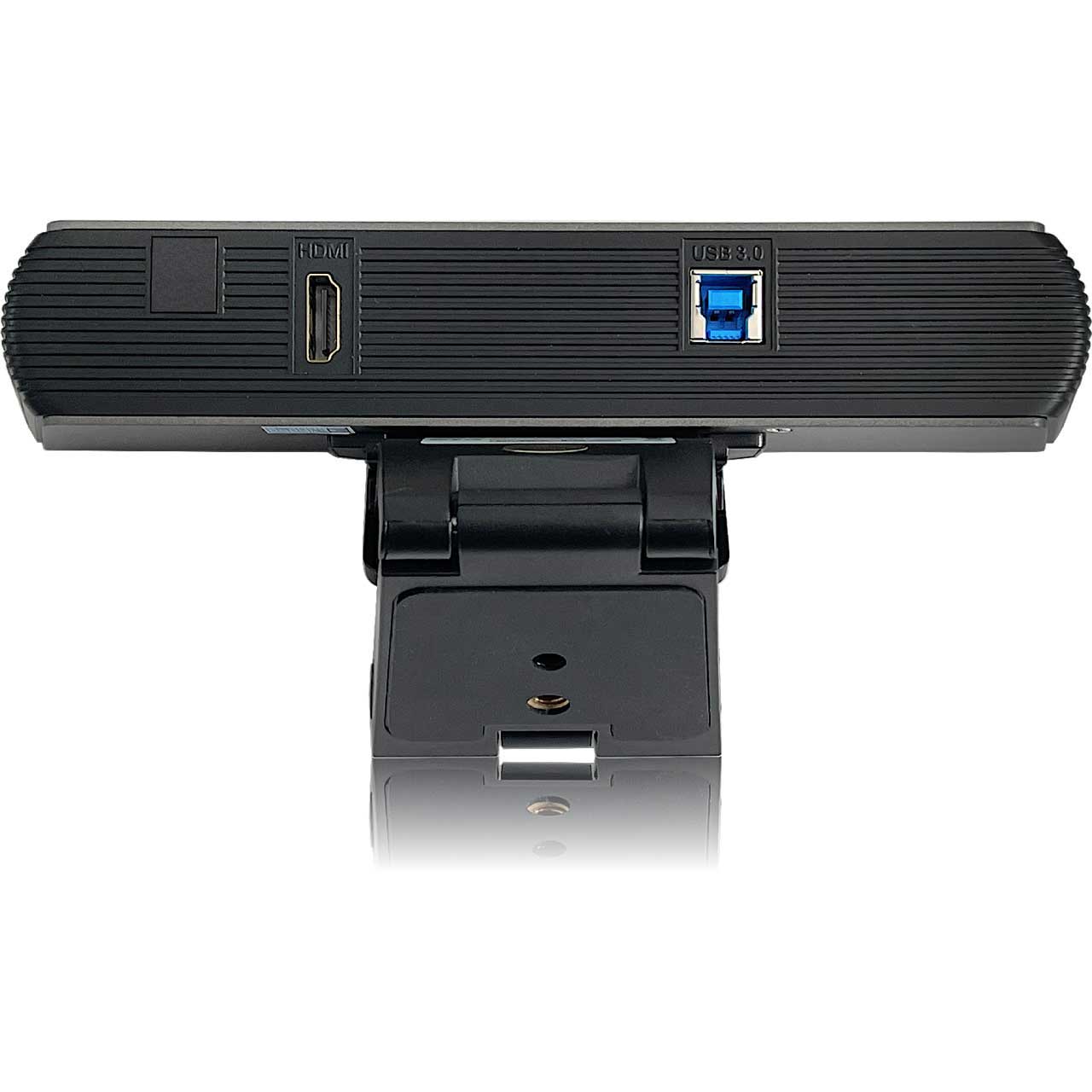

      Input/Output Interface
    • USB Interface: 1xUSB 3.0: Type B, famale
    • HDMI Interface: 1xHDMI: Version 1.4

      General Specs
    • Input Voltage: 5V (supplied by USB cable)
    • Current Consumption: 1A
    • Operating Temperature: -10°C ~ 40°C (14°F ~ 104°F)
    • Storage Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
    • Power Consumption: 3.5W(
    • Size: 194mm x 34mm x 42mm (without bracket)
    • Net Weight: 0.5Kg
    • MTBF: 30000h

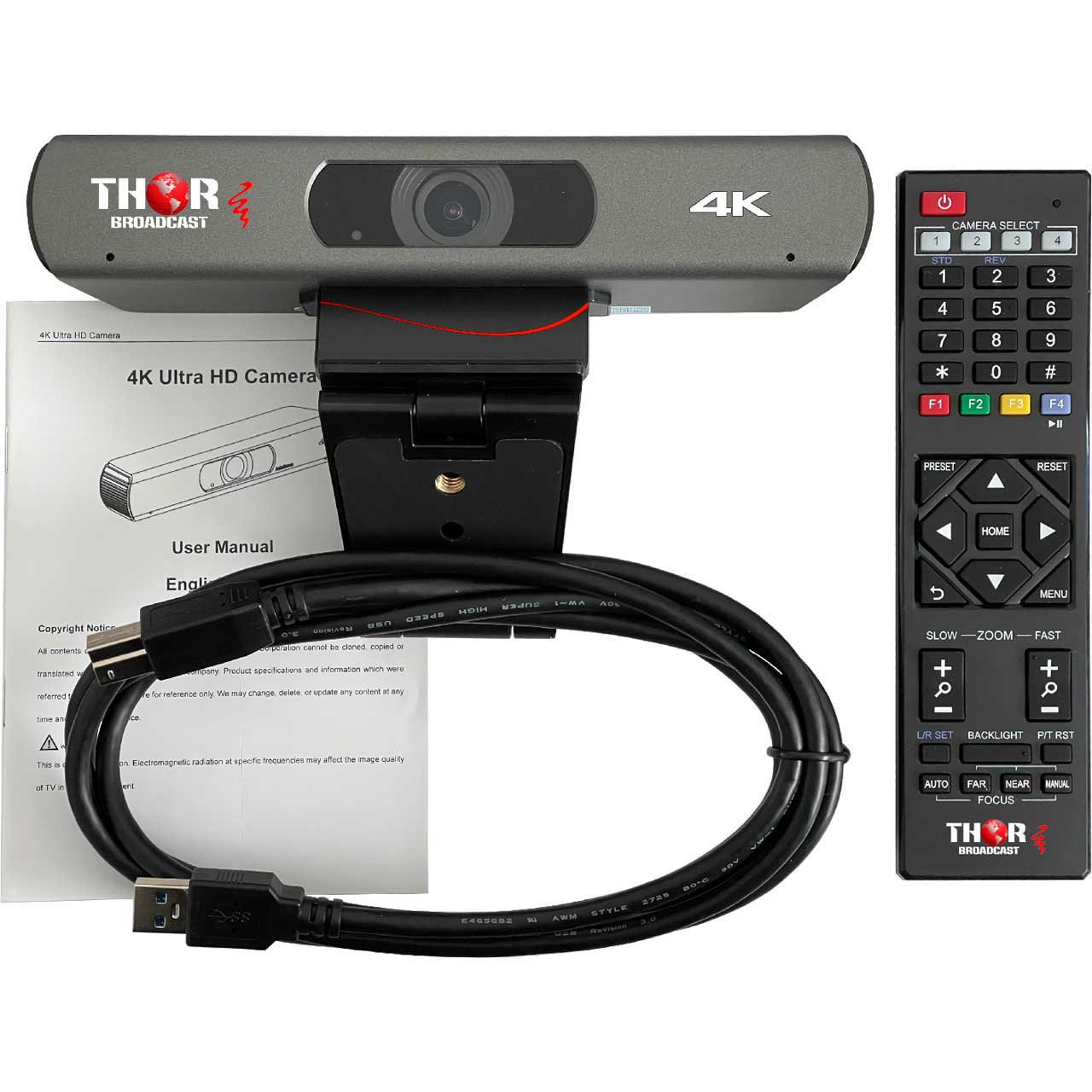

  • Item Includes:

    • 1x Thor Maximus4KFly-B 4K HDMI and USB3.0 ePTZ Compact Camera
    • 1x USB cable

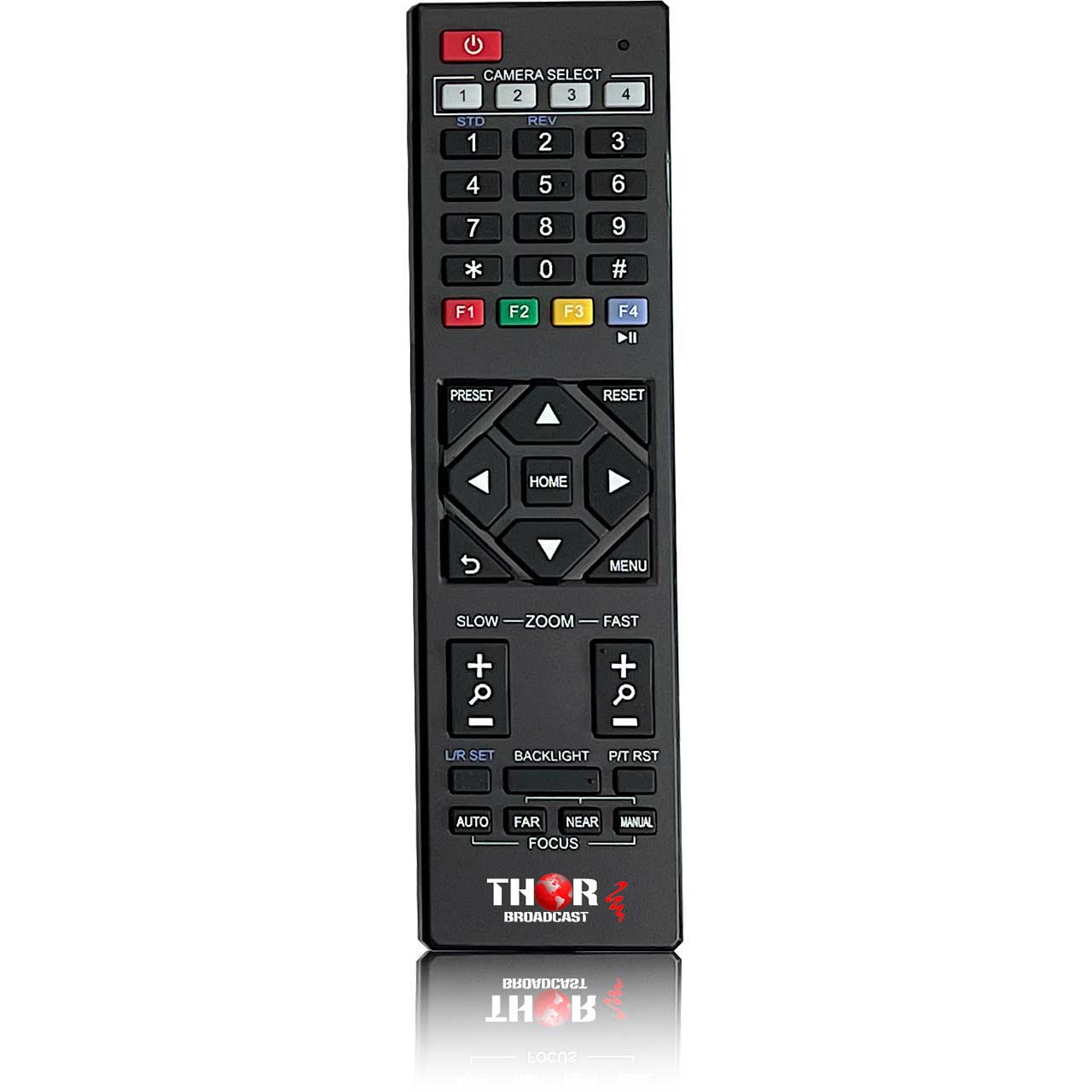

    • 1x Remote
    • 1x Adjustable bracket to put on a desktop PC, laptop/notebook, large screen, monitor, television, etc
