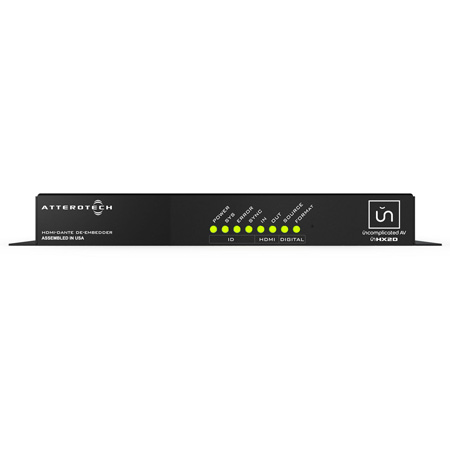

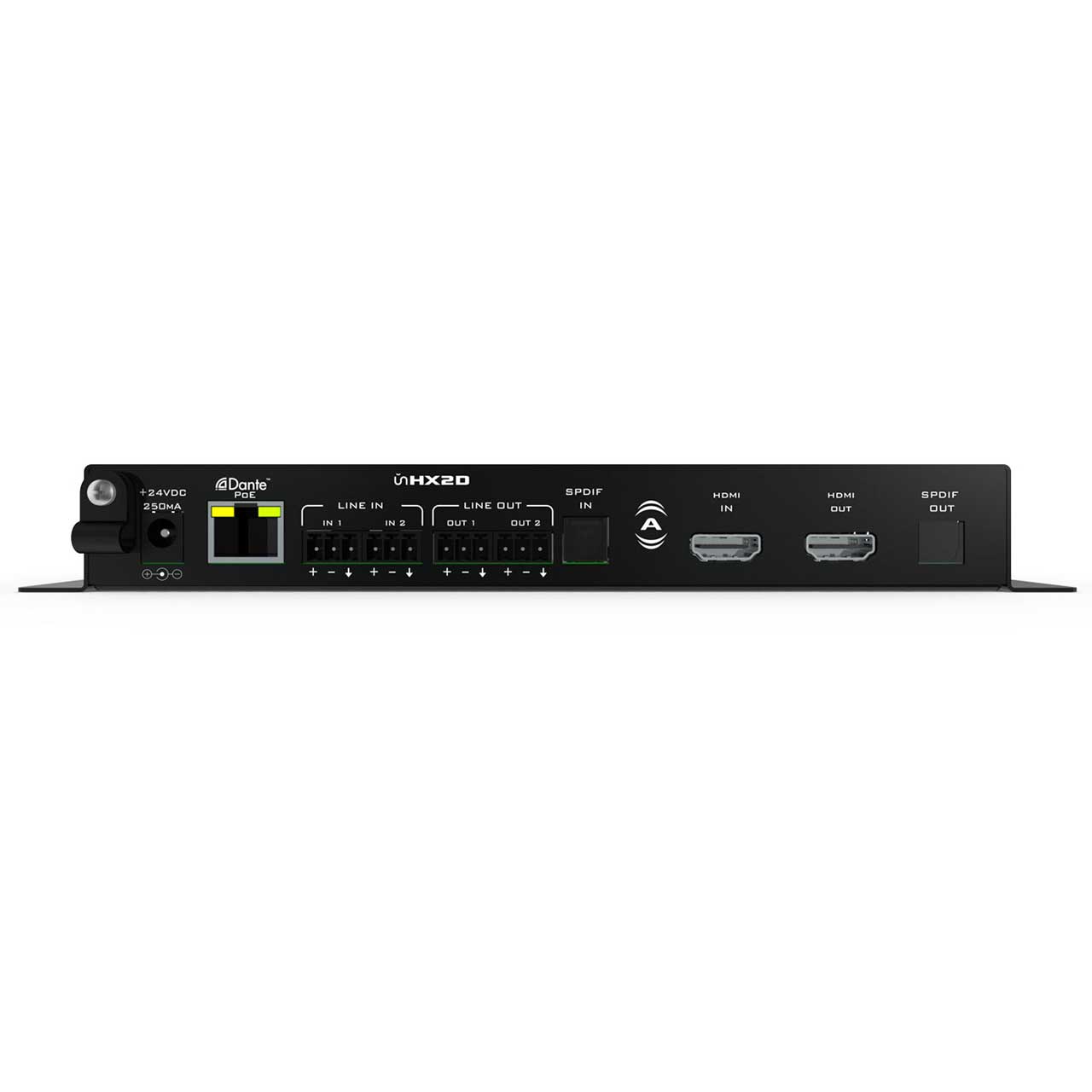

Attero Tech unHX2D Dante/AES67 enabled HDMI Audio De-Embedder/Embedder

UNHX2D - Overview

• Features:

  • HDMI 2.0 compliant (HDCP 2.2) pass-through support for up to 4K/60/4:4:4 video, 2 channel PCM audio
  • Highly configurable routing between system inputs and outputs allow PCM HDMI audio from both HDMI sources and monitors to be bridged over the Dante network
  • 170ms of adjustable lip sync delay on the Dante TX 1-2 audio output path
  • Installer adjustable EDID management settings via software
  • Powered by either IEEE 802.3af PoE or a +24VDC from an external supply
  • Supports Dante and AES67


• Specifications:

  Analog Audio Inputs
  • Input Type Balanced 3-pin line level
  • Input Sensitivity -10dBV (consumer) or +4dBu (Pro) software selectable
  • Input Impedance 10 kΩ
  • Maximum Input Levels +20 dBu (+/- 0.5 dB) @ +4dBu Input Sensitivity, +10 dBV (+/- 0.5 dB) @ -10 dBV Input Sensitivity
  • THD+N < 0.005 %
  • Dynamic Range > 105 dB

    Analog Audio Outputs
  • Output Type: Balanced 3-pin line level
  • Output Impedance: 200 Ohms Balanced
  • Maximum output level: +20 dBu (+/- 0.5 dB)
  • THD+N: < 0.005 %
  • Dynamic Range: > 105 dB

    S/PDIF Audio Inputs
  • Supported Formats: S/PDIF ( IEC-60598) 2 CH PCM, 24bit
  • Supported Sample Rates: 44.1 kHz, 48 kHz, 88.2kHz, 96 kHz, 192 kHz
  • THD+N: < 0.005 %

    S/PDIF Audio Output (Mirrors HDMI Input Audio)
  • Supported Formats: S/PDIF ( IEC-60598) 2 CH PCM, 24bit
  • Compressed Multi-channel in Pass Through mode
  • Supported Sample Rates: 44.1 kHz, 48 kHz, 88.2kHz, 96 kHz, 192 kHz
  • THD+N: < 0.005 %

    HDMI Audio Inputs
  • Supported Formats: 2 CH PCM, 24bit
  • Supported Sample Rates: 44.1 kHz, 48 kHz, 88.2kHz, 96 kHz, 192 kHz
  • THD+N: < 0.005 %

    HDMI Audio Output
  • Supported Formats: 2 CH PCM, 24bit Compressed Multi-channel in Pass Through mode
  • Supported Sample Rates: 44.1 kHz, 48 kHz, 88.2kHz, 96 kHz, 192 kHz
  • THD+N: < 0.005 %

    Video Specifications
  • HDCP: V2.2
  • HDMI: V2.0
  • Supported Resolutions
  4096×[email protected],24/25/29.97,30/50/59.97,60Hz
  3840×[email protected],24/25/29.97,30/50/59.97,60Hz (UHD)
  2048x1080p,[email protected]/24/25/29.97/30/50/59.94/60Hz
  1080i@50/59.94/60Hz, 720p@50/59.94/60Hz, 576p, 576i, 480p, 480i
  3D Support
  • Color Space: YUV, RGB
  • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
  • Max Color Depth: 48 bit
  • EDID SW Configurable
  • Hot Plug Detect SW Configurable
  • Bandwidth: 18 Gbps (600 MHz)
  • Connectors: HDMI Type A

    Dante Network
  • Physical Layer: Ethernet
  • Connector: Single RJ-45
  • Cable Quality: CAT-5e or better
  • Transmission Speed: 100 Mbps
  • Supported Sample Rates: 48kHz
  • Minimum Dante Network Latency: 1ms

    Power Requirements
  • PoE 802.3af PoE PD compliant
  • Power Consumption: < 7.6W Max
  • Cable Quality: CAT-5e or better

    Physical Dimensions
  • Width: 9.19"
  • Height: 1.06"
  • Depth: 4.0"
  • Weight: 1.3lbs

    Product Compliance
  • FCC CFR 47 Parts 15B Class A, EN55011, ICES-003, CE (EN55022 / EN55024), RoHS, REACH


• Warranty:

  • 5 Year
