CL1000N - Overview

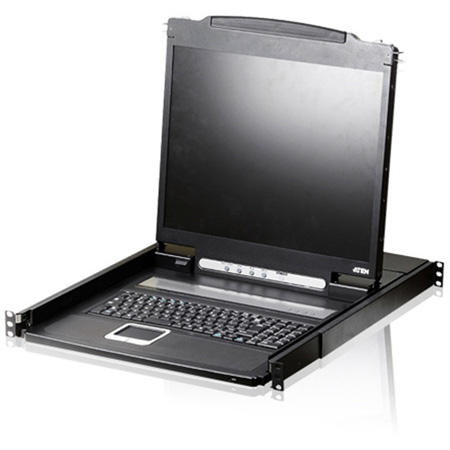

The CL1000N is a LCD KVM console that features an integrated 19" LED-backlit LCD panel, full keyboard, and touchpad in a 1U rackmountable housing. This model provides convenient `at the rack' console access to KVM switches already installed at your site.

  • Features:

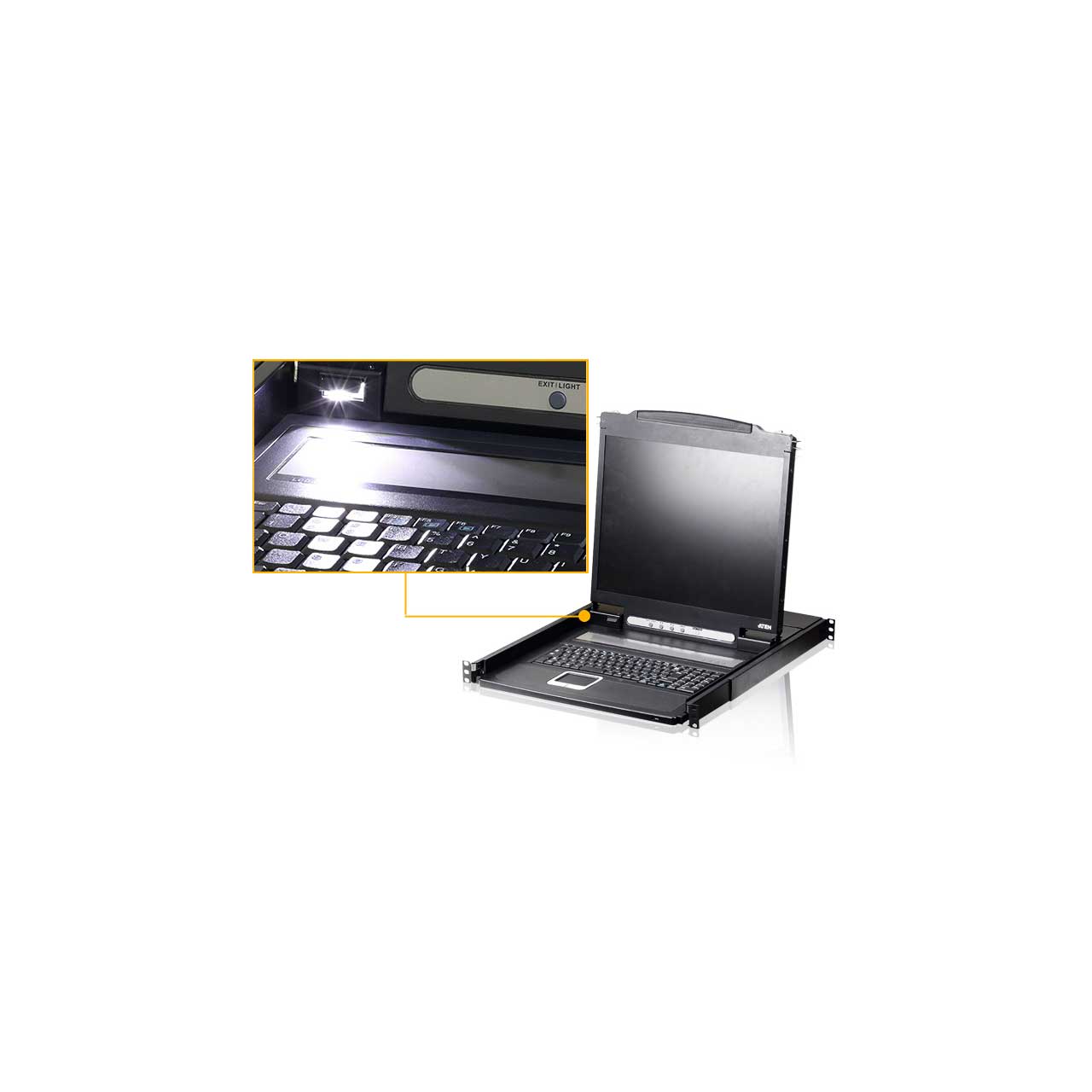

    • Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions
    • Integrated KVM console with a 19" LED-backlit LCD monitor in a sliding housing with top and bottom clearance for smooth operation in a 1U high system rack
    • LCD module rotates up to 115° for a more comfortable viewing angle
    • Improved design - optional single person installation kit
    • Compatible with most KVM switches
    • Internal power supply
    • High video resolution:
    • Up to 1280 x 1024 @75Hz
    • Supports DDC, DDC2, DDC2B
    • DDC emulation of the LCD monitor - Video settings of attached computers are automatically adjusted for optimal output to the LCD monitor
    • Keyboard language support: English (US); English (UK);French; German; German (Swiss); Greek; Italian; Japanese;Hungarian; Korean; Spanish; Swedish; Traditional Chinese;Russian

  • Specifications:

    • LCD Adjustment: 4 x Pushbuttons
    • LCD Power: 1 x Pushbuttons
    • Keyboard/Video/Mouse: 1 x SPHD-15 Female (Yellow)
    • Power: 1 x 3-prong AC Socket
    • CPU: 1 (Green)
    • Num Lock: 1 (Green)
    • Caps Lock: 1 (Green)
    • Scroll Lock: 1 (Green)
    • Keyboard/Mouse: PS/2, USB (with 2L-52xxUP USB KVM cable)
    • Video: 1280 x 1024 @ 75 Hz ; DDC2B
    • I/P Rating: 100-240 VAC; 50/60 Hz; 1A
    • Power Consumption: 120 V, 23 W; 230 V, 24 W
    • Operating Temp.: 0 - 50°C
    • Storage Temp.: -20 - 60°C
    • Humidity: 0 - 80% RH, Non-condensing
    • Housing: Metal + Plastic
    • Weight: 27 lb. (11.54 kg)
    • Dimensions ( L x W x H ): 23 x 19 x 1.7 in.

  • Item Includes:

    • 1x CL1000N with Standard Rack Mount Kit
    • 1x Custom KVM Cable Set
    • 1x Power Cord
    • 1x User Instructions

  • GTIN:

    0672792402111
