ATEN CS1844 4-Port USB 3.0 4K HDMI Dual Display KVMP Switch

ITEM #: ATEN-CS1844 MFG #: CS1844

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$876.00

Our Price:

$832.20

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CS1844 - Overview

The ATEN CS1844 Dual Display KVMP™ Switch presents a valuable solution for desktop workstation with instant and effortless access to four HDMI interface computers from a single USB keyboard, mouse and two HDMI monitors; to meet users' needs, the CS1844 is compliant with HDMI 2.0 standard and supports superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), offering the most stunning and vivid visuals.

In addition, with patented ATEN technology - Video DynaSync™, the CS1844 provides optimized display resolution and accelerates switching between systems. Considering immediate data sharing, a built-in USB 3.1 Gen 1 hub delivers data transfer rates up to 5 Gbps, allowing you to speed up operations and share USB peripherals efficiently.

For requirements of more displays to monitor, users can daisy-chain two CS1844 for up to four displays to multitask easily and process tremendous information. Besides, a remote port selector is available for quick and streamlined port selection apart from pushbuttons, hotkeys and mouse port switching.

As a feature-rich KVM switch, the CS1844 is especially suitable for users who need to perform multiple tasks smoothly at CGI work, graphic design, video post production, and CAD engineering.

  • Features:

    • One USB keyboard, mouse and two HDMI monitors control four HDMI computers and share two USB peripherals
    • Supports Quad Display by connecting two Dual Display KVM switches
    • Video DynaSync™ - an exclusive ATEN technology that eliminates boot-up display problems and optimizes the resolution when switching among different sources
    • Supports superior video quality - 4K UHD (3840 x 2160 @ 60Hz) and 4K DCI (4096 x 2160 @ 60Hz)
    • Computer selection via pushbuttons, hotkeys, mouse, remote port selector, and RS-232 commands
    • Built-in 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates
    • Supports console keyboard emulation / bypass feature
    • Supports console mouse emulation / bypass feature
    • Independent switching of KVM, USB peripheral, and stereo audio focus 3
    • Multilingual keyboard mapping - supports English, French, Japanese, and German keyboards
    • HDMI 2.0 compliant; HDCP 2.2 compliant
    • Supports HD audio
    • Power on detection
    • Firmware upgradable

  • Specifications:

    • Computer Connections: 4
    • Port Selection: Hotkey, Pushbutton, Mouse, RS-232 Commands, Remote Port Selector

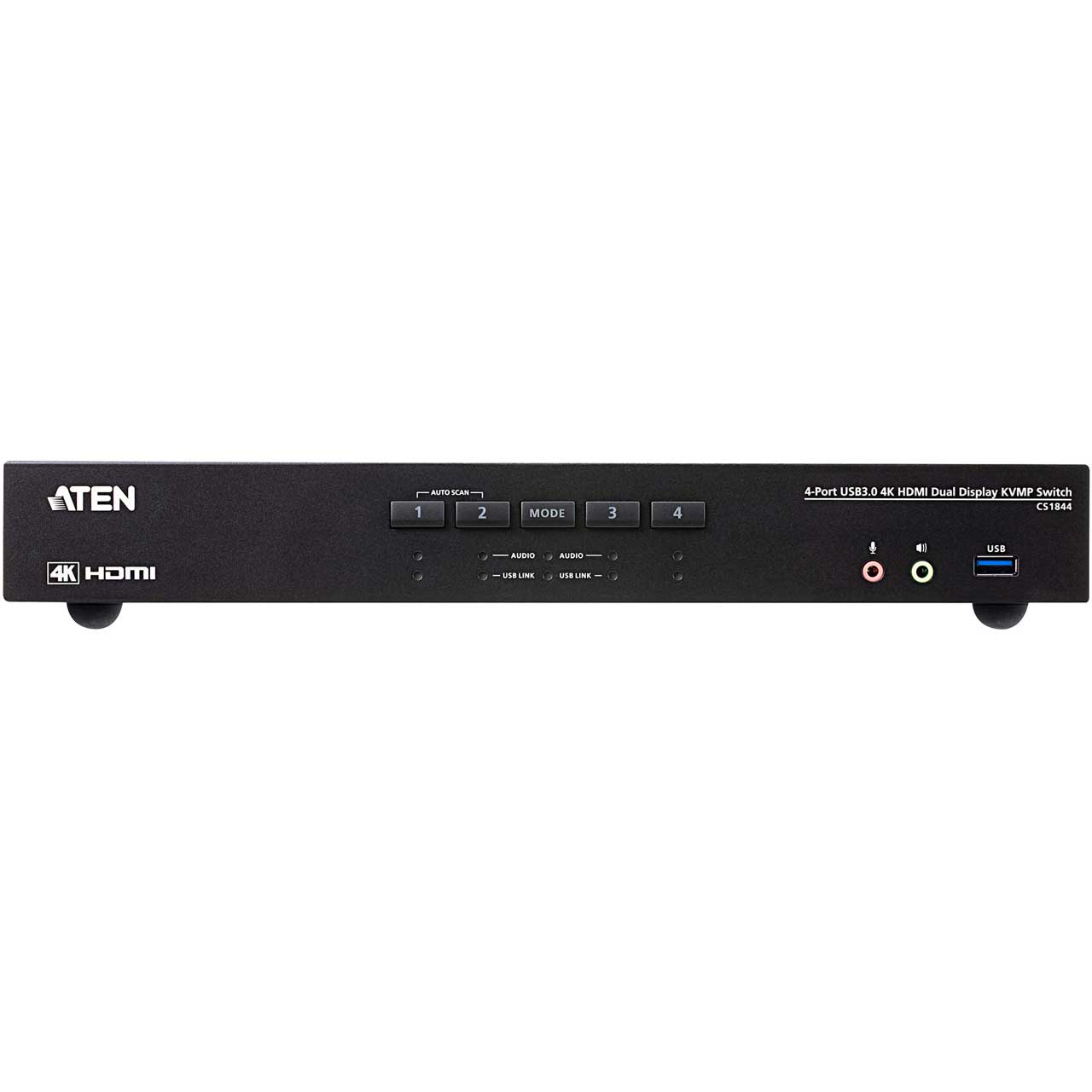

    • Console Ports
      2 x USB Type A Female
      2 x HDMI Female (Black)
      2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)
      2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear)

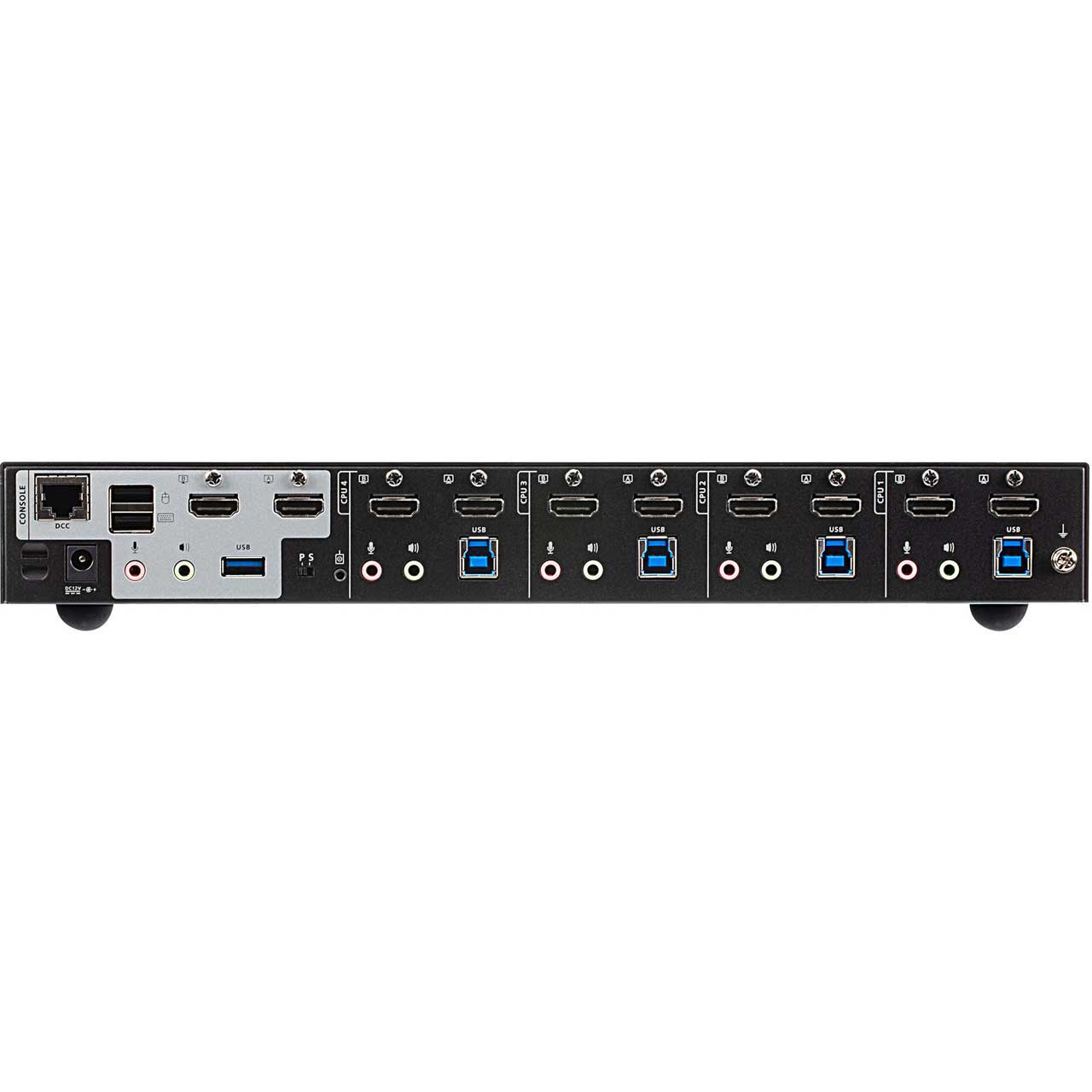

    • KVM (Computer) Ports
      4 x USB3.1 Gen1 Type B Female (Blue)
      8 x HDMI Female (Black)
      4 x 3.5mm Audio Jack Female (Green)
      4 x 3.5mm Audio Jack Female (Pink)
    • Daisy Chain Ports: 1 x RJ-45 Female
    • Remote Port Selector: 1 x 2.5mm Audio Jack Female
    • Power: 1 x DC Jack
    • USB Hub: 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear)
    • Selected: 5 x Pushbutton
    • Station Selection: 1 x Slide Switch
    • On Line /Selected: 5 (Orange)
    • USB Link: 5 (Green)
    • Audio: 5 (Green)
    • Keyboard / Mouse: USB
    • Video: 4096 x 2160 @ 60Hz
    • Scan Interval: 1-99 Seconds (Default: 5 sec.)
    • Power Consumption: DC12V:4.42W:63BTU
    • Operating Temperature: 0-40°C
    • Storage Temperature: -20-60°C
    • Humidity: 0-80% RH, Non-condensing
    • Housing: Metal
    • Weight: 1.57 kg ( 3.46 lb )
    • Dimensions (L x W x H): 13.19 x 6.32 x 1.73 Inch

  • GTIN:

    0672792011825
