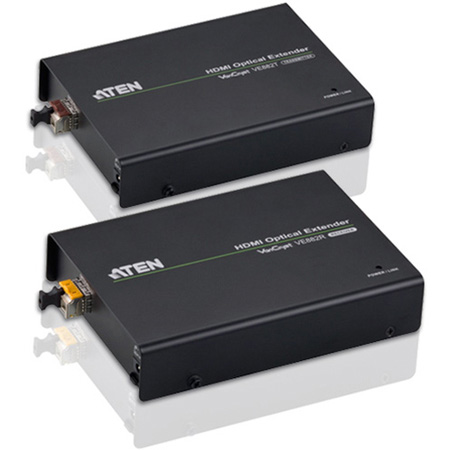

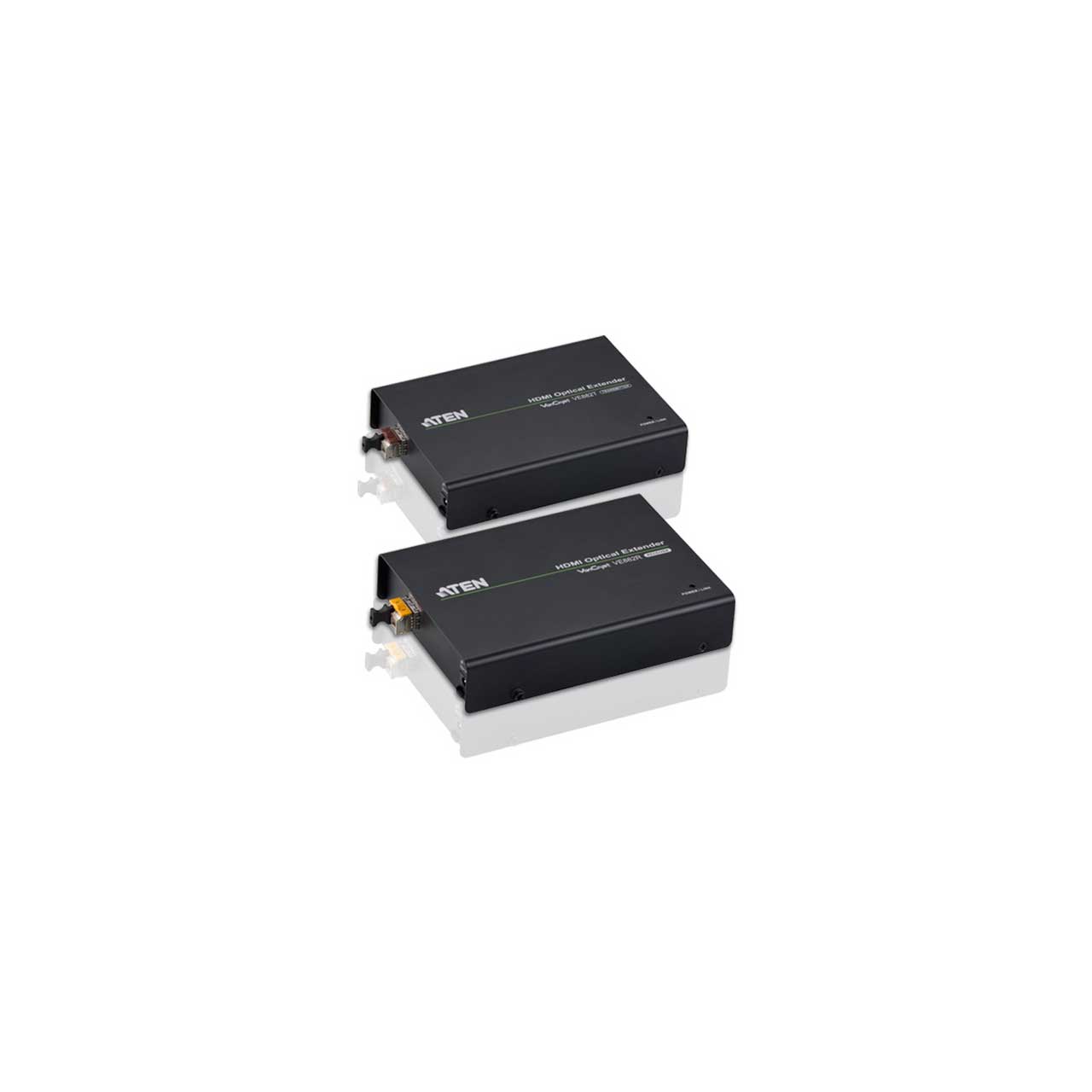

ATEN VE882 HDMI Video/Audio Singlemode Optic Fiber Extender up to 1980ft

Name: ATEN VE882 HDMI Video/Audio Singlemode Optic Fiber Extender up to 1980ft
Brand: ATEN
SKU: ATEN-VE882
Price: 1182.75 USD
Availability: PreSale

ITEM #: ATEN-VE882 MFG #: VE882

ATEN

List Price:

$1,245.00

Our Price:

$1,182.75

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Special Order Item: non-cancelable, non-returnable, non-refundable.

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

VE882 - Overview

The VE882 is an Optical HDMI Extender that overcomes the length restriction of standard HDMI cables by using optical fiber to send high definition audio and video signals over large distances.

The VE882 accepts an audio-video stream from a local source and serializes the data to pass it over a single 3.125 Gbps optical link (for resolutions up to 1080p@60Hz at 24-bits). The VE882 can also extend the IR remote control and transfer RS-232 (up to 115kbps) in both directions, allows you to connect serial devices such as touch screens and barcode scanners.

Features:
- Extends the transmission range of HDMI, IR and RS-232 signals using one fiber optic cable
- Very long distance transmission - up to 1970 feet (600m)
- HDMI (3D, Deep Color), HDCP compatible - signaling rates up to 3.125 Gbits
- Superior video quality - up to 1080p@60Hz
- Uses one fiber optic cable to connect the local and remote units
- Supports wide screen formats
- Built-in 8KV/15KV ESD protection
- Features RS-232 serial port for connecting peripherals such as touch screens, barcode scanners, etc.
- Supports bi-directional IR signal transmission, one way at a time
- Rack-mountable
- Hot-pluggable
Specifications:
- Connectors:

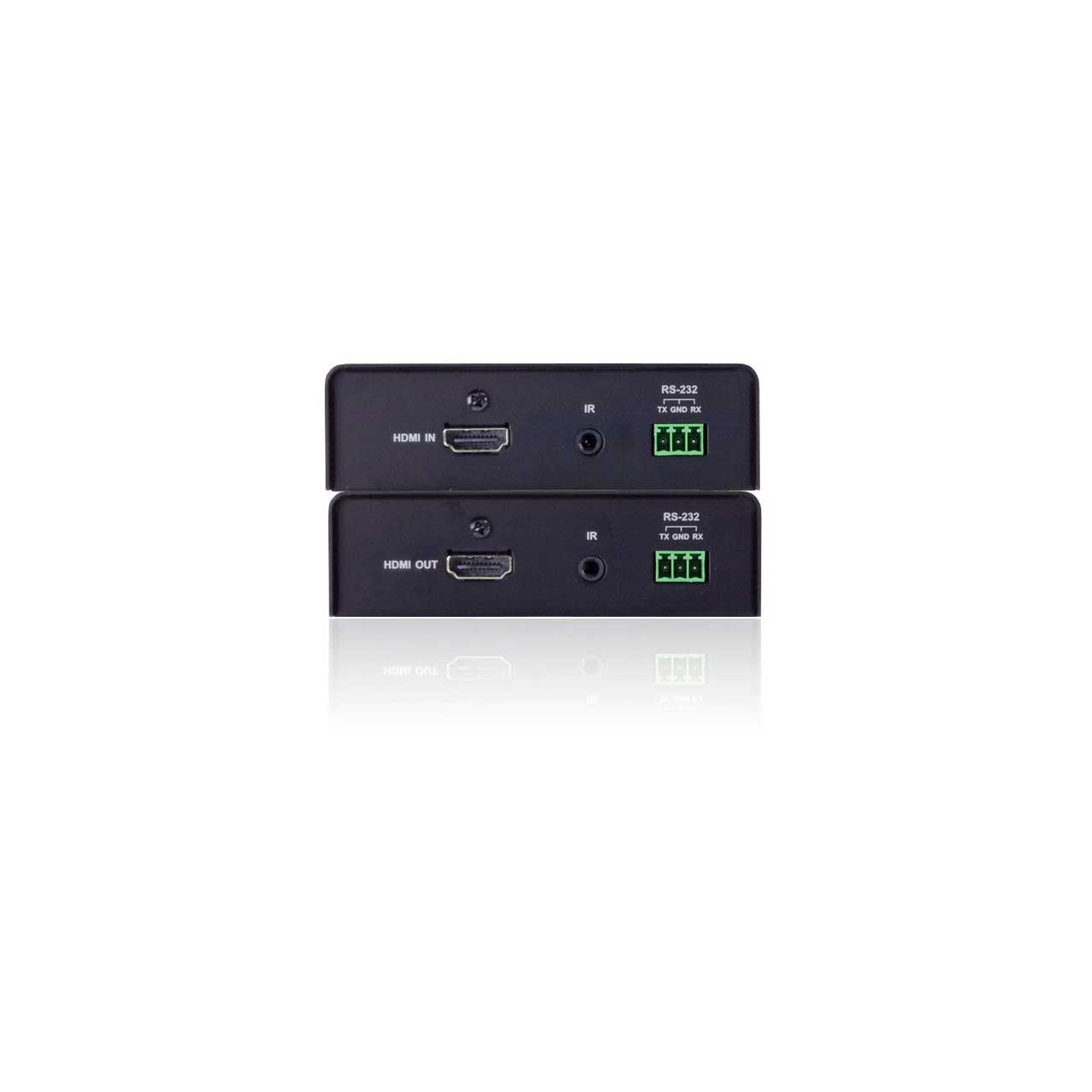

- VE882T: HDMI In 1 x HDMI Type A Female (Black) N/A
- HDMI Out N/A 1 x HDMI Type A Female (Black)
- Power Consumption DC5.3V, 5.6W:
- VE882T: DC5.3V, 5.6W
- VE882R: DC5.3V, 5.1W
- VE882T and VE882R:

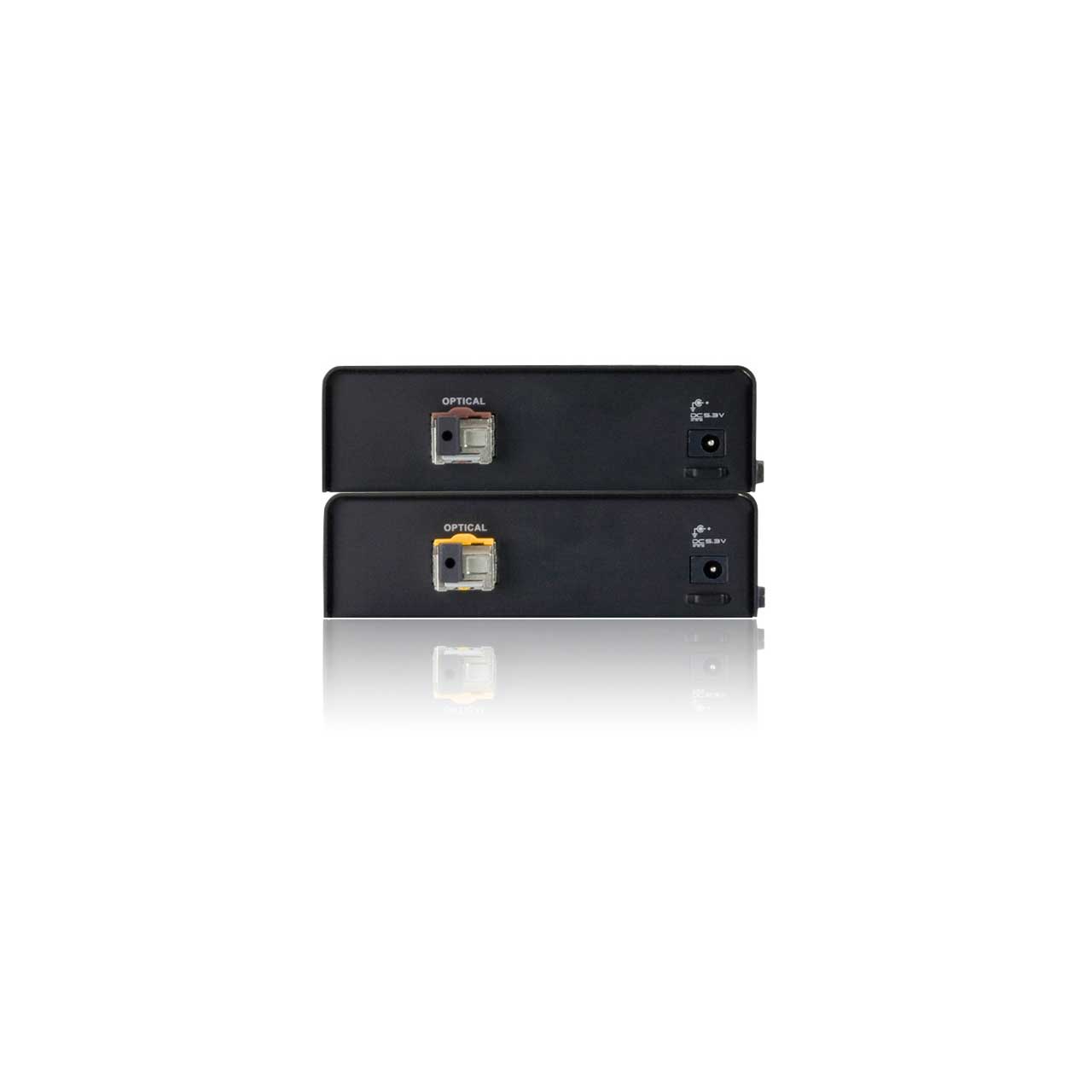

- Optical In/Out 1 x LC Simplex Connector (SFP) (Bi-directional)
- RS-232 1 x Terminal Block, 3 pole
- IR 1 x mini stereo jack (Black)
- Power 1 x DC Jack (Black
- Fiber Optics:
- Operating distance * 1970 feet (600 m) with single mode (SM) fiber
- Wavelength 1310/1550 nm for SM
- Data rate Single fiber: 1080p/60Hz (24-bits, 3.125G bps )
- LEDs Power/Link 1 (Green)
- Environment:
- Operating Temp. 0-50°C
- Storage Temp. -20-60°C
- Humidity 0-80% RH, Non-condensing
- Physical Properties Housing Metal
- Weight 0.9 lb. (0.42 kg)
- Dimensions: (L x W x H) 5.6 x 4.1 x 1.2 in.
- (14.17 x 10.30 x 3.12 cm)
- * Note: Operating distance is approximate. These are typical maximum distance that may vary depending on factors such as fiber type,fiber bandwidth, connector splicing, losses, modal or chromatic dispersion, environmental factors, and kinks.
Item Includes:
- 1x VE882T
- 1x VE882R
- 1x IR Transmitter
- 1x IR Receiver
- 1x Mounting Kit
- 2x Power Adapters
- 1x User Instructions
GTIN:
0672792003530
