ATEN VE8950T 4K HDMI over IP Transmitter

ITEM #: ATEN-VE8950T MFG #: VE8950T

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
ATEN
Free Shipping with $49 Minimum Order

Our Price:

$749.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

VE8950T - Overview

The ATEN VE8950T Video over IP Transmitter delivers visually lossless 4K AV signals with low latency over long distance via a local network of standard Gigabit network switch.

The VE8950T provides an effective, easy-to-use, and economical digital signage solution with the following features and advantages that directly address the challenges system integrators encounter when implementing AV over IP systems:

-Limitless scalability and flexibility
-No complicated IP setup
-No additional server PCs or software required
-Go further for less with daisy chaining

Engineered to meet today's demands of large scale, multi-display, 4K signal transmission, and designed to be easy to set up and operate, the VE8950T Video over IP Transmitter is an ideal product for a wide range of environments, such as trade shows, airports, university campuses, conference centers, and shopping centers.

  • Features:

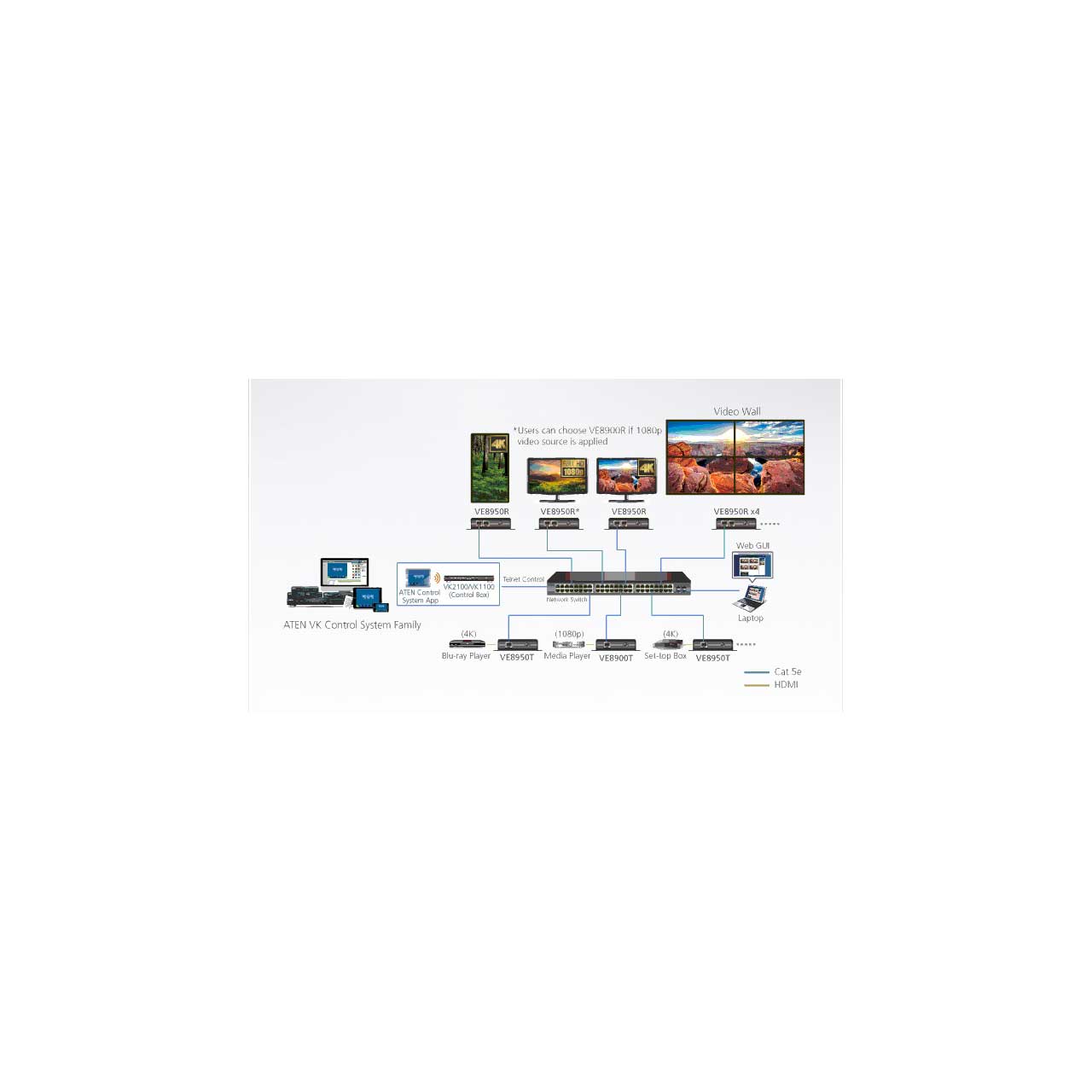

    • Extends AV connections from a simple point-to-point to a multi-point to multi-point setup via LAN
    • Delivers visually lossless high-quality video up to 4K @ 60 Hz 4:2:0 and 4K @ 30 Hz 4:4:4
    • Effortlessly switches via top panel pushbuttons
    • USB Connectivity - USB port (USB 2.0) allows for connection of devices such as keyboard, mouse, flash drive, printer, and other USB peripherals
    • Lightweight Compression with Ultra-low Latency
    • Limitless Scalability and Flexibility
    • Collaboration with ATEN Control System
    • Spontaneous Scheduling Management
    • No Complicated IP Setup
    • Web GUI-Based Management, No Additional Server PCs or Software Required
    • Go Further For Less with Daisy Chaining


  • Specifications:

    • Video Input
    • Interfaces: 1 x HDMI Type A Female (Black)
    • Impedance: 100 Ω
    • Max. Distance: 3 m (2L-7D03H)

      Video
    • Max. Data Rate: Average: 150 ~ 500Mbps
    • Compliance: HDMI (4K)

      HDCP Compatible
    • Max. Resolutions / Distance: Up to 4K@100m (Cat 5e/6, point to point)
    • *4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

      Audio
    • Input: 1 x HDMI Type A Female (Black), 1 x Mini Stereo Jack Female (Green)

      Connectors
    • Unit To Unit: 1 x RJ-45 Female
    • Power: 1 x DC Jack (Black) with locking

      Control
    • IR: 1 x Mini Stereo Jack Female (Black)
    • RS-232: Connector: 1 x Terminal Block, 3 pole
    • Baud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control
    • USB: 1 x USB Type B Female (White)

      Pushbuttons
    • ID Number Selection: 2 x Push buttons
    • Power Consumption: DC5V:3.08W:14BTU

      Environmental
    • Operating Temperature: 0 - 40°C
    • Storage Temperature: -20 - 60°C
    • Humidity: 0 - 80% RH, Non-Condensing

      Physical Properties
    • Housing: Metal
    • Weight: 1.1 lb
    • Dimensions (L x W x H) with bracket: 5.52 x 4.84 x 1.2 in.
    • Dimensions (L x W x H) without bracket: 5.35 x 3.98 x 1.17 in.


  • Item Includes:

    • 1x VE8950T 4K HDMI over IP Transmitter
    • 1x RS-232 Terminal block
    • 1x 5V Power adapter
    • 1x User instructions


  • GTIN:

    0672792007576
