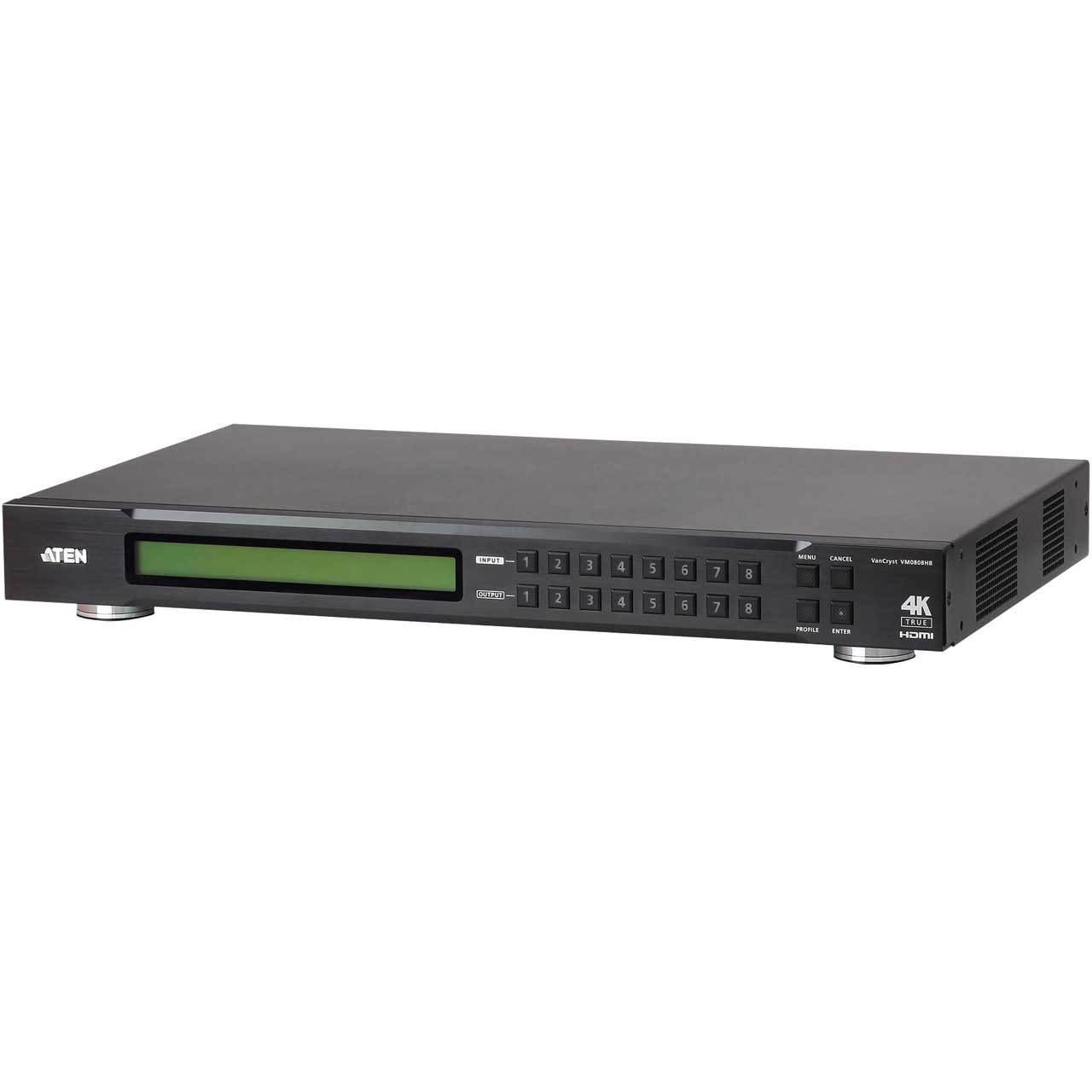

ATEN VM0808HB 8x8 True 4K HDMI Matrix Switch-TAA Compliant - 4096 x 2160 - 4K - 8x8 - 8x HDMI Out

VM0808HB - Overview

• Features:

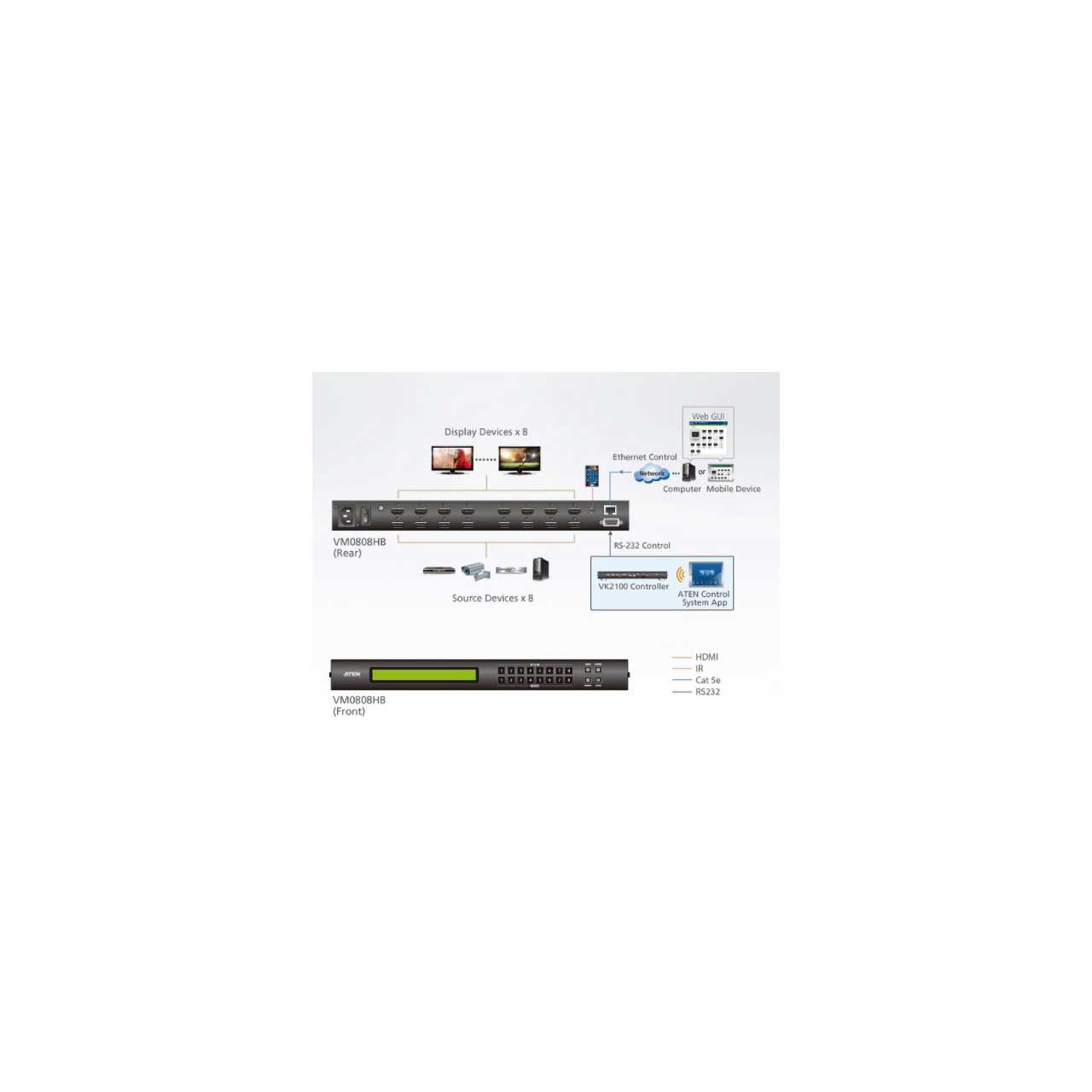

  • Connects any of 8 HDMI sources to any of 8 HDMI displays
  • Supports True 4K resolutions up to 4096 x 2160 @ 60Hz (4:4:4)
  • Supports HDR10+

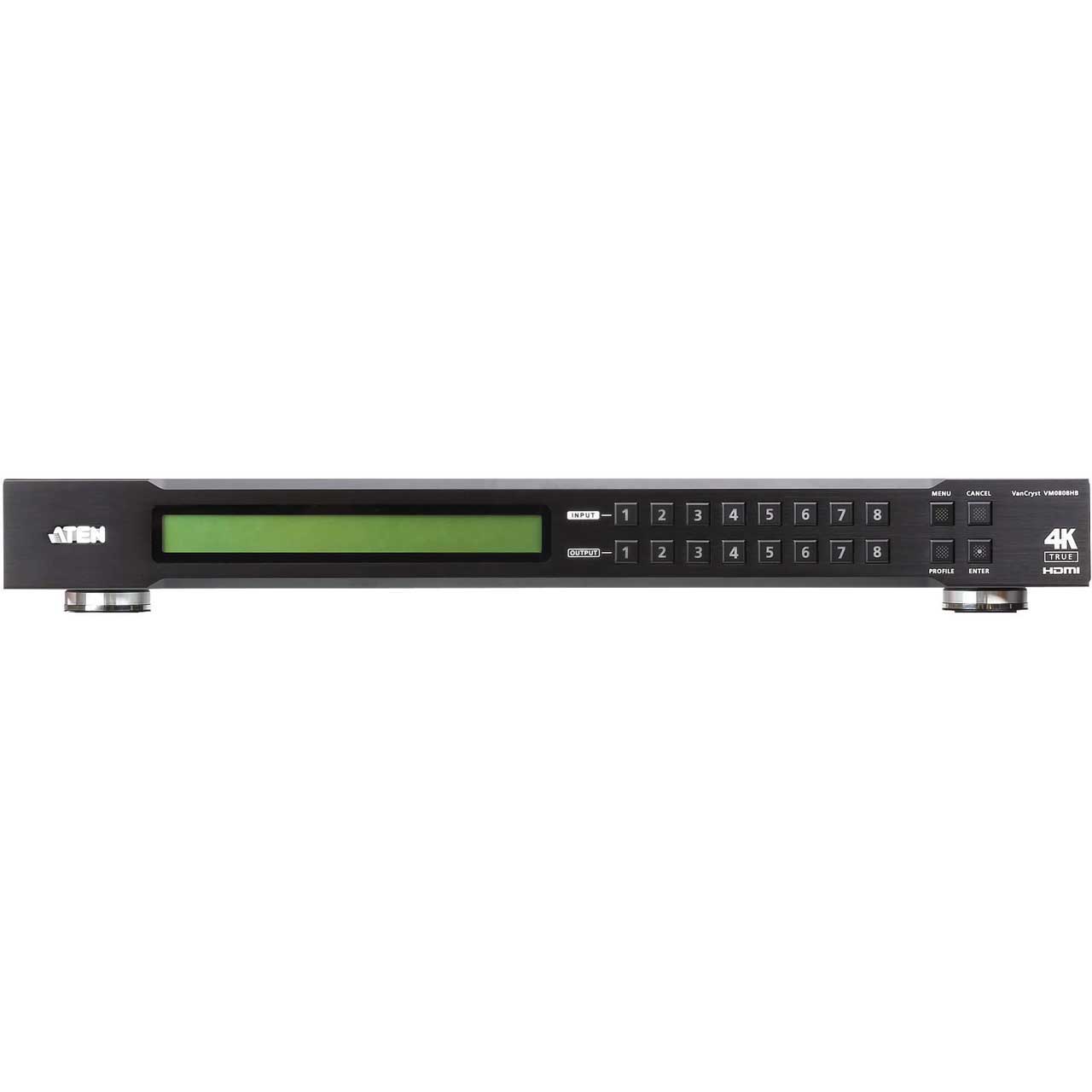

  • Multiple Control Methods - system management via front-panel pushbuttons, IR remote, RS-232 control, and Web GUI/Telnet via Ethernet connections
  • View and control via ATEN Video Matrix Control App in a swift and agile way
  • EDID Expert™ - selects optimum EDID settings for smooth power-up, high-quality display and use of the best video resolution across different screens
  • Signaling rates up to 6 Gbits for flawless true 4K output
  • Supports Dolby True HD and DTS HD Master audio
  • HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible
  • Supports Consumer Electronics Control (CEC)
  • Power-on Detection - switches to the next powered-on source when one source is powered off
  • ESD protection for HDMI
  • Supports ATEN's LockPro™ HDMI cable lock for secure HDMI cable connections
  • Firmware upgradeable
  • Rack mountable (1U design)


• Specifications:

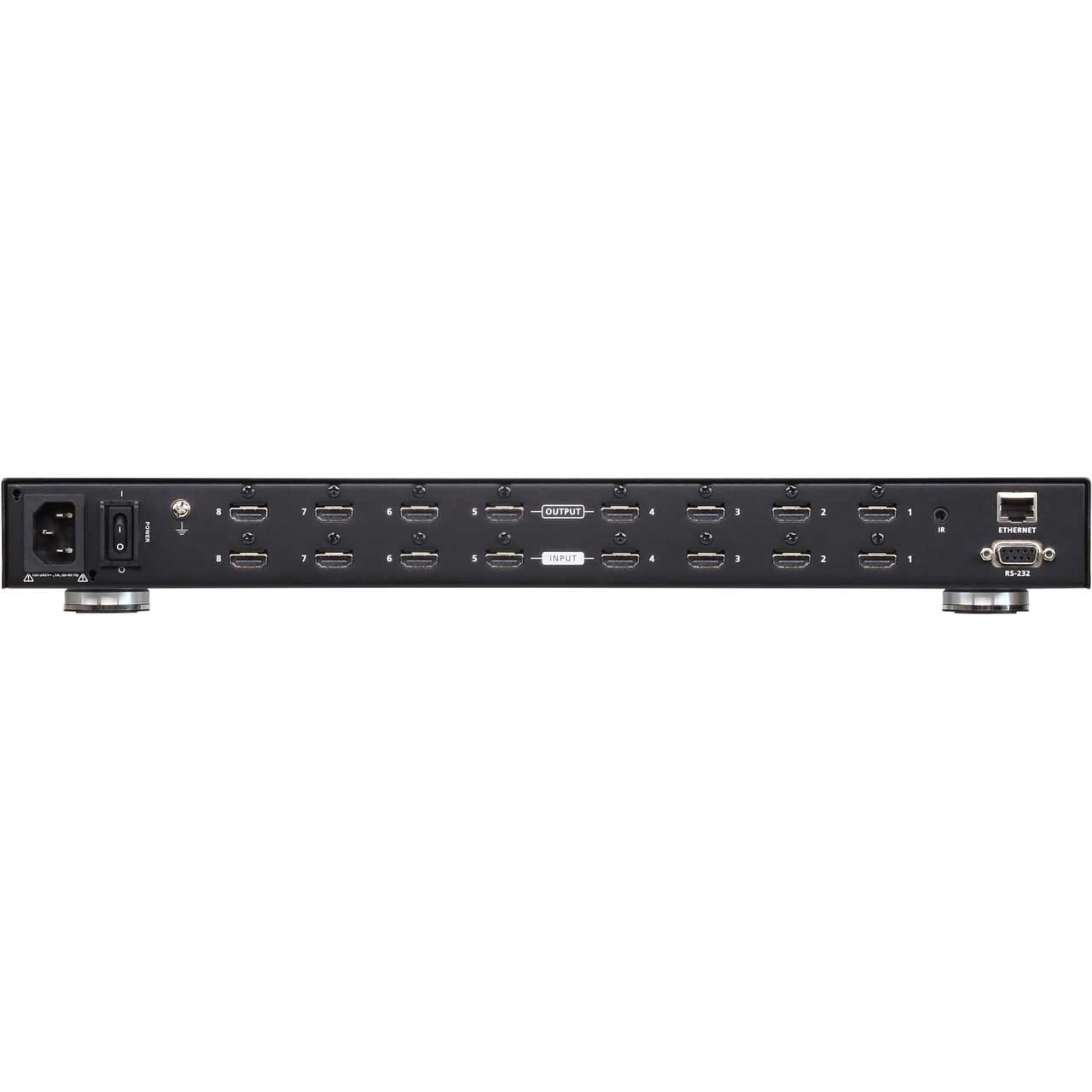

  • Video Input
  • Interfaces: 8 x HDMI Type A Female (Black)
  • Impedance: 100 Ω
  • Max. Distance: 5.0 m / 4K@60Hz (4:4:4)

    Video Output
  • Interfaces: 8 x HDMI Type A Female (Black)
  • Max. Distance: 5m / 4K@60Hz (4:4:4)
  • 15m / 1920 x 1200
  • Impedance: 100 Ω

    Video
  • Max. Pixel Clock: 600 MHz
  • Max. Resolution: Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)
  • Max. Data Rate: 18 Gbps( 6 Gbps Per Lane)
  • Compliance: HDMI (3D, 4K, Deep Color)
  • HDCP 2.2 Compatible
  • Consumer Electronics Control (CEC)

    Control
  • RS-232: Connector: 1 x DB-9 Female (Black)

    Baud Rate and Protocol
  • Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No
  • IR: 1 x Mini Stereo Jack Female (Black)
  • Ethernet: 1 x RJ-45 Female
  • EDID Settings: EDID Mode: Default / Port 1 / Remix / Customized (EDID Wizard Support)

    Environmental
  • Operating Temperature: 0-40°C
  • Humidity: 0 - 80% RH, Non-Condensing
  • Storage Temperature: -20 - 60°C

    Physical Properties
  • Weight: 3.99 kg ( 8.79 lb )
  • Housing: Metal
  • Dimensions (L x W x H): 43.24 x 26.23 x 4.40 cm (17.02 x 10.33 x 1.73 in.)

    Connectors
  • Power: 1 x 3-Prong AC Socket
  • Carton Lot: 1 pc
  • Power Consumption: AC110V:38.1W:179BTU - AC220V:37.8W:177BTU

    Power
  • Maximum Input Power Rating: 100-240 VAC; 50-60 Hz; 1.0A


• Item Includes:

  • 1x VM0808HB 8 x 8 True 4K HDMI Matrix Switch
  • 1x Power Cord
  • 1x IR Remote Control
  • 1x IR Receiver
  • 1x Rack Mounting Kit
  • 1x User Instructions


• Warranty:

  • 3 Year


• GTIN:

  0672792008795
