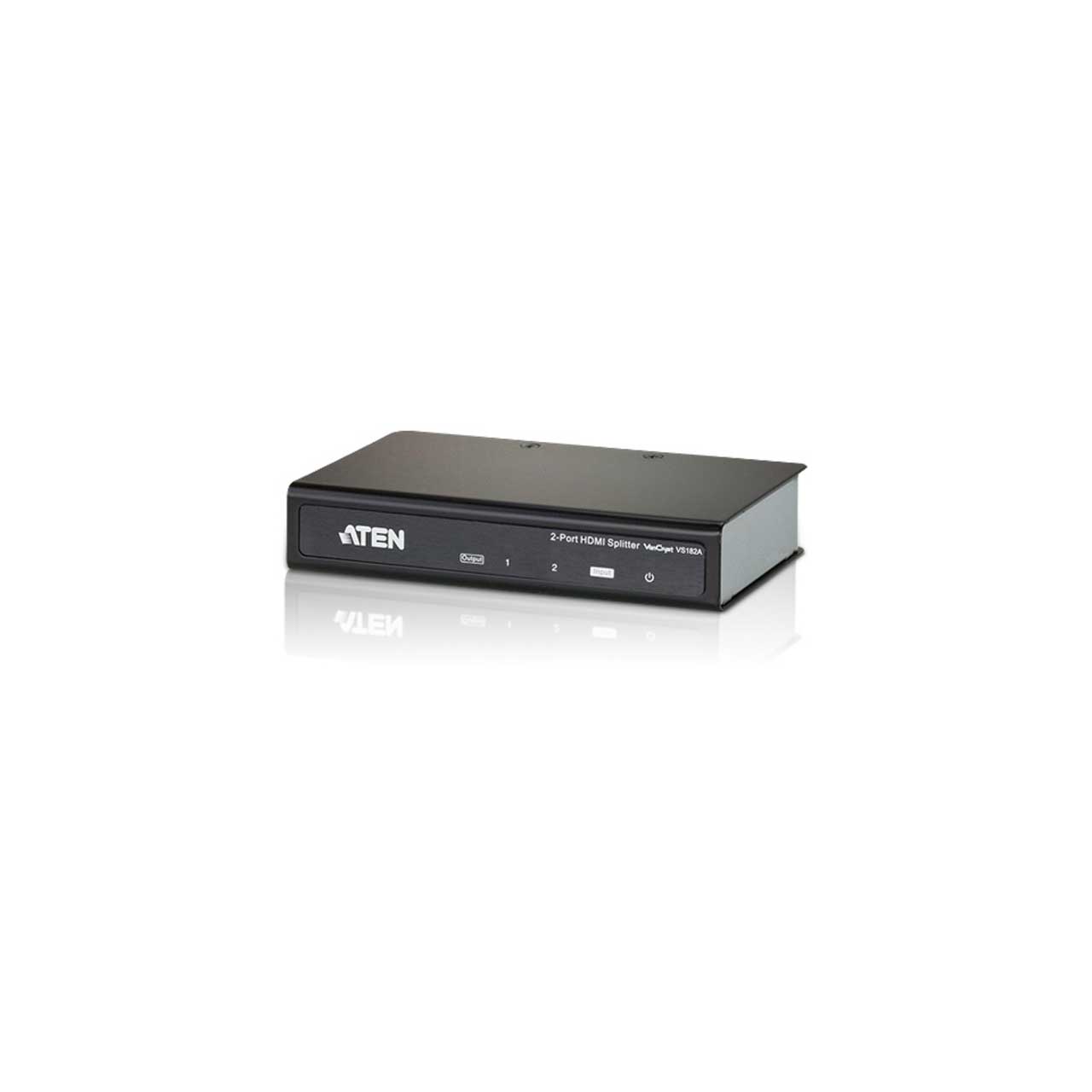

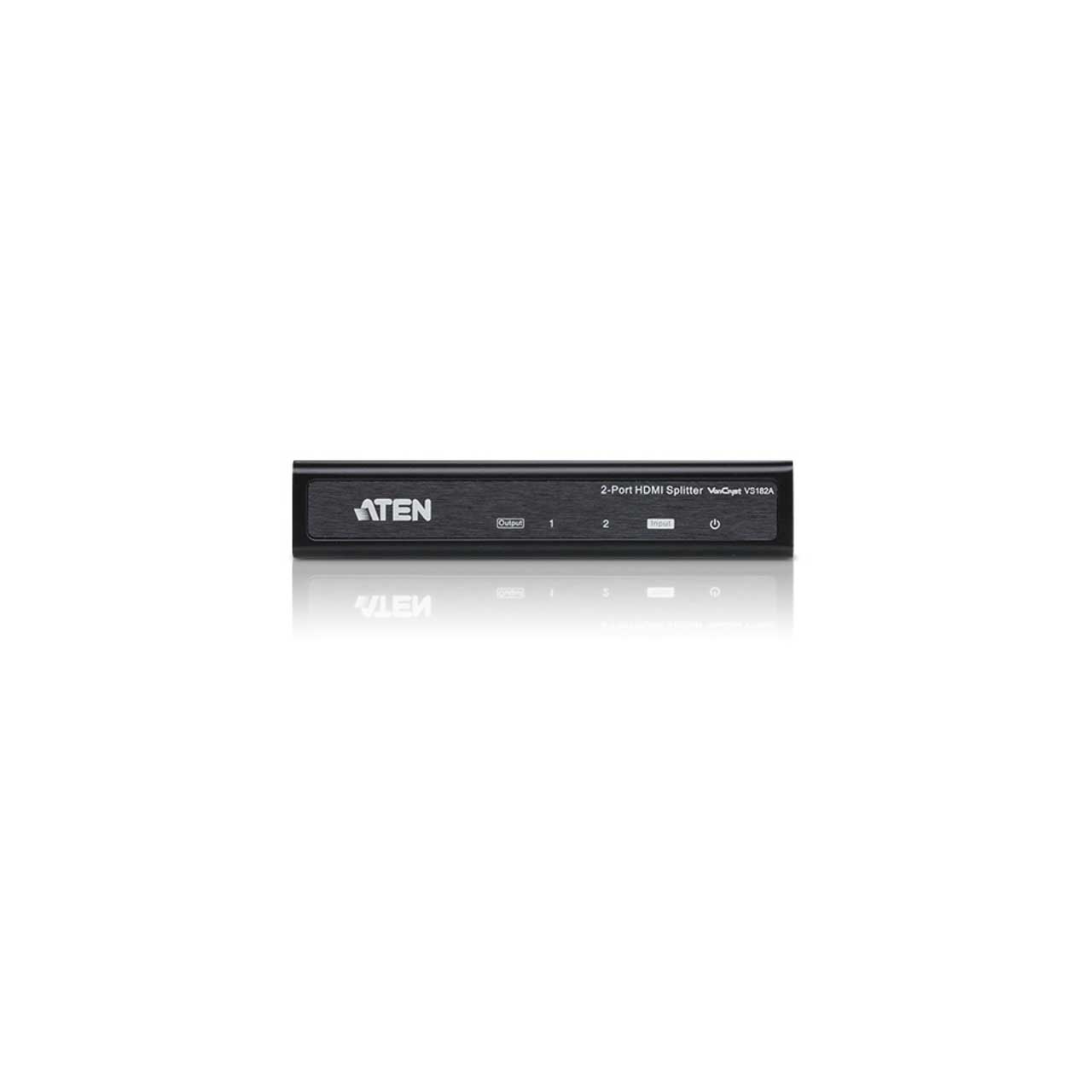

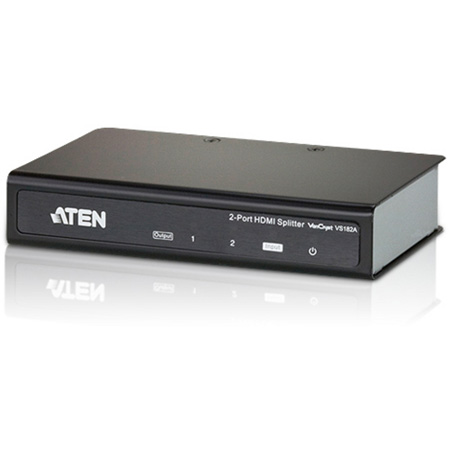

ATEN VS182A 2-Port HDMI Splitter with 4K2K Support

VS182A - Overview

• Features:

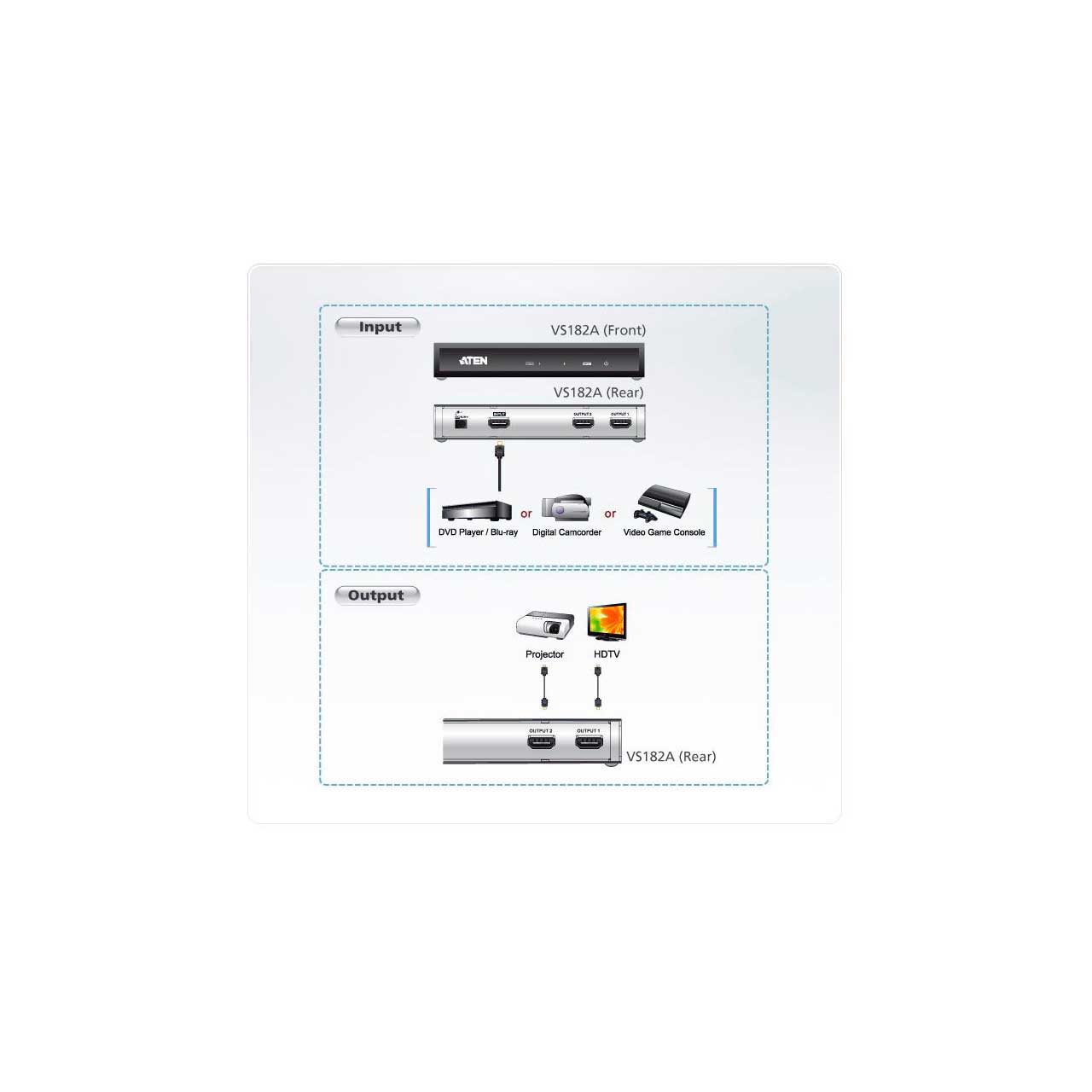

  • Connects one HDMI source to two HDMI displays at the same time
  • HDMI (3D, Deep Color, 4kx2k); HDCP Compatible
  • Supports resolutions of up to Ultra HD 4kx2k and 1080p Full HD
  • Supports Dolby True HD and DTS HD Master Audio
  • Long distance transmission - up to 50 ft. (15 m) (24 AWG)
  • Supports up to 340MHz bandwidth for high performance video
  • Signaling rates up to 3.4 Gbits in support of 1080p display
  • Plug-and-play - no software installation required


• Specifications:

  • Display Connections: 2

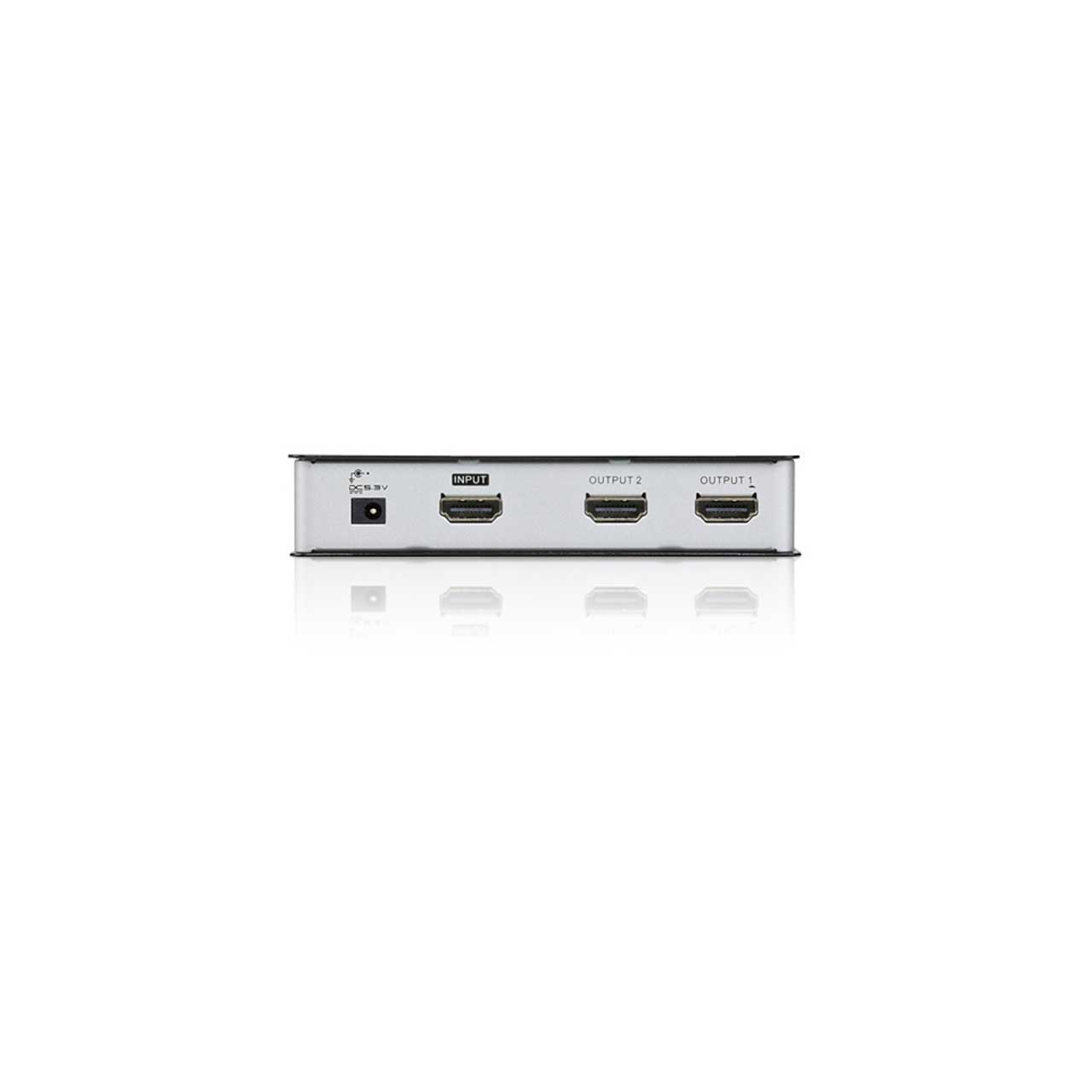

  • Connectors:
  • Device HDMI In 1 x HDMI Type A Female (Black)
  • Display HDMI Out 2 x HDMI Type A Female (Black)
  • Power 1 x DC Jack
  • LEDs:
  • Power 1 (Orange)
  • Input 1 (Green)
  • Output1 1 (Green)
  • Output2 1 (Green)
  • HDMI Resolution: 4k x 2k, 1080p
  • Power Consumption: DC5.3V, 2.0W
  • Environment:
  • Operating Temp. 0-50°C
  • Storage Temp. -20-60°C
  • Humidity 0-80% RH, Non-condensing
  • Physical Properties:
  • Housing Metal
  • Weight 0.7 lb. (0.31 kg)
  • Dimensions (L x W x H) 4.9 x 3.2 x 1 in. (12.50 x 8.15 x 2.50 cm)


• Item Includes:

  • 1x VS182A 2-Port HDMI Splitter
  • 1x Power Adapter
  • 1x HDMI Cable
  • 1x User Instructions


• GTIN:

  0672792004360
