ATEN VS481B 4-Port HDMI Switch Support 4k

ITEM #: ATEN-VS481B MFG #: VS481B

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
ATEN
Free Shipping with $49 Minimum Order

List Price:

$97.00

Our Price:

$92.15

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

VS481B - Overview

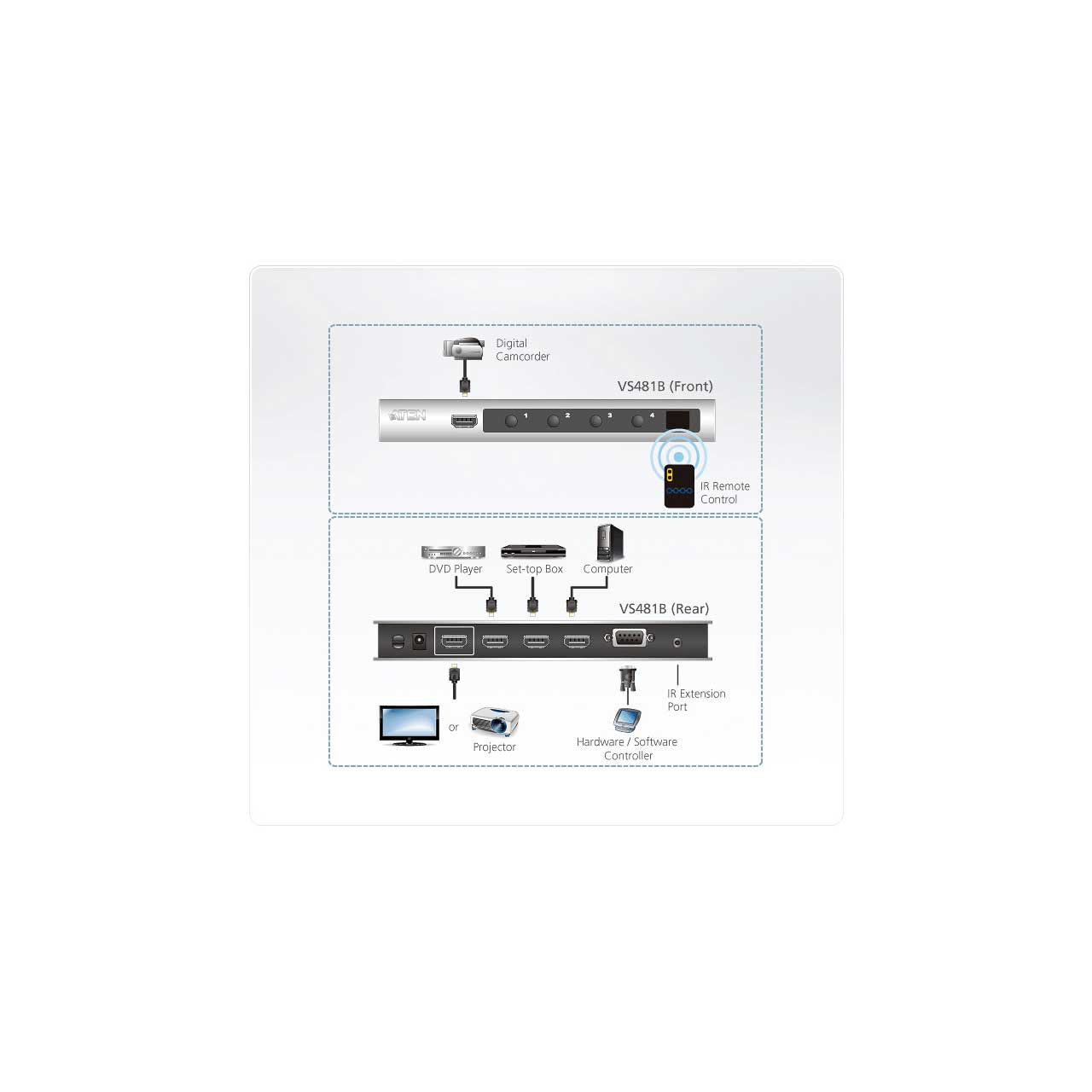

The VS481B 4-Port HDMI Switch allows you to quickly connect 4 HDMI sources to your HDMI display and easily switch between them via front panel pushbuttons, RS-232 or IR remote control. The front panel’s LEDs indicate the source device selected for the display at a glance.

The VS481B supports Ultra HD 4Kx2K, the newest resolution for high definition displays; Auto Switching modes for auto port selection;Instant Switching for a smooth video transition between HDMI ports with increased efficiency; and features a built-in bi-directional RS-232 serial port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package.

  • Features:

    • Allows up to four HDMI A/V sources to be connected to one HDMI display
    • Quick and easy switching between HDMI sources via front panel pushbuttons, RS-232 or IR Remote control
    • Supports 340MHz bandwidth for ultrahigh 4kx2k video
    • HDMI (3D, Deep Color, 4kx2k); HDCP compatible
    • Auto switching modes for auto port selection
    • Long distance transmission - up to 50 ft. (15 m) (24 AWG)
    • Consumer Electronics Control (CEC) support
    • Supports Dolby True HD and DTS HD Master Audio
    • Built-in bi-directional RS-232 serial remote port for high-end system control
    • Instant switching between HDMI input sources
    • Supports IR extension using a IR extension cable *
    • LED indication of video source devices
    • Note: The IR extension cable (Part No. 2XRT-0003G) is not included inthis package.


  • Specifications:

    • Allows up to four HDMI A/V sources to be connected to one HDMI display
    • Quick and easy switching between HDMI sources via front panel pushbuttons, RS-232 or IR Remote control
    • Supports 340MHz bandwidth for ultrahigh 4kx2k video
    • HDMI (3D, Deep Color, 4kx2k); HDCP compatible
    • Auto switching modes for auto port selection
    • Long distance transmission - up to 50 ft. (15 m) (24 AWG)
    • Consumer Electronics Control (CEC) support
    • Supports Dolby True HD and DTS HD Master Audio
    • Built-in bi-directional RS-232 serial remote port for high-end system control
    • Instant switching between HDMI input sources
    • Supports IR extension using a IR extension cable *
    • LED indication of video source devices
    • Note: The IR extension cable (Part No. 2XRT-0003G) is not included inthis package.


  • Warranty:

    • 3 years


  • GTIN:

    0672792005732
